Can Silicone Be Used in Injection Molding?

Are you frustrated with time-consuming manufacturing processes? You may want a technique that offers speed and precision. Silicone injection molding might be the answer.

Yes, silicone can be used in injection molding. This method offers fast cycle times, high accuracy, and flexibility, which makes it popular in medical, automotive, and consumer product applications.

Let’s examine how silicone injection molding works, what advantages and drawbacks it holds, and how it compares to other approaches. I will also address cost considerations, temperature factors, and common questions about silicone’s durability.

Is Silicone Suitable for Injection Molding?

Are you worried that silicone, known for its heat and flow requirements, might not behave well in an injection molding setup?

Silicone is highly suitable for injection molding, especially when using liquid silicone rubber (LSR). It tolerates high temperatures, remains flexible, and offers precise mold replication.

Silicone’s suitability relies on its formulation and viscosity. Liquid silicone rubber (LSR) typically consists of two components that, when mixed, trigger a curing reaction. In injection molding, the equipment meters and mixes these two components, creating a homogeneous compound. This is then injected into a heated mold, where cross-linking transforms the liquid silicone into a solid elastomer.

Heat and pressure in the mold activate curing, which locks in silicone’s elasticity, temperature resistance, and chemical stability. This process yields superior consistency and tight tolerances compared to older compression molding methods. Moreover, silicone stands out from thermoplastics because it does not melt at the injection stage; it starts as a flowable mixture at room temperature and cures once heated.

✅ Highlight: This approach reduces cycle times and waste. The precise metering of LSR means leftover material is minimal. The method also minimizes flash (excess material at the mold’s parting line) if the mold design and clamping are well-executed.

🛠️ Technical Note: Industries including automotive, medical, and consumer electronics value silicone injection molding for advanced geometries, cleanliness (medical compliance), and durable performance under heat or oil exposure. Automotive sensor covers or medical device components are common examples.

What Are the Benefits of Silicone Injection Molding?

Have you wondered if silicone injection molding genuinely offers advantages over traditional methods? You might want clarity on its standout perks.

Silicone injection molding brings short cycle times, minimal waste, and remarkable part consistency, making it a prime choice for high-precision sectors.

Silicone’s suitability relies on its formulation and viscosity. Liquid silicone rubber (LSR)¹ typically consists of two components that, when mixed, trigger a curing reaction. In injection molding, the equipment meters and mixes these two components, creating a homogeneous compound. This is then injected into a heated mold, where cross-linking² transforms the liquid silicone into a solid elastomer.

Heat and pressure in the mold activate curing, which locks in silicone’s elasticity, temperature resistance, and chemical stability. This process yields superior consistency and tight tolerances compared to older compression molding methods. Moreover, silicone stands out from thermoplastics because it does not melt at the injection stage; it starts as a flowable mixture at room temperature and cures once heated.

✅ Highlight: This approach reduces cycle times and waste. The precise metering of LSR means leftover material is minimal. The method also minimizes flash (excess material at the mold’s parting line) if the mold design and clamping are well-executed.

🛠️ Technical Note: Industries including automotive, medical, and consumer electronics value silicone injection molding for advanced geometries, cleanliness (medical compliance), and durable performance under heat or oil exposure. Automotive sensor covers or medical device components are common examples.

What Are the Benefits of Silicone Injection Molding?

Have you wondered if silicone injection molding³ genuinely offers advantages over traditional methods? You might want clarity on its standout perks.

Silicone injection molding brings short cycle times, minimal waste, and remarkable part consistency, making it a prime choice for high-precision sectors.

Silicone injection molding delivers multiple advantages:

1. Speed: LSR cures quickly, reducing production cycle times. This is vital in high-volume scenarios, like medical consumables or automotive seals, where throughput matters for profitability.
2. Complex Geometries: Thin walls, undercuts, and micro-features can be molded with relative ease. Intricate part designs that would challenge compression molding become more feasible.
3. Minimal Waste: The injection process, precisely metered, means leftover silicone is minimal. Less flash around the part edges also translates into less trimming and finishing.
4. Consistent Quality: Every cycle produces parts with the same dimensions and properties. For items like medical seals, consistency helps maintain product performance and compliance.
5. Durability: Silicone resists oils, chemicals, and high temperatures, so products see fewer failures due to environmental stress.

✅ Why it matters:
Manufacturers who value short lead times, precise part replication, and minimal scrap find silicone injection molding a strong contender. That helps keep costs in check over long runs, even if initial expenses are high.

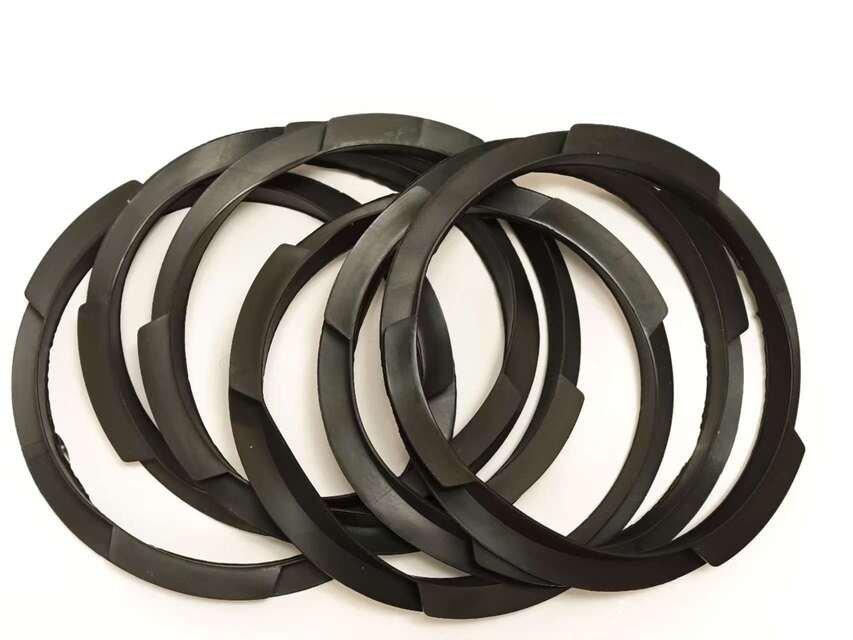

What Are the Disadvantages of Injection Molding?

Are you hesitant about injection molding due to potential drawbacks? You might need a balanced view before deciding.

Injection molding can be costly, demands precise tooling, and restricts design changes after mold fabrication. Setup times also add complexity.

Though popular, injection molding isn’t without flaws:

• High Upfront Costs⁴: Mold tooling is expensive, frequently running tens of thousands of dollars or more. This can be prohibitive for small-scale runs or frequently changing designs.
• Design Lock-In⁵: Once a mold is made, changes mean costly rework or a new mold. Early prototyping is crucial to finalize geometry before investing in tooling.
• Complex Setup: Skilled operators must configure injection pressures, mold temperatures, and cure times. Small mistakes can lead to defects or high scrap rates.
• Longer Lead Times for Molds: Designing and manufacturing a mold involves careful CNC machining, testing, and validation steps.

Below is a quick summary table:

✅ Key Takeaway:
Injection molding is best for medium-to-high volume manufacturing where the benefits of short cycle times and consistent quality offset the high tooling cost. For low-volume or rapidly evolving designs, less capital-intensive methods might suit you better.

What Is the Best Silicone for Injection Molding?

Have you seen so many silicone grades that you’re unsure which one works best for injection molding? You might need a simpler explanation.

Liquid Silicone Rubber (LSR)⁶ is typically the best choice for injection molding, offering easy flow, fast cure, and high heat tolerance.

LSR comes in two parts (A & B), which remain stable at room temperature. When mixed in precise ratios and injected into a heated mold, the cross-linking happens quickly. That yields a solid part with the characteristic silicone properties—elasticity, chemical resistance, and temperature stability.

LSR ranges in hardness from very soft (20 Shore A) to quite firm (70-80 Shore A). This variety helps engineers tailor the end product’s feel and performance. For instance, a soft grade might go into baby bottle nipples, while a tougher grade suits automotive gaskets.

🛠️ Selecting an LSR Grade:

• Medical: FDA or ISO 10993 compliant, safe for implants or medical devices.
• Flame Retardant: Additives for electronic enclosures or industrial applications.
• High Tear Strength: Withstands mechanical stress in automotive or mechanical seals.

✅ Why LSR?
LSR’s consistency and ease of mixing accelerate cycle times. The lower viscosity also means intricate part designs fill easily. For demanding or regulated industries, LSR is the gold standard.

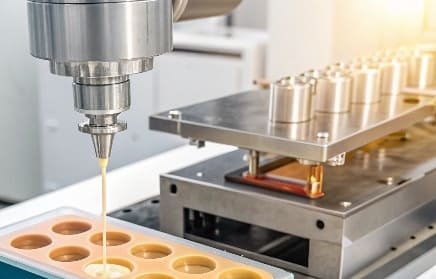

What Is the Process of Silicone Injection Molding?

Are you wondering about the actual steps behind silicone injection molding? You might want a straightforward overview.

Silicone injection molding involves mixing two-part LSR, injecting it into a heated mold, and curing it into a solid elastomer with precise shape and properties.

1. Metering & Mixing
   Two-part liquid silicone components are measured in the correct ratio using specialized pumps. Additional color masterbatch or additives may be blended in. The mixture is homogeneous and stable until heated.

2. Injection
   The cold or room-temperature mixture enters the injection unit and is forced into a heated mold. Because silicone flows at room temperature, barrel cooling ensures no premature curing.

3. Heating & Curing
   Mold temperatures often range from 150°C to 200°C. The heat triggers a rapid cross-linking reaction, transforming liquid silicone into a stable rubber part. Typical curing times vary from seconds to minutes, depending on part thickness.

4. Demolding
   Once cured, the mold opens, and the finished part is ejected. Silicone’s elasticity generally makes demolding easier, though complex shapes might need special gating or ejection strategies.

5. Post-Cure (If Required)
   Some parts, especially for medical or food-grade products, require an additional oven-based post-cure at moderate temperatures. This ensures thorough removal of volatiles and compliance with safety standards.

✅ Technical Note:
Silicone injection molding stands out for producing large volumes of intricate parts with consistent mechanical properties and minimal scrap. This reliability is crucial in industries like automotive and medical, where precision and cleanliness matter.

What Temperature Is Silicone Injection Molding?

Are you unsure about how hot silicone injection molding gets? You may need clarity on optimal mold temperatures.

Silicone injection molding often operates between 150°C and 200°C (302°F–392°F). This range promotes quick curing and robust cross-linking.

At these elevated temperatures, the cross-linking reaction for liquid silicone rubber (LSR) proceeds rapidly, cutting cycle times. Thin-walled parts may cure in as little as 15 seconds at the higher end of the temperature spectrum, while thicker parts might need closer to a minute. Finding a balance is essential. Too high mold temperatures risk scorching or incomplete part filling. Too low might result in slow curing or incomplete cross-linking.

✅ Why It Matters:
Choosing the right mold temperature ensures consistent part quality and reduces cycle time. This is especially important for high-volume production, where small cycle time improvements compound into major cost savings.

Why Is Injection Molding So Expensive?

Do you see high tooling quotes and wonder why injection molding costs so much? You might want a breakdown of contributing factors.

Injection molding is costly due to high-precision molds, specialized machinery, and skilled labor. While the upfront investment is large, it pays off when producing high volumes.

1. Tooling Costs
   Steel or aluminum molds must be CNC machined to tight tolerances. Complex parts may require multi-cavity or side-action molds, increasing complexity and cost. Typically, molds run into tens of thousands of dollars.

2. Equipment Investment
   Silicone injection molding differs from plastic injection molding by needing specialized pumps and mixing systems. This specialized machinery drives up capital expenditures.

3. Skilled Labor
   Setting up the injection parameters—temperature, pressure, injection speed—can be intricate. Skilled technicians must fine-tune them to prevent defects like flash or short shots.

4. Design Commitment
   Once a mold is cut, design changes mean rework or a new mold, adding more costs. This lock-in can be challenging if the product design is not finalized.

Below is a table summarizing cost drivers:

✅ Perspective:
For long-run production, injection molding becomes extremely cost-effective once tooling is amortized. For short-run, design-evolving products, methods like compression molding or 3D printing might be more economical unless the precision of injection molding is mandatory.

Does Silicone Deteriorate Like Rubber?

Are you concerned about the lifespan of silicone compared to standard rubber compounds? You might wonder if silicone breaks down quickly too.

Silicone degrades much slower than typical rubber⁷. It resists UV, ozone, and heat, staying stable for prolonged durations.

While both silicone and rubber are elastomers, silicone has an exceptional chemical backbone featuring silicon-oxygen bonds. This structure makes it far more resistant to environmental stressors that degrade natural or synthetic rubber. For instance, nitrile rubber might crack under long-term ozone exposure, while natural rubber can degrade in direct sunlight. Silicone stands strong in these scenarios, experiencing minimal stiffness or cracking.

However, silicone can degrade under certain strong chemicals or extremely high temperatures above its rated limit. But in day-to-day scenarios, it outperforms rubber in durability when exposed to extreme weather, UV rays, or temperature swings. That’s why automotive gaskets, medical devices, and consumer products that demand minimal maintenance frequently use silicone.

What Is the Disadvantage of Silicone?

Do you think silicone is perfect, or do you suspect it has limitations? Let’s see if there is a trade-off.

Silicone can be costlier and mechanically weaker than many rubbers, especially in scenarios that demand high tear strength or tensile load.

The higher price of silicone can weigh on your budget, particularly if you require large amounts. Another downside is that silicone’s mechanical strength, such as tear resistance, can lag behind certain specialized rubbers (like nitrile or chloroprene), which handle more abrasive environments better. Silicone’s surface can be slippery or tacky, complicating bonding or certain design details.

Its lower mechanical strength means silicone might not be ideal for heavy load-bearing or repeated friction contact. Additionally, specialized adhesives or primers are sometimes necessary to bond silicone to metal or plastic surfaces. Summed up:

If your product demands frequent mechanical stress or strict cost constraints, more robust rubber or plastic might be more fitting.

Which Is More Durable: Rubber or Silicone?

Are you searching for which material stands up longer in tough conditions? You might want to know if silicone outlasts rubber.

Silicone is typically more durable against UV, ozone, and temperature extremes, while rubber might surpass silicone in abrasion resistance for harsh mechanical environments.

Durability can involve environmental, mechanical, or chemical considerations. Silicone endures high temperatures (up to 250°C), direct sunlight, and ozone without cracking or losing flexibility. Rubber, particularly natural or certain synthetic rubbers, can degrade faster under similar stressors unless specifically formulated with protective additives.

In mechanical wear contexts, specialized rubbers (like nitrile or neoprene) might handle abrasion and friction better than silicone, which can tear more easily. Another factor is cost. If you require outdoor longevity, silicone might be the best investment, but if your environment is primarily mechanical friction, specialized rubber might outlast silicone.

✅ Choosing durability:

• Outdoor or high-temp: silicone
• Abrasion or mechanical stress: specialized rubbers

How to Tell the Difference Between Rubber and Silicone?

Are you confused by materials that look or feel similar? You might want a quick identification guide.

Rubber usually feels stiffer and more elastic, while silicone is softer, more heat-stable, and can have a more slippery surface.

One quick check is elasticity. Rubber often snaps back more forcefully if stretched, reflecting its high tensile strength. Silicone can stretch, but its rebound might be gentler. Another clue is temperature tolerance. Expose a small piece to moderate heat—rubber might soften or emit odor, whereas silicone typically remains stable and odorless.

A burn test, though not recommended in casual environments, can reveal differences in smoke color and odor. Rubber often produces heavy black smoke with a pungent smell, while silicone’s smoke is minimal and less intense in odor. Another approach is chemical exposure. Some rubbers degrade in oils or chemicals, while silicone stands up well, though certain specialized rubbers can also handle chemical exposure.

A table for easy reference:

✅ Why it matters:
Determining the material ensures correct usage. For instance, if your design needs high-temperature performance and chemical inertness, silicone is likely your best bet. But if your product calls for robust mechanical resilience, rubber might win.

Conclusion

Yes, silicone can be used in injection molding, offering speed, accuracy, and flexibility across many industries. The method does come with disadvantages such as high tooling costs and process complexity, yet it excels in producing consistent, high-quality parts.

Liquid Silicone Rubber (LSR) is typically the best option for injection molding, operating in molds heated to about 150°C to 200°C. Although injection molding can be expensive, the consistency, short cycle times, and wide temperature tolerance of silicone justify the investment for high-volume production.

Whether silicone is more durable than rubber depends on the environment—silicone excels in UV and heat resistance, while specialized rubbers can outperform in high abrasion or mechanical stress.

Lastly, identifying rubber versus silicone can be done through elasticity tests, burn tests, or checking temperature stability. With these insights, you can make informed choices about material selection and manufacturing methods.
