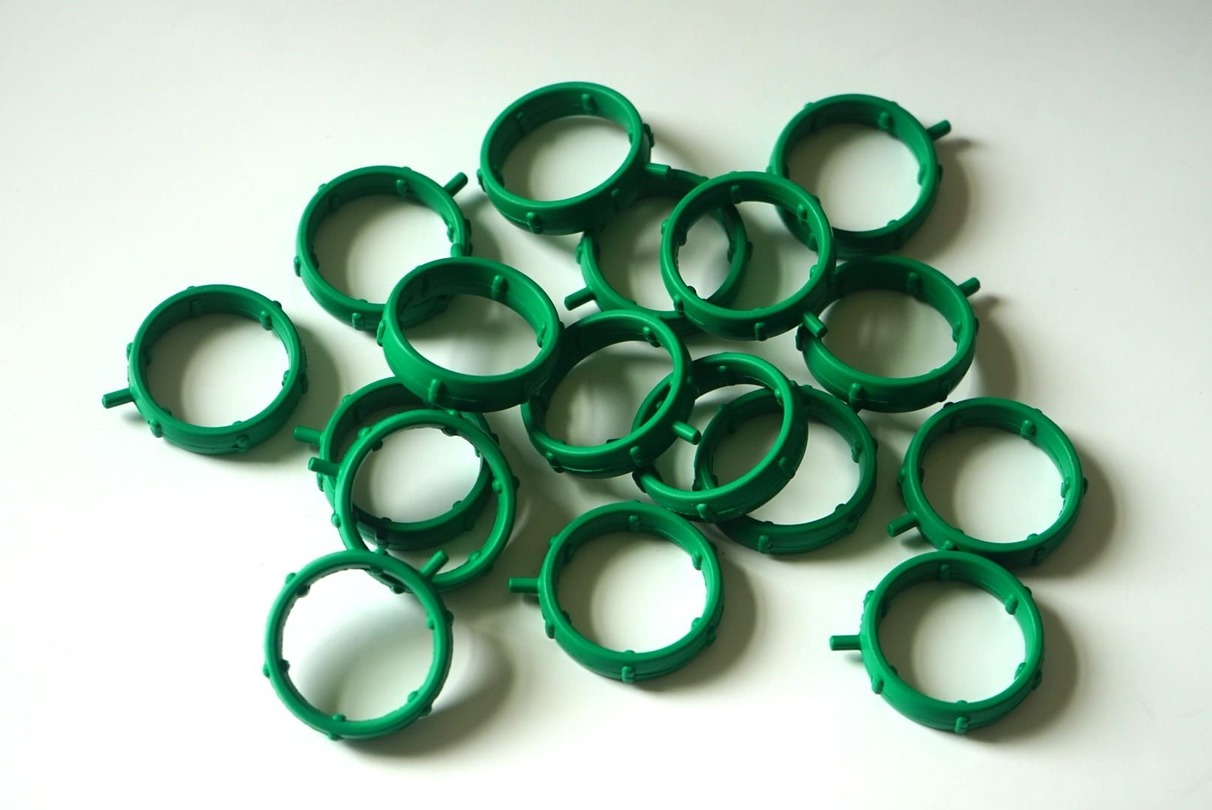

EGR flange sealing ring

EGR Flange Sealing Ring: Essential for Exhaust Gas Recirculation System Efficiency

The EGR (Exhaust Gas Recirculation) flange sealing ring is a critical component in the EGR system of modern internal combustion engines, especially in vehicles and industrial machinery. The primary function of this sealing ring is to ensure a tight seal between the EGR valve and its connection points in the exhaust and intake manifolds. It prevents leaks of exhaust gases and other fluids, ensuring that the engine operates efficiently, safely, and in compliance with environmental standards.

What is an EGR Flange Sealing Ring?

An EGR flange sealing ring is a gasket or seal specifically designed to create a secure connection between the EGR valve and the exhaust gas recirculation system's intake and exhaust manifolds. It is typically made from durable materials such as silicone, elastomers, or metal composites that can withstand the high temperatures, pressures, and chemical exposure found in exhaust systems. The sealing ring ensures that no exhaust gases or coolants leak from the connection, maintaining the efficiency and safety of the EGR system.

Key Functions of EGR Flange Sealing Rings

1. Sealing Exhaust Gases The primary function of the EGR flange sealing ring is to seal the connection between the EGR valve and the exhaust and intake manifolds, ensuring that exhaust gases do not escape. By doing so, the sealing ring prevents the loss of exhaust gases, which would otherwise result in poor engine performance, inefficient fuel consumption, and increased harmful emissions.
2. Preventing Leaks in High-Temperature Environments The EGR system operates in a high-heat environment, where exhaust gases can reach extremely high temperatures. The sealing ring is designed to handle these high temperatures and prevent leaks of exhaust gases, which could otherwise damage engine components or cause the engine to overheat.
3. Preventing Coolant Leaks In many applications, the EGR system uses a coolant to regulate the temperature of the exhaust gases before they are recirculated into the intake. The sealing ring also helps prevent coolant leaks, which could lead to engine overheating or the mixing of coolant with exhaust gases, potentially damaging sensitive engine parts.
4. Maintaining Pressure Integrity The EGR flange sealing ring ensures that the pressure within the exhaust gas recirculation system remains consistent. A compromised seal could lead to fluctuations in pressure, which would reduce the system's effectiveness and negatively impact fuel combustion, engine efficiency, and overall vehicle performance.
5. Preventing Contaminant Ingress The sealing ring helps prevent external contaminants such as dirt, debris, or moisture from entering the engine’s EGR system. This is especially important in environments where the engine may be exposed to dust, rain, or other potential sources of contamination.

Materials Used for EGR Flange Sealing Rings

1. Elastomers (Rubber Compounds) Elastomer-based sealing rings, such as those made from silicone, EPDM (Ethylene Propylene Diene Monomer), NBR (Nitrile Butadiene Rubber), and fluoroelastomers, are commonly used in EGR flange applications. These materials offer high-temperature resistance, chemical stability, and flexibility, making them well-suited to the demanding conditions of an EGR system.
2. Metal-Based Composites Metal sealing rings, often made from copper, stainless steel, or graphite, are sometimes used in high-performance or heavy-duty applications. These materials offer exceptional resistance to high pressures and extreme temperatures and are commonly used in engines that operate under intense conditions.
3. PTFE (Polytetrafluoroethylene) PTFE-based sealing rings provide superior chemical resistance and can withstand high temperatures, making them ideal for applications where the EGR system comes into contact with aggressive exhaust gases. PTFE seals are known for their low friction and long-lasting durability.
4. Graphite sealing rings are ideal for applications where thermal conductivity and resistance to high temperatures are paramount. Graphite also offers excellent compressibility, ensuring a tight seal even under fluctuating pressure conditions.

Benefits of EGR Flange Sealing Rings

1. Improved Engine Efficiency The EGR flange sealing ring ensures that the EGR system functions effectively by maintaining a secure seal. This allows the engine to recirculate exhaust gases back into the intake, which helps reduce nitrogen oxide (NOx) emissions and improve fuel efficiency, contributing to overall engine performance and environmental compliance.
2. Reduced Emissions By maintaining a tight seal, the EGR flange sealing ring plays a crucial role in reducing harmful emissions from the engine. Proper recirculation of exhaust gases leads to a reduction in NOx emissions, which is essential for meeting stringent emission regulations.
3. Enhanced Durability The materials used for EGR flange sealing rings are designed to withstand the harsh conditions of high temperatures, pressure, and exposure to exhaust gases. This ensures that the sealing ring will maintain its performance over time, even in demanding engine environments.
4. Cost Efficiency By preventing leaks, the sealing ring reduces the likelihood of engine failures caused by exhaust gas or coolant leakage. This helps reduce the need for costly repairs and ensures engine longevity.
5. Easy Maintenance and Replacement EGR flange sealing rings are typically easy to replace during routine engine maintenance, making them a cost-effective solution for maintaining the overall performance and efficiency of the EGR system.

Applications of EGR Flange Sealing Rings

1. Automotive Engines The most common application of the EGR flange sealing ring is in automotive engines. Modern vehicles, particularly diesel engines and commercial trucks, rely on efficient EGR systems to reduce harmful emissions and improve fuel efficiency. The sealing ring plays a critical role in maintaining the integrity of the system.
2. Heavy-duty machinery EGR systems are also used in industrial machinery, including construction equipment, mining vehicles, and generators, where high performance and low emissions are essential for operating in demanding environments.
3. Marine Engines Marine engines, especially in commercial shipping and recreational vessels, use EGR systems to comply with environmental standards for emissions. The EGR flange sealing ring helps ensure that the system operates effectively in these environments.
4. Agricultural Equipment Tractors, harvesters, and other agricultural machinery often use EGR systems to meet environmental standards while ensuring optimal engine performance. The sealing ring is essential in maintaining the sealing integrity of these systems.
5. Power Generation Diesel-powered generators often use EGR systems to meet emission regulations. The sealing ring ensures that the exhaust gases and coolants do not leak, maintaining the efficiency and reliability of the generator.

Why Choose Julong Rubber for EGR Flange Sealing Rings?

At Julong Rubber, we specialize in producing high-quality sealing solutions for the automotive, industrial, and commercial sectors. Our EGR flange sealing rings are engineered to meet the demanding requirements of modern engines, providing superior performance, long-lasting durability, and reliable sealing.

Why Julong Rubber?

• Custom Solutions: We offer custom-made sealing rings tailored to your specific engine model and EGR system requirements.
• High-Performance Materials: Our sealing rings are made from premium materials, such as silicone, EPDM, graphite, and PTFE, ensuring high temperature, chemical, and pressure resistance.
• Global Expertise: With years of experience in the sealing industry, Julong Rubber provides trusted solutions for customers worldwide.
• Quality Assurance: Our products undergo rigorous testing to ensure they meet global standards for quality and performance.

Contact Julong Rubber Today

If you need EGR flange sealing rings that deliver reliable performance and enhanced engine efficiency, Julong Rubber is the right partner for your sealing needs. Contact us today at info@rubberandseal.com to learn more or to request a custom quote for your EGR sealing solution.
