Rubber Bellows

Rubber Bellows: Essential Components for Flexibility and Protection

Overview:

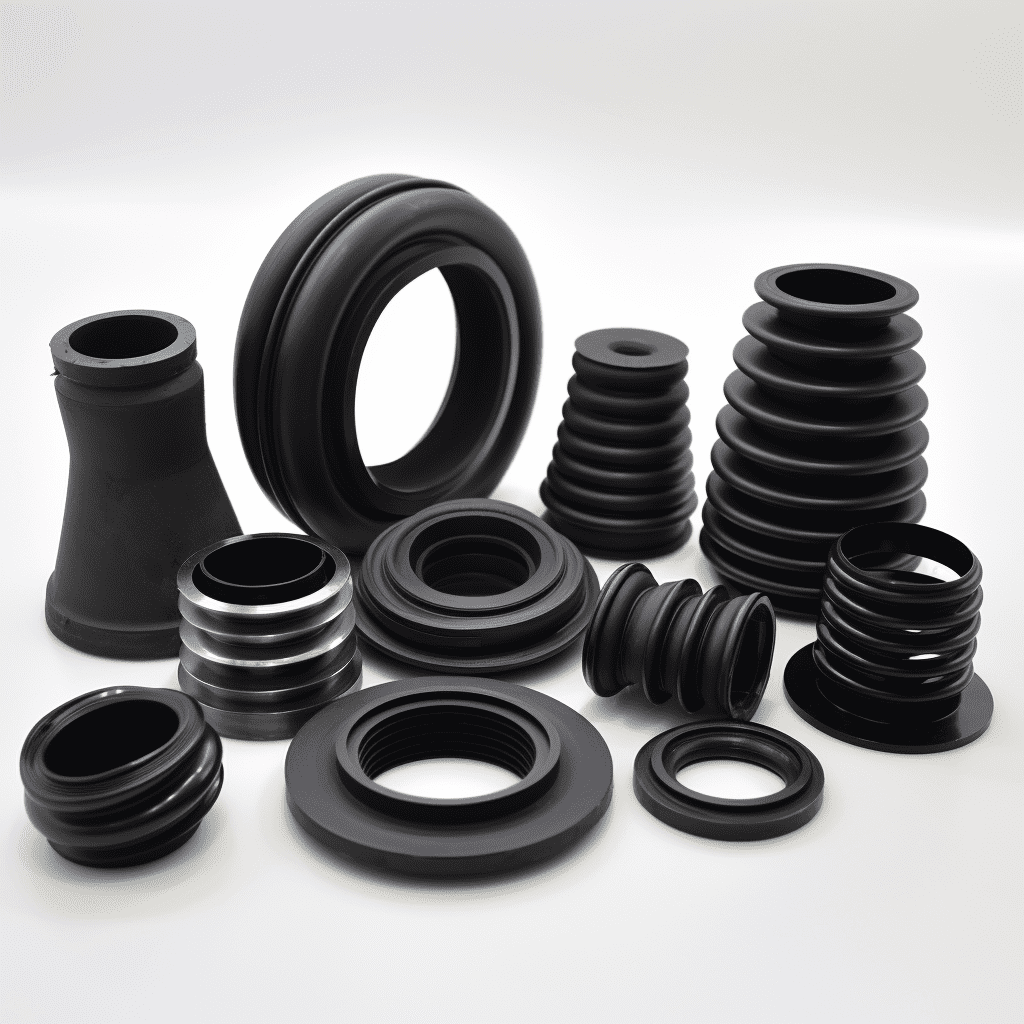

Rubber bellows are flexible, accordion-like components made from high-quality rubber materials, primarily used to protect, cover, or seal mechanical systems. These bellows provide excellent movement accommodation while also protecting sensitive parts from contaminants, debris, dust, moisture, and other environmental elements. Rubber bellows are widely used in applications requiring flexibility, pressure compensation, or environmental protection, offering a balance of performance, durability, and cost-effectiveness. At Julong Rubber, we specialize in manufacturing custom rubber bellows that provide optimal performance for a wide range of industrial, automotive, and engineering applications.

Key Features and Benefits of Rubber Bellows:

1. High Flexibility: Rubber bellows are designed to flex and expand under pressure or mechanical movement, making them ideal for applications where components need to move in a controlled, fluid manner. The accordion-style folds allow for smooth and reliable movement, ensuring that the bellows can expand and contract without damage.
2. Durable Protection: Rubber bellows act as protective barriers for machinery, rods, pistons, or shafts, keeping dirt, dust, moisture, and other contaminants away from critical moving parts. This protection extends the lifespan of the equipment by reducing wear and tear, corrosion, and contamination.
3. Resistance to Harsh Environments: Rubber bellows are made from materials like EPDM, Nitrile, Silicone, and Neoprene, which offer excellent resistance to UV light, chemicals, extreme temperatures, and ozone. This makes rubber bellows suitable for use in harsh industrial and automotive environments.
4. Pressure Compensation: Rubber bellows can also serve as compensators, adjusting for changes in pressure within a system. This is especially important in systems that involve fluids, gases, or mechanical movements where pressure fluctuations need to be accommodated to maintain stable operation.
5. Customization: Rubber bellows can be custom-designed to meet specific requirements such as size, shape, material, and performance characteristics. Whether you need a bellow to fit a particular piece of machinery or a part that can withstand extreme conditions, custom solutions ensure a perfect fit for your needs.
6. Vibration and Shock Absorption: Rubber bellows are effective in absorbing vibrations and shocks, which is particularly beneficial in automotive and industrial applications. The rubber material helps to dampen noise and prevent damage caused by mechanical movements or external forces.
7. Cost-Effective and Low Maintenance: Rubber bellows provide an economical solution for many applications, offering long-lasting protection at a relatively low cost. Since they help prevent damage to expensive machinery, the long-term maintenance costs are also reduced.

Common Applications of Rubber Bellows:

1. Automotive Industry: In automotive systems, rubber bellows are commonly used in suspension systems, steering shafts, and drive shafts to protect joints, rods, and other sensitive components from dirt, moisture, and road debris. They ensure smooth operation, reduce wear, and improve the longevity of automotive parts.
   • Applications: Steering system bellows, suspension bellows, drive shaft bellows, engine compartment bellows.
2. Industrial Equipment: Rubber bellows are crucial in protecting moving parts of machinery, such as pistons, shafts, and actuators, from contamination. They are widely used in industries like manufacturing, robotics, and CNC machinery, where components are subjected to frequent movement.
   • Applications: CNC machine bellows, piston covers, shaft seals, machine tool covers.
3. HVAC Systems: In heating, ventilation, and air conditioning (HVAC) systems, rubber bellows are used to connect ducts or pipes, accommodating the expansion and contraction of materials due to temperature fluctuations. They help reduce noise, and vibrations, and ensure airtight seals.
   • Applications: HVAC duct connectors, vibration dampening, pipe expansion joints.
4. Medical Devices: Rubber bellows play a vital role in medical devices, where they are used for fluid handling, air pumps, and seals in laboratory equipment. Silicone rubber, in particular, is used for its biocompatibility and ability to withstand sterilization processes.
   • Applications: Medical pumps, dialysis machines, fluid handling systems, laboratory equipment.
5. Aerospace and Military: In aerospace and military applications, rubber bellows are used to provide protection and flexibility in highly demanding environments. These bellows are critical for sealing and protecting sensitive equipment from dust, moisture, and extreme temperatures.
   • Applications: Aircraft fuel lines, hydraulic systems, aerospace seals, military vehicle bellows.
6. Food and Beverage Industry: Rubber bellows are used in the food and beverage industry to ensure the safe transfer of liquids and gases while maintaining hygienic conditions. FDA-approved rubber materials such as Silicone are commonly used in food processing systems.
   • Applications: Food processing pumps, beverage dispensing systems, hygiene seals, fluid transfer lines.
7. Fluid Handling Systems: In various fluid handling systems, rubber bellows are used to accommodate pressure changes, protect moving parts, and prevent contamination. These bellows are commonly used in pumps, valves, and tubing systems that handle chemicals, oils, or water.
   • Applications: Pump seals, valve bellows, pressure compensators, chemical fluid lines.

Materials Used in Rubber Bellows:

1. EPDM (Ethylene Propylene Diene Monomer): EPDM is known for its excellent resistance to UV light, ozone, and extreme temperatures. It is commonly used in automotive, industrial, and HVAC applications, where exposure to the elements is a concern.
   • Applications: Automotive bellows, outdoor equipment protection, HVAC seals.
2. Nitrile Rubber (Buna-N): Nitrile rubber offers superior resistance to oils, fuels, and chemicals, making it the go-to material for automotive and industrial applications where the bellows may be exposed to harsh substances.
   • Applications: Automotive, oil handling systems, industrial machinery.
3. Silicone Rubber: Silicone rubber is highly flexible and biocompatible, making it ideal for medical and food processing applications. It can also withstand high temperatures, making it suitable for environments that require both flexibility and thermal stability.
   • Applications: Medical devices, food processing, high-temperature seals.
4. Neoprene Rubber: Neoprene provides excellent resistance to weathering, ozone, and aging, making it suitable for outdoor and industrial applications where environmental exposure is significant.
   • Applications: Industrial bellows, vibration dampening, protective covers.
5. Viton Rubber (Fluoroelastomer): Viton is a high-performance material used for applications requiring resistance to extreme chemicals, oils, and high temperatures. It is commonly used in industries like aerospace, automotive, and chemical processing.
   • Applications: Aerospace, automotive fuel lines, chemical processing.

Rubber Bellows Manufacturing Processes:

1. Compression Molding: Compression molding is used to manufacture rubber bellows by placing rubber material into a heated mold. The mold then compresses the rubber into the desired shape. This process is efficient for low to medium-volume production runs.
   • Applications: Simple bellows shapes, low-volume production.
2. Injection Molding: Injection molding involves injecting molten rubber into a mold under high pressure. This method is used for producing rubber bellows with intricate designs and high precision, ideal for large production runs.
   • Applications: Complex bellows designs, high-volume production.
3. Extrusion and Forming: In this process, rubber is forced through a die to create a continuous shape, which is then cut into the desired length for bellows applications. This method is ideal for creating flexible bellows with a uniform structure.
   • Applications: Long bellows, uniform shapes, continuous production.
4. Liquid Silicone Rubber (LSR) Molding: LSR molding is used to create flexible, durable rubber bellows, especially when high performance and biocompatibility are required. This process is suitable for medical and food applications.
   • Applications: Medical devices, food processing, high-performance seals.

Why Choose Julong Rubber for Custom Rubber Bellows?

1. Tailored Design: At Julong Rubber, we specialize in providing custom rubber bellows designed to meet the unique needs of your application. Whether you need a specific size, shape, or material, our team will work with you to create the perfect solution.
2. High-Quality Materials: We use premium materials such as EPDM, Nitrile, Silicone, and Neoprene to ensure the highest level of durability, flexibility, and resistance to environmental factors. Our materials are selected based on your specific application, ensuring the bellows perform optimally.
3. Advanced Manufacturing: Our rubber bellows are manufactured using cutting-edge molding techniques, ensuring precision, tight tolerances, and consistent quality. Whether you need a one-off prototype or a high-volume production run, we can deliver.
4. Global Expertise: With years of experience in the rubber industry, we provide reliable, cost-effective solutions to customers worldwide. We specialize in automotive, industrial, medical, and consumer applications, making us a trusted partner for your rubber bellow needs.

Rubber bellows are critical components for a wide range of applications, offering flexibility, protection, and pressure compensation for moving parts and sensitive systems.

At Julong Rubber, we provide high-quality, custom rubber bellows tailored to your specific needs, using durable materials such as EPDM, Silicone, and Nitrile. Whether you need rubber bellows for automotive, industrial, medical, or other specialized applications, we have the expertise to deliver high-performance solutions that meet the highest standards of quality and reliability.
