Rubber Sealing Rings: Essential Components for Fluid and Pressure Containment

Rubber sealing rings are critical components widely used in various industries, primarily for their ability to create leak-proof seals in mechanical systems. These seals are designed to prevent the leakage of fluids or gases, ensuring efficient operation and protecting machinery from potential damage due to external contaminants. Below is a detailed description of rubber sealing rings, with an emphasis on their technical specifications, benefits, and applications.

What Are Rubber Sealing Rings?

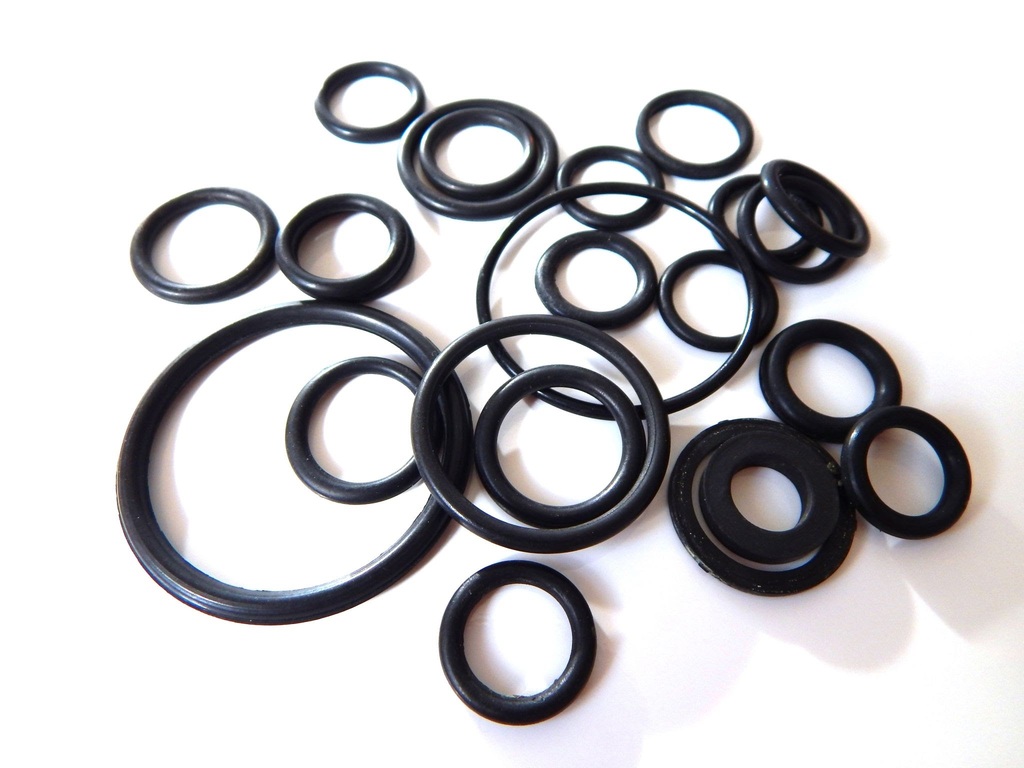

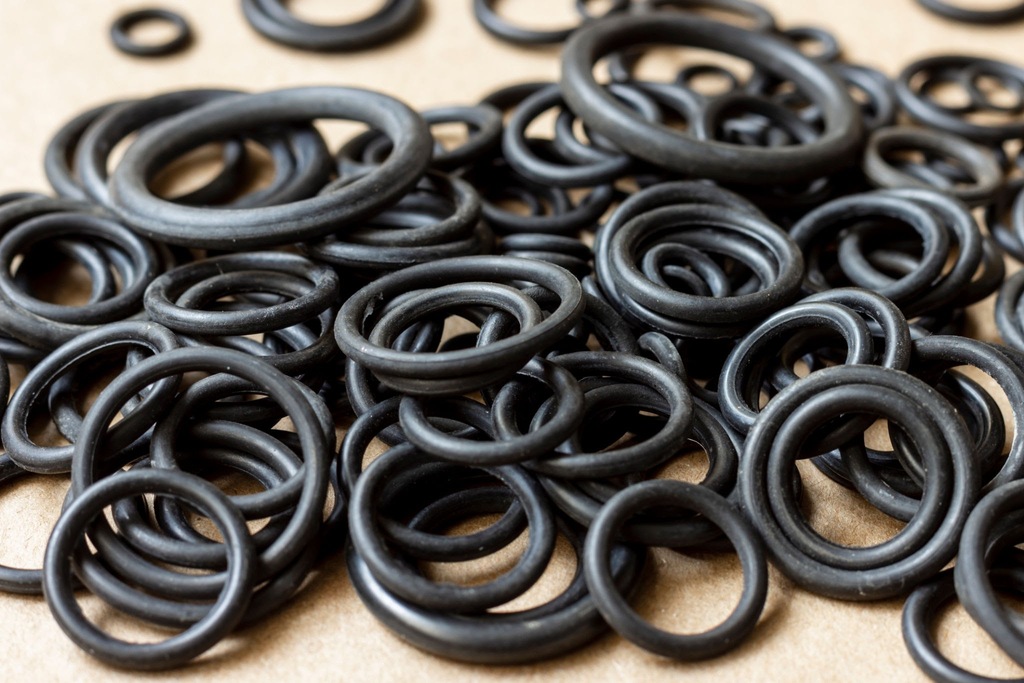

Rubber sealing rings, also referred to as O-rings or rubber gaskets, are circular rubber components made to fit into grooves, creating a seal that prevents leakage. The seal is formed when the rubber ring is compressed between two mating surfaces under pressure. These rings are often made from a variety of rubber compounds, including Nitrile (NBR), EPDM, Viton, and Silicone, which are selected based on the specific application requirements such as temperature range, chemical resistance, and flexibility.

Key Features of Rubber Sealing Rings:

1. Material Composition: Rubber sealing rings are made from high-quality elastomers, allowing them to maintain their shape and sealing properties under stress. The choice of rubber material significantly affects their resistance to chemicals, temperature extremes, and mechanical wear.
   • Nitrile Rubber (NBR): Known for its excellent resistance to oils, fuels, and other petroleum-based fluids.
   • EPDM (Ethylene Propylene Diene Monomer): Ideal for sealing in environments exposed to water, steam, and various chemicals.
   • Viton: A high-performance material that withstands aggressive chemicals, fuels, and high-temperature environments.
   • Silicone Rubber: Offers superior flexibility and performance at both high and low temperatures, suitable for food-grade and medical applications.
2. Durability and Resistance: Rubber sealing rings are engineered to endure dynamic pressure, vibration, and thermal stress. Depending on the material, these seals can withstand varying degrees of abrasion, UV exposure, and chemical degradation.
3. Customizable Shapes and Sizes: Rubber sealing rings are often manufactured in custom sizes to fit a wide range of applications. These seals can be produced to precise specifications, ensuring a tight fit within the grooves of the equipment they seal.
4. Cost-Effective Solution: Rubber sealing rings provide an affordable sealing solution without compromising on performance, especially when compared to metal or plastic alternatives. Their low cost, combined with excellent sealing properties, makes them a preferred choice for many industries.

Applications of Rubber Sealing Rings

Rubber sealing rings are versatile and used across various industries, including:

1. Automotive Industry: In automotive applications, rubber sealing rings are used in engines, fuel systems, and transmissions to prevent fluid leakage, minimize wear, and ensure optimal performance.
2. HVAC Systems: HVAC systems rely heavily on rubber sealing rings for sealing pipes, ducts, and joints to prevent air or fluid leaks, improving system efficiency and preventing contamination.
3. Aerospace and Aviation: In the aerospace sector, rubber sealing rings are used for fuel, hydraulic, and pneumatic systems. Their high temperature and pressure resistance make them ideal for maintaining integrity under extreme conditions.
4. Oil and Gas Industry: Rubber sealing rings are crucial in the oil and gas industry, where they help seal pipes, valves, and tanks, preventing hazardous fluid or gas leaks that could lead to environmental contamination or safety issues.
5. Food and Beverage Processing: Silicone rubber sealing rings are often employed in food and beverage processing systems due to their non-toxic nature and ability to maintain sanitary conditions.
6. Medical Devices: Medical-grade rubber sealing rings, especially those made from Silicone, are used in medical devices such as pumps, valves, and infusion systems to prevent leaks and maintain hygienic conditions.

Benefits of Rubber Sealing Rings:

• Leak Prevention: Rubber sealing rings are specifically designed to prevent leaks in high-pressure or fluid-filled systems. They create a tight seal between mating parts, stopping the escape of gases or liquids.
• Flexibility and Compression Set Resistance: Rubber rings provide excellent flexibility and can withstand compression set, which ensures they retain their shape after being compressed, thus maintaining an effective seal for longer periods.
• Ease of Installation and Replacement: Due to their simple design, rubber sealing rings are easy to install and replace, reducing downtime during maintenance and repairs.
• Customization: With advancements in rubber molding and extrusion technologies, rubber sealing rings can be made in a wide range of sizes, shapes, and compounds, allowing them to be customized for highly specific sealing needs.

Factors to Consider When Choosing Rubber Sealing Rings:

1. Chemical Compatibility: Ensure the rubber material is compatible with the fluid or gas it will come into contact with. Different rubber compounds exhibit varying resistance to oils, fuels, chemicals, and solvents.
2. Temperature Range: Choose a rubber sealing ring with the appropriate temperature resistance for the application. For instance, NBR is suitable for moderate temperatures, while Viton and Silicone handle high-temperature environments better.
3. Pressure Conditions: Ensure the rubber sealing ring can withstand the required pressure. In dynamic applications (where there is movement), rubber rings need to handle both pressure and shear forces.
4. Size and Fit: Ensure the sealing ring is properly sized for the groove in which it will fit. An improper fit can result in leaks or premature failure of the seal.
5. Application Environment: Consider environmental factors such as exposure to UV light, ozone, or other external conditions that may cause degradation of the rubber material.

Conclusion:

Rubber sealing rings are essential for ensuring the integrity and efficiency of many systems, from automotive and HVAC to aerospace and industrial machinery. Their versatility, durability, and cost-effectiveness make them indispensable in applications requiring tight seals under varying conditions. By selecting the right material and size, businesses can ensure long-lasting and reliable sealing solutions that prevent costly leaks, reduce maintenance, and improve overall system performance.

If you are looking for custom rubber sealing rings or other high-quality rubber sealing products for your applications, feel free to reach out to us at Julong Rubber. We specialize in manufacturing top-grade rubber seals, gaskets, and custom rubber components tailored to meet your specific requirements. Visit our website rubberandseal.com for more details. sorbing vibrations, resisting temperature variations, and ensuring compatibility with various chemicals.
