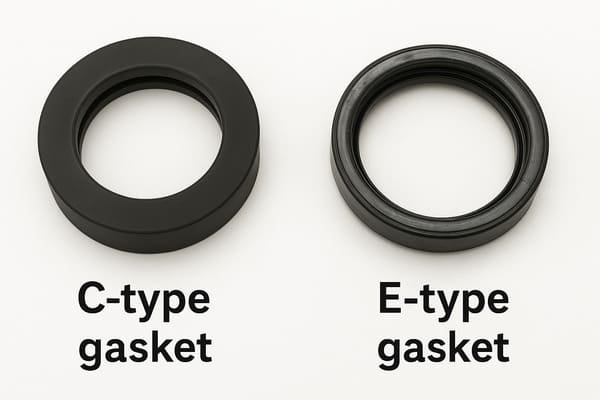

C-type vs E-type grooved gasket, how to choose the right one?

Choosing the wrong gasket type might seem like a small error, but it can lead to leaks, failed inspections, or premature seal failure. I've seen customers struggle with this, especially when switching between grooved couplings and flange adapters.

C-type gaskets are designed for grooved couplings, sealing around the pipe’s outer diameter. E-type gaskets are made for flanged joints, offering full-face coverage with bolt alignment. The right choice depends on your system type and connection method.

If you're not sure which one to choose, you're not alone. I often get this question from project engineers and HVAC installers who manage both coupling systems and flange connections. Let me walk you through what makes each type different and when to use them.

What defines a C-type grooved gasket?

C-type gaskets have a C-shaped cross-section that fits inside the groove of a pipe end. When you tighten the coupling housing, the gasket compresses radially to form a tight seal against the pipe wall.

This type is the industry standard for most mechanical pipe joint systems like fire protection, HVAC, and industrial water supply.

Here’s why they’re so widely used:

• They seat quickly and fit into both rigid and flexible couplings.
• They are available in EPDM, nitrile, and other elastomers¹ depending on fluid compatibility.
• They require minimal alignment effort and have good vibration tolerance.

Many of the gasket models we produce at Julong Rubber—like RGD1 and FLX1—follow the standard C-type format. I recommend these for customers looking for reliable seals in typical low- to medium-pressure environments.

What is unique about the E-type grooved gasket?

The E-type gasket has a completely different job. It’s a full-face gasket, designed to cover the entire flange surface and align using bolt holes. Unlike the C-type, it doesn’t sit inside a groove but rests between flanges or flange adapters.

It’s used when you need precise bolt alignment, extra sealing area, or electrical insulation between flanges.

Why it’s used in specialized applications:

• It provides full-face contact, protecting the flange from corrosion or electrical leakage.
• It’s common in flange insulation kits³ and ANSI/PN standard flanges.
• It comes with bolt holes that align easily during assembly.

We’ve used E-type gaskets⁵ in power plants and marine systems where flanged connections must meet electrical isolation or dielectric standards. I always advise customers to double-check flange specs before choosing this profile.

How do you decide between C-type and E-type?

It comes down to what type of joint you're sealing. If you're dealing with grooved mechanical couplings, C-type is the correct option. If you're connecting flanged pipes or using flange adapters, E-type is the better fit.

Choose C-type for grooved couplings. Choose E-type for flanged connections, insulation kits, or when bolt alignment and full-face sealing are required.

Here’s a practical guide I often use with clients:

One of my Dutch customers had a project that combined flexible couplings⁸ and flanged pump connections. We supplied both C-type and E-type gaskets labeled by system section, which helped the team install with zero confusion—and zero leaks.

Before placing a bulk gasket order, confirm these five points:

1. Connection type⁹: Grooved or flanged?
2. Pipe or flange size: Match OD or bolt pattern.
3. Material needed¹⁰: EPDM for water, NBR for oil, silicone for food-grade.
4. Pressure and certification¹¹: UL/FM needed? Confirm with your spec sheet.
5. Environmental factors: UV, ozone, temperature—make sure your material can handle it.

I always ask for technical drawings or pictures of the coupling or flange when helping a new customer choose. It’s easier to get it right upfront than to correct mistakes later.

Conclusion

Use C-type gaskets for grooved couplings. Use E-type gaskets when full-face sealing or bolt alignment is required in flange applications. Matching the profile to the joint type ensures your system seals right the first time.
