Rubber diaphragms may look similar—but what’s inside changes everything. Pick the wrong type, and your valve or pump might leak, stiffen, or tear apart under stress.
Rubber diaphragms vary by shape (flat, rolling, convoluted, dished) and material (EPDM, NBR, neoprene, silicone, PTFE). Their performance depends on movement range, pressure load, and chemical exposure.
I’ve helped clients across HVAC, pharma, and food sectors choose the right diaphragm—because function depends on more than just diameter or thickness. Let's break it down.

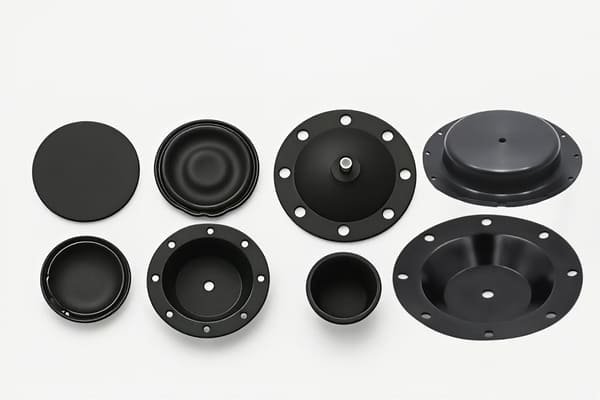

What are the main shapes of rubber diaphragms?
Diaphragms aren’t one-size-fits-all. Their shape determines how they move, flex, and seal under pressure.
Rubber diaphragms come in flat, convoluted, dished, and rolling shapes. Each serves different mechanical and sealing needs.
✅ Common Rubber Diaphragm Shapes
| Shape | Description | Typical Use Case |
|---|---|---|
| Flat | Simple, unformed rubber sheet | Static seal, low-pressure zones |
| Convoluted1 | With folds/creases to allow flex and long life | Pneumatic actuators, regulators |
| Dished | Bowl-like structure for volume containment | Fluid reservoirs, dosing systems |
| Rolling | Rolls in motion for long strokes and minimal stress | Flow meters, precision dosing pumps |
When a customer needed ultra-long stroke movement in a fluid meter, I recommended a rolling diaphragm. It lasted 5x longer than the flat type they used before.

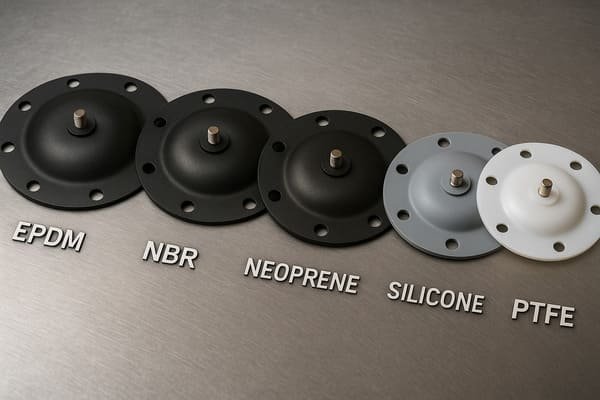

What rubber materials are used for diaphragms?
Different rubbers react differently to heat, oil, or chemicals. And not every customer can afford to experiment.
Common rubber types for diaphragms include NBR, EPDM, neoprene, silicone, and PTFE. Each has unique strengths for oils, weather, heat, or aggressive chemicals.
🛠️ Rubber Material Comparison Table
| Material | Key Features | Limitation |
|---|---|---|
| Nitrile (NBR)2 | Oil, fuel resistant | Poor ozone and weather resistance |
| EPDM3 | Heat, ozone, steam, weather resistant | Not suitable for oil exposure |
| Neoprene | General-purpose chemical resistance | Limited high-temp range |
| Silicone4 | Extreme temperature resistance | Lower mechanical strength |
| PTFE | Chemically inert, high temp resistance | Rigid unless combined with rubber |
A Dutch customer using silicone in HVAC dampers wanted something cheaper but just as durable. We moved them to EPDM—it cost 40% less and still passed every performance test.
What are fabric-reinforced and metal-bonded rubber diaphragms?
Plain rubber works—until your system demands more strength, longer life, or higher pressure resistance.
Fabric-reinforced and metal-bonded diaphragms add strength, reduce deformation, and extend life in dynamic or high-pressure environments.
✅ Reinforcement Options
| Type | Structure | Advantage |
|---|---|---|
| Fabric-reinforced | Nylon or polyester mesh inside rubber | High burst pressure, longer flex life |
| Metal-bonded | Rubber chemically bonded to metal plate | Improved mechanical stability and sealing |
| Dual-layer or composite | Rubber + PTFE or metal/fabric layers | Balanced chemical resistance and elasticity |
I worked on a seawater pump project where the diaphragm had to last 2,000 hours. We used a fabric-reinforced5 EPDM base with a PTFE face layer. It passed durability tests with ease.
How do diaphragm types match specific applications?
Every diaphragm looks the same on paper—until it meets real-world media, temperature, and motion.
Each rubber diaphragm type suits a specific set of working conditions. Matching shape, material, and reinforcement with application prevents failure.
✅ Application Guide by Industry
| Industry | Recommended Type | Reason |
|---|---|---|
| HVAC | EPDM, rolling or flat | Weather resistance, smooth movement |
| Food Processing | Silicone, fabric-reinforced, dished | FDA-grade6, easy to sanitize |
| Chemical Dosing | FKM/PTFE-coated, convoluted | Extreme chemical resistance, flexibility |
| Water Systems | EPDM, flat or convoluted | Cost-effective, ozone-resistant7 |
| Fuel Systems | NBR, metal-bonded or flat | Oil and fuel tolerance |
If you're unsure, start by answering three questions: What will the diaphragm touch? How often will it flex? What’s the temperature? With just those answers, I can guide you to the right match.
How do I choose between cost and performance?
Everyone wants the most durable diaphragm. But not everyone has the budget.
Choosing a diaphragm is a balance between life cycle cost and initial price. Reinforcement, rubber type, and design all affect lifespan and replacement frequency.
✅ Cost vs Performance Breakdown
| Type | Cost Level | Performance Rank | Ideal For |
|---|---|---|---|
| Plain EPDM | Low | Medium | HVAC, water control |
| Fabric-reinforced NBR8 | Medium | High | Fuel pumps, actuators |
| Silicone (FDA grade)9 | High | High | Food & medical dosing valves |
| PTFE-coated FKM10 | Very High | Very High | Chemicals, solvents, high temp |
One of our German clients insisted on the cheapest option for an actuator. Six months later, they came back asking for our reinforced version. It lasted four times longer and cost only 20% more upfront.
Conclusion
From simple flat EPDM seals to PTFE-faced, fabric-reinforced rolling diaphragms—there’s no one-size-fits-all. The right type depends on shape, material, and your system’s demands.
