If the gasket doesn’t fit the groove perfectly, it won’t seal. This is especially true in grooved pipe systems where every millimeter matters. I’ve had clients tell me, “It looked like the right size—but it leaked.” That’s why understanding the exact dimensions of EPDM grooved coupling gaskets is so important.
EPDM grooved coupling gaskets are available for standard pipe sizes from 1¼" to 12" or larger. Their dimensions are precisely matched to the pipe’s outer diameter and groove geometry to ensure a leak-proof seal.
These gaskets are more than just rubber rings. They are engineered sealing components, designed to compress perfectly between pipe grooves under coupling pressure. A small mismatch can lead to pinching, over-compression, or leak failure. Here's how the sizing really works.
What dimensions define an EPDM grooved coupling gasket?
Each gasket’s size matches a specific nominal pipe size, but the actual dimensions include the inner diameter (ID), cross-sectional thickness, and sealing profile. The gasket must also match the groove width and depth according to standards like AWWA C606 or ISO 6182.

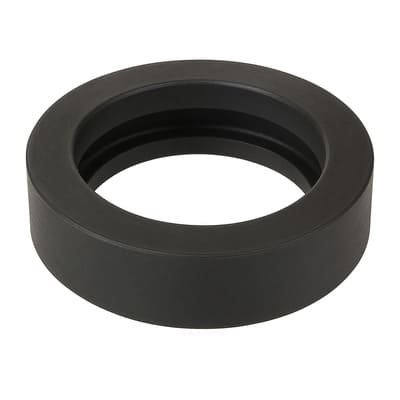

The most common gaskets follow a C-shaped profile that compresses into the pipe grooves when the coupling is tightened, creating a uniform radial seal.
Key gasket and groove geometry
Dimensional relationships
| Component | Typical Ratio to Gasket Diameter |
|---|---|
| Groove width | ~1.35 × gasket diameter |
| Groove depth | ~0.75 × gasket diameter |
| Gasket protrusion above groove1 | ~25% of gasket diameter |
These ratios ensure that the gasket compresses correctly to form a tight seal without being deformed. If the groove is too deep or wide, the gasket won’t seal. If it’s too shallow, the gasket may pinch or fail.
In practice, I’ve seen many projects fail inspection due to mismatched groove and gasket combinations2—especially with off-brand parts. Sticking with tested profiles, like those in our RGD1 and FLX1 series, helps avoid such issues.
What sizes are available for EPDM grooved coupling gaskets?
These gaskets are made to fit standard pipe sizes used in HVAC, fire protection, and industrial piping systems. The most common range is from 1¼" up to 12"3, but larger gaskets (e.g. 14", 16", 24") are also available for infrastructure projects.
Each size is matched to a specific pipe OD (outer diameter)4 and coupling groove dimensions.
Standard gasket size overview
Common EPDM grooved gasket dimensions
| Nominal Pipe Size (NPS)5 | Pipe OD (in) | Typical Gasket ID (mm) | Notes |
|---|---|---|---|
| 1¼" | 1.660 | ~42.2 | Small HVAC loops |
| 1½" | 1.900 | ~48.3 | Flexible duct risers |
| 2" | 2.375 | ~60.3 | Fire protection branch lines |
| 2½" | 2.875 | ~73.0 | Industrial water feeds |
| 3" | 3.500 | ~88.9 | Chilled water applications |
| 4" | 4.500 | ~114.3 | Main sprinkler lines |
| 6" | 6.625 | ~168.3 | Large HVAC mains |
| 8" | 8.625 | ~219.1 | Infrastructure supply pipes |
| 10" | 10.750 | ~273.1 | Mining/utility installations |
| 12" | 12.750 | ~323.9 | High-volume process systems |
I always encourage customers to verify the pipe OD before ordering gaskets. Even if the nominal size is the same, differences in schedule or wall thickness can shift the actual OD.
What else affects gasket fit and performance?
Several lesser-known but critical details affect gasket success:
- Profile Type: Most EPDM gaskets use a C-type profile6, suitable for both rigid and flexible couplings. E-type profiles are used in high-pressure or fire protection systems for added sealing performance.
- Lubrication: Many quality gaskets come pre-lubricated7 or with talc powder to ease installation. For cold weather installs (below 0°C / 32°F), I recommend adding extra EPDM-compatible lubricant.
- Interchangeability: Some brands use proprietary gasket sizes. Stick to manufacturers who follow ISO or AWWA standards8 if you want flexibility in part sourcing.
Storage and handling tips
- Do not stack or fold gaskets—this deforms the profile.
- Keep away from UV and ozone, especially if stored long-term.
- Label clearly by size and part number to avoid mix-ups in the field.
- Only open packaging just before installation to keep the gasket surface clean and dry.
At Julong, we manufacture and test our gaskets under precise tolerances to match grooved couplings. I’ve worked with distributors who switched to our talc-coated EPDM models and told me their install times dropped, and field complaints disappeared.
Conclusion
EPDM grooved coupling gaskets are carefully dimensioned to match standard pipe sizes, groove profiles, and sealing requirements. Understanding these dimensions ensures fast, clean installs and long-lasting, leak-free performance in HVAC, fire, and industrial systems.
-
