Choosing the right gasket material for grooved fittings is crucial to ensuring leak-free performance. EPDM, NBR, and Viton are three common materials, but each has unique characteristics that make them suitable for different applications. So, which one is the best for your piping system?
EPDM, NBR, and Viton all have their advantages, and the right choice depends on factors such as pressure, temperature, chemical exposure, and the specific fluid being transported.
Let’s explore the pros and cons of each material and see which is best suited for various piping applications.
When to choose EPDM grooved gaskets?
EPDM (Ethylene Propylene Diene Monomer) is known for its excellent weather, ozone, and water resistance. But is it right for your system?
EPDM is the best choice for water and steam applications, especially where environmental exposure to UV and ozone is a concern.
EPDM’s suitability for grooved fittings
EPDM’s excellent resistance to water, steam, and mild chemicals makes it ideal for use in HVAC systems, cooling systems, and water treatment plants. It maintains its elasticity in low-temperature environments and is resistant to aging caused by UV exposure1.
| Feature | EPDM2 | Best For |
|---|---|---|
| Temperature Resistance | Up to ~150°C (160°C short-term) | Water, steam, low-pressure systems |
| Chemical Resistance | Moderate to good | Water, mild acids, ozone, weathering |
| UV and Ozone Resistance | Excellent | Outdoor piping systems, HVAC |
I frequently recommend EPDM for general water piping and HVAC flanges, especially when exposed to UV light or fluctuating temperatures. It seals effectively against both water vapor and ozone.
When to use NBR (Nitrile) grooved gaskets?
NBR is a synthetic rubber known for its excellent oil and fuel resistance. Should you choose NBR for your gas or oil pipelines?
NBR is ideal for applications involving hydrocarbons, oils, and fuels. It works best in systems with moderate temperature and pressure, such as gas pipelines.
NBR’s suitability for grooved fittings
Nitrile rubber (NBR)3 is highly resistant to oils, solvents, and gasoline, making it the best choice for sealing fuel lines, petroleum-based systems, and gas pipes. However, NBR has limitations in high-temperature or extreme chemical environments.
| Feature | NBR | Best For |
|---|---|---|
| Temperature Resistance4 | Up to ~120°C | Oil, fuel, natural gas pipelines |
| Chemical Resistance5 | Excellent for hydrocarbons | Oils, fuels, lubricants |
| Compression Set Resistance | Good | Moderate to high pressure, fuel systems |
I’ve seen NBR perform reliably in gas line fittings and hydraulic systems. However, for high-temperature systems, I recommend a more heat-resistant material like Viton.
When to choose Viton (FKM) grooved gaskets?
Viton (FKM) gaskets offer superior resistance to heat, chemicals, and extreme pressures. When should you go with Viton?
Viton is the best choice for high-temperature, high-pressure, and chemically aggressive applications, such as refineries, chemical plants, and high-performance machinery.
Viton’s performance in demanding environments
Viton is highly resistant to a wide range of chemicals, including acids, fuels, and solvents. It maintains its integrity under high temperatures6 (up to 250°C) and high pressures, making it the go-to material for extreme conditions, such as in oil refineries or petrochemical plants.
| Feature | Viton (FKM) | Best For |
|---|---|---|
| Temperature Resistance | Up to 250°C | High-temperature, chemical environments |
| Chemical Resistance | Excellent (acids, oils, fuels) | Refineries, high-pressure gas systems7 |
| Durability | Outstanding | Petrochemical, high-performance machinery |
In my experience, Viton is the go-to choice when sealing fittings in high-temperature fuel systems or in chemical processing facilities, where other gasket materials might degrade or fail.

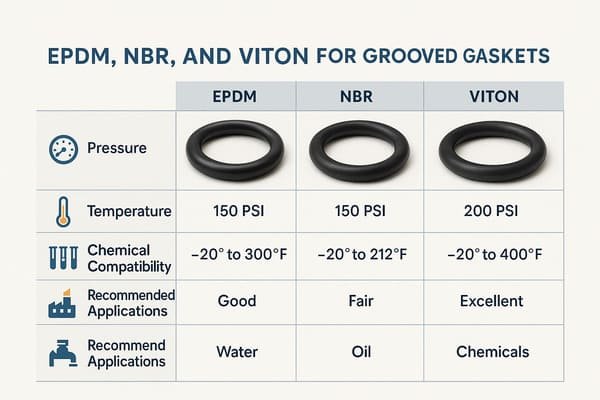

Summary Table: When to Use EPDM, NBR, or Viton Grooved Gaskets
| Material | Best For | Temperature Range | Chemical Resistance | Pressure Range |
|---|---|---|---|---|
| EPDM | Water, steam, mild chemicals | ~150°C (160°C short-term) | Excellent for water, ozone, mild acids | Low to moderate |
| NBR8 | Hydrocarbons, oils, fuels | ~120°C | Excellent for oils and fuels | Moderate to high |
| Viton (FKM)9 | High temp, high-pressure, aggressive chemicals | ~250°C | Excellent for acids, oils, fuels | High |
Conclusion
EPDM, NBR, and Viton each have unique properties that make them suitable for specific applications. For water and steam systems, EPDM is the most reliable. For hydrocarbon-based systems, NBR excels, while Viton is the top choice for high-temperature, high-pressure, and chemically aggressive environments.
-
