Damaged or leaking bellows can lead to costly machine downtime. Ever wondered how rubber bellows are made to withstand tough operating conditions?
Rubber bellows are typically made through molding processes such as compression molding, transfer molding, or injection molding. These methods ensure precise dimensions, flexibility, durability, and consistent quality.
Drawing on my extensive experience in custom rubber manufacturing, I’ll clearly explain each manufacturing method, materials involved, and how the production process affects the quality of rubber bellows.
What Are the Main Steps in Making Rubber Bellows?
Knowing the process helps you appreciate bellows quality. What steps are involved?
Key steps in rubber bellows production include selecting rubber compounds, mold design and preparation, molding (compression, transfer, or injection), curing (vulcanization), trimming, and inspection.
Here’s an overview of the process:
1. Rubber Material Selection
Choosing the right rubber (NBR, EPDM, Silicone, FKM) based on temperature, chemical resistance, and flexibility required.
2. Mold Design and Preparation
Custom molds1 are precisely machined from metal. Mold design directly impacts the bellows’ final performance, flexibility, and sealing capabilities.

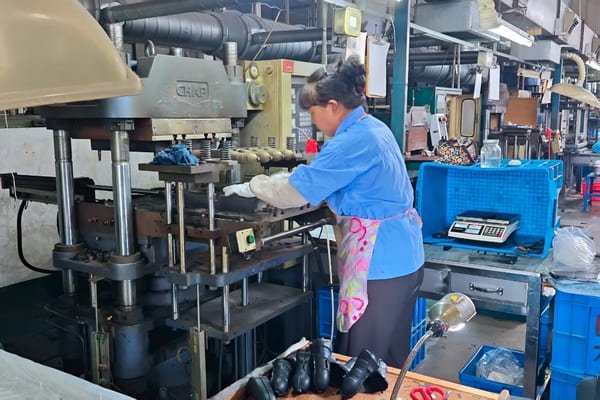

3. Molding Process
Rubber compound is introduced into the mold using one of three primary methods: compression molding2, transfer molding3, or injection molding4.
4. Curing (Vulcanization)
Heat and pressure are applied to vulcanize the rubber, creating strong chemical bonds and ensuring elasticity5, durability6, and resilience7.
5. Trimming and Finishing8
After curing, excess rubber is removed, and finishing processes ensure the bellows meet precise dimensional and performance specifications.
6. Quality Inspection
Each bellow undergoes rigorous testing and inspection for quality9, dimension accuracy, and performance criteria.
What Are the Different Molding Methods Used?
Choosing the right molding method affects the bellows' performance. What methods are available?
The main molding methods include compression molding, transfer molding, and injection molding. Each method has specific advantages suited to different applications and volume requirements.
✅ Compression Molding
Rubber is placed directly into the mold cavity. Heat and pressure shape and vulcanize the rubber10.
- Advantages: Cost-effective for low volumes, simpler designs.
- Ideal for: Custom, low-volume orders.
✅ Transfer Molding
Pre-heated rubber11 is forced from a separate chamber into the mold cavity.
- Advantages: Better precision, faster curing, suitable for complex shapes.
- Ideal for: Moderate to high-volume production, intricate bellows.
✅ Injection Molding
Heated rubber is injected directly into mold cavities under high pressure.
- Advantages: High precision, repeatability, efficient for large-scale production.
- Ideal for: High-volume orders requiring tight dimensional accuracy.
| Method | Precision | Complexity Handling | Production Volume | Cost Efficiency |
|---|---|---|---|---|
| Compression Molding | Good | Moderate | Low | High (low volume) |
| Transfer Molding | Very Good | High | Medium-High | Moderate |
| Injection Molding | Excellent | Very High | High | High (large volume) |
What Rubber Materials Are Used for Bellows?
Material choice significantly impacts bellows performance. Which materials are typically used?
Common rubber materials for bellows include NBR, EPDM, Silicone, and FKM (Viton). Material choice depends on temperature, chemical resistance, flexibility, and durability requirements.
Here’s a comparison of common materials:
| Material | Temp. Range (°C) | Chemical Resistance | Flexibility | Typical Applications |
|---|---|---|---|---|
| NBR12 | -30°C to +120°C | Good (Oil, Fuels) | Good | Automotive13, Industrial |
| EPDM14 | -50°C to +150°C | Excellent (Weather, Ozone) | Good | HVAC, Automotive |
| Silicone15 | -60°C to +230°C | Excellent (Food, Medical) | Excellent | Medical, Food Industry |
| FKM (Viton)16 | -20°C to +250°C | Excellent (Chemicals, Oils) | Moderate | Chemical, Aerospace |
Why Does Manufacturing Quality Matter?
Does manufacturing quality really affect performance?
High-quality manufacturing processes ensure dimensional accuracy, consistency, superior sealing, durability, and reliability of rubber bellows. Poor-quality production leads to premature failure, increased downtime, and costly repairs.
Issues from poor-quality bellows include:
- Premature cracking or tearing.
- Leaks and contamination due to inconsistent sealing.
- Shortened lifespan and higher maintenance costs.
In my experience, well-made bellows offer long-term reliability, significantly reducing overall costs and downtime.
Why Choose Julong Rubber for High-Quality Rubber Bellows?
With various suppliers available, why trust Julong Rubber?
Julong Rubber provides precision-made, custom rubber bellows ensuring consistent performance, excellent durability, and tailored solutions to meet demanding applications globally.
Advantages of choosing Julong Rubber:
- ✅ Custom Solutions: Precision molds tailored to your needs.
- ✅ Premium Materials: High-quality rubber compounds for superior reliability.
- ✅ Strict Quality Control: Comprehensive inspection ensuring durability.
- ✅ Responsive Service: Technical expertise, quick communication, prompt delivery.
Julong Rubber products are trusted across automotive, industrial, HVAC, medical, and food processing sectors, especially in Germany, France, and the Netherlands.
How to Order Rubber Bellows from Julong Rubber?
Ordering is easy:
- Share your specifications or application details.
- We provide suitable custom samples for approval.
- Once approved, we ensure rapid, high-quality production and delivery.
Conclusion
Understanding how rubber bellows are made helps you appreciate their importance. Quality manufacturing ensures your equipment remains protected, reducing maintenance costs and downtime significantly.
-
