How does the piston lip seal function?

If you struggle with leaking hydraulic systems or air cylinders, you are not alone. Many engineers and buyers face costly downtime and messes from a simple failure: bad sealing. Is there a smarter way to prevent leaks?

A piston lip seal works by using a flexible lip to press tightly against the cylinder wall, preventing fluid or air from passing around the piston. The lip deforms under pressure to create a dynamic, reliable seal even in demanding conditions.

When I first visited a customer's plant, I watched a technician replace a failed seal in a large press. I saw the frustration on his face as oil dripped on the floor. He wanted a solution that did not fail easily. That is why understanding piston lip seals is so important for me and my team at Julong Rubber. If you care about leak-free performance, this is a topic worth reading.

What is a piston lip seal and why does it matter?

Imagine your cylinder leaking under pressure. This causes safety risks and expensive repairs. You want a reliable seal that works every time.

A piston lip seal is a soft, elastomeric ring with a thin edge (lip) that maintains contact with the cylinder wall. It keeps hydraulic fluid or air inside, preventing leaks.

The structure and key features of piston lip seals

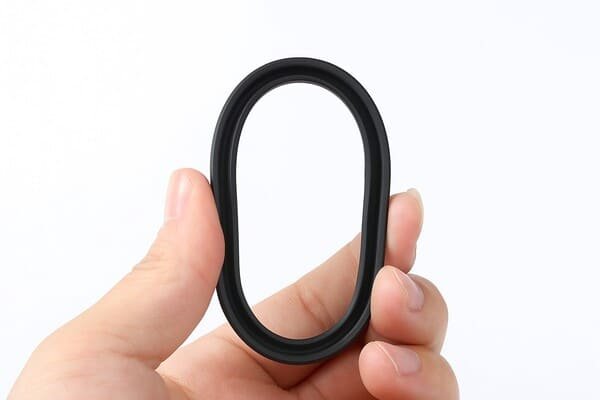

A piston lip seal¹ has a simple but effective design. The main body is usually round, made from quality rubber or polyurethane. The sealing lip² is the thin, flexible edge that contacts the cylinder wall.

The seal works because the lip deforms when the piston moves or when pressure is applied. The pressure inside the system pushes the lip harder against the cylinder wall. This extra force blocks fluid or air from slipping past the piston.

You will find different types and profiles, such as single-lip, double-lip, or U-cup. Each has its own benefits. For example, double-lip seals³ give extra protection against contamination, while U-cup seal⁴s handle higher pressures.

How does the piston lip seal maintain a tight seal under pressure?

Leaks destroy equipment performance. Pressure can make rubber parts deform or lose shape. So how do piston lip seals keep working even at high pressure?

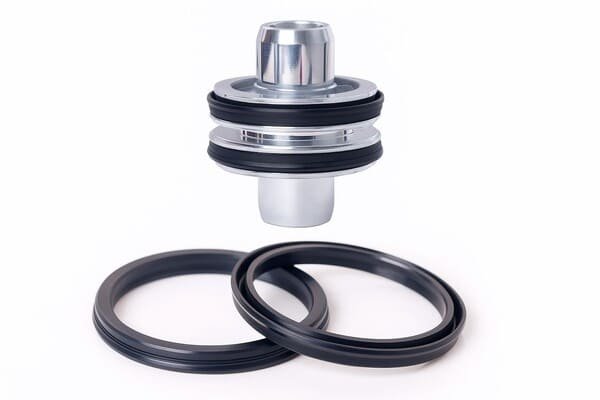

The piston lip seal uses system pressure to boost the sealing effect. As pressure rises, the lip presses harder against the cylinder wall, automatically increasing the seal force and preventing leaks.

Dynamic sealing explained: How pressure helps, not hurts

The trick is in the lip’s shape. When the piston is at rest, the lip gently touches the cylinder wall. As fluid or air pressure builds inside the cylinder, the pressure pushes the lip outward, tightening the seal. This self-energizing effect is why lip seals can work for both low and high pressure.

One thing I have seen is that using the right material makes all the difference. For hydraulic oil, I often recommend NBR or FKM. For compressed air, sometimes silicone or PU is better. It depends on your working conditions.

Some customers worry about wear on the lip after months of use. That is a real risk. High-quality material and the right hardness⁵ prevent early wear and keep the seal working longer. At Julong, we always ask about your application details before making a recommendation.

What are the main types of piston lip seals?

Sometimes buyers feel lost among the choices. Single lip, double lip, U-cup, or combination seals⁶? How do you choose the right type for your project?

The main types of piston lip seals include single lip, double lip, U-cup, and combination seals. Each type fits a different application, pressure range, or need for contamination resistance.

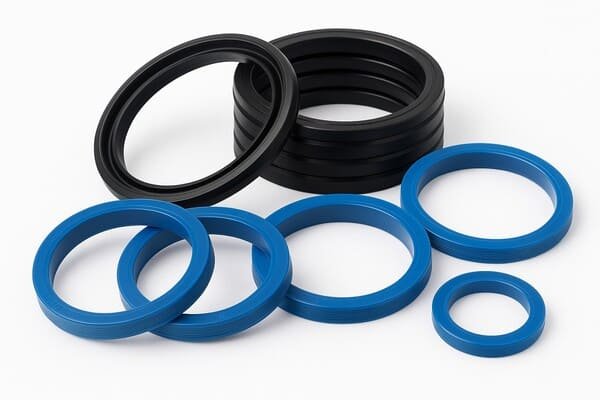

Comparing piston lip seal types: When to use each kind

Let me break down the most common types:

Single lip seal

• Simple, cost-effective
• Used for moderate pressures
• Seals in one direction

Double lip seal

• Two lips for added security
• Good for dirty or dusty conditions
• Seals in both directions

U-cup seal⁴

• U-shaped profile, highly flexible
• Handles high pressure, dynamic use
• Often used in hydraulic systems⁷

Combination seals

• Mix of different profiles
• Custom-designed for special tasks

When a customer sends me their drawings, I always ask about their working fluid, temperature⁸, and movement speed⁹. Choosing the wrong type can mean quick failure or leaking, so it is never a one-size-fits-all answer.

What are the key selection criteria for piston lip seals?

I have seen PU¹⁰rchasing officers struggle when picking seals. Price matters, but the wrong choice causes bigger problems later. What really counts when picking a piston lip seal?

You must consider temperature, hardness, certification, and chemical compatibility when choosing a piston lip seal. These factors affect performance, life, and safety.

Table: Key selection criteria for piston lip seals

My personal checklist for every piston lip seal order:

• I confirm the application details with my customer.
• I match the rubber formula to the operating conditions.
• I provide samples for testing before mass production.
• I always deliver test reports and certificates if needed.

I remember one project for an elevator company in Europe. Their old seal supplier could not meet the tight tolerance needed. We developed a new mold, checked each sample, and solved their leakage problem. Their satisfaction proved that getting these details right makes all the difference.

What materials are best for piston lip seals?

Not all rubber is the same. Some seals fail in oil, others crack in the cold. Which material will make your piston lip seal last?

NBR, FKM (Viton), PU, and silicone are the most common materials for piston lip seals. Each material is chosen based on the fluid, pressure, and temperature in your application.

![]()

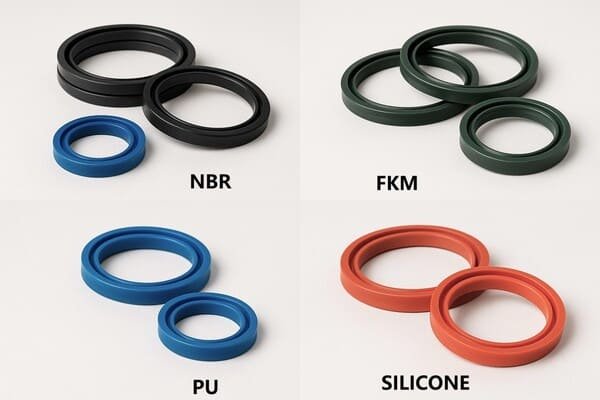

Material comparison table

From my experience, I always test a sample in the real application before confirming the final batch. Sometimes a cheap seal costs more in downtime than you save in purchase price.

How to ensure quality and long life for piston lip seals?

Even the best design fails if quality is poor. So how can you be sure your seals will last, especially when imported from overseas suppliers?

Reliable quality comes from strict process control, 100% inspection, and full traceability. Testing for compression set, hardness, and dimensional accuracy is a must for every batch.

My tips for quality assurance

At Julong, we run every batch through strict tests:

• Dimensional inspection: Each seal checked with custom gauges
• Material test: Check hardness (Shore A), compression set, aging resistance
• Pressure/leak test: Verify seal under working conditions
• Certification: Supply full reports and certificates (ROHS, REACH, etc.)

We also offer customer-specific packaging, laser marking for traceability, and flexible minimum order quantities.

Many customers in Germany and the Netherlands appreciate our focus on process control and fast response to problems. I believe that transparent communication and technical support build trust over time.

Conclusion

Piston lip seals prevent leaks by using flexible lips that press tightly against cylinder walls, powered by system pressure. Choosing the right type, material, and supplier is key to leak-free performance.
