How Temperature Affects Chemical Compatibility of FKM?

Many FKM seals look perfect on day one. Then temperature rises, and chemicals that were “safe” on paper suddenly destroy the seal.

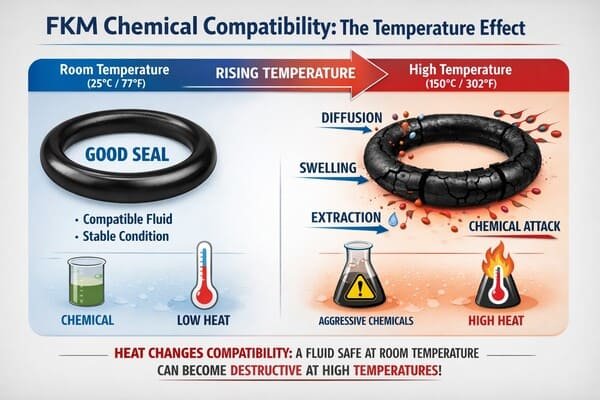

Temperature changes the chemical compatibility of FKM because heat accelerates diffusion, swelling, extraction, and chemical attack, often turning a compatible fluid at room temperature into a failure risk at operating conditions.

I learned early that chemical charts without temperature are incomplete. FKM is a high-performance elastomer, but it is not immune to heat-driven chemistry. Understanding this difference prevents many costly sealing failures.

Why Temperature Changes Chemical Compatibility in FKM?

FKM does not react the same way at 25 °C and at 150 °C. The polymer network behaves very differently.

As temperature increases, FKM experiences faster molecular motion, which allows chemicals to diffuse deeper, extract additives, and attack the polymer backbone more aggressively.

I explain it in simple physical terms

Heat gives molecules energy. When temperature rises:

• Chemicals move faster
• Rubber chains move more freely
• Barriers that worked at low temperature break down

This is why a seal that survives a short lab soak can fail in real service.

The three mechanisms I always watch

A field failure I still remember

I once reviewed a seal that passed oil compatibility² at room temperature. In service, it ran at 140 °C. After months, it cracked. The oil contained additives that only became aggressive at heat. The FKM grade was not wrong. The temperature assumption was.

🛠️ My rule: chemical compatibility³ must always be defined with temperature and time together.

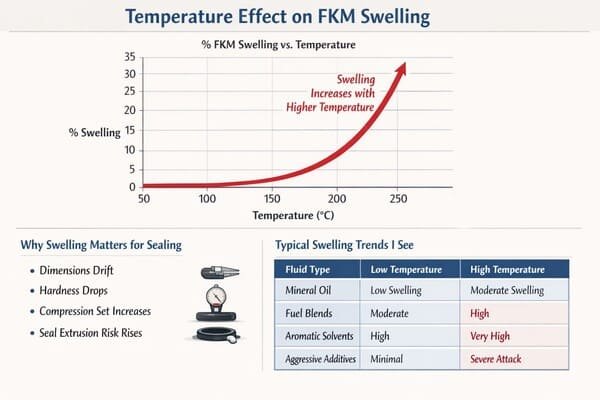

How Does Temperature Affect FKM Swelling and Volume Change?

Swelling is often the first visible sign of compatibility loss.

Higher temperature increases FKM swelling because chemical diffusion accelerates, allowing fluids to enter the rubber network more easily and disrupt crosslink density.

Why swelling matters for sealing

Swelling can look harmless. Sometimes it even improves initial sealing. But over time:

• Dimensions drift
• Hardness drops
• Compression set increases
• Seal extrusion risk rises

Typical swelling trends I see

Why temperature multiplies chemical effects

At higher temperature, even “mild” fluids act stronger. A small increase in swelling at 70 °C can become catastrophic at 150 °C.

🛠️ My habit: I never accept swelling data without a temperature curve.

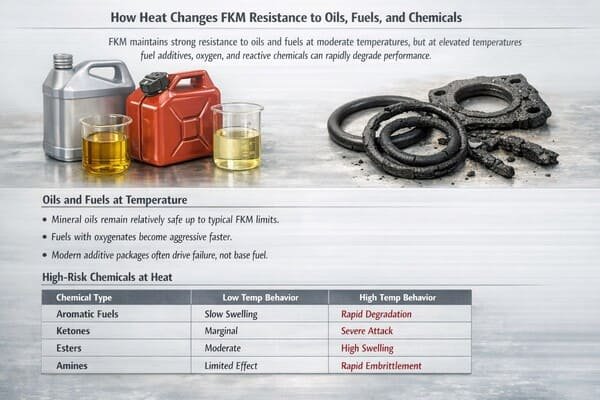

How Heat Changes FKM Resistance to Oils, Fuels, and Chemicals

FKM is known for oil resistance. Heat defines its real limit.

FKM maintains strong resistance to oils and fuels at moderate temperatures, but at elevated temperatures fuel additives, oxygen, and reactive chemicals can rapidly degrade performance.

Oils and fuels at temperature

• Mineral oils remain relatively safe up to typical FKM limits.
• Fuels with oxygenates become aggressive faster.
• Modern additive packages often drive failure, not base fuel.

High-risk chemical categories at heat

A mistake I often prevent

Buyers say “it is only fuel.” Then I ask about additives. At high temperature, additives define compatibility, not the fuel name.

🛠️ My rule: always request full fluid composition for hot FKM applications.

How Temperature Affects Compression Set and Recovery in FKM

Chemical compatibility is not only swelling. Recovery matters just as much.

At elevated temperature, chemical exposure increases compression set in FKM by weakening the polymer network and accelerating stress relaxation.

Why compression set becomes critical

A seal can look intact but still leak. High compression set⁴ means:

• Loss of contact pressure
• Micro-leakage under cycling
• Sudden failure after cooldown

Typical behavior I observe

The silent failure mode

Many FKM failures do not involve cracks. They involve loss of recovery. That is harder to detect until leakage appears.

🛠️ My habit: I always combine chemical aging⁵ with compression set testing.

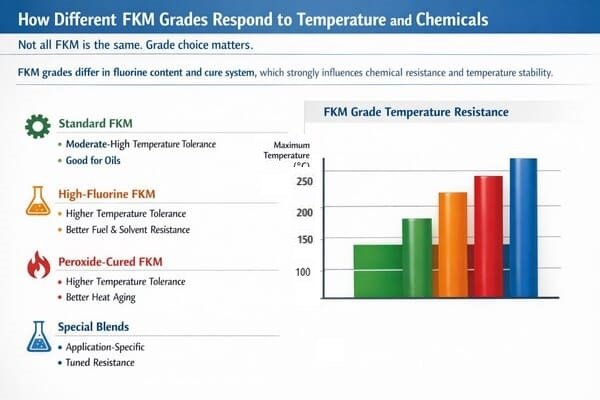

How Different FKM Grades Respond to Temperature and Chemicals

Not all FKM is the same. Grade choice matters.

FKM grades differ in fluorine content and cure system, which strongly influences chemical resistance and temperature stability.

General grade behavior

Why wrong grade selection fails

I have seen standard FKM used where high-fluorine grades were needed. The seal worked at low temperature, then failed fast when heat increased.

🛠️ My rule: grade selection is as important as material family.

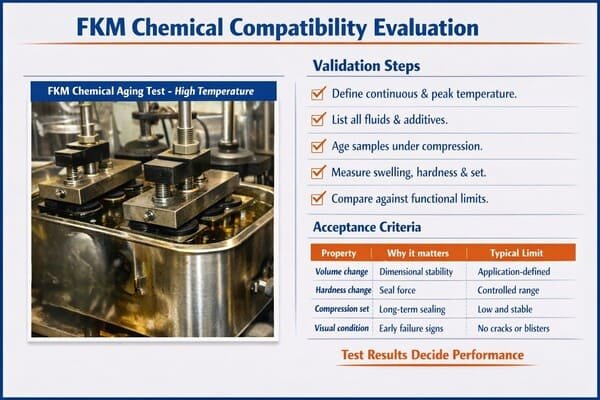

How Do I Evaluate FKM Compatibility Under Real Temperature Conditions?

Charts are a starting point. Testing decides.

I evaluate FKM chemical compatibility by aging samples in real fluids at real temperature and time, then checking swelling, hardness change, and compression set together.

My validation steps

1. Define continuous and peak temperature.
2. List all fluids and additives.
3. Age samples under compression.
4. Measure swelling, hardness, and set.
5. Compare against functional limits.

A simple acceptance table

Conclusion

Temperature transforms FKM chemical compatibility. A fluid that is safe at room temperature can destroy a seal at heat. I always evaluate chemistry, temperature, and time together before approving FKM.
