A leaking vent pipe gasket often isn’t the gasket’s fault—it’s the installation. I’ve seen perfect EPDM seals fail just because of a rushed fit or skipped step.

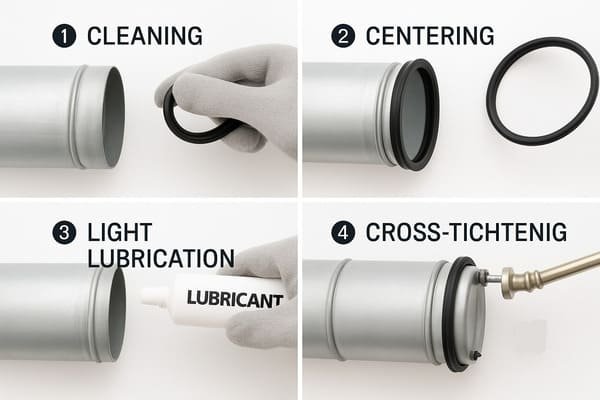

To install an EPDM vent pipe gasket correctly, clean the surfaces, center the gasket, apply light lubrication if needed, and tighten evenly. This ensures a long-lasting, airtight seal without warping or leaks.
EPDM rubber1 is flexible and weather-resistant, but it still needs to be installed with care. Here’s how to avoid mistakes and make sure your vent system stays sealed for years.
Step 1: Inspect and clean pipe surfaces2
Before installing the gasket3, always check the mating surfaces. Any damage, dust, or leftover adhesive can compromise the seal.
Use a clean cloth and, if necessary, a soft wire brush to remove dirt, corrosion, or residue from the pipe or fitting surface.
Checklist:
- No sharp burrs or dents
- Surface must be dry and clean
- No leftover gasket material from a previous install
- Avoid using oil-based cleaners on EPDM
If the vent line handles hot gas or steam, a dry surface is even more critical to avoid gasket slippage.
Step 2: Position the gasket properly
EPDM vent pipe gaskets are designed to sit centered on the pipe end or groove. Misalignment is a common cause of leaks or blowouts.
Make sure the gasket fits flush and evenly without twisting or overhanging the edge of the pipe.
What to check:
- The gasket isn’t pinched or rolled
- It follows the pipe contour evenly
- There’s no visible stretch or sag
- It aligns with the groove if used with couplings
A customer of mine once reused a deformed gasket4 by stretching it to fit—within a week, it failed. Always replace damaged or misshapen gaskets.
Step 3: Apply light lubrication (if required)
Some EPDM gaskets come with a talc coating or dry-film lubricant. These reduce installation friction and prevent twisting. If the gasket is not pre-lubricated, you can use an EPDM-safe lubricant.
Do not use petroleum-based grease. Use only water-based or silicone-free lubricants approved for EPDM.
Common options:
Lubrication helps especially when pushing fittings together or using couplings under tension.
Step 4: Fit the pipe or flange evenly
Once the gasket is in place, bring the mating pipe, flange, or coupling together without jarring or twisting. For grooved systems, insert the gasket into the groove and ensure both coupling halves align over the gasket’s edge.
Tighten bolts or clamps slowly in a cross-pattern to distribute pressure evenly.
Tips:
- Use hand tools or calibrated torque wrenches8
- Avoid overtightening—stop when metal-to-metal contact is achieved
- Follow manufacturer torque specs9 for couplings or flanges
- Double-check that the gasket hasn’t shifted before final tightening
In one rooftop vent job, uneven torque caused a pinched gasket that led to backdraft issues. A simple cross-pattern torque10 would’ve prevented that.
Step 5: Test the system
After installation, test for leaks using pressure or vacuum methods depending on the system. If this is a flue or HVAC exhaust, you can also check for air leaks with smoke or ultrasonic testers.
A properly installed EPDM gasket will remain sealed under pressure and thermal expansion without shifting or cracking.
Final checks:
- No air, gas, or moisture leaks under operating conditions
- Gasket remains centered and uncompressed beyond specs
- Bolts or clamps remain tight after 24 hours of cycling
At Julong, we advise our customers to re-check large or mission-critical joints 24 hours after first use—just to ensure seating is stable.
Common mistakes to avoid
- Installing on dirty or oily pipe ends
- Overstretching the gasket during fitting
- Using oil-based lubricants
- Uneven tightening of fasteners
- Reusing a deformed or aged gasket
| Mistake | Consequence | Solution |
|---|---|---|
| Gasket off-center | Leaks, poor compression | Realign before tightening |
| No lubrication (tight fit)11 | Twisting or tearing during assembly | Use EPDM-safe lubricant or talc |
| Over-tightening bolts12 | Gasket damage, seal failure | Stop at manufacturer torque limit |
| Reused gasket13 | Deformation, material fatigue | Always install a new EPDM gasket |
| Dirty pipe surface | Seal failure, poor seating | Clean surface thoroughly before install |
Conclusion
Installing an EPDM vent pipe gasket isn’t hard—but it must be done right. Clean surfaces, correct positioning, light lubrication, and even tightening are the keys to a leak-free, long-lasting seal.
-
