How to Keep Production Consistent in Large-Volume Silicone Manufacturing?

A big order can look perfect in the first cartons. Then one shift changes, and the parts start to drift. That is how claims begin.

I keep large-volume silicone production consistent by locking material inputs, controlling mixing and cure, validating the process window, and using simple SPC with clear stop rules across every press and shift.

When a buyer scales from trial lots to steady volume, the real risk is not “can you make it.” The risk is “can you keep making the same part for months.” I treat consistency as a system, not a promise.

What Usually Causes Variation in Large-Volume Silicone Production?

Small changes can hide inside silicone parts. Then sealing force changes, odor changes, or compression set changes. The buyer only sees the failure.

Most variation in large-volume silicone production comes from raw material lot shifts, mixing energy and temperature drift, mold temperature imbalance, cure time changes, and inconsistent post-cure or handling that alters volatiles and dimensions.

I start by listing “where the process can move”

I do not start with “who made the mistake.” I start with “what can physically change.” Silicone¹ is sensitive to mixing history and cure history. A part can pass a simple dimensional check² and still behave differently in the field.

✅ The most common hidden drift points I see in high volume:

• ✅ Raw silicone base polymer lot variation³
• ✅ Filler dispersion differences
• ✅ Pigment and additive dosing errors
• ✅ Peroxide or platinum catalyst sensitivity⁴ to contamination
• ✅ Mold temperature gradients across cavities
• ✅ Venting and flash changes from mold wear
• ✅ Post-cure time and oven loading differences

My “variation map” for silicone parts

A short story from my factory floor

I remember a project where the first three shipments were stable. Then a new operator changed the way the mixer was loaded because he wanted faster throughput. The parts still looked fine. Two weeks later, a buyer reported higher insertion force on assembly. The root cause was not “bad silicone.” The root cause was uneven dispersion. That was when I made a rule: the mixer does not run on “experience.” It runs on a locked recipe, a locked loading order, and recorded energy and temperature.

🛠️ My practical takeaway: if the process is not measurable, it is not controllable. I build a measurement plan⁶ before I chase defects.

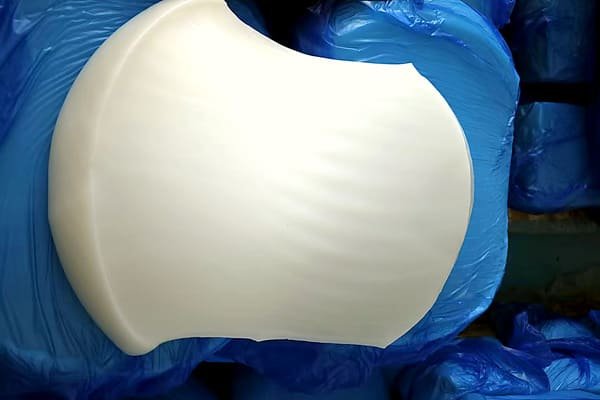

How Do I Lock Material Consistency From Incoming Silicone to Mixed Compound?

If the compound is not stable, molding cannot be stable. Large-volume buyers care about lot-to-lot repeatability more than peak properties.

I lock material consistency by qualifying approved suppliers, controlling incoming inspections by risk, standardizing storage and FIFO, and using a fixed mixing recipe with recorded temperature, time, and batch traceability.

I treat silicone as a “system of ingredients,” not one material

Silicone compounds can include base gum, fillers, pigments, processing aids, cure systems, and special additives. Each one can shift behavior. I manage this by defining what can change and what cannot change.

✅ What I lock hard:

• ✅ Supplier and grade for base gum and key fillers
• ✅ Cure system type and dosing method
• ✅ Pigment masterbatch source
• ✅ Storage conditions for catalysts and peroxide
• ✅ Shelf-life rules and FIFO⁷

✅ What I allow with controls:

• ✅ Packaging format changes with validation
• ✅ Secondary suppliers only after equivalency testing
• ✅ Minor pigment shade drift only if functional limits are met

Incoming inspection that matches risk

I do not test everything the same way. I test the items that can break the project fastest. That keeps speed and consistency balanced.

Storage and handling are part of the recipe

Large-volume stability fails when materials sit in the wrong area or when partial bags are not tracked. I use simple rules.

🛠️ Controls I rely on:

• A single labeling system that links each mixed batch to each incoming lot.
• FIFO with visible date tags.
• Controlled temperature zones for sensitive cure agents.
• “No mystery buckets” rule. If a container has no label, it is not used.

When the buyer asks why I talk so much about traceability, my answer is simple. If a field issue appears, I need to isolate it to a narrow window fast. That protects the buyer and it protects my delivery plan.

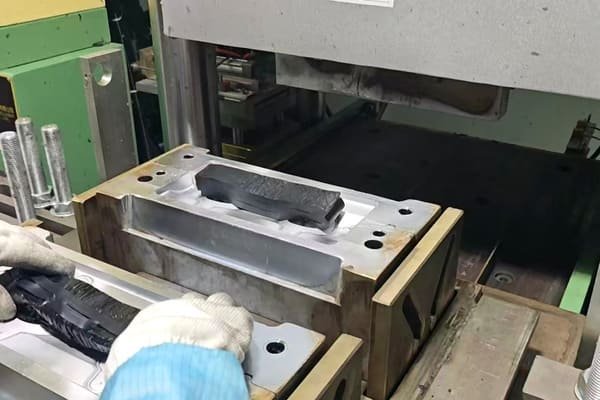

Which Process Controls Keep Molding Stable Across Shifts and Presses?

Large-volume molding is not one machine. It is many presses, many cavities, and many people. Consistency comes from a shared process window and clear stop rules.

I keep molding stable by validating the cure window, controlling mold temperature and pressure, standardizing de-flashing and handling, and using cavity-level checks to prevent “good average, bad cavities” problems.

I define a “golden process,” then I defend it

I do not let each press become its own factory. I define a baseline setup and I train every shift to run the same way. That includes clamp force, injection or compression parameters, mold temperature, and cure time.

✅ Controls that reduce shift-to-shift drift:

• ✅ Same warm-up routine for molds and material
• ✅ Locked parameter ranges, not single numbers
• ✅ First-off approval with a fixed checklist
• ✅ Cavity marking or cavity tracking when possible
• ✅ Standard de-flash method and tools

Parameter window checklist

Cavity-to-cavity control⁹ is the fastest win

In high volume, a single bad cavity can create most of the claims. I do not rely on “random samples from a mixed box.” I sample by cavity, especially during ramp-up and after maintenance.

🛠️ I often use this simple cavity plan:

• Start of shift: check key dimensions and surface on a cavity set.
• After any stop: repeat the cavity set check.
• After mold cleaning: repeat and compare to the golden sample.

Handling and post-mold steps matter more than most people think

If parts are stacked hot, they can deform. If parts are pulled too early, they can tear or set. If trimming is aggressive, edges can nick. I standardize these steps and I treat them as process steps, not “manual work.”

That discipline is not only for quality. It also reduces arguments. Everyone knows what “normal” looks like.

What QC Tests and SPC Metrics Should I Use to Release Each Batch?

Buyers want a clear answer: “What proves the batch is stable?” I answer with a small set of tests that match function, plus SPC that catches drift early.

I release large-volume silicone batches using a minimum test set that covers dimensions, hardness, visual defects, and a key performance metric like compression set, then I use SPC on the few characteristics that predict field failure.

I keep the release plan¹⁰ small, but serious

If the plan is too large, it becomes paperwork. If the plan is too small, it misses drift. I choose tests that predict real failure.

✅ A common “minimum batch release test set” I use:

• ✅ Critical dimensions (CTQ) with a defined sampling plan
• ✅ Hardness (Shore A) trend
• ✅ Weight or density trend for compound consistency
• ✅ Visual defect standards (flash, short shot, air trap)
• ✅ One performance test tied to the application (often compression set¹¹)

Example: a procurement-friendly release table

SPC: I track the few signals that matter

I do not chart everything. I chart what moves first when the process drifts.

🛠️ SPC signals I like for silicone parts:

• CTQ dimension that reflects shrink and cure state
• Hardness or rebound trend
• Scrap rate by defect type (flash, short shot, tear)
• Cavity-to-cavity spread, not only overall average

My stop rules are simple on purpose

A stop rule must be usable at 2 a.m. on a busy line. I set rules like:

• If CTQ mean shifts beyond the warning limit, the line pauses and the setup is checked.
• If two consecutive samples break the same limit, the batch is quarantined.
• If one cavity goes out while others are stable, that cavity is blocked and investigated.

This is how I keep consistency without slowing production. The system catches drift early, and the team knows what to do.

How Do I Manage Change Control and Traceability Without Slowing Delivery?

Large volume runs for months. Changes will happen. The question is whether the change is controlled or accidental.

I manage change control by using approved material lists, documented process windows, and a formal change notice workflow that requires equivalency testing, while maintaining lot and cavity traceability for fast containment.

I treat every change as a risk decision

A “small change” can break a seal after aging. I do not allow silent changes. I also do not block needed improvements. I use a clear path.

✅ Changes that always trigger validation:

• ✅ New raw material lot from a new supplier
• ✅ Cure system change (peroxide type, catalyst system)
• ✅ Mold repair that changes venting or parting line
• ✅ New post-cure oven or new loading pattern
• ✅ Packaging change that can deform parts in transit

A simple change control¹² matrix

Traceability should be practical, not heavy

I do not want a buyer to pay for paperwork. I want traceability that works when something goes wrong.

🛠️ What I keep at minimum:

• Incoming lot IDs linked to each mixed batch
• Mixed batch ID linked to each production date and press
• Clear carton labels linked to production lots
• Quarantine and containment rules by lot

A personal habit that prevents many claims

I always keep a retained sample set. I keep it by lot and by time window. When a complaint happens, I do not guess. I compare the retained sample to current production. That reduces debate and speeds containment.

In large-volume silicone manufacturing, consistency is not one trick. It is a discipline. When the system is in place, the buyer feels it. Lead times stabilize. Claims shrink. Trust grows.

Conclusion

I keep silicone volume consistent by locking inputs, validating the process window, tracking SPC signals, and enforcing change control with fast traceability.
