Choosing the wrong flange gasket for your HVAC system can result in leaks, energy loss, and expensive downtime. Do you know how to select the best one?
Selecting the right flange gasket depends on factors like temperature, pressure, chemical compatibility, and the specific media in your HVAC system.
Many options are available, and each system has unique needs. Let’s break down the essentials to help you pick the perfect gasket and keep your system running smoothly.
What Is a Flange Gasket?
Leaky flanges cause water damage, loss of efficiency, and safety risks. How does a flange gasket prevent these problems?
A flange gasket is a sealing ring placed between pipe flanges to prevent leaks. It creates a tight seal under compression, even with temperature or pressure changes.
How flange gaskets1 work in HVAC systems
Flange gaskets are critical for maintaining system pressure and stopping leaks at pipe joints. A gasket fills the gap between flange faces, compensating for surface irregularities and creating a reliable seal under bolt load. There are many designs—flat, ring, spiral wound2, and more—each engineered for specific pressures, temperatures, and fluids.
Main Types of Flange Gaskets
| Gasket Type | Main Use | Pressure/Temp Range | Note |
|---|---|---|---|
| Flat/Sheet | Water, air, low pressure | Low | Basic, economical |
| Spiral Wound | Steam, chemicals, high pressure | High | Metal+soft filler combo |
| Ring Type Joint (RTJ)3 | Oil, gas, high pressure/temperature | Very high | Metal-to-metal sealing |
| Camprofile | Severe duty, fluctuating pressure | High | Metal core, soft facing |
| Rubber (EPDM/NBR) | HVAC, chilled water, outdoor | Low to medium | Flexible, easy to install |
Types of Flange Gaskets for HVAC Systems?
Wrong gasket type can cause premature failure. Which types are best for HVAC piping?
HVAC systems use a range of gaskets: compressed fiber, EPDM, spiral wound, PTFE, and sometimes metallic gaskets for high-demand applications.
Selecting by system demand
Flat Gaskets (Compressed Fiber, Rubber)
Flat gaskets are popular in low-pressure water and air systems. They are simple to cut, cost-effective, and reliable for standard pipe flanges.
Spiral Wound Gaskets4
These combine a metal winding with a soft filler (often graphite or PTFE). They are ideal for high-temperature or high-pressure applications such as steam, refrigerant, or aggressive chemicals.
PTFE Gaskets5
PTFE is chemically inert and handles harsh chemicals, making it a top pick for corrosive fluids or clean rooms.
Metal Gaskets6
Used in industrial or extreme environments, metal RTJ or camprofile gaskets withstand the most severe pressures and temperatures.
Comparison Table
| Type | Cost | Pressure Rating | Temp Range | Media Compatibility | Notes |
|---|---|---|---|---|---|
| EPDM | Low | Low/Medium | Up to 250°F | Water, air, steam | UV/ozone resistant |
| Spiral Wound | High | High | Up to 700°C | Steam, gas, oil | Durable |
| PTFE | Medium | Medium | Up to 500°F | Chemicals | Non-stick |
| NBR | Low | Medium | Up to 180°F | Oil, gas | Not for outdoors |
| Metal RTJ | High | Very High | Up to 1000°F+ | Oil, gas, high-temp | Only for special flanges |
Key Factors to Consider When Choosing a Flange Gasket for HVAC?
Gasket failure leads to costly repairs. What must you consider to get it right?
Key factors include temperature resistance, pressure class, chemical compatibility, flange type, environmental exposure, flexibility, and certifications.
Selection standards
Temperature & Pressure
Always check the system’s max and min temperature and pressure. EPDM works for most HVAC water lines, but spiral wound or PTFE may be needed for high-temperature steam.
Chemical Compatibility
For water and steam, EPDM7 or silicone works. For oil or refrigerants, Viton8 or PTFE is safer. Always confirm with a chemical compatibility chart9.
Environmental Resistance
Outdoor or rooftop units need UV and ozone-resistant materials—EPDM and silicone excel here. Avoid NBR in direct sunlight.
Compression Set & Recovery
Gaskets should spring back after thermal cycles and maintain their seal over years of service.
Certifications
Look for UL, NSF, or FDA ratings where needed. Many industrial clients require certified gaskets for compliance.
Decision Matrix
| Factor | EPDM | Viton | PTFE | Spiral Wound | Metal RTJ |
|---|---|---|---|---|---|
| Max Temp | 250°F | 400°F | 500°F | 700°C | 1000°F+ |
| Chemicals | Water/steam | Oil/chem | Most | Most | Most |
| UV/Ozone | Excellent | Moderate | Good | Good | Poor |
| Flexibility | High | Medium | Low | Medium | Low |
| Price | Low | High | Medium | High | High |

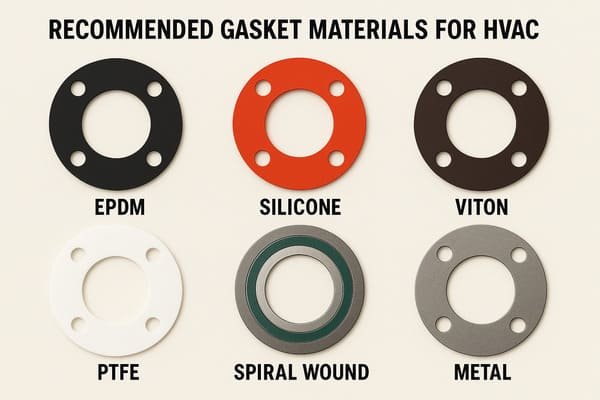

Recommended Materials for HVAC Flange Gaskets?
Material choice is critical for system longevity. What are the best options?
EPDM, silicone, Viton, PTFE, spiral wound, and metal gaskets are most often recommended for HVAC, each matching a specific demand.
Material-by-material breakdown
EPDM
Great for water, steam, UV, and outdoor exposure. Used in most chilled water and rooftop systems.
Silicone
Flexible, withstands heat, great for high temp/low temp cycling, medical or food-grade HVAC.
Viton (FKM)
Best for chemical resistance and high temperatures. Used where oils, fuels, or aggressive refrigerants are present.
PTFE
Inert and versatile, perfect for systems exposed to strong chemicals.
Spiral Wound/Metal
Required in extreme conditions—high temp, pressure, or critical safety applications.
Comparison Table
| Material | Temp Range | Key Strengths | Typical HVAC Use |
|---|---|---|---|
| EPDM | -40°F–250°F | Steam/water, UV/ozone, cost-effective10 | Water lines, rooftops |
| Silicone | -40°F–350°F | High heat, flexible, non-toxic11 | Medical, food, rooftop |
| Viton (FKM) | -20°F–400°F | Oil, chemical, refrigerant resistance | Chemical, industrial HVAC |
| PTFE | -100°F–500°F | Inert, chemical, non-stick | Lab, chemical plants |
| Spiral Wound | Up to 700°C | High temp/pressure, strong recovery | Steam, refrigerant, high pressure |
Additional Tips?
Overlooking small details can cause big problems. What practical steps help ensure a perfect fit?
Always match gasket size to flange specs, check compatibility, use recommended lubricants, and confirm certifications for your project.
Real-world installation advice
- Measure flange inner/outer diameters and bolt pattern before ordering.
- Use manufacturer-specified lubricants12 to avoid over-tightening or damage.
- For outdoor/rooftop systems, prioritize weather-resistant materials13.
- If your system handles chemicals or extreme temps, don’t cut costs on material grade.
- Always buy from reputable suppliers14 and request certificates if needed.
- Color coding can help: EPDM (green/red stripe), NBR (orange), Viton (blue), Silicone (red).
| Step | Best Practice |
|---|---|
| Sizing | Match flange and gasket exactly |
| Lubrication | Use manufacturer’s recommendations |
| Environmental Match | Use UV/ozone-resistant materials |
| Certification | Confirm for critical applications |
| Supplier | Choose reputable, experienced firms |
Conclusion
Choosing the right flange gasket for HVAC means balancing material, performance, and certification. The right gasket stops leaks, saves energy, and keeps your system running reliably.
-
