A failed marine pump at sea can cause big trouble—engine overheating, equipment shutdown, or even safety risks. Do you know what really makes a reliable pump work on a boat?
To select the right rubber impeller for marine pumps, consider fluid type, temperature range, chemical resistance, durability, and the pump's speed and pressure requirements. Choose proven materials like EPDM for seawater and NBR for oil, and always verify compatibility with your marine system.

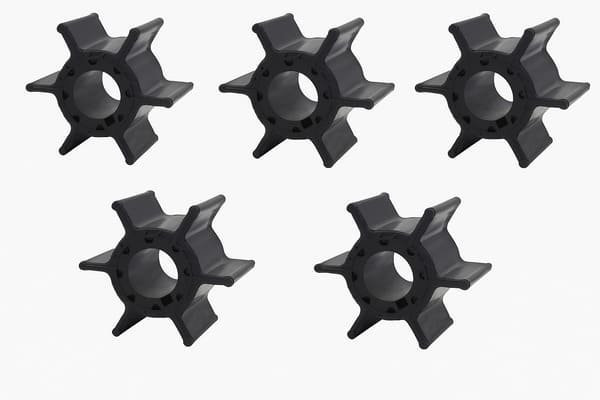

A rubber impeller may look simple, but it’s the most critical part for water transfer, cooling, and bilge pumping on any vessel. The right choice ensures smooth sailing and less downtime.
What factors should I consider when choosing a marine pump rubber impeller?
Choosing an impeller without understanding marine conditions leads to breakdowns and extra repairs. What details matter most at sea?
The most important factors include the chemical composition of the pumped fluid, operating temperature, required flexibility, abrasion resistance, expected lifespan, and certifications for marine safety and performance.
Key Selection Criteria
| Factor | Why It Matters | Marine Example |
|---|---|---|
| Chemical resistance1 | Seawater, salt, and chemicals are corrosive | EPDM resists saltwater |
| Temperature range | Engine and pump rooms get hot | EPDM and NBR handle heat |
| Flexibility | Handles sand, debris, and small solids | Flexible vanes avoid clogging |
| Abrasion resistance2 | Sand and grit can wear parts fast | NBR for abrasive fluids |
| Certification | Marine pumps often need CCS, FDA, or ROHS | Julong impellers meet standards |
Choosing a poor match for any one of these can mean frequent replacements, or even pump failure at sea.
Why are EPDM and NBR the top materials for marine rubber impellers?
Not all rubbers can survive saltwater and harsh conditions. Why are EPDM and NBR trusted by marine professionals worldwide?
EPDM offers excellent resistance to seawater, ozone, UV, and temperature swings. NBR provides strong oil and fuel resistance. Both can be customized for unique marine needs.
Material Comparison Table
| Material | Saltwater Resistance3 | Oil/Fuel Resistance4 | Temperature Range | Abrasion Resistance | UV/Ozone Resistance |
|---|---|---|---|---|---|
| EPDM | ✅ Excellent | ❌ Poor | -40~130°C | Good | ✅ Excellent |
| NBR | Good | ✅ Excellent | -30~100°C | ✅ Excellent | Fair |
| Neoprene | Good | Good | -20~100°C | Good | Good |
For most seawater applications, EPDM is the best choice. If you’re pumping oily bilge water, NBR may be better.
How do I match impeller size and shape to my marine pump?
Even with the best rubber, a wrong-sized or badly shaped impeller will cause leaks and poor performance. How do you make sure the fit is perfect?

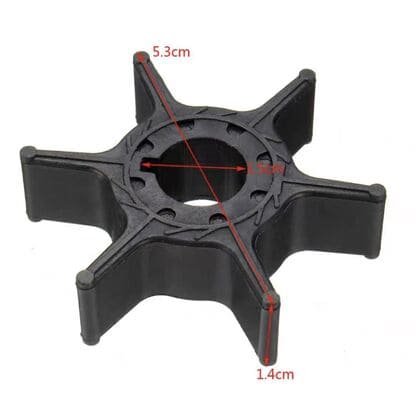

Start by checking your pump model and original equipment specs. Measure the outer diameter, inner bore, vane width, and thickness. Confirm the rotation direction. Ask your supplier for custom molding if needed.
Sizing Checklist
- Pump model and brand
- Outer diameter of impeller5
- Shaft (inner) diameter
- Number, length, and thickness of vanes
- Rotation direction (clockwise or counterclockwise)6
- Material and certification requirements
| Step | What to Check |
|---|---|
| Size | Match O.D., bore, width to spec |
| Vane shape | Confirm with old/new sample |
| Direction | Check rotation, some are unique |
| Customization | Ask for tailored solutions if needed |
At Julong, we support rapid prototyping and custom molds for special marine applications.
What maintenance practices extend the life of a marine rubber impeller?
Salt, sand, and engine heat are tough on impellers. How can you keep your marine pump running longer?
Regularly inspect the impeller for cracks, wear, or hardening. Replace every season or 500–1,000 operating hours—whichever comes first. Always lubricate on install and never run the pump dry.
Maintenance Tips
- Remove and check impeller at least once per boating season
- Replace at first sign of cracking, swelling, or lost flexibility
- Use compatible lubricants7 for installation
- Flush pump with fresh water after use in saltwater
| Inspection Frequency | Action |
|---|---|
| Every 500 hours | Inspect/replace8 |
| End of each season | Inspect/replace |
| After long storage | Inspect |
Proper maintenance prevents catastrophic failures and extends service intervals.
What certifications should marine impellers meet?
Safety and quality at sea are critical. What certifications and tests matter?
Look for CCS (China Classification Society), FDA (for potable water), or ROHS (for environmental safety). Reputable suppliers like Julong will provide material and performance certificates on request.
Common Certifications
| Certification | Meaning |
|---|---|
| CCS | Marine safety and performance (China)9 |
| FDA | Food and potable water safety |
| ROHS | Environmental compliance10 |
| ISO/TS | International quality standards |
Certification is proof your impeller will stand up to real marine use.
Conclusion
Selecting the right rubber impeller for marine pumps is about matching material, size, and quality to the real demands of the sea. With EPDM or NBR and a reliable supplier, your pump can weather any storm.
-
