Is EPDM good for steam?

Steam looks harmless as “hot water”, but I have seen it destroy the wrong rubber gasket in a few weeks and stop a boiler or HVAC system.

EPDM is usually very good for low- to medium-pressure saturated steam up to around 150 °C, if you use a steam-grade compound and keep it away from oils, fuels, and superheated steam.

When I help a customer choose a steam seal, I never look at temperature alone. I always check steam pressure, duty cycle, possible chemicals, and required lifetime.

When is EPDM the right choice for steam?

Many drawings come to me with only two words: “EPDM, steam”. No temperature, no pressure, no medium details. This makes the risk for both sides very high.

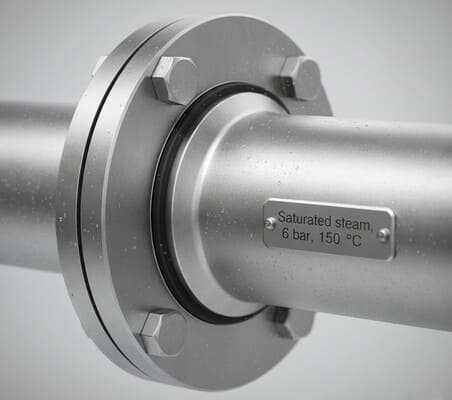

EPDM is the right choice for saturated steam and hot water in many HVAC and industrial systems when the temperature stays roughly within 120–150 °C and the media contains no oil.

I use EPDM every day in my factory, so I know its good side and its weak side very well. For saturated steam and hot water, EPDM is often my first choice because it loves water, oxygen, and weather much more than many other rubbers. For oil and fuel, it is the opposite.

Why EPDM works well with saturated steam

EPDM¹ has a saturated polymer backbone. This structure gives very good resistance to:

• ✅ Hot water and saturated steam²
• ✅ Oxygen, ozone, and outside weather
• ✅ Many coolants and cleaning agents

At the same time, EPDM has poor resistance to:

• ⚠️ Mineral oils
• ⚠️ Fuels and many solvents

So EPDM is ideal when the line carries only water, steam, or water-based media without oil. This fits many boilers³, district heating systems⁴, plate heat exchangers⁵, and HVAC coils⁶.

I normally see good results when:

• Steam is saturated, not strongly superheated
• Continuous temperature is up to about 140–150 °C
• Pressure is in low to medium range
• Thermal cycles are regular and not extreme

In one district heating project, a customer switched from a generic “high temperature” rubber to a peroxide-cured EPDM. Before the change, they replaced gaskets every season. After the change, the same EPDM gaskets ran for several seasons with no leaks. The only change was the right material for hot water and steam.

Typical steam applications where I use EPDM

I often select steam-grade EPDM⁷ for:

🛠️ My rule is simple: if the system is mainly water and steam, and temperatures and pressure are in the normal range, EPDM is usually my first candidate.

Key EPDM properties that matter in steam

When I talk about “steam-grade EPDM”, I do not only mean the base polymer. I also mean the cure system and fillers. I always look at:

• Hardness (usually 70–80 Shore A)
• Compression set at working temperature
• Change of tensile strength⁸ and elongation after hot water or steam aging
• Long-term swelling in hot water

A simple property window for many successful EPDM steam compounds looks like this:

If a compound has very high compression set⁹ in hot air or steam tests, I do not use it for critical steam flanges, even if the base polymer is EPDM. So the name of the polymer is not enough. The test data matters more.

You can also read my broader guide on steam materials here: What is the best rubber for steam?

What are the limits of EPDM in steam service?

Many engineers think, “If EPDM is good with hot water, it will handle any steam.” Sadly, this idea has created many leaks and urgent phone calls.

EPDM has clear limits in superheated steam, in systems with oil or fuel, and in extreme temperature spikes above its design window, where aging and cracking speed up quickly.

When I design a gasket or hose with EPDM, I always explain its limits very clearly. I prefer to say “no” in the beginning rather than fight with leaks later.

Superheated steam and EPDM

Saturated steam has a direct link between temperature and pressure. Superheated steam has extra heat energy above the saturation point. This extra energy attacks EPDM much faster.

In superheated steam¹⁰:

• EPDM ages faster.
• Surface hardening and microcracks can appear.
• Compression set increases.
• Volume change may increase over time.

I feel comfortable with EPDM when the steam is saturated, up to about 150 °C, and pressure is reasonable for the chosen gland design. When the steam becomes strongly superheated above this range, I usually discuss other options, like special FKM¹¹ or even FFKM in extreme cases.

EPDM and oil or mixed media

EPDM is not compatible with mineral oils¹² and many hydrocarbon fluids. In mixed systems, this can be dangerous.

Typical problem case:

1. System runs with hot water and steam.
2. A bit of oil enters from pumps, valves, or compressors.
3. EPDM seals swell, soften, and lose strength.
4. Leaks appear suddenly under pressure.

In one project, a customer used EPDM hoses in a line that later carried oil-based heat transfer fluid. After a few weeks, the hoses became soft and swollen. We had to change to an oil-resistant rubber¹³ and keep EPDM only in zones with pure water and steam.

So when I choose EPDM for steam, I always ask:

• Is there any oil in the system?
• Can oil enter later from maintenance or cleaning?
• Are there solvents, fuels, or greases in the same loop?

If the answer is “yes” or “maybe”, I think twice before I select EPDM.

Temperature, cycles, and lifetime expectations

Even in the right media, EPDM has a temperature and lifetime window. I usually discuss three points:

• 🌡️ Temperature: normal operation and peaks
• 🔁 Cycles: how often the system heats up and cools down
• ⏱️ Lifetime: how many years the customer expects

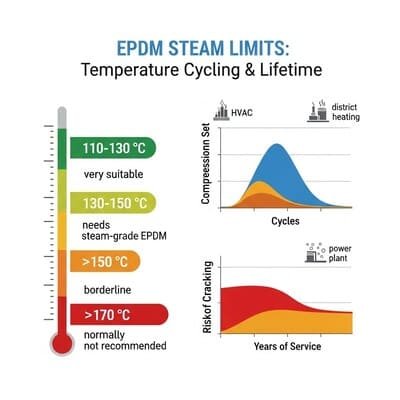

A simple view of EPDM limits in steam is below:

When a buyer asks me for EPDM at 180 °C in steam, I always answer “we need another material, or we must accept a very short lifetime and test carefully.” EPDM is strong, but it is not magic.

How should I specify EPDM for steam gaskets and hoses?

Many problems start because the drawing only says “EPDM 70 Shore A”. This is not enough for real steam service, and it does not protect the buyer or the supplier.

To specify EPDM for steam, you should define temperature, pressure, media, hardness, and required test data, and you should ask your supplier for a proven steam-grade compound and clear material report.

When I work with European buyers, they usually care about documentation and test reports. I am happy to see this, because it leads to fewer disputes after installation.

Information I always ask for

When you send me a steam RFQ, I like to see:

• Working temperature range and peak temperature
• Steam type (saturated or superheated) and pressure
• Media list (pure steam, condensate, chemicals, cleaning agents)
• Static gasket or dynamic seal, and expected movement
• Desired hardness (for example, 70 or 80 Shore A)
• Expected lifetime or maintenance interval

This information helps me choose the right EPDM compound and gland design. It also helps me estimate realistic lifetime and warranty.

How to describe EPDM compound needs

You do not need to write a full formula. You only need to describe your performance needs¹⁴. For example, a clear drawing note can say:

EPDM steam-grade, 70±5 Shore A, peroxide cured, compression set ≤30 % at 150 °C, tested in hot water or steam.

This type of note gives me space to design the compound, but it also protects you as the buyer. If a cheap, low-performance EPDM does not meet these targets, you can reject it.

A simple comparison between a vague and a clear specification:

🛠️ With this kind of drawing, I can match your needs more easily and avoid surprises later.

Tests and documents you can request

For critical projects, I often support customers with:

• Material data sheet (TDS)
• Compression-set test report at relevant temperature
• Hot water or steam aging test results
• EN 10204 2.2 or 3.1 material certificates
• Sample gaskets or hoses for field trials

My factory, Julong Rubber, exports a lot of EPDM parts to Germany, France, and the Netherlands. So we are used to these document flows. When the buyer and the supplier both work with clear data, the project goes much smoother.

If you need help to write a better EPDM specification for steam, you can always email me at info@rubberandseal.com with your drawing and working conditions.

EPDM vs FKM and silicone in steam: how do they compare?

Some people ask me, “Should I upgrade from EPDM to FKM or silicone¹⁵ for better steam performance?” The honest answer is that it depends on temperature, media, and cost.

EPDM is usually best for pure steam and hot water up to about 150 °C; FKM is better when oils or chemicals are present; silicone is only a secondary choice in gentle steam, not in high-pressure or long-term steam.

When I compare these three, I always think about the real system, not only the datasheet.

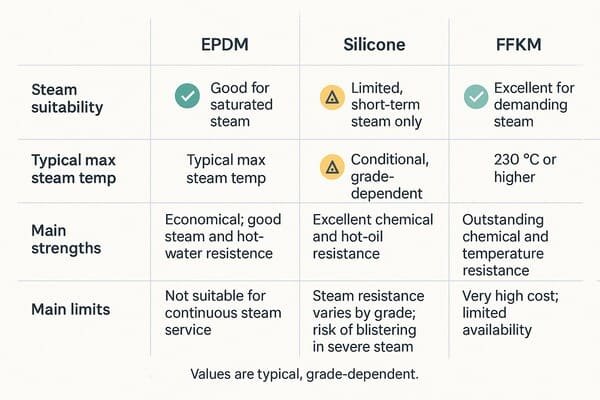

Simple comparison of EPDM, FKM, and silicone in steam

Here is a simple comparison table I often use during calls with engineers:

*These ranges are typical engineering windows, not strict limits. Real values depend on compound and test data.

In many HVAC or district heating projects, pure steam and hot water are the main media. In this case, EPDM is often the best balance of performance and cost. FKM makes sense when there is oil, fuel, or aggressive chemicals in the same loop. Silicone is more useful when very low temperatures or special approvals are important, and steam is gentle.

When I move away from EPDM to other rubbers

I stay with EPDM when:

• Media is only water and steam.
• Temperature window fits EPDM limits.
• No strong solvents or oils are present.

I consider FKM when:

• Media includes steam plus oil, fuel, or solvents.
• System needs both hot water resistance and strong chemical resistance.
• Cost of failure is very high, and FKM grade has proven steam data.

I consider special silicone when:

• Application needs very wide temperature range, including very low cold start.
• Application needs food or medical approval and EPDM options are limited.
• Steam is low pressure and not continuous.

Sometimes I use a mixed approach. For example, one customer used EPDM gaskets in pure steam lines and FKM seals in pump zones with oil. This mix kept cost under control and still protected the critical points.

If you are not sure which path fits your system, you can send me your P&ID sketch and a short description of the media. I can help you decide if EPDM is enough or if you really need to pay more for FKM or other special rubbers.

Conclusion

EPDM is very good for saturated steam and hot water in many systems, as long as you respect its limits on oil, superheated steam, and temperature.
