Is EPDM Suitable for Condensing Boiler Flue Gas?

Flue gas leaks in condensing boilers can lead to dangerous carbon monoxide exposure and energy loss. Using the wrong gasket material can cause premature failure. Can EPDM rubber handle this environment?

Yes, EPDM is generally suitable for condensing boiler flue gas applications due to its excellent resistance to water vapor, acidic condensate, and temperatures up to 150–160°C.

Let’s look at why EPDM is often used in gas boiler exhaust seals and when you might need to consider alternative materials.

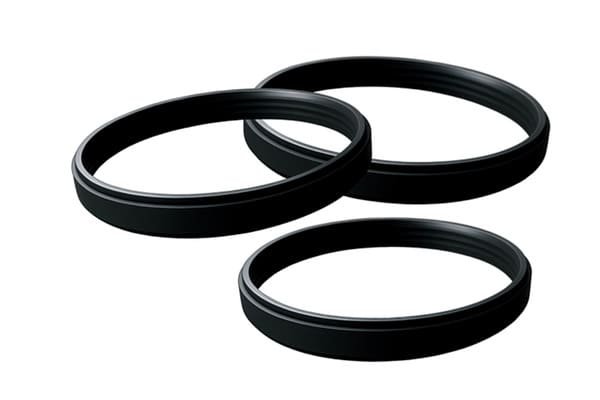

Why is EPDM used in condensing boiler flue systems?

Condensing boilers recover latent heat, which creates water vapor and acidic condensate. Can EPDM survive in that mix?

EPDM is used because it resists condensation, dilute acids, and thermal cycling—making it a reliable sealing choice in boiler flue systems.

EPDM's performance in flue gas conditions¹

In condensing gas boilers, flue gases are cooled to below dew point, producing acidic condensate² (mainly carbonic acid from CO₂ and sulfurous byproducts). The gasket material must resist:

• Water vapor
• Acidic condensate (pH ~3–5)
• Intermittent temperatures up to 150–160°C

EPDM³ is chemically stable in acidic, aqueous environments and maintains flexibility at both low and moderate high temperatures.

I've worked with flue component manufacturers who mold EPDM into flue collars and connection seals. It handles both dry combustion phases and wet cycles well—without cracking or shrinking.

When is EPDM not suitable for flue gas sealing?

EPDM is versatile, but every material has limits. When does it fall short?

EPDM is not recommended if flue gas temperatures exceed 160°C or if strong chemical resistance (e.g., to oils, solvents, or high levels of NOx/SOx) is required.

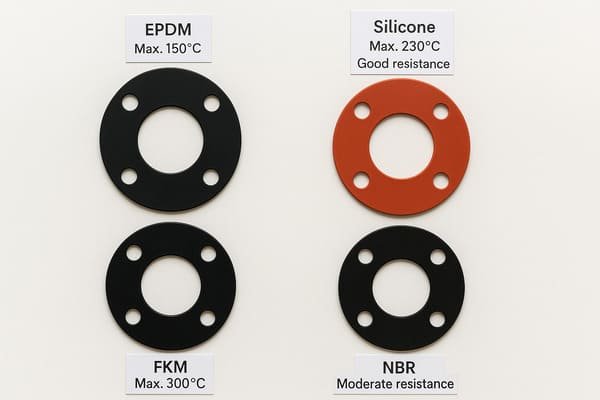

Temperature and chemical limits

Standard condensing boilers operate well within EPDM’s limits. However, non-condensing systems, biomass boilers, or units with high flue gas velocity may exceed 180°C, which can degrade EPDM over time. In such cases, alternative materials like silicone or fluorosilicone may be used.

If you’re dealing with a commercial boiler with higher temperatures, I suggest evaluating the actual flue gas profile before selecting EPDM.

Is EPDM certified for gas venting applications?

Can EPDM meet the industry standards for use in gas and HVAC systems?

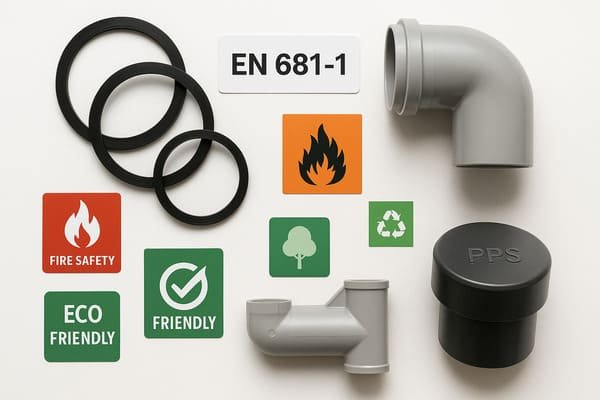

Yes, many EPDM grades meet EN 681-1 (for water and gas) and are used in certified components for gas venting, including seals in polypropylene (PP) and PPS flue systems.

Compliance and longevity

EPDM used in flue applications is typically tested to:

• EN 681-1⁶: For sealing materials in gas and water supply systems
• DIN 4102: Fire classification of building materials
• RoHS/REACH⁷: Environmental safety compliance

Suppliers often offer flame-retardant and anti-condensate EPDM grades⁸ specifically molded for gas boiler exhaust systems.

I’ve worked with clients supplying PP flue piping systems, where our custom-molded EPDM seals are embedded inside pipe sockets to prevent leaks, even after years of thermal cycling.

Summary: EPDM in Condensing Boiler Flue Systems

Conclusion

EPDM is a solid, reliable choice for sealing condensing boiler flue gas systems. As long as temperatures stay below 160°C, it handles water, acidic vapor, and aging better than most materials in this price range.
