Many buyers face this tough choice. Both HNBR and Viton are strong performers, but they serve different needs. Picking the wrong one can lead to costly failures.
HNBR is better for cost, elasticity, and dynamic sealing. Viton (FKM) is better for extreme heat, chemicals, and long-term stability. Neither is universally better; the choice depends on application.
I often meet customers who ask me if they can replace Viton with HNBR to save money. The truth is, sometimes yes, sometimes no. Let’s break it down.
What is HNBR rubber?
HNBR is hydrogenated nitrile butadiene rubber. It is created by hydrogenating NBR, which makes the polymer more stable.
HNBR provides excellent resistance to heat, oils, fuels, and ozone, with strong mechanical strength and flexibility.
I once supplied HNBR compressor seals for an HVAC system. They survived heat and refrigerants like R134a far longer than NBR, saving my client replacement costs.
Key Properties of HNBR
| Property | Value/Range |
|---|---|
| Temperature range1 | -40°C to +165°C (peaks 180°C) |
| Oil/fuel resistance2 | Excellent |
| Ozone/weathering3 | Excellent |
| Elasticity4 | Very good |
| Mechanical strength5 | High tensile and tear strength |
| Cost6 | Medium |
HNBR is the middle ground between standard nitrile and high-end fluorocarbon rubbers.
What is Viton rubber?
Viton7 is a trade name for FKM (fluorocarbon rubber). It is known for handling extreme environments where most other rubbers fail.
Viton provides outstanding resistance to high heat, aggressive chemicals, fuels, and oils, making it a premium sealing material.
I worked with a customer in the chemical industry who needed seals for aggressive solvents. HNBR failed within weeks. Viton seals worked for over a year without issue.
Key Properties of Viton
| Property | Value/Range |
|---|---|
| Temperature range | -25°C to +230°C |
| Oil/fuel resistance | Outstanding |
| Chemical resistance | Excellent, especially acids/solvents |
| Ozone/weathering | Excellent |
| Elasticity | Moderate |
| Cost | High |
Viton is often the top choice in aerospace, oil & gas, and chemical plants.

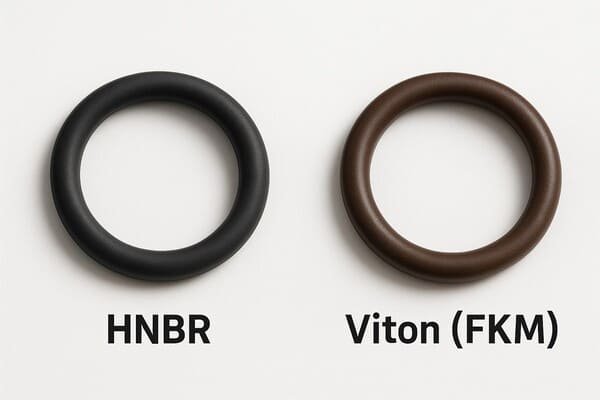

HNBR vs Viton8: Which is better?
The direct comparison shows each has clear advantages. HNBR wins in cost and flexibility. Viton wins in extreme resistance.
HNBR is better for cost-sensitive projects with moderate heat and oil. Viton is better for extreme chemicals, fuels, and long-term high-temperature stability.
Comparison Table
| Feature | HNBR | Viton (FKM) |
|---|---|---|
| Max temperature9 | ~165°C (180°C peak) | ~230°C |
| Low temperature limit10 | -40°C | -25°C |
| Oil/fuel resistance | Excellent | Outstanding |
| Chemical resistance | Good | Excellent |
| Ozone/weathering | Excellent | Excellent |
| Elasticity | Higher | Lower |
| Abrasion resistance | High | High |
| Cost | Medium | High |
From my experience: In automotive engines, HNBR is often sufficient. In chemical plants, Viton is usually the only safe option.
Real-Life Case Comparison
| Industry/Scenario | Material Used | Result |
|---|---|---|
| HVAC compressors | HNBR | Lasted 2+ years with refrigerants R134a/R410a. |
| Automotive timing belt11 HNBR | High durability, resisted oil and heat cycling. | |
| Oil drilling packers12 | HNBR | Performed well under pressure and crude oil. |
| Chemical processing | Viton | Withstood aggressive acids and solvents. |
| Aerospace fuel system13 | Viton | Stable at 220°C, resisted jet fuel and oxidizers. |
This case comparison shows why neither is universally better. Each shines in its own environment.
When should I choose HNBR or Viton?
Choosing depends on environment, cost, and risk tolerance. Many procurement officers ask me for a simple guide.
Choose HNBR for automotive, HVAC, and oil-field equipment when moderate cost and high elasticity matter. Choose Viton for aerospace, chemical plants, and high-temperature fuel systems.
Selection Guide
| Application | Recommended Material | Reason |
|---|---|---|
| HVAC compressors14 | HNBR | Excellent refrigerant and oil resistance |
| Automotive seals | HNBR | Good balance of cost and durability |
| Oil drilling | HNBR | Handles oil, pressure, and abrasion |
| Chemical processing15 | Viton | Outstanding solvent and acid resistance |
| Aerospace fuel systems | Viton | High heat and chemical stability |
I always remind clients: downtime costs more than material cost. Saving on material but risking failure is often more expensive.
Conclusion
HNBR is not better than Viton in every way. HNBR gives elasticity and cost advantages, while Viton dominates in extreme heat and chemical resistance.
-
