Gasket failure can lead to leaks, costly downtime, or even safety hazards in chemical and industrial systems. Is PTFE (polytetrafluoroethylene), also known as Teflon, the right choice for your application?
PTFE is an excellent gasket material for applications requiring high chemical resistance, wide temperature range, non-stick performance, and long service life. It is used in chemical plants, food processing, pharmaceuticals, and demanding industrial environments.
I have seen many clients solve persistent leakage and maintenance issues simply by upgrading to PTFE gaskets in aggressive or high-temperature environments.
What makes PTFE a good gasket material?
PTFE stands out from other gasket materials due to its unique properties.
PTFE gaskets offer outstanding chemical resistance, tolerate extreme temperatures (-200°C to +260°C), are non-stick, non-aging, and suitable for both static and some dynamic sealing. They do not absorb water or swell, and remain stable even under harsh conditions.
| ✅ Feature | 🛠️ PTFE Gasket Performance | Benefit |
|---|---|---|
| Chemical resistance1 | Unmatched, resists most acids/bases | Safe in chemical processing |
| Temperature range2 | -200°C to +260°C | Handles steam, cryo, hot oil |
| Non-stick surface3 | Low friction, easy to remove | Clean in food/pharma |
| Non-aging/durable | UV, ozone, weatherproof | Long service life, low cost |
| Compressibility | Stiff, but can be filled or expanded | Used in flanges, pipes, tanks |
These benefits make PTFE the material of choice where rubber or fiber gaskets fail.
Where are PTFE gaskets commonly used?
PTFE is the “problem solver” for tough sealing jobs.

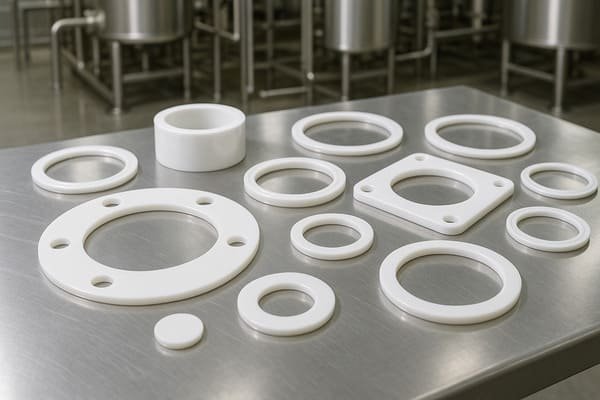

PTFE gaskets are found in chemical plants, food and beverage equipment, pharmaceutical processing, pipelines, steam systems, and any area with aggressive chemicals or high heat. Expanded PTFE (ePTFE) and filled PTFE gaskets are also used for higher flexibility or pressure.
| ✅ Industry | 🛠️ Typical Application | Why PTFE is Chosen |
|---|---|---|
| Chemical processing | Flanges, reactors, tanks | Acid/base, solvent resistance |
| Food/pharma | Clean-in-place, sanitary lines | Non-toxic, easy to clean |
| Steam/hot fluid | Pipe and vessel gaskets | High temp, no hardening |
| Water treatment | Corrosive chemical dosing | No swelling, no aging |
| Power/energy | Heat exchangers, turbine pipes | Wide temp, tough environments |
I always recommend PTFE gaskets4 for clients with frequent gasket failures due to chemical attack or high temperatures.5
What are the disadvantages of PTFE gaskets?
Even the best materials have some drawbacks, and PTFE is no exception.

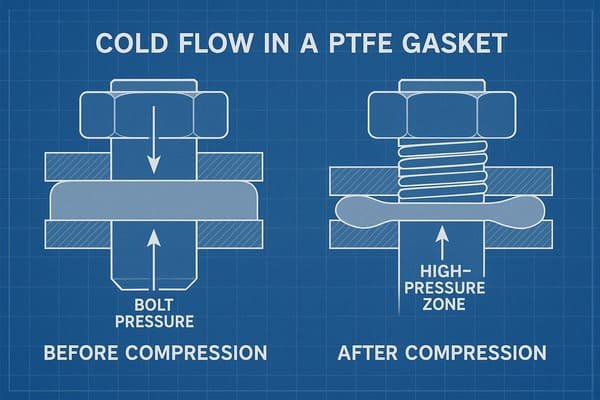

PTFE gaskets have low elasticity and can cold flow (creep) under continuous pressure, especially in high-load or high-temperature situations. They require smooth, well-aligned flange surfaces for reliable sealing and can be more expensive than traditional rubber or fiber gaskets.
| ✅ Disadvantage | 🛠️ Impact on Performance | How to Manage |
|---|---|---|
| Low elasticity6 | Less able to recover after compression | Use filled/expanded PTFE |
| Cold flow/creep7 | Gasket may lose thickness over time | Retighten bolts, support |
| Surface sensitivity | Needs smooth flange for best sealing | Surface prep, higher torque |
| Higher cost8 | More expensive upfront | Offset by longer service |
| Poor for high-motion | Not for flexible/dynamic joints | Use rubber for movement |
When using PTFE, discuss the application and flange surface with your supplier to avoid common issues.
Can PTFE gaskets be customized for special needs?
Absolutely—PTFE can be tailored for almost any sealing challenge.
PTFE gaskets are available in pure, filled (glass, graphite, carbon), or expanded (ePTFE) forms. They can be cut to any size, shape, or thickness and certified for food, pharma, or fire-safe use.
| ✅ Custom Option | 🛠️ Benefit | Typical Project |
|---|---|---|
| Filled PTFE9 | Higher strength, less creep | Steam, pressure, heavy-duty |
| Expanded PTFE (ePTFE)10 | More compressible, easier fit | Irregular flanges, old pipe |
| FDA/food grade11 | Non-toxic, certified safe | Food, water, pharma |
| Large/small sizes | Perfect fit, fewer leaks | OEM, custom systems |
I help clients select or design PTFE gaskets for their most demanding projects.
Conclusion
PTFE is a top-tier gasket material for chemical, high-temperature, and sanitary applications. It provides long service life, superior resistance, and reliable sealing in harsh environments. However, be mindful of its lower elasticity, cold flow, and need for proper flange surfaces. Always match the gasket type to your specific needs for the best results.
