Many industrial buyers often wonder if silicone rubber can conduct electricity. Mistakes in material selection may lead to unexpected failures, especially in electronic applications.
Silicone rubber is generally non-conductive. However, conductive silicone materials are specially formulated with conductive fillers to provide electrical conductivity for specific industrial applications.
Understanding whether silicone is conductive is critical in industries like electronics, automotive, and medical devices. In this article, I’ll explain the electrical properties of silicone and help you decide when to use conductive silicone solutions.
What is Silicone?
Selecting the right material for your project depends on knowing its core properties. Silicone rubber offers flexibility, heat resistance, and electrical insulation.
Silicone is a synthetic elastomer made from silicon, oxygen, carbon, and hydrogen. It is widely used for its flexibility, high-temperature resistance, and excellent electrical insulation.
🛠️ Silicone Rubber1 Basics
What is Silicone Made Of?
Silicone rubber consists of siloxane polymers. These polymers provide inherent electrical insulating properties.
Key Characteristics of Standard Silicone
| Property | Performance |
|---|---|
| ✅ Electrical Insulation2 | Excellent (high dielectric strength) |
| ✅ Temperature Range | -60°C to +230°C (up to 300°C for special grades) |
| ✅ Flexibility | Excellent |
| ✅ Chemical Resistance | Excellent (solvents, UV, ozone) |
Why Silicone is Non-Conductive
- Silicone's polymer backbone resists electron flow.
- It acts as an electrical insulator in most commercial forms.
Can Silicone be Made Conductive?
Standard silicone rubber is an insulator. But sometimes industries need conductive materials for EMI shielding or static dissipation.
Silicone can be made conductive by adding conductive fillers like carbon black, silver, or graphite. These additives give the material controlled levels of conductivity.
🛠️ Conductive Silicone Explained
How Conductive Silicone3 is Made
- Carbon Black Fillers: Provide static dissipation and EMI shielding. Cost-effective but moderate conductivity.
- Silver-Coated Fillers: Offer superior conductivity, ideal for sensitive electronics.
- Graphite and Nickel Fillers: Provide balance between cost and conductivity.
Key Properties of Conductive Silicone
| Filler Type | Conductivity | Application Focus |
|---|---|---|
| Carbon Black | Low-Medium | EMI gaskets, static control |
| Silver-Coated Glass | High | Precision EMI shielding |
| Nickel Graphite | Medium-High | Cost-effective shielding |
Applications of Conductive Silicone Rubber
Conductive silicone rubber serves critical roles in industries where both flexibility and electrical conductivity are essential.
Conductive silicone is used in EMI/RFI shielding gaskets, electronic keypads, and medical electrodes. Its versatility ensures performance in harsh environments.
🛠️ Industrial Uses for Conductive Silicone
🛰️ Aerospace and Defense
- ✅ EMI shielding gaskets for radar and communication equipment.
- ✅ Sealing applications that require conductivity and environmental sealing.
🏥 Medical Devices
- ✅ Conductive pads for electrodes.
- ✅ Seals in medical imaging equipment where conductivity is required.
⚙️ Electronics and Automotive

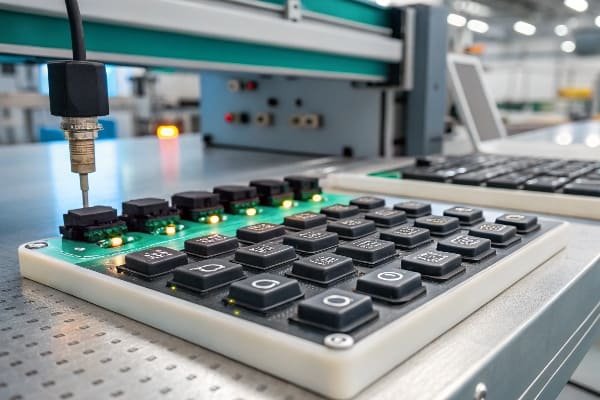

- ✅ Conductive keypads for control systems.
- ✅ EMI gaskets in automotive electronics.
- ✅ Static dissipative seals in electric vehicles.

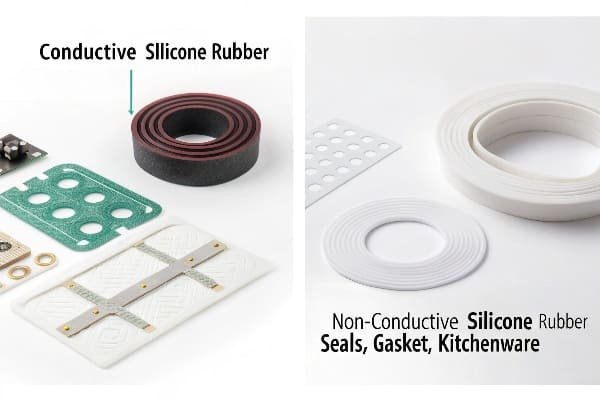

Conductive vs Non-Conductive Silicone
Choosing the right type of silicone for your project depends on its electrical requirements and environmental exposure.
🛠️ Side-by-Side Comparison
| Property | Non-Conductive Silicone | Conductive Silicone |
|---|---|---|
| ✅ Electrical Conductivity | Insulator (high resistivity) | Conductor (controlled resistivity) |
| ✅ EMI/RFI Shielding | No | Yes |
| ✅ Flexibility | Excellent | Good (depends on filler) |
| ✅ Cost | Lower | Higher (depends on filler type) |
| ✅ Processing | Easy (molding/extrusion) | Requires precision formulation |
How to Choose the Right Silicone Rubber?
For industrial buyers, selection depends on electrical requirements, compliance, and budget.
If your application requires electrical insulation, standard silicone is perfect. For EMI shielding or static control, conductive silicone rubber is the solution.
🛠️ Selection Guide
🔍 Electrical Performance
- ✅ Non-Conductive Silicone: Best for insulation and dielectric applications.
- ✅ Conductive Silicone: Essential for EMI shielding and static discharge.
🔍 Environmental Factors
- ✅ Both types offer excellent temperature and chemical resistance.
- ✅ Conductive silicone may require special handling during processing.
🔍 Compliance and Certification
- ✅ Verify FDA compliance if using in medical or food applications.
- ✅ EMI shielding components often require industry-specific certifications.
📞 Contact Us for Expert Guidance and Free Samples!
At Julong Rubber, we manufacture custom non-conductive and conductive silicone rubber parts to meet your industrial needs. Whether you need EMI shielding gaskets or FDA-compliant seals, we can help.
✅ ISO 9001 Certified
✅ OEM/ODM Manufacturing
✅ Free Technical Consultation and Samples
📧 Contact Kelly at Julong Rubber
Email: info@rubberandseal.com
Website: www.rubberandseal.com
Conclusion
Silicone is naturally non-conductive but can be engineered to provide conductivity with the right fillers. Choosing between standard and conductive silicone depends on your application’s electrical and environmental demands.
