Struggling with oil leaks or chemical incompatibility in your gasket material? Choosing the wrong rubber can lead to swelling, cracking, and premature failure—especially in industrial and automotive systems.
Nitrile gaskets are used for sealing oils, fuels, and greases in automotive, industrial, and hydraulic systems due to their excellent resistance to petroleum-based fluids.
If your system involves fuel, oil, or hydraulic pressure, nitrile (NBR) is often the first rubber you should evaluate.
What Is Nitrile Rubber Good For?
Got oil-heavy conditions or a fuel system that needs a long-lasting seal?
Nitrile rubber is ideal for sealing petroleum oils, diesel, gasoline, and lubricants. It’s commonly used in automotive, industrial, and hydraulic applications.
✅ Typical Use Cases:
- Oil seals and O-rings in engines and compressors
- Hydraulic cylinder seals in heavy machinery
- Fuel pump gaskets, fuel line seals
- Lubricant-resistant gaskets in gearboxes
- Protective gloves and hoses in oil contact zones
Its ability to stay stable in greasy, oily, and solvent-rich environments makes NBR a practical choice for manufacturers and OEMs.
Temperature and Chemical Resistance of NBR Gaskets1
Is your gasket exposed to heat or harsh chemicals?
Nitrile gaskets operate from -35°C to +120°C and resist non-polar solvents, petroleum oils, and hydraulic fluids.
🛠️ Chemical Compatibility:
| Fluid Type | NBR Compatibility2 |
|---|---|
| Petroleum oils | ✅ Excellent |
| Diesel, gasoline, kerosene | ✅ Excellent |
| Hydraulic fluids | ✅ Excellent |
| Alcohols, ketones | ❌ Poor |
| Brake fluid (DOT 3/4) | ❌ Poor |
| Water, steam | ⚠️ Limited |
Avoid using NBR in applications involving ozone, UV, or high-temperature steam.

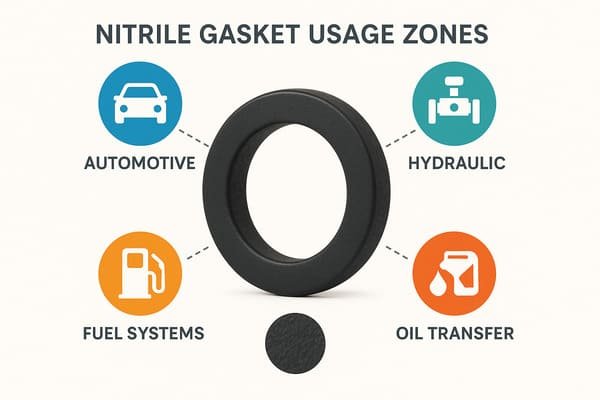

Common Applications of Nitrile Gaskets3
Where does NBR show its strength?
Nitrile gaskets are used in environments requiring oil and fuel resistance, including automotive, industrial, and agricultural machinery.
📦 Industry Use Examples:
| Industry | Application Examples |
|---|---|
| 🚗 Automotive | Oil pans, fuel lines4, valve covers, transmission seals |
| 🏭 Industrial | Pumps, compressors, hydraulic flanges, machinery |
| 🚛 Heavy Equipment | Diesel systems, gearboxes, hydraulic cylinders5 |
| ⛽ Fuel Systems | Fuel storage tanks, dispensers, filters |
Nitrile gaskets6 are cut from sheets or molded into precise forms for various mechanical needs.

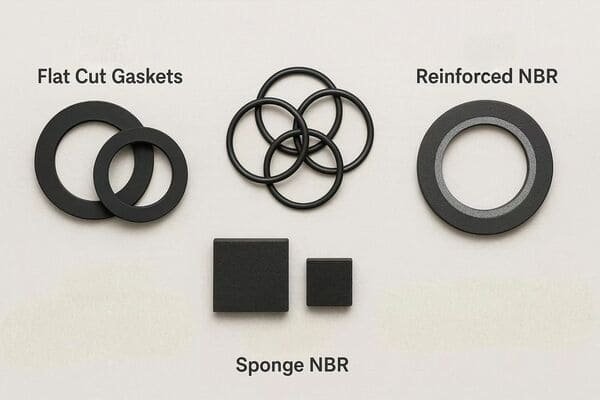

Types of Nitrile Gaskets
Need a soft seal? Or high-pressure resistance?
Nitrile gaskets come in different hardnesses, thicknesses, and reinforced formats depending on the application.
🔧 Formats Available:
| Type | Description |
|---|---|
| Flat NBR gaskets | Die-cut from sheet, used in pumps/flanges |
| NBR O-rings7 | Common in dynamic seals (shafts, pistons) |
| Sponge NBR | Compressible, used in enclosures or vibration |
| Reinforced NBR8 | Fabric/metal-backed for pressure-heavy systems |
Custom molded NBR gaskets9 are also available for complex geometries.

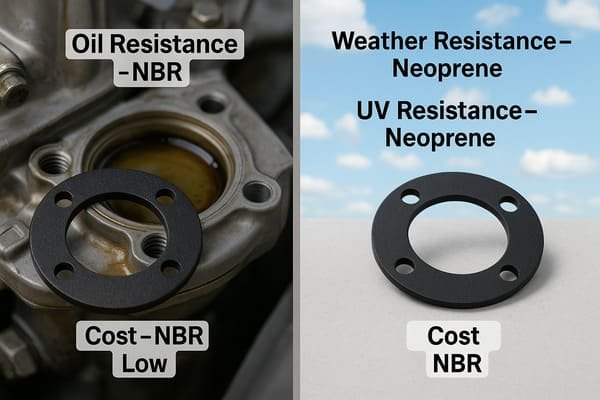

Is Nitrile Rubber Gasket Better Than Neoprene?
Confused between neoprene and nitrile?
Nitrile gaskets offer better oil and fuel resistance, while neoprene gaskets are more suitable for outdoor and weather-exposed environments.
🔍 Comparative Table:
| Property | NBR ✅ | Neoprene ✅ |
|---|---|---|
| Oil/Fuel Resistance10 | ✅ Excellent | ⚠️ Moderate |
| UV/Ozone Resistance11 | ❌ Poor | ✅ Good |
| Weather Resistance12 | ❌ Limited | ✅ Moderate |
| Cost | 💲 Low | 💲 Medium |
Use nitrile where oil is present. Use neoprene for general-purpose gaskets or exterior conditions.
Nitrile Gaskets vs. Other Rubber Types
Still weighing the options?
Nitrile balances cost and performance for oil-based applications, but it’s not a one-size-fits-all solution.
| Rubber Type | Oil Resistance | Temp Range (°C) | Weather Resistance | Cost |
|---|---|---|---|---|
| Nitrile (NBR)13 | ✅ Excellent | -35 to +120 | ❌ Poor | 💲 |
| EPDM | ❌ Poor | -50 to +150 | ✅ Excellent | 💲 |
| Silicone | ❌ Poor | -60 to +230 | ✅ Excellent | 💲💲 |
| Viton (FKM) | ✅ Excellent | -20 to +230 | ✅ Excellent | 💲💲💲 |
NBR gives the best oil resistance at a competitive cost—ideal for bulk use14.

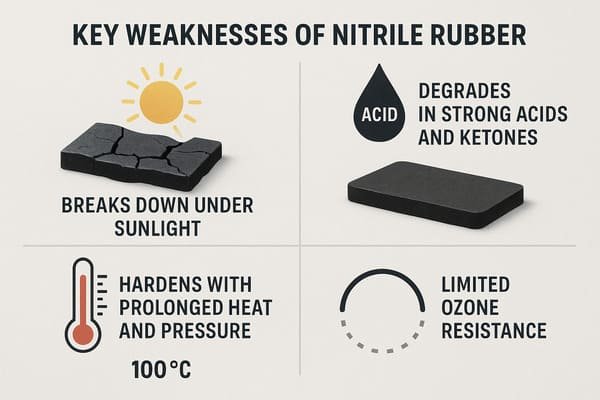

What Are the Disadvantages of Nitrile Rubber?
Every material has limits.
Nitrile rubber lacks weather resistance, struggles with ozone/UV, and degrades in some aggressive chemicals.
⚠️ Key Weaknesses:
- Breaks down under ozone or sunlight exposure
- Incompatible with strong acids, ketones, and brake fluids
- Limited upper temperature compared to silicone or Viton
- Hardens over time in high-pressure/high-heat environments
Avoid NBR for outdoor or chemically aggressive applications.
What Is the Lifespan of Nitrile Rubber?
Wondering how long NBR lasts?
Nitrile rubber gaskets typically last 3–10 years depending on oil exposure, heat, and environmental conditions.
⏳ Estimated Lifespans:
| Environment | Lifespan |
|---|---|
| Indoor, controlled | 8–10 years |
| Constant oil/hydrocarbon use | 3–5 years |
| Outdoor or UV exposed | ⚠️ 1–2 years (not recommended) |
Proper storage in a cool, dark space can extend shelf life.
Conclusion
Nitrile gaskets are the best choice for oil and fuel sealing in engines, hydraulics, and industrial systems. With the right formulation, they balance durability and price for demanding B2B applications.
