What Is the Standard O-Ring Size in mm?

Struggling to find the right O-ring size for your application? Choosing a non-standard size can cause leaks, misalignment, or premature failure.

Standard O-ring sizes in millimeters are defined by global sizing systems such as ISO 3601, with common inside diameters ranging from 1 mm to over 400 mm and cross-sections from 1 mm to 8.4 mm.

O-ring standard size chart — O-ring standard sizes

Let’s break down the global sizing standards and help you select the correct O-ring dimensions for your sealing needs.

Contents hide

1 What Are the Standard O-Ring Size Systems?

1.1 🌍 O-Ring Standards Overview:

2 How Are O-Rings Measured in mm?

2.1 🛠️ Example:

3 Common ISO 3601 O-Ring Sizes6 in mm

4 Why Standard O-Ring Sizes Matter?

4.1 ✅ Benefits of ISO Standard Sizes7:

5 Julong Rubber O-Ring Size Chart & Materials

5.1 🧰 Julong Rubber O-Ring Dimension & Material Overview

6 Brief Analysis

6.1 ✅ Available Materials:

7 Conclusion

What Are the Standard O-Ring Size Systems?

Confused by AS568 vs. ISO vs. BS sizes?

The most widely used O-ring size standards are ISO 3601 (metric), AS568 (inch-based, USA), and BS1806 (UK). ISO 3601 defines O-rings using inside diameter (ID) and cross-sectional diameter (CS) in millimeters.

🌍 O-Ring Standards Overview:

Standard	Region	Units Used	Notes
ISO 3601¹	International	Millimeter	Widely used in Europe and Asia
AS568²	USA	Inch	Common in industrial U.S. systems
BS1806³	United Kingdom	Inch	Often replaced by ISO 3601

How Are O-Rings Measured in mm?

Not sure how to measure an O-ring?

O-rings are defined by two dimensions: the inner diameter (ID) and the cross-sectional thickness (CS), both measured in millimeters.

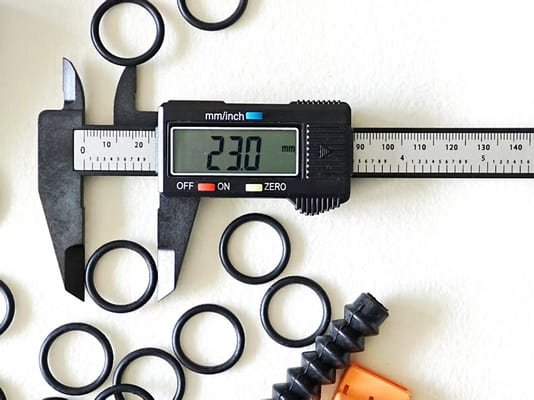

how to measure O-rings — O-ring measuring with caliper

🛠️ Example:

A metric O-ring labeled 20 × 2.5 means:
- Inside Diameter = 20 mm
- Cross Section = 2.5 mm

Use a digital caliper⁴ to measure accurately. If the O-ring is stretched or swollen, refer to part drawings or manufacturer datasheets⁵.

Common ISO 3601 O-Ring Sizes⁶ in mm

Looking for the most typical sizes?

Here’s a selection of common standard metric O-ring sizes under ISO 3601:

ISO Size Code	Inside Diameter (ID)	Cross-Section (CS)
001	1.00 mm	1.00 mm
006	2.90 mm	1.78 mm
012	6.07 mm	1.78 mm
020	9.19 mm	1.78 mm
030	12.42 mm	2.62 mm
040	15.60 mm	3.53 mm
050	20.22 mm	3.53 mm
100	31.42 mm	5.33 mm
200	52.07 mm	5.33 mm

Why Standard O-Ring Sizes Matter?

Still thinking about customizing your size?

Using a standard O-ring size ensures compatibility with commercial groove designs, reduces lead time, and lowers production cost.

✅ Benefits of ISO Standard Sizes⁷:

Immediate availability from stock
No tooling costs for molds
Predictable compression set behavior
Easy to design groove dimensions
Meets DIN, SAE, and JIS equipment specs

Julong Rubber O-Ring Size Chart & Materials

Looking for a reliable supplier of metric O-rings⁸ with stable material quality⁹ and custom options? At Julong Rubber, we offer a wide range of standard and non-standard O-rings in NBR, FKM, Silicone, and more.

Our O-rings are manufactured with precision to ensure consistent sealing performance in hydraulic, automotive, and HVAC systems.

🧰 Julong Rubber O-Ring Dimension & Material Overview

Part No.	Material	Dimension (mm)
V7002KF	FKM	0.38×1.4
V7002KF	FKM/VITON	0.38×1.4
S5087RU	Silicone	0.5×0.4
S5087RU	Silicone	0.5×0.4
S5087R	Silicone	0.5×0.4
S5087Ku	Silicone	0.55×0.35
V7002KF	FKM/VITON	0.6×1.2
E7006K	EPDM	0.7×0.5
V7002KF	FKM/VITON	0.75×1.2
V5505K	FKM/VITON	0.8×0.4
HN5502KF	HNBR	0.8×0.6
S70	Silicone	0.8×1
FS5001K	Fluorosilicone	0.85×0.55
V6002K	FKM/VITON	0.9×0.8
HN5502KF	HNBR	0.9×0.8
HN6001K	HNBR	0.9×0.8
V7028K	FKM/VITON	0.9×1.4
E7024UP	EPDM	0.9×2
E7006K	EPDM	1×0.5
HN5502KF	HNBR	1×1
HN5502KF	HNBR	1×1
S5020RF	Silicone	1×1
E7501K	EPDM	1×1.3
V75	FKM/VITON	1×1.85
V7521O	FKM/VITON	1×2
FS5005T	Fluorosilicone	1.05×0.7
V7002KF	FKM/VITON	1.05×1.55
V7521O	FKM/VITON	1.06×1.27
S7004T	Silicone	1.07×1.27
E7002KP	EPDM	1.1×0.5
FS5501K	Fluorosilicone	1.1×0.73
V6001KF	FKM/VITON	1.2×0.8
S6003K	Silicone	1.2×0.8
	NBR	1.2×1
E7003KP	EPDM	1.2×1.2
XS7501K	FKM/VITON	1.3×0.7
XS7501K	FKM/VITON	1.35×0.7
V7503K	FKM/VITON	1.4×1
V7015G	FKM/VITON	1.5×0.5
XS7501K	FKM/VITON	1.5×0.7
XS7501K	FKM/VITON	1.5×0.8
V7521O	FKM/VITON	1.5×1.1
S5020RF	Silicone	1.5×1
V7503K	FKM/VITON	1.5×1
HNBR70	HNBR	1.5×1.5
V7505K	FKM/VITON	1.5×1.6
V7505K	FKM/VITON	1.5×1.6
S7507T	FKM/VITON	1.57×1.25
S7507T	Silicone	1.65×1.15
FF7302K	Perfluoro rubber	1.7×0.6
E7006K	EPDM	1.7×1.9
	NBR	1.78×1.02
HN7006K	HNBR	1.8×0.7
V7002KF	FKM/VITON	1.8×1.2
V7521O	FKM/VITON	1.8×1.3
E6505KP	EPDM	1.8×1.8
S5001T	Silicone	1.9×0.8
S5087R	Silicone	2×0.5
V6001KF	FKM/VITON	2×0.8
FV7007K	FKM/VITON	2×1
V7511G	FKM/VITON	2×1
HN7018B	HNBR	2×1.5
HN7009K	HNBR	2×1.5
E7501K	EPDM	2×1.65
FV7007K	FKM/VITON	2×1.8
FF7302K	Perfluoro rubber	2×1.8
FV7007K	FKM/VITON	2×1.8
E6028KP	EPDM	2×2
V7503K	FKM/VITON	2.1×1.2
V7092K	FKM/VITON	2.2×0.8
V7028K	FKM/VITON	2.2×0.9
V7504K	FKM/VITON	2.2×1
V7022OF	FKM/VITON	2.2×1.15
E6005KP	EPDM	2.2×1.5
V7523O	FKM/VITON	2.2×1.9
N7002K	HNBR	2.23×0.71
HN7009K	HNBR	2.24×1.8
E7041KP	EPDM	2.25×0.84
E7041KP	EPDM	2.25×0.84
V7098KL	FKM/VITON	2.3×0.8
V7061OL	FKM/VITON	2.3×0.8
V7098KL	FKM/VITON	2.3×0.8
V7099K	FKM/VITON	2.3×1.5
N7074K	NBR	2.4×1.2
S7020RF	Silicone	2.4×1.9
HN8501K	HNBR	2.4×2.2
S5087RU	Silicone	2.5×0.4
S5087R	Silicone	2.5×0.4
E5001KF	EPDM	2.5×1.0
V7513G	FKM/VITON	2.5×1.2
(no code)	FKM/VITON	2.5×1.2
V7513G	FKM/VITON	2.5×1.2
V7028K	FKM/VITON	2.5×1.25
(no code)	NBR	2.5×1.5
HN5502KF/HN7009K	HNBR	2.5×1.5
V7503K	FKM/VITON	2.5×1.75
V7503K	FKM/VITON	2.5×1.8
E7006K	EPDM	2.5×1.9
V7074O	FKM/VITON	2.5×2
E7015KP	EPDM	2.5×2
E7002KP	EPDM	2.5×2
V7028K	FKM/VITON	2.52×1.25
V7503K	FKM/VITON	2.54×2.54
SV7001KM	FKM/VITON	2.57×1.78
FS5012G	Fluorosilicone	2.57×1.78
N7074K	NBR	2.6×1.2
V7028K	FKM/VITON	2.6×1.8
N70	NBR	2.6×1.9
E7002KP	EPDM	2.6×2
V6001KF	FKM/VITON	2.61×1.6
XS7505K	FKM/VITON	2.65×1.05
N7074K	NBR	2.7×1.2
N7074K	NBR	2.7×1.5
V90	FKM/VITON	2.7×2.65
V7503K	FKM/VITON	2.8×1.3
FS7004K	Fluorosilicone	2.8×1.8
HN7512G	HNBR	2.8×1.9
V7503K	FKM/VITON	2.84×2.62
S5087R	Silicone	2.86×0.4
V7021O	FKM/VITON	2.9×0.55
E7003KP	EPDM	2.9×1.35
FV8002K	FKM/VITON	2.9×1.78
HN8001K	HNBR	3×0.4
E6505KP	EPDM	3×0.6
E7002KP	EPDM	3×0.8
XS7501K	FKM/VITON	3×1
HN5502KF	HNBR	3×1
V7061OL	FKM/VITON	3×1
V5002KF	FKM/VITON	3×1.5
XS9001K	FKM/VITON	3×1.65
V6503K	FKM/VITON	3×1.8
FF7001K	Perfluoro rubber	3×2
FV7007K	FKM/VITON	3×2.5
N7003K	NBR	3.18×1.42
XS7501K	FKM/VITON	3.2×1.35
V7002KF	FKM/VITON	3.2×1.5
E6505KP	EPDM	3.2×1.8
E6505KP	EPDM	3.2×1.9
FS6501U	Fluorosilicone	3.2×2.2
E7002KP	EPDM	3.2×2.4
S3005B	Silicone	3.4×1.1
V7544O	FKM/VITON	3.4×1.2
V7503K	FKM/VITON	3.4×2.5
E7003KP	EPDM	3.5×0.75
S7004T	Silicone	3.5×1
V7026O	FKM/VITON	3.5×1.3
HN7001K	HNBR	3.5×1.5
XS6504R	FKM/VITON	3.5×1.9
V7503K	FKM/VITON	3.5×2
FKM75	FKM/VITON	3.5×2.5
V7001K	FKM/VITON	3.5×2.35
V7003K	FKM/VITON	3.5×2.4
E6505KP	EPDM	3.5×2.4
VV7503K	FKM/VITON	3.5×2.5
	FKM/VITON	3.55×1.8
NBR70	NBR	3.56×1.6
V7028K	FKM/VITON	3.6×1.2
E7008KP	EPDM	3.6×1.25
V7521O	FKM/VITON	3.62×2.62
	FKM/VITON	3.63×1.78
V9002K	FKM/VITON	3.65×1.1
	FKM/VITON	3.68×1.78
V6503K	FKM/VITON	3.7×2.5
E6505KP	EPDM	3.8×1.2
V6502G	FKM/VITON	3.8×1.25
E7301BPQ	EPDM	3.8×1.8
	FKM/VITON	3.8×1.9
HN7512G	HNBR	3.8×2
S6044G	Silicone	3.9×0.7
V7035K	FKM/VITON	3.9×1.8
S5087RU	Silicone	4×0.5
S5013K	Silicone	4×0.55
SV7001KJM	FKM/VITON	4×1
HN7009K	HNBR	4×1.2
HN7009K	HNBR	4×1.3
V7018K	FKM/VITON	4×1.5
V7035K	FKM/VITON	4×1.55
N7003K	NBR	4×1.8
V7521O	FKM/VITON	4×2
V7503K	FKM/VITON	4×2.5
V7503K	FKM/VITON	4×2.65
FF7302K	Perfluoro rubber	4×3
XS7501K	FKM/VITON	4.1×2
V7015G	FKM/VITON	4.2×1.1
S6001K	Silicone	4.2*1.2
FV8001K	FKM/VITON	4.2*1.2
E6505KP	EPDM	4.2*1.8
E6507KP	EPDM	4.2*1.9
N7074K	NBR	4.2*1.9
V7521O	FKM/VITON	4.2*2.2
E6507KP	EPDM	4.3*0.5
V7521O	FKM/VITON	4.3*1
N7074K	HNBR	4.3*1.9
V7523O	FKM/VITON	4.3*2
	FKM/VITON	4.4*1.6
	FKM/VITON	4.4*2.2
FS7501K	Fluorosilicone	4.42*2.62
V7503K	FKM/VITON	4.47*1.78
V6523O	FKM/VITON	4.47*1.78
	FKM/VITON	4.5*0.5
V5021OF	FKM/VITON	4.5*1
	FKM/VITON	4.5*1
HN7511G	HNBR	4.5*1.5
V7521O	FKM/VITON	4.5*2
V8001K	FKM/VITON	4.5*2
V7521O	FKM/VITON	4.5*2
V7521O	FKM/VITON	4.5*2.5
V7521O	FKM/VITON	4.5*2.65
XS8801K	FKM/VITON	4.6*1.4
V7503K	FKM/VITON	4.6*2.2
V7503K	FKM/VITON	4.7*1.02
V6001KF	FKM/VITON	4.7*1.1
	FKM/VITON	4.7*1.42
V5001K	FKM/VITON	4.7*1.8
V5001K	FKM/VITON	4.7*1.8
V7503K	FKM/VITON	4.75*0.3
V7503K	FKM/VITON	4.75*0.3
	FKM/VITON	4.76*1.78
E6505KP	EPDM	4.8*1.2
E6505KP	EPDM	4.8*1.2
FV7007K	High fluororubber	4.8*1.6
V7521O	FKM/VITON	4.8*1.9
	FKM/VITON	4.8*1.9
E7003KP	EPDM	4.8*1.9
SV7001KM	FKM/VITON	4.8*2.1
HN7501K	HNBR	4.9*1.84
	FKM/VITON	5*0.5
E7006K	EPDM	5*0.6
S5003KF	Silicone	5*0.6
E7003KP	EPDM	5*0.7
S7087R	Silicone	5*0.8
	FKM/VITON	5*1
E7003KP	EPDM	5*1
V7503K	FKM/VITON	5*1.1
V7523O	FKM/VITON	5*1.1
V7521O	FKM/VITON	5*1.2
V7503K	FKM/VITON	5*1.5
S6003K	Silicone	5*1.5
N6001K	NBR	5*1.8
V70	FKM/VITON	5*1.8
E6505KP	EPDM	5*1.8
FS7011G	Fluorosilicone	5*2
V7503K	FKM/VITON	5*2
V7503K	FKM/VITON	5*2
E6505KP	EPDM	5*2
E6505KP	EPDM	5*2
V7516G	FKM/VITON	5*2.5
FKM75	FKM/VITON	5*2.5
V7521O	FKM/VITON	5*2.65
V7521O	FKM/VITON	5*2.8
E7015KP	EPDM	5*3
E7015KP	EPDM	5*3
	FKM/VITON	5.07*0.81
HN5502KF	HNBR	5.1*0.6
HN5502KF	HNBR	5.1*0.6
HN5502KF	HNBR	5.1*0.6
V7503K	FKM/VITON	5.1*2.1
V7523K	FKM/VITON	5.1*2.1
S7001K	Silicone	5.2*1.2
S5100K	Silicone	5.2*1.6
V7503K	FKM/VITON	5.2*1.7
V7503K	FKM/VITON	5.2*1.9
	FKM/VITON	5.2*2.2
V7026O	FKM/VITON	5.2*2.4
V5801O	FKM/VITON	5.2*2.7
S5302W	Silicone	5.23*2.62
E7501K	EPDM	5.3*1.8
V5002KF	FKM/VITON	5.4*0.3
V7092K	FKM/VITON	5.4*0.8
E6003KP	EPDM	5.4*1
N7003K	NBR	5.4*1.8
FS7011G	Fluorosilicone	5.4*1.8
N7001	NBR	5.4*1.9
N7003K	NBR	5.5*1
HN6003K	HNBR	5.5*1.5
HN6003K	HNBR	5.5*1.5
HN7511G	HNBR	5.5*1.5
E7002KP	EPDM	5.5*1.5
E7002KP	EPDM	5.5*1.5
V8501K	FKM/VITON	5.5*1.6
FV8001K	FKM/VITON	5.5*1.8
V7503K	FKM/VITON	5.5*2
N7003K	NBR	5.5*2.5
V7521O	FKM/VITON	5.5*2.8
V7100E	FKM/VITON	5.55*1.46
V7100E	FKM/VITON	5.55*1.5
FS5005K	Fluorosilicone	5.6*0.9
V7523O	FKM/VITON	5.6*1
HN7512G	HNBR	5.6*1.7
	FKM/VITON	5.6*1.8
E6505KP	EPDM	5.6*1.8
E6505KP	EPDM	5.6*2
P7011G	ACM	5.7*1.4
V7002KF	FKM/VITON	5.7*1.6
V7002KF	FKM/VITON	5.7*1.6
	FKM/VITON	5.7*2.65
N7001K	NBR	5.8*1.2
V7092K	FKM/VITON	5.8*1.8
FF7302K	Perfluoro rubber	5.8*1.8
	FKM/VITON	5.8*1.9
V7028K	FKM/VITON	5.9*1.05
V7012G	FKM/VITON	5.9*5.2
S5001K	Silicone	6*0.4
E7006KP	EPDM	6*0.5
	NBR	6*0.6
N6001K	NBR	6*0.7
V7521O	FKM/VITON	6*1
V7523O	FKM/VITON	6*1
V7304K	FKM/VITON	6*1
V7523O	FKM/VITON	6*1.2
FS7008Y	Fluorosilicone	6*1.5
E7024UP	EPDM	6*1.5
E7301BPQ	EPDM	6*1.5
E7024UP	EPDM	6*1.5
FS7008Y	Fluorosilicone	6*1.5
S7082R	Silicone	6*1.6
S7082R	Silicone	6*1.6
S7082R	Silicone	6*1.65
FS6508Y/V6528O	Fluorosilicone/FKM/VITON	6*1.65
FKM	FKM/VITON	6*1.65
FS6508Y/XS6521O	Fluorosilicone	6*1.65
V6532O	FKM/VITON	6*1.65
E6505KP	EPDM	6*1.7
E6505KP	EPDM	6*1.7
E6505KP	EPDM	6*1.7
E6505KP	EPDM	6*1.75
E6505KP	EPDM	6*1.75
N70	NBR	6*1.8
E6505KP	EPDM	6*1.8
E6505KP	EPDM	6*1.8
N7001K	NBR	6*1.9
HN70	HNBR	6*2
E6015KP	EPDM	6*2
E6015KP	EPDM	6*2
E7003KP	EPDM	6*2
V7503K	FKM/VITON	6*2.65
V7026O	FKM/VITON	6*2.7
V7026O	FKM/VITON	6*2.7
FKM70	FKM/VITON	6*3
FS7011G	Fluorosilicone	6*3
V7503K	FKM/VITON	6*3.5
FS7001K	Fluorosilicone	60*5.3
HN7511G	HNBR	6.02*2.62
	FKM/VITON	6.07*1.78
E7003KP	EPDM	6.07*1.78
V7523O	FKM/VITON	6.09*2.2
V7523O-02	FKM/VITON	6.09*2.2
FS5003Y	Fluorosilicone	6.15*0.77
HN5502KF	HNBR	6.2*0.8
V7503K	FKM/VITON	6.2*0.8
FS6001K	Fluorosilicone	6.2*1
HN5502KF	HNBR	6.2*1
V5002KF	FKM/VITON	6.2*1
V7018K	FKM/VITON	6.2*1.6
FS7011G	Fluorosilicone	6.2*1.8
HN6501K	HNBR	6.2*1.8
	FKM/VITON	6.2*1.9
HN7512G	HNBR	6.2*1.9
V7527O	FKM/VITON	6.2*2.2
HN6002O	HNBR	6.2*2.2
V7521O	FKM/VITON	6.2*2.2
	FKM/VITON	6.2*2.4
V7521O	FKM/VITON	6.2*2.4
V6503K	FKM/VITON	6.3*2
V6503K	FKM/VITON	6.3*2
LV7002O	FKM/VITON	6.3*2.3
V7001K	FKM/VITON	6.3*4.2
V7503K	FKM/VITON	6.35*0.3
V7503K	FKM/VITON	6.35*0.3
	FKM/VITON	6.4*1.2
V7018K	FKM/VITON	6.4*1.7
V6503K	FKM/VITON	6.4*4.26
HN5502KF	HNBR	6.5*0.45
	FKM/VITON	6.5*0.6
V7088KL	FKM/VITON	6.5*0.7
N7003K	NBR	6.5*1
HN7006KM	HNBR	6.5*1.22
V7503K	FKM/VITON	6.5*1.25
S7001K	Silicone	6.5*1.5
E6028KP	EPDM	6.5*1.5
S5086R	Silicone	6.5*1.8
E6505KP	EPDM	6.5*1.8
	FKM/VITON	6.5*1.9
S5001K	Silicone	6.5*2
V7503K	FKM/VITON	6.5*2
V7026O	FKM/VITON	6.5*2.5
V5021OF	FKM/VITON	6.5*2.5
V6503K	FKM/VITON	6.58*4.27
HN5502KF	HNBR	6.6*0.4
V7007K	FKM/VITON	6.6*1.2
V7030A	FKM/VITON	6.6*1.3
V5512O	FKM/VITON	6.6*2.2
V5512O	FKM/VITON	6.6*2.2
	FKM/VITON	6.6*2.4
V70	FKM/VITON	6.6*4.2
V7034 B	FKM/VITON	6.6*4.2
V7503K	FKM/VITON	6.65*4.92
V7503K	FKM/VITON	6.7*1.45
V6523O	FKM/VITON	6.7*2
V7503K	FKM/VITON	6.75*0.3
HN5502KF	HNBR	6.8*0.3
HN5502KF	HNBR	6.8*0.4
HN5502KF	HNBR	6.8*0.4
V5002KF	FKM/VITON	6.8*0.5
HN5502KF	HNBR	6.8*0.5
FS5005K	Fluorosilicone	6.8*0.77
P7011G	ACM	6.8*1.4
P7011G	ACM	6.8*1.4
	HNBR	6.8*1.78
HN7512G	HNBR	6.8*1.78
	FKM/VITON	6.8*1.9
V6503K	FKM/VITON	6.8*1.9
V7504K	FKM/VITON	6.8*3
HN5502KF	HNBR	6.9*0.4
NHN7001K	HNBR	6.9*1.8
	FKM/VITON	6.95*2.4
FF8001K	Perfluoro rubber	6.95*2.65
V7503K	FKM/VITON	7*0.3
LV7003O	FKM/VITON	6.3*2.4
V7001K	FKM/VITON	6.3*4.3
V7503K	FKM/VITON	6.35*0.3
V7503K	FKM/VITON	6.35*0.3
	FKM/VITON	6.4*1.12
V7018K	FKM/VITON	6.4*1.17
N7024K	NBR	7*1
LFS6006K	Fluorosilicone	7*1
V7521O	FKM/VITON	7*1.2
V7521O	FKM/VITON	7*1.35
E7062WP	EPDM	7*1.4
N7074K	NBR	7*1.5
V6507G	FKM/VITON	7*1.5
FKM75	FKM/VITON	7*1.5
	FKM/VITON	7*1.6
FS7001K	Fluorosilicone	7*1.7
FS7001K	Fluorosilicone	7*1.7
V7503K	FKM/VITON	7*1.8
	FKM/VITON	7*2
V7524O	FKM/VITON	7*2.4
S6020R/S6003K	Silicone	7*2.5
	FKM/VITON	7*2.5
V7521O	FKM/VITON	7*3.5
V7521O	FKM/VITON	7.1*1
	FKM/VITON	7.1*2.7
V7521O	FKM/VITON	7.1*2.7
V7521O	FKM/VITON	7.1*2.7
	FKM/VITON	7.14*1.6
V7521O	FKM/VITON	7.2*1.2
P7011G	ACM	7.2*1.4
P7011G	ACM	7.2*1.4
P7011G	ACM	7.2*1.4
	HNBR	7.2*1.9
HN7512G	HNBR	7.2*1.9
	HNBR	7.2*1.9
V7513G	FKM/VITON	7.2*2.2
V7521O	FKM/VITON	7.2*3.5
V7521O	FKM/VITON	7.2*3.5
V7088KL	FKM/VITON	7.25*2.6
V7088KL/V7100YL	FKM/VITON	7.25*2.6
AE7001K	EPDM	7.35*1.8
E6507KP	EPDM	7.4*0.8
	EPDM	7.48*1.62
V7503K	FKM/VITON	7.5*0.5
E7003KP	EPDM	7.5*0.75
FV7007K	FKM/VITON	7.5*1
V7513G	FKM/VITON	7.5*1.5
E7003KP	EPDM	7.5*1.5
XS7501K	FKM/VITON	7.5*1.71
V7503K	FKM/VITON	7.5*1.8
V6803KL	FKM/VITON	7.5*1.8
E7006K	EPDM	7.5*1.9
FS7008Y	Fluorosilicone	7.5*2
E6503BP	EPDM	7.5*2
V6056K	FKM/VITON	7.5*2
V6503G	FKM/VITON	7.5*2
V6532O	FKM/VITON	7.5*2
V6503G	FKM/VITON	7.5*2
V6522K	FKM/VITON	7.5*2
FS7008Y/FS7012Y	Fluorosilicone	7.5*2
V6056K	FKM/VITON	7.5*2
E6505KP	EPDM	7.5*2.2
E6505KP	EPDM	7.5*2.2
E6505KP	EPDM	7.5*2.2
V7502K	FKM/VITON	7.5*2.3
S7001K	FKM/VITON	7.5*2.5
V7521O	FKM/VITON	7.5*2.5
V7503K	FKM/VITON	7.5*2.5
FV7007K	FKM/VITON	7.5*2.5
V7009L	FKM/VITON	7.5*2.65
FKM70	FKM/VITON	7.5*2.65
E7003KP	EPDM	7.5*2.8
V7001K	FKM/VITON	7.5*3
V7033B	FKM/VITON	7.5*5.5
V7503K	FKM/VITON	7.52*3.53
V7079KL	FKM/VITON	7.52*3.53
V7503K	FKM/VITON	7.52*3.53
V7529G	FKM/VITON	7.52*3.53
HN7009K	HNBR	7.55*1.63
E6505KP	EPDM	7.55*2.1
FKM65	FKM/VITON	7.55*2.55
V7523O	FKM/VITON	7.59*2.62
HN6513G	HNBR	7.59*2.62
V7523O	FKM/VITON	7.59*2.62
V7523O-2	FKM/VITON	7.59*2.62
HN6513G	HNBR	7.59*2.62
S7087RU	Silicone	7.6*1.2
S7087RU	Silicone	7.6*1.2
V7503K	FKM/VITON	7.6*1.6
S7503K	Silicone	7.6*1.6
V6503K	FKM/VITON	7.6*1.9
V7030A	FKM/VITON	7.6*2.2
V7002KF	FKM/VITON	7.6*2.4
V7513G	FKM/VITON	7.6*2.6
V7521O	FKM/VITON	7.6*3.2
FS7001K	Fluorosilicone	7.6*3.6
FS7001K	Fluorosilicone	7.6*3.6
V7099K	FKM/VITON	7.65*1.75
N7003K	NBR	7.65*1.78
P6805K	ACM	7.65*1.78
V6528O	FKM/VITON	7.65*1.9
V6528O	FKM/VITON	7.65*1.9
V6528O/V6527O/V6525O	FKM/VITON	7.65*1.9
V7099K	FKM/VITON	7.65*1.91
FS6508Y	Fluorosilicone	7.65*2
V6528O	FKM/VITON	7.65*2
V6506K	FKM/VITON	7.66*1.78
V6506K	FKM/VITON	7.66*1.78
HN7512G	HNBR	7.7*2
V5503G	FKM/VITON	7.7*2
V5503G	FKM/VITON	7.7*2.2
V7012G	FKM/VITON	7.7*2.7
V7083O	FKM/VITON	7.7*3.35
V7503K	FKM/VITON	7.75*0.3
V7503K	FKM/VITON	7.75*0.3
FS5005K	Fluorosilicone	7.8*0.8
V7503K	FKM/VITON	7.8*1
XS8801K	FKM/VITON	7.8*1.8
	FKM/VITON	7.8*1.8
HN6011G	HNBR	7.8*1.8
	HNBR	7.8*1.9
	HNBR	7.8*2.3
V7026O	FKM/VITON	7.5*2.35
HN7005K	HNBR	7.8*2.35
V6501KM	FKM/VITON	7.8*2.6
V7100OL	FKM/VITON	7.8*3
V6507G	FKM/VITON	7.8*3.1
V7513G	FKM/VITON	7.8*3.5
V7010OG	FKM/VITON	7.8*3.6
V7085B	FKM/VITON	7.8*3.6
V7053G	FKM/VITON	7.92*3.61
V7503K	FKM/VITON	7.94*1.78
N7003K	NBR	8*1
E7008KP	EPDM	8*1
V7073K	FKM/VITON	8*1
V7523O	FKM/VITON	8*1.2
V8002O	FKM/VITON	8*1.5
V7021O	FKM/VITON	8*1.5
N7024O	NBR	8*1.5
E6509KP	EPDM	8*1.5
E7301BPQ	EPDM	8*1.5
E7006K	EPDM	8*1.8
S5003KF	Silicone	8*1.8
E6505KP	EPDM	8*1.8
V7513G	FKM/VITON	8*1.9
E6505KP	EPDM	8*2
N7003K	NBR	8*2
HN7001K	HNBR	8*2
FV8001K	FKM/VITON	8*2
HN7001K	HNBR	8*2.3
V7503K	FKM/VITON	8*2.4
V7503K	FKM/VITON	8*2.5
E6505KP	EPDM	8*2.5
HN9006K	HNBR	8*2.65
E7001KF	EPDM	8*2.65
N7074K	NBR	8*3
V7503K	FKM/VITON	8*3
V7521O	FKM/VITON	8*3.5
V7001K	FKM/VITON	8*4
V7513G	FKM/VITON	8*4.5
V5002KF	FKM/VITON	8.1*0.9
V7018K	FKM/VITON	8.1*1.6
V7088KL	FKM/VITON	8.1*1.6
V7021O	FKM/VITON	8.1*3.55
V8006K	FKM/VITON	8.2*1.5
	FKM/VITON	8.2*1.78
V8002O	FKM/VITON	8.2*1.9
V7521O	FKM/VITON	8.2*1.9
V7521O	FKM/VITON	8.2*2.4
FS5501K	Fluorosilicone	8.25*0.8
V7002KF	FKM/VITON	8.3*1.3
V7092K	FKM/VITON	8.4*1
E7003KP	EPDM	8.5*0.75
V6001KF	FKM/VITON	8.5*0.9
V7041R	FKM/VITON	8.5*1.1
N7003K	NBR	8.5*1.5
HN7512G	HNBR	8.5*1.5
E6505KP	EPDM	8.5*1.8
XS9001K	FKM/VITON	8.5*1.85
E7006K	EPDM	8.5*1.9
S7004T	Silicone	8.5*2
V7507KF	FKM/VITON	8.5*2
V7503K	FKM/VITON	8.5*2
V7521O	FKM/VITON	8.5*2.25
V7531O	FKM/VITON	8.5*3
V7521O	FKM/VITON	8.5*3
V7511G	FKM/VITON	8.5*3
V5003K	FKM/VITON	8.6*1
V5003K	FKM/VITON	8.6*1
V7521O	FKM/VITON	8.6*1
HN5502KF	HNBR	8.7*0.5
HN5502KF	HNBR	8.7*0.5
V7503K	FKM/VITON	8.7*2
V7503K	FKM/VITON	8.7*2
	FKM/VITON	8.73*1.78
fkm70	FKM/VITON	8.74*3.14
HN6513G	HNBR	8.75*1.8
V7521O	FKM/VITON	8.75*3.05
V7536Y	FKM/VITON	8.8*1.1
V7503K	FKM/VITON	8.8*1.9
	FKM/VITON	8.8*1.9
E7003KP	EPDM	8.8*1.9
	EPDM	8.8*2.1
FS7005B	Fluorosilicone	8.9*1.83
V7088KL	FKM/VITON	8.9*2.6
V7088KL/V7100YL	FKM/VITON	8.9*2.6
V7002KF	FKM/VITON	9*0.54
V7002KF	FKM/VITON	9*0.54
S7020R	Silicone	9*1
V7503K	FKM/VITON	9*1
V7074O	FKM/VITON	9*1
S5087R	Silicone	9*1.5
V7067K	FKM/VITON	9*1.5
E7003KP	EPDM	9*1.5
FV7007K	FKM/VITON	9*1.5
HN6513G	HNBR	9*1.7
AE6001K	EPDM	9*1.8
V6528O	FKM/VITON	9*1.8
FS7008Y	Fluorosilicone	9*2
E6503BP	EPDM	9*2
V6528O	FKM/VITON	9*2
V6503G	FKM/VITON	9*2
FS7012Y	Fluorosilicone	9*2
E6505KP	EPDM	9*2
HN7015G	HNBR	9*2
FKM70	FKM/VITON	9*2
AE6501K	EPDM	9*2.2
S5020F	Silicone	9*2.5
V6026O	FKM/VITON	9*2.5
S5020F	Silicone	9*2.5
V7521O	FKM/VITON	9*2.5
V7023O	FKM/VITON	9*3
V7019L	FKM/VITON	9*3
N7003K	NBR	9*4
V6506K	FKM/VITON	9.1*1.9
V6525O	FKM/VITON	9.1*1.9
V7021O	FKM/VITON	9.1*1.9
V7524O	FKM/VITON	9.1*2.8
E7002KP	EPDM	9.12*3.53
E7002KP	EPDM	9.12*3.53
	EPDM	9.19*2.62
E60	EPDM	9.2*1.3
E7003KP	EPDM	9.2*1.3
HN6513G	HNBR	9.2*1.7
HN6513G	HNBR	9.2*1.8
V7521O	FKM/VITON	9.2*1.9
E7006K	EPDM	9.2*1.9
E6505KP	EPDM	9.2*2
HN7002K	HNBR	9.2*2
E7003KP	EPDM	9.2*2.62
HN6501K	HNBR	9.25*1.78
	EPDM	9.25*1.78
V7505K	FKM/VITON	9.25*1.78
XS7501K	FKM/VITON	9.3*1.9
V7505K	FKM/VITON	9.3*2.2
V7028K	FKM/VITON	9.3*2.2
V7092K	FKM/VITON	9.3*2.2
HN7511G	HNBR	9.3*2.4
V7100GL	FKM/VITON	9.3*2.7
	EPDM	9.4*1.5
E7505KP	EPDM	9.4*2.1
HN6001K	HNBR	9.4*2.3
V6503K	FKM/VITON	9.4*2.6
FS70	Fluorosilicone	9.45*1.65
FV7007K	FKM/VITON	9.5*0.6
FF7302K	Perfluoro rubber	9.5*0.6
V7092K	FKM/VITON	9.5*1
XS7202K	FKM/VITON	9.5*1.4
V7522OF	FKM/VITON	9.5*1.8
E7003KP	EPDM	9.5*1.8
S7020RF	Silicone	9.5*1.8
	EPDM	9.5*1.9
FS7008Y	Fluorosilicone	9.5*2
V6503GFS	FKM/VITON	9.5*2
V6523O	FKM/VITON	9.5*2
XS7006K	FKM/VITON	9.5*2
V6528O	FKM/VITON	9.5*2
V7079KL	FKM/VITON	9.5*2.5
V7079KL	FKM/VITON	9.5*2.5
E6505KP	EPDM	9.5*2.5
	EPDM	9.5*3
V7503K	FKM/VITON	9.55*2.7
V6503KZ	FKM/VITON	9.6*2
V7011G	FKM/VITON	9.6*2.1
E6505KP	EPDM	9.6*3
V6528O	FKM/VITON	9.65*1.9
V7504K	FKM/VITON	9.7*1.2
V7521O	FKM/VITON	9.7*2.35
	EPDM	9.75*1.78
V6503K	FKM/VITON	9.75*2.2
E7006K	EPDM	9.8*1.3
E7003KP	EPDM	9.8*1.4
	EPDM	9.8*1.9
V7504K	FKM/VITON	9.8*2.1
	EPDM	9.8*2.4
HN7512G	HNBR	9.8*2.4
V7502K	FKM/VITON	9.9*1.65
E6505KP	EPDM	9.9*1.8
FKM75	FKM/VITON	10*0.8
HN7009KU	HNBR	10*1
E7201K	EPDM	10*1
V9001K	FKM/VITON	10*1
E7002KP	EPDM	10*1.05
V7018K	FKM/VITON	10*1.2
S5087R	Silicone	10*1.37
N7024O	NBR	10*1.5
E7024UP	EPDM	10*1.5
V7066L	FKM/VITON	10*1.6
FS6001K	Fluorosilicone	10*1.8
N7016K	NBR	10*1.8
FS7001K	Fluorosilicone	10*1.9
N7003K	NBR	10*2
HN7511G	HNBR	10*2.5
S7003K	Silicone	10*2.5
V7503K	FKM/VITON	10*2.5
FV7002K	FKM/VITON	10*2.5
HN9006K	HNBR	10*2.65
V7521O	FKM/VITON	10*2.65
HN7001K	HNBR	10*2.65
V7503K	FKM/VITON	10*3
NBR	NBR	10.2*1.9
V7018K	FKM/VITON	10.2*2.6
XS7501K	FKM/VITON	10.3*0.97
V7523O	FKM/VITON	10.4*1.5
V7523O-02	FKM/VITON	10.5*1.25
	FKM/VITON	10.5*2.3
	FKM/VITON	10.51*1.83
HN7001K	HNBR	10.55*1.9
N7003K	NBR	10.6*1.8
V90	FKM/VITON	10.6*1.8
E7003KP	EPDM	10.6*1.8
V7088KL	FKM/VITON	10.6*2.2
V7503K	FKM/VITON	10.6*2.65
FS7008Y	Fluorosilicone	10.7*1.45
V7088KL	FKM/VITON	10.7*2.1
FS7001K	Fluorosilicone	10.7*2.1
S5001T	Silicone	10.72*1.78
N6001K	NBR	10.75*0.4
XS7501K	FKM/VITON	10.77*2.62
XS7501K	FKM/VITON	10.77*2.8
E6505KP	EPDM	10.8*1.8
E7002KP	EPDM	10.8*1.8
HNBR70	HNBR	10.8*1.9
V6503K	FKM/VITON	10.8*1.9
V7503K	FKM/VITON	10.8*2.1
NBR	NBR	10.8*2.4
HN7511G	HNBR	10.8*2.65
V7024AL	FKM/VITON	10.82*1.78
NBR	NBR	10.82*1.8
NBR	NBR	10.95*3.5
E7006K	EPDM	11*0.5
E6505KP	EPDM	11*1
E7006K	EPDM	11*1.2
HN7512G	HNBR	11*1.5
E7024UP	EPDM	11*1.5
V7523O-02	FKM/VITON	11*1.8
E7024UP	EPDM	11*1.8
FS6508Y	Fluorosilicone	11*1.84
HN7021KL	HNBR	11*1.9
HN7012KL	HNBR	11*1.9
S7001K	Silicone	11*2
V7018K	FKM/VITON	11*2
E7003KP	EPDM	11*2
V7521O	FKM/VITON	11*2.5
V6525O	FKM/VITON	11*2.5
	NBR	11*2.5
V7503K	FKM/VITON	11*3.5
V7088KL	FKM/VITON	11.1*2.2
V7524O	FKM/VITON	11.1*2.2
V7503K	FKM/VITON	11.2*1.5
V7503K	FKM/VITON	11.2*1.9
V5002KF	FKM/VITON	11.2*1.95
HN6001K	HNBR	11.2*2.3
V7513G	FKM/VITON	11.2*2.4
	NBR	11.2*2.7
	NBR	11.3*1.78
V8001K	FKM/VITON	11.3*2.2
V7028K	FKM/VITON	11.3*2.2
S70W	Silicone	11.3*2.4
V7521O	FKM/VITON	11.3*2.4
V7066L	FKM/VITON	11.35*1.6
V7066L	FKM/VITON	11.4*1.5
FS7008Y	Fluorosilicone	11.4*2.2
E6505KP	EPDM	11.4*2.2
N6503K	NBR	11.5*0.75
	NBR	11.5*1.8
V7092K	FKM/VITON	11.5*1.8
HN7511G	HNBR	11.5*2
V7018K	FKM/VITON	11.5*2
V6532O/V6514G	FKM/VITON	11.5*2.3
V6532O	FKM/VITON	11.5*2.3
V6528O/FS6508Y	Fluorosilicone/FKM/VITON	11.5*2.3
S5100K	Silicone	11.5*2.5
LV7533K	FKM/VITON	11.5*2.5
V7521O	FKM/VITON	11.5*2.6
V6503G	FKM/VITON	11.5*2.6
V7001O	FKM/VITON	11.5*2.65
V6502G	FKM/VITON	11.5*2.8
V7503K	FKM/VITON	11.6*3
V7503K	FKM/VITON	11.66*2.82
N6503K	NBR	11.7*0.75
V7502K	FKM/VITON	11.78*1.78
V7503K	FKM/VITON	11.78*1.78
	NBR	11.8*2.1
	NBR	11.8*2.4
V7507KF	FKM/VITON	11.8*2.4
V7088KL	FKM/VITON	11.8*2.5
V7058KL	FKM/VITON	11.8*2.6
V7088KL	FKM/VITON	11.8*2.6
HN7014K	HNBR	11.8*2.65
V7513G	FKM/VITON	11.8*3.1
V7521O	FKM/VITON	11.8*3.55
	NBR	11.86*2.62
V7028K	FKM/VITON	11.88*1.98
V7028K	FKM/VITON	11.88*1.98
S5003KF	Silicone	11.9*0.5
HN5502KF	HNBR	12*0.5
V7002KF	FKM/VITON	12*1
FS7008Y	Fluorosilicone	12*1.2
V7503K	FKM/VITON	12*1.2
	NBR	12*1.5
	NBR	12*1.6
S50C	Silicone	12*1.65
V7503K	FKM/VITON	12*1.8
	NBR	12*1.9
	NBR	12*2
FS7001K	Fluorosilicone	12*2
V7001K	FKM/VITON	12*2.5
E6505KP	EPDM	12*2.5
V7521O	FKM/VITON	12*2.8
E6506KP	EPDM	12*3
FV8001K	FKM/VITON	12*3
V6519G	FKM/VITON	12.1*1.8
HN5502KF	HNBR	12.2*0.4
V7521O	FKM/VITON	12.2*1.9
V6525O/FS6510Y	Fluorosilicone/FKM/VITON	12.2*2.3
HN7512G	HNBR	12.2*2.4
	NBR	12.2*2.75
E6505KP	EPDM	12.2*2.75
V6525O	FKM/VITON	12.25*2.35
E6510UP	EPDM	12.5*2.35
S5100K	Silicone	12.3*1.5
	NBR	12.37*1.78
	NBR	12.37*2.62
	NBR	12.37*2.62
V8511G	FKM/VITON	12.38*3.62
HN7002K	HNBR	12.4*1.9
	NBR	12.42*1.78
E7001KF	EPDM	12.42*1.78
	NBR	12.42*1.78
S5001K	Silicone	12.5*1
	Silicone	12.5*1
V7066L	FKM/VITON	12.5*1.5
V7507KF	FKM/VITON	12.5*1.5
	NBR	12.5*1.8
E6505KP	EPDM	12.5*1.8
	NBR	12.5*1.9
S7001K	Silicone	12.5*2
HN7009K	HNBR	12.5*2
HN8004K	HNBR	12.5*2.1
	NBR	12.5*2.6
V7551K	FKM/VITON	12.5*2.65
E7002KP	EPDM	12.6*1.2
E7002KP	EPDM	12.6*2
V6503K	FKM/VITON	12.6*2.6
V7503K	FKM/VITON	12.65*3.25
	NBR	12.7*2.4
FKM70	FKM/VITON	12.76*2.62
HN7511G	HNBR	12.8*1.6
XS7203B	FKM/VITON	12.8*1.6
V7503K	FKM/VITON	12.8*1.65
V6503K	FKM/VITON	12.8*1.8
	NBR	12.8*1.9
FKM70	FKM/VITON	12.86*3.06
V7513G	FKM/VITON	12.9*2.6
E8008KP	EPDM	13*1
V6001KF	FKM/VITON	13*1
V7066L	FKM/VITON	13*1.5
S80	Silicone	13*1.5
V7066L	FKM/VITON	13*1.5
V7018K	FKM/VITON	13*1.65
V7503K	FKM/VITON	13*2
V7521O	FKM/VITON	13*2.5
E6505KP	EPDM	13*2.5
P7501K	ACM	13.1*1.6
V65	FKM/VITON	13.2*1.3
V6529R	FKM/VITON	13.2*1
E7006K	EPDM	13.2*1.5
N70	NBR	13.2*1.5
FS7001K	Fluorosilicone	13.2*1.8
E7006K	EPDM	13.2*1.8
E7301BPQ	EPDM	13.2*1.8
E7301BPQ	EPDM	13.2*1.8
NBR	NBR	13.2*1.9
E6505KP	EPDM	13.2*1.9
E6505KP	EPDM	13.2*1.9
V7521O	FKM/VITON	13.2*2
E7006K	EPDM	13.2*2.2
E7006K	EPDM	13.2*2.2
HN7001K	HNBR	13.2*2.65
HN7511G	HNBR	13.2*2.65
HN7511G	HNBR	13.2*2.65
V7505K	FKM/VITON	13.3*2.2
V7088KL	FKM/VITON	13.3*2.2
V7505K	FKM/VITON	13.3*2.2
V7505K	FKM/VITON	13.3*2.2
FV7002K	FKM/VITON	13.4*1.8
V7088KL	FKM/VITON	13.4*2.1
HN5502KF	HNBR	13.5*0.65
N6503K	NBR	13.5*0.65
N6503K	NBR	13.5*0.7
V7066L	FKM/VITON	13.5*1.4
V7503K	FKM/VITON	13.5*1.65
V5002KF	FKM/VITON	13.5*1.65
E7002KP	EPDM	13.5*2
V7088KL	FKM/VITON	13.5*2.5
NBR	NBR	13.5*2.5
HN7009K	HNBR	13.5*2.5
E6510UP	EPDM	13.5*2.5
E6510UP	EPDM	13.5*2.5
HN7006K	HNBR	13.5*3
FS5001K	Fluorosilicone	13.6*0.5
V7504K	FKM/VITON	13.6*1.1
HN7512G	HNBR	13.6*2.2
V7504K	FKM/VITON	13.7*1.5
V7513G	FKM/VITON	13.7*1.9
V7523O-02	FKM/VITON	13.7*2.54
V7527O	FKM/VITON	13.7*2.7
V7527O	FKM/VITON	13.7*2.7
V7523O-02	FKM/VITON	13.8*1.5
NBR	NBR	13.8*1.6
V7502K	FKM/VITON	13.8*1.9
HN7001K	HNBR	13.8*2
HN7009K	HNBR	13.8*2.4
NBR	NBR	13.8*2.4
V7503K	FKM/VITON	13.8*2.4
V7088KL	FKM/VITON	13.8*2.5
V6503KG	FKM/VITON	13.8*2.65
V7018K	FKM/VITON	13.8*2.8
V7523O	FKM/VITON	13.9*1.5
V7523O-02	FKM/VITON	13.9*1.8
V7516O	FKM/VITON	13.9*2.74
	NBR	13.92*2.62
	NBR	13.94*2.62
V6016G	FKM/VITON	13.94*2.62
N6503K	NBR	14*0.7
FKM65	FKM/VITON	14*1.5
FS7011G	Fluorosilicone	14*1.5
	NBR	14*1.78
V70	FKM/VITON	14*1.8
	NBR	14*1.8
XS7601G	FKM/VITON	14*1.9
V7523O	FKM/VITON	14*2
E7002KP	EPDM	14*2
V6503K	FKM/VITON	14*2.3
FS7001K	Fluorosilicone	14*2.5
	NBR	14*2.5
V6503K	FKM/VITON	14*2.5
V6026O	FKM/VITON	14*2.6
S5001F	Silicone	14*2.65
S5003KF	Silicone	14*2.65
V7521O	FKM/VITON	14*2.65
V7502K	FKM/VITON	14*2.65
	NBR	14*2.65
	NBR	14*2.65
E7003KP	EPDM	14*2.65
FKM70	FKM/VITON	14*3
LV7533	FKM/VITON	14*3.5
V7521O	FKM/VITON	14*4
E6505KP	EPDM	14.1*1.2
HN7512G	HNBR	14.2*1.9
V7018K	FKM/VITON	14.2*2.4
N7003K	NBR	14.2*2.4
N7003K	NBR	14.2*2.5
HN7511G	HNBR	14.2*2.65
HN7511G	HNBR	14.3*2.4
E6003KP	EPDM	14.35*1.5
V6026O	FKM/VITON	14.4*1.9
V6026O	FKM/VITON	14.4*1.9
V8006KL	FKM/VITON	14.4*2
V7521O	FKM/VITON	14.4*2.5
V7552O	FKM/VITON	14.4*2.5
V7505K	FKM/VITON	14.5*1.5
V7521O	FKM/VITON	14.5*2.1
V7552O	FKM/VITON	14.5*2.1
V8003K	FKM/VITON	14.5*2.65
	NBR	14.5*2.8
V6525O	FKM/VITON	14.5*3.0
V7502K	FKM/VITON	14.6*1.78
E6505KP	EPDM	14.6*1.8
V5801O	FKM/VITON	14.6*2.2
V5801K	FKM/VITON	14.6*2.2
V7503K	FKM/VITON	14.6*2.39
FKM	FKM/VITON	14.65*2
N7003K	NBR	14.7*0.43
	NBR	14.7*1.65
V7523O	FKM/VITON	14.7*2.65
V7021O	FKM/VITON	14.7*2.65
N6503K	NBR	14.8*0.7
E6003KP	EPDM	14.8*1
V7018K	FKM/VITON	14.8*1.88
HN7009K	HNBR	14.8*2.4
	NBR	14.8*2.4
V7503K	FKM/VITON	14.8*2.8
FKM60	FKM/VITON	14.95*3.41
XS7501K	FKM/VITON	15*1
V7503K	FKM/VITON	15*1
XS7501K	FKM/VITON	15*1
V7503K	FKM/VITON	15*1.2
V7503K	FKM/VITON	15*1.3
V7503K	FKM/VITON	15*1.5
E6505KP	EPDM	15*1.5
E6505KP	EPDM	15*1.5
V7503K	FKM/VITON	15*1.6
V7521O	FKM/VITON	15*1.6
V7066K	FKM/VITON	15*1.8
E6505KP	EPDM	15*1.9
V7503K	FKM/VITON	15*2
E6505KP	EPDM	15*2.4
V7521O	FKM/VITON	15*2.5
V7521O	FKM/VITON	15*2.6
HN7001K	HNBR	15*2.65
E6505KP	EPDM	15*2.8
V6503K	FKM/VITON	15*2.8
E6505KP	EPDM	15*3
V7521O	FKM/VITON	15*3
V7503K	FKM/VITON	15*3
LV7033K	FKM/VITON	15*4
V7523O	FKM/VITON	15.2*2.4
HN7015G	NBR	15.3*0.4
FS6001B	Fluorosilicone	15.3*1
E6510UP	FKM/VITON	15.3*1.6
V7523O-02	FKM/VITON	15.3*1.78
V7092K	FKM/VITON	15.3*2.2
V7503	FKM/VITON	15.3*3
	NBR	15.3*3.2
FS6510Y	Fluorosilicone	15.4*2.8
V6503K	FKM/VITON	15.4*2.8
FS5005K	Fluorosilicone	15.5*0.5
V7503K	FKM/VITON	15.5*1.5
E6503BP	EPDM	15.5*1.8
E6503BP	EPDM	15.5*1.8
FKM70	FKM/VITON	15.5*2
HN7001K	HNBR	15.5*2
HN9006K	HNBR	15.5*2.4
V7033B	FKM/VITON	15.5*2.5
V7033BG	FKM/VITON	15.5*2.5
V7033BG	FKM/VITON	15.5*2.5
HN7001K	HNBR	15.5*2.55
V7521O	FKM/VITON	15.5*2.55
E7002KP	EPDM	15.5*2.55
	NBR	15.5*3
V7023O	FKM/VITON	15.5*3
V7023O	FKM/VITON	15.5*3
HN7511G	HNBR	15.54*2.62
V6525O	FKM/VITON	15.55*2.60
	NBR	15.55*2.6
FS6510Y	Fluorosilicone	15.55*2.6
FS7008Y	Fluorosilicone	15.55*2.7
FS7008Y	Fluorosilicone	15.55*2.7
V6525OU	FKM/VITON	15.55*2.7
V6525OU	FKM/VITON	15.55*2.7
FS6510Y/V6525O	Fluorosilicone/FKM/VITON	15.55*2.7
E6505KP	EPDM	15.55*2.7
V6525O	FKM/VITON	15.55*2.75
FS5501K	Fluorosilicone	15.6*1
V7521O	FKM/VITON	15.6*1.78
V6528O	FKM/VITON	15.6*2.4
V6503G	FKM/VITON	15.6*2.4
V6503G	FKM/VITON	15.6*2.4
V6522K	FKM/VITON	15.6*2.4
	NBR	15.6*2.4
E6520UP	EPDM	15.6*2.4
V6505G	FKM/VITON	15.6*2.4
V6506K	FKM/VITON	15.6*2.6
FS6503Y	Fluorosilicone	15.6*3
FS6508Y	Fluorosilicone	15.6*3
E6520UP	EPDM	15.6*3
FS6802Y	Fluorosilicone	15.6*3
FS6503Y	Fluorosilicone	15.6*3
HN7001K	HNBR	15.65*2
V6503K	FKM/VITON	15.8*1.6
HN7001K	HNBR	15.8*2
	NBR	15.8*2.4
V7018K	FKM/VITON	15.8*2.4
	NBR	15.8*2.6
	NBR	15.88*2.62
S6010R	Silicone	15.9*1.7
S6010R	Silicone	15.9*1.7
HN60-65	HNBR	15.9*2.3
	NBR	16*1.5
	NBR	16*1.5
V7521O	FKM/VITON	16*1.6
	NBR	16*1.65
V7502K	FKM/VITON	16*1.7
E8008KP	EPDM	16*1.8
E7006K	EPDM	16*1.8
S5020RF	Silicone	16*2
V5002KF	FKM/VITON	16*2
V5002KF	FKM/VITON	16*2
S5001T	Silicone	16*2
V5002KF	FKM/VITON	16*2
V7025W	FKM/VITON	16*2.5
V7025W	FKM/VITON	16*2.5
V7503K	FKM/VITON	16*2.5
V7521O	FKM/VITON	16*2.7
V7521O	FKM/VITON	16*2.7
V7521O	FKM/VITON	16*2.7
	NBR	16*3
FF7302K	Perfluoro rubber	16*3.5
V75	FKM/VITON	16*4
S6005T	Silicone	16.05*2.9
V6001KF	FKM/VITON	16.05*2.9
V7523O-02	FKM/VITON	16.15*1.5
	NBR	16.2*1.3
XS7501K	FKM/VITON	16.2*1.6
XS7501K	FKM/VITON	16.2*1.8
V7321O	FKM/VITON	16.2*2.35
	NBR	16.2*2.4
V7521O	FKM/VITON	16.2*2.4
HNBR75	HNBR	16.3*1.9
E7024UP	EPDM	16.3*1.9
V8001K	FKM/VITON	16.35*2.2
V8001K	FKM/VITON	16.35*2.2
HN6502KF	HNBR	16.5*0.5
HN5502KF	HNBR	16.5*0.5
V7503K	FKM/VITON	16.5*1.5
V7066L	FKM/VITON	16.5*2
HN9006K	HNBR	16.5*2.4
V7521O	FKM/VITON	16.5*2.5
	NBR	16.5*2.7
S5100K	Silicone	16.5*3
V7503K/XS7016K	FKM/VITON	16.6*2.2
XS7016K	FKM/VITON	16.6*2.2
XS7016K	FKM/VITON	16.6*2.2
S7009K	Silicone	16.65*1.6
Part No.	Material
	NBR	16.7*1.9
	NBR	16.76*1.78
HN5502KF	HNBR	16.8*0.5
V7002KF	FKM/VITON	16.8*1.65
V6503G	FKM/VITON	16.88*2.35
HN5502KF	HNBR	17*0.45
FS5001K	Fluorosilicone	17*0.5
HN5502KF	HNBR	17*0.5
HN7512G	HNBR	17*1.5
	NBR	17*1.5
V5801O	FKM/VITON	17*1.7
HN9006K	HNBR	17*1.8
V7523O-02	FKM/VITON	17*1.8
V7523O-02	FKM/VITON	17*1.8
FKM70	FKM/VITON	17*1.8
XS7501K	FKM/VITON	17*1.8
V5810O	FKM/VITON	17*2
V7527O	FKM/VITON	17*2
E7006K	EPDM	17*2
	NBR	17*2
E7002KP	EPDM	17*2
V7505K	FKM/VITON	17*2.2
	NBR	17*2.2
	NBR	17*2.5
V7513G	FKM/VITON	17*2.5
V6503G	FKM/VITON	17*2.65
V7028K	FKM/VITON	17*3.5
V7029O	FKM/VITON	17.04*3.53
FKM70	FKM/VITON	17.1*2.8
	NBR	17.12*2.62
V7521O	FKM/VITON	17.17*1.78
S5001T	Silicone	17.17*1.78
S7001K	Silicone	17.17*1.78
SIL70	Silicone	17.17*1.78
	NBR	17.17*1.8
V7002KF	FKM/VITON	17.2*1.5
E7006K	EPDM	17.2*1.9
FS7008Y	Fluorosilicone	17.3*2.55
V7018K	FKM/VITON	17.3*3
FS7008Y	Fluorosilicone	17.35*2.55
V7021O	FKM/VITON	17.35*2.55
E6505KP	EPDM	17.35*2.55
V7505K	FKM/VITON	17.4*2.2
V8001K	FKM/VITON	17.4*2.2
V7021O	FKM/VITON	17.4*2.55
FKM	FKM/VITON	17.5*1.5
E7003KP	EPDM	17.5*1.5
V7523O-02	FKM/VITON	17.5*1.65
V7502K	FKM/VITON	17.5*1.78
N5005K	NBR	17.5*2
N5005K	NBR	17.5*2
N5005K	NBR	17.5*2
V7503K	FKM/VITON	17.5*2.5
V7503K	FKM/VITON	17.5*2.5
E6510UP	EPDM	17.5*2.5
V7523O-02	FKM/VITON	17.5*2.62
V7523O-02	FKM/VITON	17.5*2.62
V7523O-02	FKM/VITON	17.5*2.62
V7521O	FKM/VITON	17.5*2.7
V7503K	FKM/VITON	17.5*3
XS9001K	FKM/VITON	17.6*2.7
HN7009K	HNBR	17.7*1.58
V7028K	FKM/VITON	17.8*2
	NBR	17.8*2.4
E7002KP	EPDM	17.8*2.4
HN8803K	HNBR	17.8*2.7
E7003P	EPDM	17.93*2.46
E7003KP	EPDM	17.93*2.46
C7001K	ACM	18*1
V7503K	FKM/VITON	18*1
FS5501K	Fluorosilicone	18*1
	NBR	18*1.4
S5001T	Silicone	18*1.5
E6003KP	EPDM	18*1.5
E7001KF	EPDM	18*1.5
E7001F	EPDM	18*1.5
N7003K	NBR	18*1.5
E6003KP	EPDM	18*1.5
E6505KP	EPDM	18*1.8
E6505KP	EPDM	18*1.8
V7523O	FKM/VITON	18*1.8
	NBR	18*2
E7301BPQ	EPDM	18*2
S5020F	Silicone	18*2.5
N7024O	NBR	18*2.5
S5020F	Silicone	18*2.5
V6523O	FKM/VITON	18*2.65
V8001K	FKM/VITON	18*2.65
S5020RF	Silicone	18*3
V7503K	FKM/VITON	18*3
V7521O	FKM/VITON	18*3.2
LV7020O	FKM/VITON	18*3.5
V7523O-02	FKM/VITON	18.05*1.72
V5801O	FKM/VITON	18.2*1.6
HN7512G	HNBR	18.2*1.9
	NBR	18.2*1.9
N7003K	NBR	18.2*2.4
V6503K	FKM/VITON	18.3*2.4
V7046G/FS7008Y	Fluorosilicone/FKM/VITON	18.3*3
E7024UP	EPDM	18.3*3
N70 orange red	NBR	18.42*3.16
N7003K	NBR	18.49*1.2
HN7512G	HNBR	18.7*1.65
	NBR	18.7*1.65
HN7015G	HNBR	18.7*2.62
HN7513G	HNBR	18.7*2.62
	NBR	18.72*2.62
	NBR	18.77*1.78
V7025W	FKM/VITON	18.77*2.62
HN9006K	HNBR	18.8*2.5
HN9006K	HNBR	18.8*2.5
V7018K	FKM/VITON	18.8*3.5
V6503K	FKM/VITON	18.95*2.4
N7003K	NBR	19*0.5
V7503K	FKM/VITON	19*1
V7088KL	FKM/VITON	19*1
V7503K	FKM/VITON	19*1.3
S5018K	Silicone	19*1.5
	NBR	19*1.8摩尔
V7023O	FKM/VITON	19*1.8
V7066L	FKM/VITON	19*1.9
	NBR	19*1.9
N70桔红	NBR	19*2
FF7001K	Perfluoro rubber	19*2
HN7001K	HNBR	19*2.05
HN7511G	HNBR	19*2.46
SIL	Silicone	19*2.65
V7503K	FKM/VITON	19*3
S5020R	Silicone	19*3.1
	NBR	19*3.5
V7028K	FKM/VITON	19.18*2.46
V7521O	FKM/VITON	19.2*1.85
V7505K	FKM/VITON	19.2*2.2
S7020R	Silicone	19.2*2.4
V7028K	FKM/VITON	19.3*2.2
XS7501K	FKM/VITON	19.4*1.2
FS7001L	Fluorosilicone	19.4*1.8
FS7002B	Fluorosilicone	19.4*1.8
	NBR	19.4*2.2
E7006K	EPDM	19.5*1
V6503K	FKM/VITON	19.5*1.5
V6503K	FKM/VITON	19.5*1.5
V7503K	FKM/VITON	19.5*2.2
LV7533K	FKM/VITON	19.5*3.25
V7088KL	FKM/VITON	19.5*3.6
V7503K	FKM/VITON	19.5*4.5
V7503K	FKM/VITON	19.51*3.48
	NBR	19.6*2.4
V6503K	FKM/VITON	19.7*1.9
V6001KF	FKM/VITON	19.7*3.4
V6001KF	FKM/VITON	19.7*3.4
V7503K	FKM/VITON	19.8*2.2
V7503K	FKM/VITON	19.8*2.4
	NBR	19.8*2.4
V7018K	FKM/VITON	19.8*2.5
V7052B	FKM/VITON	19.8*2.62
V7521O	FKM/VITON	19.8*3.1
V7503K	FKM/VITON	19.9*2.8
V6525O	FKM/VITON	19.9*2.8
S6010R	Silicone	19.95*1.85
S6010R	Silicone	19.95*1.85
S50	Silicone	20*1.2
S5001T	Silicone	20*1.5
V5021OF	FKM/VITON	20*1.5
S5020RF	Silicone	20*1.5
S5020RF	Silicone	20*1.5
HNBR70	HNBR	20*1.8
S5001T	Silicone	20*2
V5002KF	FKM/VITON	20*2
XS7006K	FKM/VITON	20*2.5
V7518L	FKM/VITON	20*2.5
	NBR	20*2.65
	NBR	20*3
V7009L	FKM/VITON	20*3
	NBR	20*3.1
V7523O	FKM/VITON	20*3.5
	NBR	20.1*2.2
V6503K	FKM/VITON	20.1*2.35
E5011KF	EPDM	20.2*1.5
HN7512G	HNBR	20.22*3.53
	NBR	20.22*3.53
S5001T	Silicone	20.29*2.62
E7301BPQ	EPDM	20.3*1.6
N7003K	NBR	20.3*1.9
V7503K	FKM/VITON	20.3*2.62
E7003P	EPDM	20.35*1.78
E7003KP	EPDM	20.35*1.78
V7521O	FKM/VITON	20.35*2.76
V7083O	FKM/VITON	20.5*2.65
V7503K	FKM/VITON	20.5*4.7
V7023O	FKM/VITON	20.6*1.8
	NBR	20.6*2.4
HN7021KL	HNBR	20.6*3.55
V7521O	FKM/VITON	20.7*2.65
V7521O	FKM/VITON	20.7*2.65
	NBR	20.7*2.65
N70 orange red	NBR	20.72*1.8
	NBR	20.8*2.4
V7523O	FKM/VITON	20.8*3.1
V7092K	FKM/VITON	20.9*2.4
V7502K	FKM/VITON	21*1.5
XS9003A	FKM/VITON	21*1.65
XS9003A	FKM/VITON	21*1.65
XS9003A	FKM/VITON	21*1.65
FS6001K	Fluorosilicone	21*2
V7088KL	FKM/VITON	21*2
V7539O	FKM/VITON	21*2
V6503K	FKM/VITON	21*2
FS6001K	Fluorosilicone	21*2
HN7512G	HNBR	21*2.5
HN7512G	HNBR	21*2.65
	NBR	21*3.5
XS7501K	FKM/VITON	21*4
V7033B	FKM/VITON	21.1*2.2
V7033B	FKM/VITON	21.1*2.2
S5020RF	Silicone	21.2*1.8
V7503K	FKM/VITON	21.2*1.8
	NBR	21.2*2.4
HN7021KL	HNBR	21.2*3.55
V7066K	FKM/VITON	21.4*1.7
V7066L	FKM/VITON	21.4*1.7
V7066L	FKM/VITON	21.4*1.7
V7066L	FKM/VITON	21.4*1.7
V7066L	FKM/VITON	21.4*1.7
V7066K	FKM/VITON	21.4*1.7
	NBR	21.4*1.8
FKM60	FKM/VITON	21.45*1.9
	NBR	21.5*1
V7521O	FKM/VITON	21.5*2.5
V7018K	FKM/VITON	21.6*1.8
V7503K	FKM/VITON	21.6*2.2
	NBR	21.7*3.5
	NBR	21.8*2.4
	NBR	21.82*3.53
V7054O	FKM/VITON	21.82*3.53
FS6009T	Fluorosilicone	21.83*3.53
	NBR	21.89*2.62
V7503K	FKM/VITON	21.95*2.13
S5020RF	Silicone	22*1
N7003K	NBR	22*1.8
FS8001K	Fluorosilicone	22*2
HN7001K	HNBR	22*2
FS8001K	Fluorosilicone	22*2
	NBR	22*2.5
XS7201K	FKM/VITON	22*2.6
XS7201K	FKM/VITON	22*2.6
V6507G	FKM/VITON	22*3
	NBR	22.1*3.5
E5001KF	EPDM	22.2*1.5
V7066L	FKM/VITON	22.2*1.8
V7079KL	FKM/VITON	22.2*2.1
V7502K	FKM/VITON	22.2*2.64
HN7512G	HNBR	22.3*2.4
	NBR	22.4*2.65
	NBR	22.5*1.5
HNBR70	HNBR	22.5*1.8
XS7201K	FKM/VITON	22.5*2.5
FF7002K	Perfluoro rubber	22.5*3
V7523O	FKM/VITON	22.7*2.65
E6002K	EPDM	22.7*3.5
V7521O	FKM/VITON	23*1.2
HN7512G	HNBR	23*1.2
S5093K	Silicone	23*1.5
S5093	Silicone	23*1.5
N7003K	NBR	23*1.8
S5001T	Silicone	23*2
V5002KF	FKM/VITON	23*2
V5002KF	FKM/VITON	23*2
E7003KP	EPDM	23*2
V5002KF	FKM/VITON	23*2.5
V5002KF	FKM/VITON	23*2.5
V5001F	FKM/VITON	23*2.5
V5002KF	FKM/VITON	23*2.5
FS7008Y	Fluorosilicone	23*2.65
FS7008Y	Fluorosilicone	23*2.65
E6510UP	EPDM	23*3
E6510UP	EPDM	23*3
V7503K	FKM/VITON	23*3
FF7302K	Perfluoro rubber	23*3
	NBR	23.39*3.53
	NBR	23.39*3.53
E6505KP	EPDM	23.4*3
V7021O	FKM/VITON	23.4*3
N70桔红	NBR	23.42*2.35
S5001T	Silicone	23.47*2.95
S020RF	Silicone	23.47*2.95
V7092K	FKM/VITON	23.47*2.95
HN7005K	HNBR	23.5*2
E6505KP	EPDM	23.5*3.5
V7512G	FKM/VITON	23.52*1.78
V7092K	FKM/VITON	23.52*1.78
V7502K	FKM/VITON	23.53*2.6
HN7001K	HNBR	23.6*2
S7020RF	Silicone	23.6*2.65
S7020F	Silicone	23.6*2.65
V7505K	FKM/VITON	23.6*2.9
V7028K	FKM/VITON	23.6*2.9
V7092K	FKM/VITON	23.6*2.9
V7521O	FKM/VITON	23.6*5.7
V7503K	FKM/VITON	23.7*3.5
	NBR	23.8*3.1
	NBR	23.9*3.5
S7001K	Silicone	24*1.5
N7003K	NBR	24*2
XS7501K	FKM/VITON	24*2
HN7512G	HNBR	24*2.4
	NBR	24*2.4
HN7512G	HNBR	24*2.5
XS7002K	FKM/VITON	24*2.6
V7503K	FKM/VITON	24*3
	NBR	24*3
XS7501K	FKM/VITON	24*3.5
	NBR	24*4
P7012K	ACM	24*4.5
E7006K	EPDM	24.2*1.9
V7507K	FKM/VITON	24.2*2.8
N7003K	NBR	24.2*3.1
N7003K	NBR	24.2*4.1
V7523O	FKM/VITON	24.3*2.65
V7521O	FKM/VITON	24.3*2.8
P7012K	ACM	24.4*1.25
V7018K	FKM/VITON	24.4*1.7
V7018K	FKM/VITON	24.4*1.7
	NBR	24.4*3.1
S5018K	Silicone	2.45*1.6
S7009K	Silicone	24.5*1.6
N7003K	NBR	24.5*1.78
N7001K	NBR	24.5*3.5
HN7009K	HNBR	24.5*3.5
N7001K	NBR	24.5*3.5
	NBR	24.5*3.5
HNBR70	HNBR	24.5*3.5
S5018K	Silicone	24.6*1.5
E5001KF	EPDM	24.6*1.5
XS7016K	FKM/VITON	24.6*3.2
N7001K	NBR	24.7*2
N9001K	NBR	24.7*2.4
N9001K	NBR	24.7*2.4
	NBR	24.7*3.5
V7025W	FKM/VITON	24.7*3.5
V7503K	FKM/VITON	24.7*4.5
HN7512G	HNBR	24.8*2.65
	NBR	24.8*2.65
	NBR	24.8*2.8
	NBR	24.9*4
N7003K	NBR	25*1.5
S5001T	Silicone	25*1.8
V7503K	FKM/VITON	25*1.8
S5001T	Silicone	25*2
V7524O	FKM/VITON	25*2
	NBR	25*2.5
V7503K	FKM/VITON	25*3
	NBR	25*3
HN7513G	HNBR	25*3.53
HN7015G	HNBR	25.0*3.53
LV6002O	FKM/VITON	25*4
S7523O	Silicone	25*4
V8566K	FKM/VITON	25*5

(This is a partial list for display. For a complete specification sheet, please contact us.)

Brief Analysis

Material Distribution: FKM/VITON is the most common material, appearing in over 40% of entries, followed by Silicone, EPDM, HNBR, and NBR. Fluorosilicone and Perfluoro rubber are less common, likely due to their specialized, high-cost applications.
Dimension Range: Most O-rings have dimensions between 0.381.4 mm and 51.8 mm, suitable for standard industrial sealing applications. The first dimension (likely inner diameter) typically ranges from 0.38 to 5 mm, with the second dimension (cross-section) between 0.3 and 3 mm.
Applications: FKM/VITON’s prevalence suggests its use in high-performance environments (e.g., aerospace, automotive) due to its chemical and thermal resistance. Silicone and EPDM are likely used in less demanding, cost-sensitive applications.

✅ Available Materials:

Material	Properties	Applications
NBR	Oil & fuel resistance, cost-effective	Automotive, hydraulic seals
FKM/Viton	High temp, chemical & fuel resistance	Aerospace, chemical processing, fuel lines
Silicone	Food-grade, flexible, wide temp range	HVAC, medical, electronics
EPDM	Steam, UV, and weather resistance	Plumbing, outdoor systems

Conclusion

Standard O-ring sizes in mm are defined by ISO 3601, which covers a wide range of inner diameters and cross-sections for global compatibility. Measuring O-rings correctly and choosing a standard size will help you ensure sealing performance, reduce cost, and simplify inventory management.

📏 Need metric O-rings for your project?
Contact Julong Rubber or Request a Quote for custom or ISO standard O-rings in NBR, EPDM, Viton, or silicone.

Or reach out to us via WhatsApp:

Explore this link to understand the significance and applications of the ISO 3601 standard in O-ring manufacturing. ↩
Learn about the AS568 standard, its specifications, and its importance in U.S. industrial applications by visiting this resource. ↩
Discover the details of the BS1806 standard and how it compares to ISO 3601 by checking out this informative link. ↩
Learn how to effectively use a digital caliper for precise measurements, ensuring the right fit for your O-rings. ↩
Accessing manufacturer datasheets can provide crucial specifications and details for selecting the right O-rings for your needs. ↩
Explore this link to find detailed information on standard O-ring sizes, which is essential for accurate applications. ↩
Explore this link to understand how ISO Standard Sizes can enhance your O-ring selection and performance. ↩
Discover trusted suppliers for metric O-rings to ensure quality and availability for your projects. ↩
Learn about the importance of stable material quality in O-rings to ensure durability and performance in applications. ↩
