What are automotive wiring harness grommets?

Worried about electrical failures or wire wear in your vehicle? Many problems start with a small part: the wiring harness grommet. How can you make sure your car wiring stays safe?

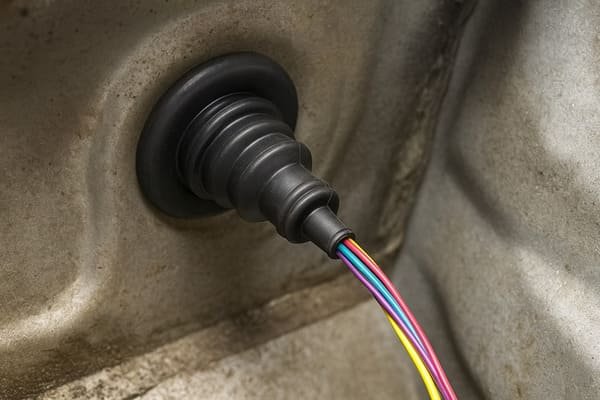

Automotive wiring harness grommets are rubber or plastic rings that protect wires as they pass through metal or plastic panels. They provide insulation, prevent abrasion, and block water or dust, ensuring reliable electrical performance.

Automotive wiring often faces harsh conditions: vibration, heat, chemicals, sharp edges. I’ve seen how a tiny grommet can save hours of troubleshooting and prevent costly damage. Let’s dive deeper into what makes them so important, how to choose the right type, and how they are used in modern vehicles.

Why are wiring harness grommets critical in automotive design?

Loose wires, sharp metal, and engine vibrations—these issues can cause shorts or even fires if not managed well. Protecting each wire route matters.

Wiring harness grommets keep wires from chafing, block water or dust, and reduce noise and vibration. Without them, wires can get cut or wear out quickly, causing failures.

✅ Main Functions of Grommets

Grommets do more than just fill a hole. Their core roles include:

• Protection from Abrasion¹: Wires rubbing on metal edges quickly lose insulation. A grommet acts as a cushion.
• Seal Against Moisture and Dust²: In engine bays or doors, water ingress is a real risk.
• Noise and Vibration Damping³: Prevents rattling and potential wire fatigue over time.
• Insulation: Reduces risk of short circuits or unwanted ground paths.

🛠️ Where Are They Used?

I always advise checking for missing or cracked grommets when diagnosing strange electrical issues, especially after a repair job.

What materials are best for automotive wiring harness grommets?

High heat, oil, road salt, and sunlight can break down cheap grommets quickly. Choosing the right material means longer life for both wires and the car itself.

The most common grommet materials are EPDM, NBR, silicone, and thermoplastic rubber. Each offers different resistance to heat, chemicals, and aging. Choose based on environment and certification needs.

🔬 Common Materials Compared

Certification Factors

• Automotive standards (SAE, DIN, DBL): Most big automakers specify EPDM for durability.
• Fire/Smoke/TOX compliance: Important for cabin or battery pack applications.
• RoHS, REACH: Needed for EU or export markets.

I have seen many customers in the automotive field—especially for EVs—request certification for UL 94 flammability or special low-outgassing compounds. For underhood locations, EPDM is usually the best balance of cost and performance.

How do you select the right grommet size and type?

A perfect fit is not just about diameter. You must consider wire size, panel thickness, sealing needs, and installation method. One small mistake means water leaks or wire pinch.

Choose a grommet by measuring the panel hole, wire bundle, and wall thickness. Select open, closed, or multi-wire types based on your harness design. Always check OEM or project specs for fit.

📏 Step-by-Step Selection Table

Types of Grommets

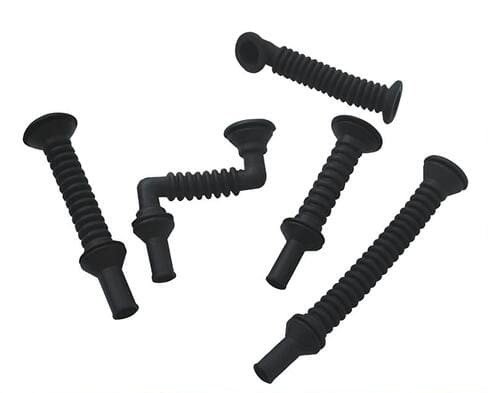

• Standard open grommet¹¹: For single wires or bundles.
• Closed plug: For unused holes, future upgrades.
• Multi-hole grommet¹²: Several cables in one pass.

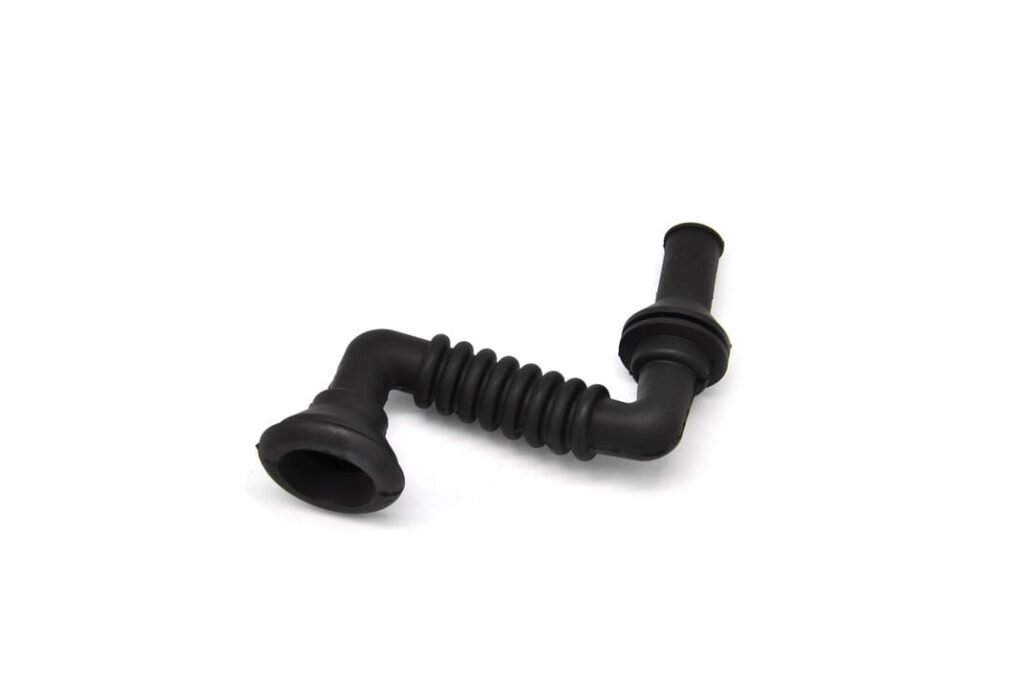

• Custom-molded¹³: For unique shapes or tight locations.

At Julong Rubber, I often receive drawings with tight tolerances, requiring us to produce custom-molded grommets. If you’re working on a new project, share your panel cutout drawings and cable bundle specs early. This avoids problems later.

What makes a high-quality automotive grommet?

All grommets may look the same in photos, but performance differences are clear after months or years on the road. Only quality ones survive heat, salt, and engine vibration.

A good automotive grommet has precise molding, no flashing or cracks, good elasticity, and passes aging, oil, and water tests. It fits tightly in the panel but does not deform or slip.

🛠️ Technical Quality Standards

I always push for pre-shipment testing—sometimes including a 100% visual and random destructive test for big orders. Our factory has seen how a failed grommet (even one in a thousand) can lead to massive warranty claims from carmakers.

How do automotive OEMs and aftermarket buyers specify grommet requirements?

OEMs and global distributors have strict demands: stable supply, traceable production, full compliance with specs. A cheap grommet can cause expensive callbacks.

Automotive buyers issue detailed drawings and material specs, with strict requirements for quality, certification, and delivery. Communication with the supplier is key to ensuring zero-defect products.

🔗 Key Purchase Considerations

• Drawing and Specification Review: Always check size, tolerances, and fit.
• Sample Approval (PPAP, ISIR): Run prototypes before mass production.
• Material Certification¹⁷: Ask for EN, SAE, or OEM material reports.
• Batch Traceability¹⁸: Critical for recalls or failure analysis.
• Delivery Terms and Lead Time¹⁹: Automotive customers often demand JIT (just-in-time) schedules.

As a supplier for big names like Volkswagen and Hitachi, I understand the pressure to deliver both quality and speed. Communication, planning, and rigorous QC make the difference.

Conclusion

Automotive wiring harness grommets are a small part, but they play a big role in reliability and safety. Choose the right type and supplier for peace of mind on every mile.
