Seal failures from twisting and rolling can stop machines and raise costs. A different cross-section can prevent these problems before they start.

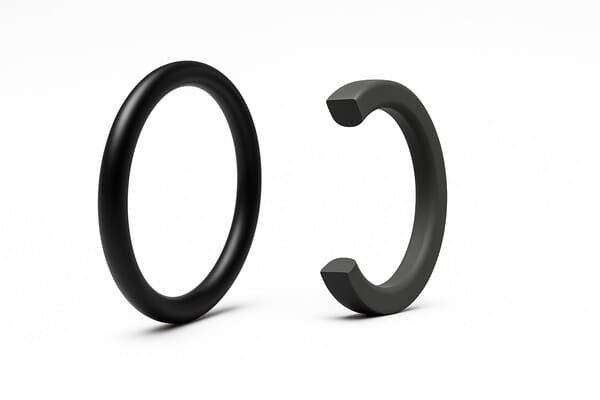

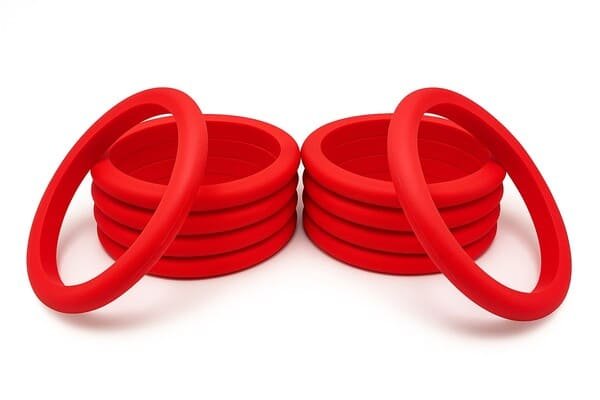

A D-ring is an elastomer seal with a flat base and a curved top, shaped like the letter “D” in cross-section. The flat base sits in the groove to prevent twisting, while the curved top seals against the mating surface.
I often use D-rings in pneumatic and hydraulic systems where smooth, stable sealing is more important than the lowest possible cost.
How does a D-ring work?
In dynamic applications, O-rings can roll or twist inside their grooves. This leads to spiral failure, uneven wear, and leaks.

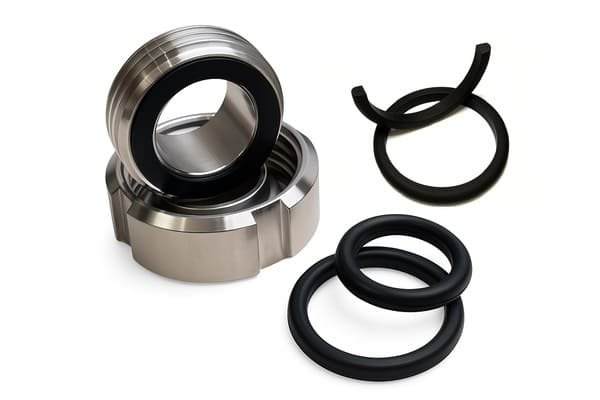

A D-ring’s flat base locks the seal in place, stopping rolling and twisting. The curved sealing surface maintains contact with the mating part, creating a consistent seal under pressure.
Key features of a D-ring
- Flat base: keeps the seal stable in the groove.
- Curved top: ensures uniform contact and sealing pressure.
- Twist resistance1: prevents spiral failure in reciprocating motion.
- Stable wear pattern2: extends service life compared with O-rings in the same duty.
| Feature | D-Ring | O-Ring |
|---|---|---|
| Cross-section | Flat + curved | Round |
| Groove stability | High | Low (can roll) |
| Twist resistance | High | Low |
| Wear pattern | Even | Uneven if twisted |
✅ In my projects, D-rings often last longer than O-rings in dynamic sealing.
🛠️ They can fit into standard O-ring grooves in many cases, making upgrades simple.
Where are D-rings used?
D-rings3 are versatile and work in both static and dynamic sealing. I select them most often for motion systems that need low friction and high stability.
Common D-ring applications include pneumatic cylinders, hydraulic pistons, rotary shafts, and high-vibration joints.
Example uses
- Pneumatic rod seals4: prevent stick–slip and keep smooth motion.
- Hydraulic piston seals5: resist twisting under high pressure cycles.
- Rotary shafts: maintain alignment during rotation.
- Static covers and flanges: stay seated even under vibration.
- Vacuum sealing6: stable seating improves leak control.
| Industry | Example equipment | Benefit of D-ring |
|---|---|---|
| Automation | Pneumatic actuators | Smooth, stable motion |
| Manufacturing | Hydraulic presses | Consistent sealing under load |
| Food processing | Wash-down actuators | Stable sealing7 in dynamic duty |
| Marine | Rotary controls | Twist resistance1 under vibration |
Advantages of D-rings
I recommend D-rings over O-rings when stability is a concern.
Main benefits
- Prevent rolling and twisting in motion.
- Reduce friction and breakaway force.
- Maintain even compression and seal face contact.
- Fit many standard O-ring grooves for easy retrofit.
| Benefit | Why it matters |
|---|---|
| Twist resistance | Avoids spiral failure and leaks |
| Lower friction8 | Smoother starts and less heat |
| Stable sealing7 | Predictable performance |
| Retrofit potential9 | No major groove changes |
✅ These gains often outweigh the slightly higher cost compared to O-rings.
🛠️ For very high-speed or abrasive service, I pair D-rings with backup rings or wear rings.
Material options for D-rings
D-rings3 can be molded in the same elastomers as O-rings. I select based on media, temperature, and load.
| Material | Shore A | Temperature (°C) | Strengths | Limits |
|---|---|---|---|---|
| NBR | 60–80 | −30 to +100 | Oil-resistant10, cost-effective | Ozone aging11 |
| HNBR | 70–85 | −30 to +140 | Heat/ozone resistance | Higher cost |
| EPDM | 60–80 | −40 to +130 | Steam, water, ozone | Swells in oil12 |
| VMQ | 50–70 | −60 to +200 | Low μ, cold flexibility | Poor abrasion resistance |
| FKM | 70–80 | −20 to +200 | Heat, chemical resistance | Poor low-temp elasticity13 |
| PU | 85–95 | −30 to +110 | High wear resistance14 | Not for hot water/steam |
✅ I choose softer grades for low-pressure pneumatics and harder grades for hydraulic systems or high extrusion gaps.
🛠️ Always check groove finish and chamfer to avoid damaging the flat base.
Conclusion
A D-ring is a flat-based, curved-top seal that stays stable in its groove and resists twisting. I use them to improve sealing life and motion smoothness in pneumatic and hydraulic equipment.
-
