Wires, hoses, and cables in cars must survive tough conditions—heat, vibration, water, and sharp edges. How do these critical systems avoid damage? The answer often lies in a small but mighty part: the grommet.
Grommets in cars are rubber or plastic rings that protect wires, hoses, or pipes as they pass through metal or plastic panels. They stop abrasion, reduce noise, block water, and ensure a longer lifespan for critical components.
I have seen first-hand how a missing or worn-out grommet can lead to wire cuts, leaks, or electrical faults. Even the best-designed car harness will fail if it rubs on a sharp edge. That’s why grommets are a standard feature in every modern vehicle. Let’s take a closer look at their roles, materials, and what makes them essential in automotive design.
Where are grommets used in automotive applications?
Car interiors and engine bays are full of panels, holes, and tight spaces. Wires, tubes, and hoses must cross these boundaries safely.
Grommets are used in the firewall, doors, trunk, underbody, engine bay, and battery boxes to protect cables, wiring harnesses, brake lines, and fluid pipes as they pass through metal or plastic openings.
Common Locations and Uses
| Car Area | What Passes Through | Grommet’s Role |
|---|---|---|
| Firewall | Wiring harness, hoses | Abrasion, sealing, noise block |
| Doors | Power window/lock wires | Flex, weatherproofing |
| Trunk/tailgate | Light harness, washer | Stop water, vibration, dust |
| Underbody | Brake/fuel lines | Mud, rock, chemical protection |
| Engine bay | Sensor wires, vacuum lines | Heat, oil, movement protection |
| Battery box | High-voltage cables (EV) | Dust, moisture seal, insulation |
Every location brings its own risk—water ingress1 in the trunk, vibration under the hood2, flexing in the doors. The right grommet type and material3 are key to reliability.

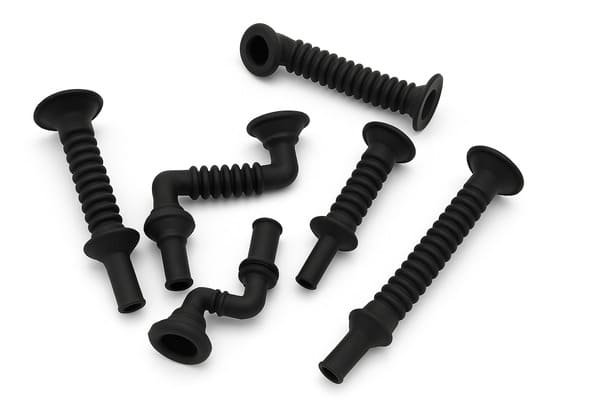

What are the main functions of grommets in cars?
A grommet’s simple shape hides multiple protective functions that keep a vehicle’s electronics and fluids working for years.
Grommets provide insulation, stop wires and hoses from rubbing on metal, block water and dust, dampen noise and vibration, and improve overall safety.
🛠️ Breakdown of Main Functions
1. Abrasion Protection4
- Keeps wires and hoses from being cut by sharp edges.
2. Sealing and Insulation5
- Blocks entry of water, dust, and noise.
- Maintains safe separation between electricity and metal.
3. Noise and Vibration Damping
- Stops rattling of wires or pipes.
- Absorbs shock to reduce wire fatigue.
4. Compliance and Safety6
- Ensures electrical codes are met.
- Prevents accidental shorts and fire hazards.
| Function | Why It Matters |
|---|---|
| Abrasion protection | Prevents wire/pipe damage |
| Sealing/insulation | Blocks water, noise, dust |
| Vibration damping7 | Reduces wear, improves comfort |
| Safety compliance8 | Prevents shorts and accidents |
I always remind automotive customers: A few cents spent on a good grommet can save thousands in repair bills later.

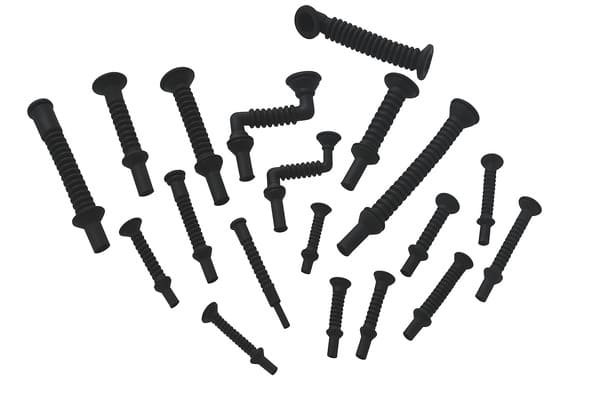

What types of grommets are commonly used in cars?
Different jobs need different shapes, sizes, and materials. There is no one-size-fits-all solution in automotive applications.
Standard round grommets, oval grommets, multi-hole grommets, split grommets, and custom-molded types are all used in cars, each chosen for their specific task and fit.
🛠️ Typical Types Table
| Grommet Type | Use Case | Feature |
|---|---|---|
| Standard round | Firewall, trunk | Simple, quick install |
| Oval/rectangular | Door wire harness, thick cables9 | Better fit, large bundles |
| Multi-hole | Several wires/hoses, battery packs | Combines multiple seals |
| Split design | For pre-installed wires10 | Easy retrofit, no disconnect |
| Custom-molded11 | EV battery, high-end vehicles | Special shapes, tight spaces |
At Julong Rubber, I have made hundreds of unique shapes to fit new EV battery packs or custom racing harnesses. The key is to always start with the right drawing and material for the job.

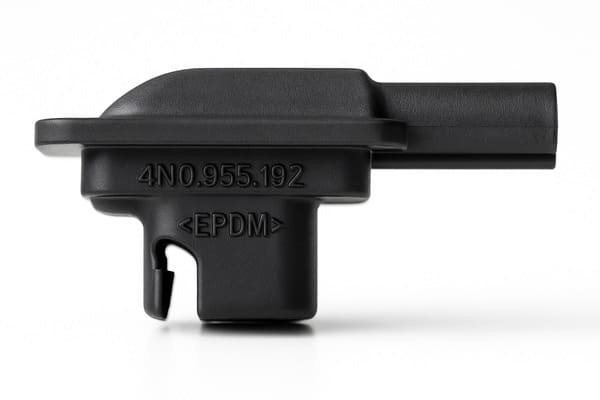

What materials are best for automotive grommets?
A grommet must handle everything a car throws at it: heat, cold, oil, road salt, vibration, and UV light.
Most car grommets are made from EPDM rubber, silicone, nitrile (NBR), or thermoplastic elastomers. EPDM is popular for weather and ozone resistance, silicone for high heat, and NBR for oil exposure.
🛠️ Automotive Grommet Material Table
| Material | Best For | Temp Range | Chemical Resistance | Flexibility | Cost |
|---|---|---|---|---|---|
| EPDM12 | General/Exterior | -40°C~+125°C | Excellent (water, ozone) | High | Low |
| Silicone13 | Engine/High heat | -60°C~+200°C | Good | Very High | High |
| NBR14 | Oil/fuel lines | -35°C~+100°C | Excellent (oil) | Good | Medium |
| TPE/TPV | Light duty | -40°C~+120°C | Varies | Good | Low |
At my factory, we always match the grommet material to its location in the car. For underhood locations, we usually recommend EPDM unless oil resistance is more important, in which case NBR is the better choice.
What are the main considerations when specifying or buying car grommets?
The wrong size or material can lead to leaks, electrical faults, or costly repairs. Careful planning is everything.
Key considerations include panel hole size, wire or hose diameter, sealing needs, material compatibility, temperature rating, and required certifications.
Selection Checklist
| Step | Details |
|---|---|
| Hole size | Measure the panel opening precisely |
| Wire/hose diameter | Grommet inner diameter should fit snugly |
| Panel thickness | Flange must hold grommet in place |
| Sealing requirements | Waterproof? Dustproof? |
| Material compatibility | Oil? Heat? UV? Match to environment |
| Certification | Meets automotive standards15 and specs? |
If you are planning a new project or need custom solutions, I recommend sharing your technical drawings and specs with your supplier as early as possible. This avoids mistakes and speeds up development.
Conclusion
Grommets in cars are small but crucial—protecting wires, hoses, and critical systems from wear, leaks, and failure. Choose the right type and material for trouble-free driving and safe operation.
-
