Grooved fittings are commonly used in piping systems to create secure, leak-free connections. But without the right gasket, even the best fittings can fail. What are grooved fitting gaskets, and how do they ensure reliable performance?
Grooved fitting gaskets are sealing components used in mechanical piping systems. They fit into grooves on the pipe and coupling, providing a tight, leak-free seal under pressure.
Let’s dive into the construction and function of grooved fitting gaskets and why they’re essential for a variety of industrial and commercial piping applications.
What are grooved fitting gaskets?

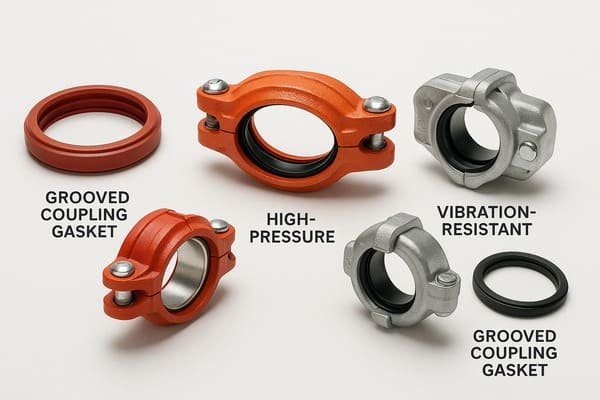

Grooved fitting gaskets are used in mechanical pipe couplings to create a sealed connection between two pipe ends. The gasket fits into a groove on the coupling and seals the joint under pressure.
The gasket’s role is to fill any gaps between the pipe and coupling, creating a tight, reliable seal that prevents leaks, even in systems under high pressure or subject to vibration.
How grooved fitting gaskets1 work

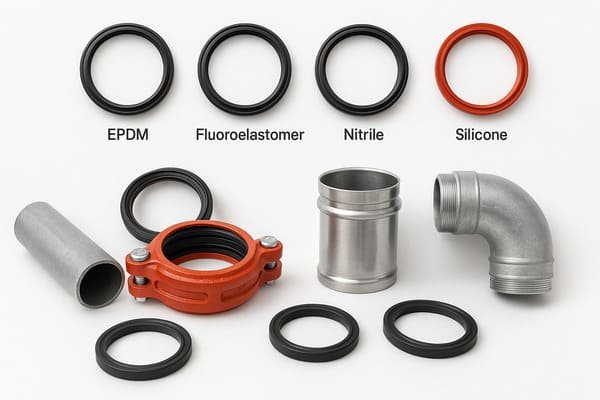

Grooved fitting gaskets are typically made from elastomeric materials2 like EPDM, nitrile rubber (NBR), or fluorocarbon rubber (FKM). The gasket’s outer surface is designed to fit snugly into the groove of the pipe coupling, while the inner surface forms a tight seal against the pipe. The pressure applied by the coupling bolts compresses the gasket, ensuring an airtight and leak-proof connection.
| Material | Best Use | Pressure Range | Key Advantages |
|---|---|---|---|
| EPDM | Water, steam, general use | Low to medium pressure | Resistant to ozone and weathering |
| NBR (Nitrile)3 | Oil, fuel, gas | Moderate pressure | Good for hydrocarbons and fuels |
| FKM (Viton®) | High temperature, chemicals | High pressure & temp | Excellent chemical and heat resistance |
| Silicone | High temp, food-grade | Low pressure | High temperature stability ✅ |
In my experience, I’ve used EPDM for HVAC systems and NBR for fuel lines. The right gasket material depends on the fluid carried by the pipe and the environmental conditions the system will face.
Why are grooved fitting gaskets important in piping systems?
Grooved fitting gaskets are critical to ensuring that the connection between two pipes doesn’t leak. They are used in a variety of industries, from water treatment to chemical processing, where a reliable seal is necessary for system integrity.
The gasket ensures the coupling stays securely in place, preventing leaks that could damage equipment, contaminate fluids, or cause safety issues.
Sealing under pressure and movement
In many systems, especially industrial systems, pipes are subject to high pressure4, thermal expansion5, and even vibration. Grooved fitting gaskets work well in these conditions because they are designed to compress and maintain their sealing ability even when the system moves or fluctuates in pressure.
| Condition | Gasket Response |
|---|---|
| High pressure | Compresses and seals tightly |
| Thermal expansion | Expands to maintain seal |
| Vibration | Absorbs movement and stays sealed |
I’ve worked on projects involving high-pressure water pipes where grooved fitting gaskets were the key to preventing leaks and avoiding costly downtime. The elasticity and compression of the gasket keep the system sealed, even when the pipes expand and contract with temperature changes.
Where are grooved fitting gaskets used?
Grooved fitting gaskets are used in a wide variety of applications, from water systems to chemical pipelines.
Common uses include:
- Water and sewage systems: These often require gaskets to create a tight, reliable seal between pipes and couplings.
- HVAC systems: Grooved fitting gaskets are used in pipes carrying water, air, and steam, where leak prevention is critical.
- Industrial piping systems: Grooved fitting gaskets are ideal for fluid transfer pipes, especially in systems under high pressure or subject to thermal expansion.
Sealing in challenging environments
In aggressive environments like chemical plants or refineries, grooved fitting gaskets made from materials like FKM are used to withstand corrosive fluids6, high heat, and pressure. This versatility makes them invaluable in harsh operating conditions.
| Environment | Gasket Material | Use Case |
|---|---|---|
| Water treatment | EPDM | Wastewater pipes and HVAC systems |
| Chemical processing | FKM (Viton®)7 | High-pressure chemical lines |
| Food processing | Silicone | Food-grade pipe connections |
For example, in a refinery, I specified FKM gaskets for grooved fittings connecting high-temperature chemical lines. They held up well under extreme conditions, and no leaks were detected after several years.
Summary Table: Grooved Fitting Gasket Materials
| Material | Best For | Pressure Range | Key Features |
|---|---|---|---|
| EPDM8 | Water, HVAC, general use | Low to medium pressure | Weather-resistant, ozone-resistant |
| NBR | Oil, fuel, gas pipelines | Moderate pressure | Good for hydrocarbons and oils |
| FKM (Viton®) | High-temp, chemical systems | High pressure & temp | Excellent chemical and temperature resistance |
| Silicone | Food-grade, high-temp | Low pressure | High-temperature stability, clean sealing ✅ |
Conclusion
Grooved fitting gaskets are essential for creating reliable, leak-proof connections in piping systems. EPDM and NBR are good choices for standard systems, while FKM and silicone are better for extreme conditions. Always choose the material that best matches your system's needs to ensure longevity and safety.
-
