What are Neoprene Sponge Cords？

Many buyers see “Neoprene sponge cord” on a drawing or offer list, but they are not sure what it really is or when they should use it instead of solid rubber.

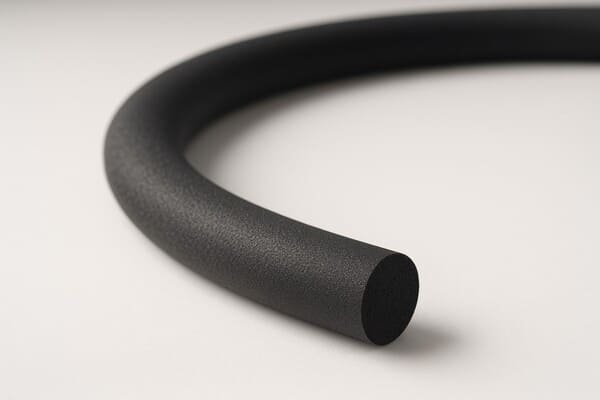

Neoprene sponge cords are flexible round profiles made from closed-cell Neoprene® foam. They compress easily, spring back well, and provide water, air, and dust sealing in doors, hatches, panels, and machinery gaps.

When I help customers with new sealing projects, I always start by asking three simple questions: what do you want to seal, how much compression do you have, and what environment do you face? Once we answer these, it becomes very clear whether a Neoprene sponge cord is the right choice.

What exactly are Neoprene Sponge Cords made of?

Many people know the word “Neoprene” from wetsuits and laptop sleeves, but they do not know how the sponge version works inside a seal.

Neoprene sponge cords are made from a closed-cell Neoprene® sponge, which is a foamed elastomer with tiny, sealed gas cells. This structure makes the cord light, compressible, and water-resistant compared with solid rubber.

When I explain this to a purchasing officer, I like to say: “Think of Neoprene sponge cord as a soft, round gasket that squeezes easily and fills gaps without needing extreme force.”

Structure and key material features

Neoprene is a synthetic rubber¹ based on chloroprene. The sponge version is created by introducing a blowing agent during vulcanization². The result is a network of tiny closed cells filled with gas.

This structure gives several useful characteristics:

• Lower density than solid rubber
• Easy compression at low force
• Good recovery after compression
• Good resistance to water splashing and many oils
• Stable performance over a wide temperature range

Here is a simple comparison between solid Neoprene and Neoprene sponge cords³:

Because of the closed-cell structure⁵, water does not flow through the cord like it would through an open sponge. When you compress the cord inside a groove or between two flanges, the cells squeeze and push back, creating a reliable seal line.

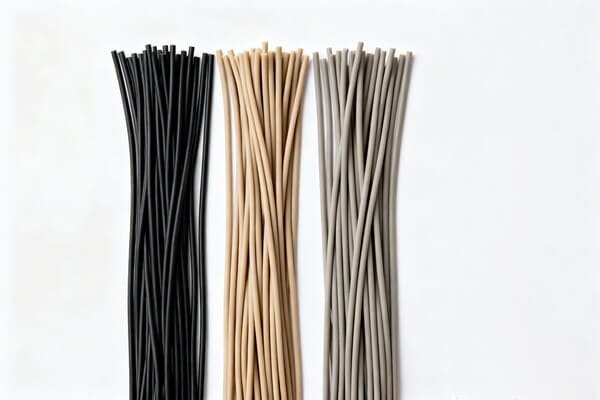

Most Neoprene sponge cords are supplied in standard diameters, such as 3 mm, 6 mm, 10 mm, and so on. They can be used as continuous strips or joined into rings. In many projects, the cord is cut to length and glued, clipped, or pressed into a channel.

What are Neoprene Sponge Cords used for?

From my experience, Neoprene sponge cords are a “hidden hero” in many industries. They look simple, but they solve very common problems: drafts, water ingress⁶, vibration, and uneven gaps.

Neoprene sponge cords are widely used as soft seals in doors, hatches, panels, cabinets, HVAC units, marine equipment, and machinery. They fill irregular gaps, reduce noise and vibration, and keep water, dust, and air leaks under control.

I often see Neoprene sponge cords specified when the designer does not know the exact tolerance stack-up or when they need a seal that can adapt to uneven surfaces without high clamping forces.

Common applications in practice

Door and hatch sealing

In many enclosures and small doors, metal or plastic frames do not align perfectly. A Neoprene sponge cord placed in a groove around the frame can:

• Compress easily when the door closes
• Seal small gaps between uneven surfaces
• Reduce rattling and vibration
• Improve thermal and acoustic insulation⁷

You can find these cords around:

• Electrical cabinets and control panels
• Access hatches on machines
• Point-of-sale terminals and kiosks
• Light industrial doors and inspection covers

HVAC and ventilation systems

In HVAC projects, Neoprene sponge cords appear around:

• Access panels
• Filter frames
• Small round ducts and inspection covers

They help block air leaks and reduce noise. The closed-cell structure⁵ is especially useful where condensation or occasional water contact happens, because the cord does not soak up water like open foam.

Marine and outdoor equipment

Neoprene has good resistance to weather, splash water, and some oils. So Neoprene sponge cords often seal:

• Small hatches on boats
• Instrument panels in marine environments
• Outdoor electrical boxes

While EPDM is usually the first choice for long-term UV exposure, Neoprene sponge cords still perform well in many outdoor and damp locations, especially when they are protected in grooves or behind covers.

Usage overview

When a customer describes a “soft, round seal for an uneven gap” without very high pressure or temperature, I often recommend Neoprene sponge cords as one of the first options to consider.

How do Neoprene Sponge Cords compare with solid cords and other foam rubbers?

Many buyers ask if they should choose Neoprene sponge, solid Neoprene, EPDM sponge⁹, or another foam. The answer depends on sealing pressure, environment, and budget.

Neoprene sponge cords offer a balance of compressibility, oil resistance, and cost. They are softer and easier to compress than solid cords, but they are heavier and more oil-resistant than many EPDM foams.

When I support material selection, I treat Neoprene sponge as a “middle solution” between very soft, weather-focused EPDM foam and harder, oil-resistant solid Neoprene.

Neoprene sponge cord vs solid rubber cord

When solid cords are better

Solid rubber cords are stronger and more resistant to mechanical damage. They suit:

• High-pressure seals
• Very narrow glands where you cannot compress foam too much
• Applications where small cuts or scratches are likely

However, they need more closing force and do not adapt as well to large tolerances.

When Neoprene sponge cords are better

Neoprene sponge cords are ideal when:

• You have low or medium closing force
• The gap is not perfectly uniform
• You need a “soft” sealing line over a wide tolerance range

The foam structure allows the cord to compress more and fill irregularities. For panels that you open and close by hand, the lower force is often more comfortable and safer.

Neoprene sponge vs EPDM sponge and other foams

Here is a simple comparison that I often share:

If an application is mostly about outdoor UV and rain, with no oil contact, EPDM sponge often leads. If there is oil mist, fuel vapors, or general industrial grime, Neoprene sponge cord is usually more reliable than EPDM foam.

How do I choose the right size and hardness of Neoprene Sponge Cord?

Many problems with sponge cords do not come from the material itself but from wrong diameter, wrong compression, or poor groove design.

You choose Neoprene sponge cords by matching cord diameter to the groove and available compression, setting a realistic compression target (usually around 25–40%), and checking density and hardness to fit your closing force and sealing level.

When I help a buyer, I always ask for drawings or at least the gap dimension. Without that, choosing a cord size is just guessing.

Key selection steps

1. Measure the gap or groove

First, I check:

• Groove width and depth, if a channel exists
• Expected gap between the two surfaces when closed
• Tolerance range for that gap

As a simple rule, the cord diameter should be slightly larger than the gap so that it will compress. You do not want a cord that sits loose without squeeze.

2. Decide the target compression

Next, I decide how much compression we want. For closed-cell Neoprene sponge:

• Around 25–40% compression is common for many seals
• Too little compression → poor sealing
• Too much compression → high closing force, risk of early fatigue

For example, if the uncompressed cord diameter is 10 mm, a compressed height of about 6–7.5 mm is often a good starting point, depending on the seal requirement.

3. Check density and hardness¹⁰

Neoprene sponge cords are often described by:

• Density (for example, 0.4–0.7 g/cm³)
• Hardness in 00 Shore scale or similar

A higher density or hardness means:

• Higher closing force
• Better resistance to mechanical damage
• Possibly better sealing in high-pressure conditions

A lower density means:

• Easier compression
• Lower force to close the door or panel
• Better comfort for manual handling

I match these values to the real user:

• For light access doors opened by hand → softer, lower-density cord
• For industrial doors with latches or multiple fasteners → medium density
• For heavy equipment with strong clamps → higher density, if needed

4. Consider adhesive backing or jointing

Some Neoprene sponge cords can be supplied with:

• Self-adhesive backing
• Pre-joined rings
• Cut-to-length kits

Adhesive helps with assembly in long grooves. Joined rings help create clean, continuous seals without gaps at the ends.

Simple selection table

If you are unsure, you can start with standard diameters like 6 mm, 8 mm, or 10 mm and test them in your prototype builds. In many projects, we send a small kit of different sizes so the customer can find the best balance between closing force and sealing.

Conclusion

Neoprene sponge cords are closed-cell, round foam seals that compress easily, fill uneven gaps, and resist water and many oils, making them a practical choice for doors, panels, HVAC equipment, and general industrial enclosures.
