What Are Silicone Bushings?

A bushing looks simple, but a wrong one can add noise, wear, or misalignment fast. I have seen “small rubber parts” decide whether a mechanism feels smooth or unstable.

Silicone bushings are molded silicone rubber sleeves or inserts that cushion, isolate vibration, guide parts, or seal around a pin, bolt, tube, or shaft. They are chosen when temperature range, ozone resistance, and long-term flexibility matter more than oil resistance or maximum load capacity.

I treat silicone bushings as functional parts, not generic rubber. A bushing can act like a spring, a damper, a spacer, and sometimes a seal. The correct design depends on load, motion, and environment.

What Do Silicone Bushings Do in Real Assemblies?

Many assemblies need controlled movement. Metal-on-metal contact creates noise and wear. Plastic can creep at heat. A silicone bushing can stabilize the interface and reduce damage.

Silicone bushings reduce vibration and noise, protect mating parts from wear, and help keep alignment under repeated motion. In some designs they also provide a soft seal and prevent rattling, especially in hot or outdoor environments.

I split the function into four jobs

A clear function list helps a buyer choose the right hardness and geometry.

✅ Common bushing jobs¹:

• Isolation: reduce vibration transfer and noise
• Guidance²: keep a pin or tube centered and stable
• Protection³: prevent abrasion and surface damage
• Sealing (light duty)⁴: block dust or splash at a pass-through

Typical applications I see in B2B projects

Silicone bushings⁵ show up in more places than buyers expect.

A short story about “rattle that was not a metal issue”

I once reviewed a complaint about a “metal rattle.” The metal parts were fine. The clearance was the real problem. A soft bushing removed the rattle and also reduced wear marks. That case reminded me that bushings are often NVH parts, not only spacers.

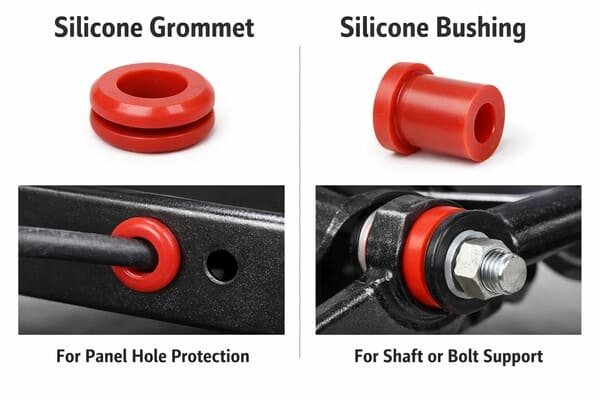

How Are Silicone Bushings Different from Silicone Grommets?

Buyers often mix these two terms. Both can be ring-shaped. Still, they serve different geometry and load cases.

A silicone grommet is mainly for a panel hole pass-through and edge protection, while a silicone bushing is mainly for supporting a pin, bolt, shaft, or tube under load and repeated motion. A bushing usually controls clearance and movement, so it needs better load and wear design.

Quick comparison table

When a buyer asks for a “grommet” but the part carries load, I usually correct the naming early. That avoids wrong quotes and wrong tooling.

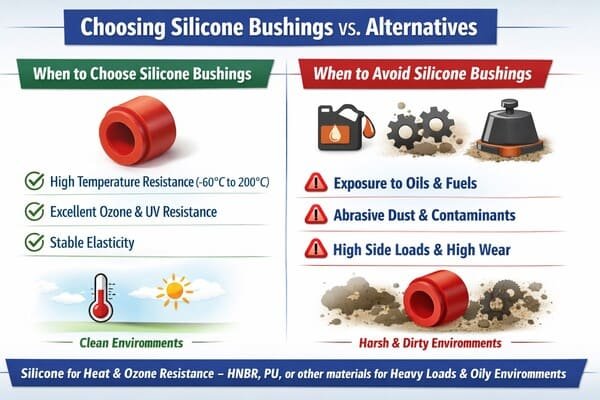

When Should I Choose Silicone for a Bushing, and When Should I Avoid It?

Silicone is excellent in heat and ozone. Still, silicone is not the best in every mechanical environment. Some bushings see oils, fuels, and abrasive dust. Some see high side loads and high friction.

I choose silicone bushings when temperature range, ozone resistance, and stable elasticity are key, and when the bushing is not exposed to oils and fuels. I avoid silicone when the bushing sits in oil mist or needs high wear resistance under heavy side loads, where HNBR⁷, PU, or other materials can be safer.

The selection criteria I use

🛠️ I use four criteria before I lock silicone:

• Temperature: continuous and peak heat, plus cycling
• Media exposure: oils, fuels, cleaners, and additives
• Motion type: rotation, oscillation, sliding, or static
• Wear risk⁸: dust, grit, and surface finish⁹ of mating parts

Material comparison for buyers¹⁰

I treat silicone as a “temperature and aging” solution. I do not treat it as a “heavy wear” solution unless the load is low and motion is limited.

How Do I Specify Hardness, Fit, and Compression Set for Silicone Bushings?

A bushing is a controlled interface. If the fit is wrong, the bushing can creep, spin, or tear. If compression set is high, the bushing loses preload and starts to rattle.

I specify silicone bushings by defining ID, OD, length, and interference fit, then setting hardness (often 40–70 Shore A) based on load and insertion force. I also specify compression set after heat aging when preload matters, plus tear strength for assembly robustness.

My practical hardness rules

✅ Starting points I often use:

• 40–55 Shore A: better isolation, easier assembly, lower loads
• 55–70 Shore A: better shape stability, higher loads, tighter clearance
• 70+ Shore A: only when geometry and loads demand it and wear is controlled

Hardness does not replace design. A thin-wall bushing at 70 Shore A can still tear if insertion is aggressive.

What I ask for in the drawing

I also define motion type and lubrication policy

A silicone bushing can squeak if sliding friction is high. If there is motion, I ask whether lubrication is allowed. If lubrication is not allowed, I adjust material choice or geometry to reduce friction.

What Validation Tests¹⁵ Should I Run Before I Approve Silicone Bushings?

A bushing that “fits” can still fail in service. I prefer simple tests that simulate the real risks. That approach prevents surprises after production tooling is paid.

I validate silicone bushings with dimensional checks, insertion force checks, static load deflection tests, heat aging with re-check of preload, and basic wear or cycle tests if motion exists. If the bushing must seal, I add a simple leak or dust ingress check.

My short validation plan

✅ I run these checks before approval:
1) Dimensional and hardness confirmation by lot
2) Assembly check for insertion and tear risk
3) Load-deflection check to confirm stiffness
4) Heat aging¹⁶ then re-check fit and preload
5) Cycle test if oscillation or rotation exists

A risk-to-test table

Conclusion

Silicone bushings are molded sleeves or inserts that isolate vibration, guide parts, and reduce wear. I choose them for heat and ozone stability, and I validate fit, set, and wear before production.
