What Are Silicone Grommets?

Loose cables can chafe, leak, or short. Sharp panel edges can cut insulation in weeks. I have seen small grommets prevent big failures.

Silicone grommets are flexible silicone rubber rings or bushings that protect wires, tubes, and small parts as they pass through holes, and they can also seal against dust, splash, and vibration. They are chosen when heat, ozone, and long-term flexibility matter.

I treat silicone grommets as “edge protection plus sealing.” A good design controls three things at the same time: abrasion risk, ingress risk, and assembly stability.

What Do Silicone Grommets Do in Real Products?

A hole in a panel looks harmless. In real use, that hole becomes a stress point. Movement, vibration, and temperature cycles keep working on the same edge.

Silicone grommets protect the pass-through, reduce vibration damage, and can create a basic seal between a panel and a cable or tube. They also help with strain relief and cleaner routing when the product sees heat, UV, or ozone.

I split the job into three functions

Silicone grommets¹ usually succeed when the buyer defines the main function clearly.

✅ The three common functions:

• Protection²: The grommet stops sharp edges from cutting insulation or hoses.
• Sealing³: The grommet blocks dust and splash, and sometimes low pressure air leaks.
• Stability⁴: The grommet controls wobble, noise, and vibration around the pass-through.

Typical applications I see in B2B orders

I often see these parts in industrial equipment first, then in automotive and electronics.

A short story from a panel cut issue

I once reviewed a failure photo where a wire jacket was cut by a metal edge. The cable was moving only a few millimeters. The cut still grew because vibration repeated the same contact. A simple grommet fixed it. That case made me treat “small movement” as a real risk.

Why Choose Silicone Instead of EPDM, NBR, or PVC for a Grommet?

Many buyers start with cost. That is normal. The problem is that grommets fail quietly, then the failure shows up as a bigger system issue.

Silicone grommets are chosen when temperature range, ozone resistance, and long-term flexibility are more important than oil resistance or lowest cost. EPDM can be a good option for weather and water, NBR is stronger for oils, and PVC is low-cost but usually weaker in heat and long-term compression.

The selection logic I use

I use simple questions because grommets are often “small parts with big consequences.”

✅ My key questions:
1) Does the grommet sit near heat sources or see hot air?
2) Does it sit outdoors with ozone and UV?
3) Does it touch oils, fuels, or grease?
4) Is sealing required, or is it only edge protection?
5) Is there repeated motion or vibration at the pass-through?

Material comparison⁸ table for procurement decisions

Performance criteria buyers should write into the spec

A “silicone grommet” request is not a complete spec. I write it so the quote is comparable across suppliers.

🛠️ The criteria I typically define:

• Temperature range⁹: continuous and peak
• Hardness¹⁰: often 40–70 Shore A for grommets
• Tear and elongation¹¹: important for installation
• Compression set¹²: important when sealing is required
• Flammability¹³: if the product needs it
• Color and marking: if identification matters

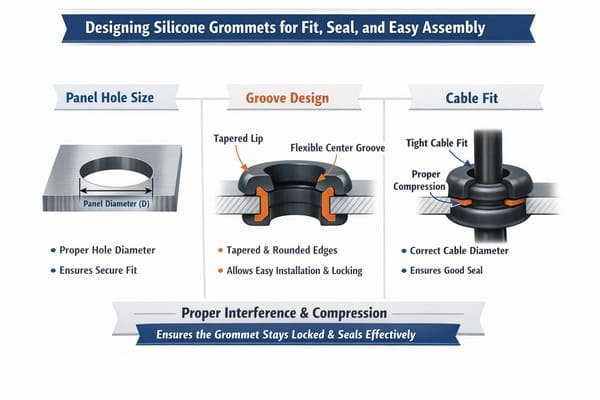

How Do I Design Silicone Grommets for Fit, Seal, and Easy Assembly?

Many grommet issues are not material issues. They are fit issues. A good silicone compound cannot fix a poor groove or wrong hole tolerance.

A silicone grommet works best when the panel hole size, groove geometry, and cable diameter are controlled so the grommet has enough interference to stay locked, plus enough compression to seal without tearing during installation.

The geometry I check first

I use a simple “three diameter” method.

✅ I define:

• Panel hole diameter¹⁴: the cutout size
• Grommet groove diameter: the locking feature that snaps in
• Pass-through diameter: the ID that grips the cable or tube

If the panel hole varies too much, the grommet can pop out or spin. If the pass-through ID is too small, assembly tears start. If it is too large, sealing fails.

Typical hardness and wall thickness guidance

I avoid one-size rules, but I use ranges as a starting point.

Tolerances and shrinkage matter in molded silicone

If the grommet is molded silicone, shrinkage and tool tolerance drive real fit. I like to lock critical diameters early, then confirm on samples. I also tell buyers to define the panel hole tolerance. A laser-cut hole and a punched hole behave differently.

A practical fit check table

Which Silicone Compounds and Compliance Options Are Common for Grommets?

Some grommets are general-purpose. Others are in sensitive environments. The right compliance target keeps the project stable and avoids rework.

Most silicone grommets use general-purpose VMQ, but buyers can specify low-volatile silicone, flame-retardant grades, or food-contact compliant silicone when the application requires it. The best choice depends on the environment, the standard, and the buyer’s documentation needs.

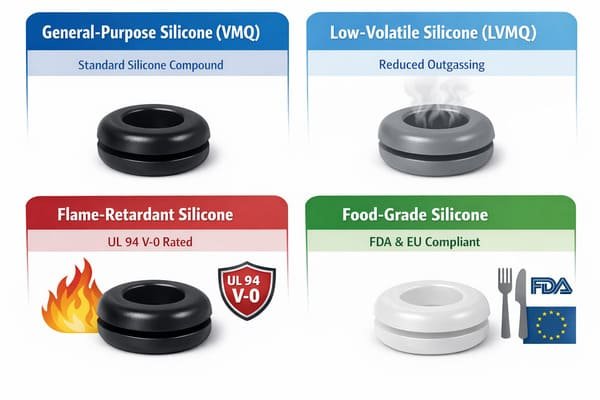

Common compound options I see

I keep this list simple so a buyer can align it to risk.

✅ Common silicone grommet options:

• General-purpose VMQ: most industrial pass-through use
• Low compression set VMQ¹⁵: better for sealing functions
• Flame-retardant silicone¹⁶: for electrical or enclosure safety needs
• Low-volatile silicone¹⁷: for sensitive electronics
• Food-contact silicone¹⁸: for equipment that touches food zones

A buyer-friendly documentation checklist

I treat “certification” as a target list. A supplier cannot guess the correct one. A buyer also cannot rely on a generic statement. Both sides need the same standard name and the same test conditions.

Conclusion

Silicone grommets protect pass-through holes and can also seal and reduce vibration. I choose them when heat, ozone, and long-life flexibility matter most.
