What Are the Criteria for Selecting Rubber Materials?

Bad rubber choices look fine on day one. Then the seal swells, the gasket hardens, or the wheel cracks. I have seen projects lose weeks because one line on a material spec was missing.

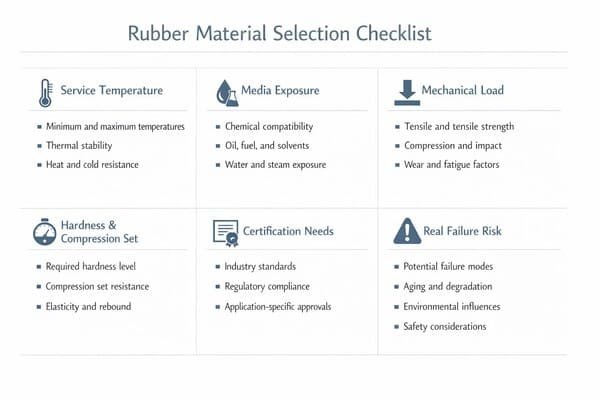

I select rubber materials by checking service temperature, media exposure, mechanical load, hardness and compression set, certification needs, and the real failure risk of the application.

I treat rubber selection as risk control. I do not chase a “best rubber.” I chase the rubber that fails last in the real environment. I also chase the rubber that can be produced and inspected with stable quality at scale.

Which service conditions matter most when I select rubber materials?

A drawing can be perfect and still fail. The real problem is the environment. Many buyers only share dimensions, and they skip temperature, media, and duty cycle. That is where mistakes start.

The fastest way to pick the right rubber is to define the service conditions first: temperature range, fluid or gas media, pressure and motion, outdoor exposure, and expected lifetime.

I start with a simple “service condition card”

I ask for facts that a buyer can confirm quickly. I use this short list because it prevents most wrong material choices.

✅ I ask for these inputs:

• ✅ Temperature¹: minimum, maximum, and continuous temperature
• ✅ Media list²: water, glycol, oil type, fuel type, chemicals, cleaners, vapors
• ✅ Contact type³: immersion, splash, vapor, or intermittent contact
• ✅ Pressure and sealing mode⁴: static seal, dynamic seal, vacuum, pulsation
• ✅ Motion: sliding, rotating, bending, shock, vibration
• ✅ Outdoor exposure⁵: ozone, UV, rain, salt, dust
• ✅ Expected life⁶: months, years, or a fixed cycle count
• ✅ Compliance⁷: food contact, medical, RoHS/REACH, flame, low odor

I translate conditions into “dominant failure mode”

I do this because each rubber has a different weakness. The dominant failure mode⁸ tells me what to protect.

Condition	What usually fails first	What I focus on
Hot air + ozone + UV	Surface cracking, hardening	Ozone resistance, heat aging
Oil or fuel contact	Swell, softening, leak	Volume change, fuel/oil resistance
Steam or hot water	Hardening, compression set9	Hydrolysis resistance, compression set
Dynamic motion10	Wear, heat build-up	Abrasion, tear strength, low friction design
Low temperature install	Brittle crack	TR/low temp flexibility, glass transition margin

I use a short “rubber family map¹¹” for first screening

This is not final selection. This is a fast filter.

Rubber family	Often strong in	Often weak in	Typical use
EPDM	Water, glycol, ozone, weather	Oils and fuels	HVAC gaskets, outdoor seals
NBR	Mineral oils, greases	Ozone, weather	Oil seals, hoses
HNBR	Oils + better heat than NBR	Cost vs NBR	Higher life oil seals, cold start designs
FKM	Oils, fuels, chemicals at heat	Cold flexibility, cost	Hot oil, fuel vapor, chemical service
VMQ (Silicone)	Hot air, ozone, low temp flexibility	Fuels, many oils	High heat + hygiene handling
CR (Neoprene)	Weather + moderate oils	High heat vs EPDM/FKM	General industrial seals
PU	Abrasion, load	Heat, hydrolysis in some cases	Wheels, wear parts

A short story from my factory floor

I once received a gasket request that looked “simple.” The drawing had no media. The buyer only said “industrial equipment.” I asked one extra question about cleaning. The answer was “hot alkaline wash.” That one sentence removed NBR from the shortlist. It also saved the buyer from a swollen gasket and a shutdown.

How do I match rubber to temperature and thermal aging risk?

Temperature does not only melt rubber. Temperature changes the rubber network over time. A rubber can survive a short peak temperature and still fail under continuous heat.

I match rubber to temperature by separating continuous temperature from peak temperature, then I check thermal aging, low-temperature flexibility, and safety margin for the expected service life.

I split temperature into three questions

I do this because “max temperature” is often not the real number.

1) What is the continuous temperature?

Continuous heat drives aging. Aging drives hardness rise and loss of elasticity.

2) What is the peak temperature and how long is it?

Short peaks may be fine if the rubber returns to normal conditions quickly.

3) What is the minimum temperature during storage and installation?

Many failures start during cold assembly, not during operation.

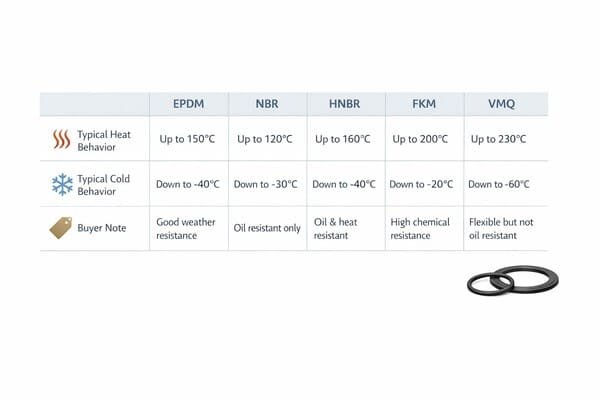

A practical temperature screening table

This table helps procurement teams make a first decision, then validate with tests.

Material	Typical heat behavior	Typical cold behavior	My note for buyers
EPDM	Stable in hot air and hot water systems	Good in cold air (compound dependent)	Great for outdoor HVAC when no oil
NBR	Heat limit depends on compound	Low temp grades can be good	Strong for mineral oils, not for weather
HNBR	Better heat aging than NBR	Often good with low temp design	Good “long-life” option for oils
FKM	Strong at heat in oils and fuels	Often weak unless low-temp grade	Confirm cold grade if cold starts exist
VMQ	Very stable in hot air	Excellent low temp flexibility	Avoid fuels and many oils

I add a “design margin” rule

I avoid running a rubber at its limit. I do this because small process changes, pressure spikes, and real-world heat soak are common.

✅ My simple margin rules:

• ✅ I keep continuous service at least 10–20°C below the known limit for the compound.
• ✅ I treat hot + chemical exposure as higher risk than hot air alone.
• ✅ I treat dynamic seals as higher risk than static seals at the same temperature.

I pick test items that match temperature risk¹²

I do not accept “looks good” as proof. I ask for test targets that link to failure modes.

Temperature risk	What I ask to test	Why it matters
Heat aging	Hardness change, tensile retention	Aging can make rubber brittle
Sealing at heat	Compression set	Compression set predicts leak risk
Cold install	Low temp flexibility checks	Prevent crack during assembly
Cycling	Heat cycle + compression set	Real life is not constant temperature

What I tell buyers who want one rubber for all temperatures

I tell them the truth. No rubber wins all corners. If a part must work at -30°C and also see hot oil, the rubber choice becomes a trade. I then propose two solutions: a validated compound, or a design change like a different seal profile or backup ring.

How do I choose hardness and compression set for seals and gaskets?

Hardness looks like a simple number, yet it drives assembly force, sealing line load, and leak risk. Many buyers only specify Shore A and skip compression set. That is why seals fail early.

I choose hardness by matching it to the sealing method and pressure, and I use compression set as a key KPI because it predicts long-term sealing force loss.

I treat hardness as “fit + force + movement”

Hardness is not only “soft or hard.” It is a design tool.

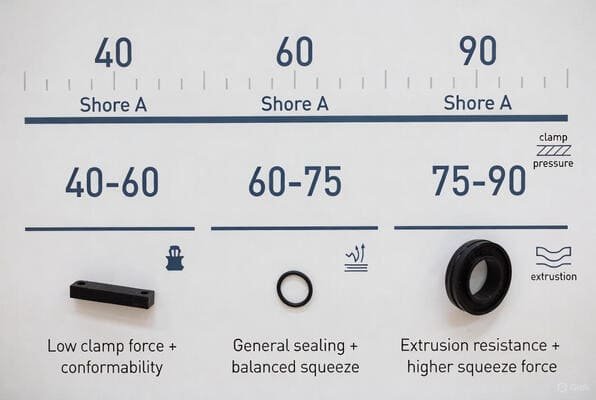

✅ My common hardness logic:

• ✅ 40–60 Shore A: low clamp force, better conformability, often used in low pressure gaskets
• ✅ 60–75 Shore A: common for O-rings and general seals
• ✅ 75–90 Shore A: extrusion resistance under pressure, but needs higher squeeze force

Compression set is the number I watch for long life

A seal can pass day-one leak tests and still fail after months. Compression set explains that story. Lower compression set usually means better recovery after long compression.

A buyer-friendly “hardness vs risk” table

Buyer constraint	Risk if too soft	Risk if too hard	What I do
Low clamp force	Extrusion, creep, leak	Cannot conform, leak	I adjust profile and squeeze first
High pressure	Extrusion, nibbling	High assembly force	I add backup or change groove design
Dynamic motion	Wear, heat build-up	Wear, stick-slip	I balance hardness and friction
Large tolerance stack	Over-compression	Under-seal	I widen tolerance plan and add stop features

A quick comparison table for common seal materials

This table is useful when a buyer only has a short spec sheet.

Material	Typical hardness range	Compression set trend	Common sealing use
EPDM	40–90	Often good in water/air systems	HVAC gaskets, water seals
NBR	50–90	Varies by compound	Oil seals, hydraulic parts
HNBR	60–90	Often better than NBR at heat	Long-life oil sealing
FKM	60–90	Can be good at heat	Hot oil, fuel sealing
VMQ	30–80	Can be weaker under long compression	High heat air sealing

I always connect hardness to tolerance and inspection

A hardness number without tolerance is not complete. I use hardness tolerance as part of quality control because mixing and cure changes hardness.

✅ What I include in a practical spec:

• ✅ Target hardness and tolerance (example: 70 ±5 Shore A)
• ✅ Compression set method and target value for the service condition
• ✅ Dimensional tolerance class for the part
• ✅ Visual standard for surface defects that matter to sealing

A short story about “hardness-only” specifications

I once saw a buyer specify “70 Shore A EPDM” for a duct gasket. The part sealed well in the first week. After a hot summer, the field team reported small leaks. The compound had higher compression set than expected. We changed the compound recipe and we also adjusted the gasket profile. The leak rate dropped and the buyer reduced rework.

How do I judge chemical compatibility¹³ and swelling risk?

Chemicals are the fastest way to destroy a rubber plan. Many rubbers fail by swell¹⁴ing, softening, or cracking. Some failures are slow. That is why I always ask for the full media list.

I judge chemical compatibility by checking the exact media list, temperature, and contact type, then I validate with swelling and property-retention tests on the real fluid.

I ask for the “real media list,” not a category

“Oil” can mean many things. “Cleaner” can be worse than the process fluid. I ask for names, concentration, and temperature.

✅ I ask buyers to confirm:

• ✅ Fluid name or standard
• ✅ Additives and detergents
• ✅ Concentration and pH for water-based chemicals
• ✅ Exposure time and frequency
• ✅ Temperature during exposure

Swell is not cosmetic. Swell is a performance shift

When rubber swells, hardness drops and dimensions change. Sealing force changes. Friction changes. The part can jam or leak.

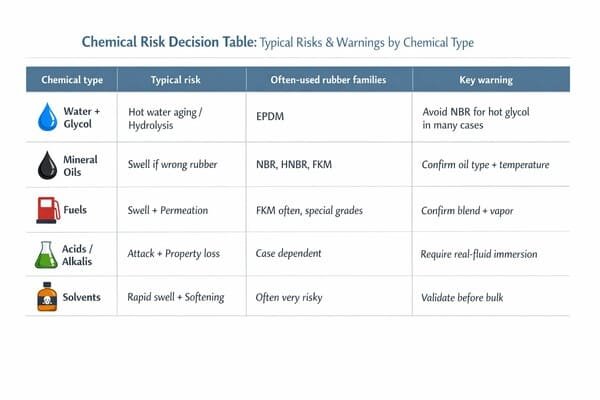

A practical “chemical risk” decision table

Chemical type	Typical risk	Rubber families often used	My warning
Water + glycol	Hydrolysis, hot water aging	EPDM	Avoid NBR for hot glycol in many cases
Mineral oils	Swell for wrong rubber	NBR, HNBR, FKM	Confirm oil type and temperature
Fuels	Swell, permeation	FKM (often), special grades	Confirm fuel blend and vapor exposure
Acids/alkalis	Attack and property loss	Depends on concentration	I require real-fluid immersion tests
Solvents	Rapid swell and softening	Often very risky	I validate before any bulk order

A “shortlist” comparison table for buyers

This table is not a promise. It is a fast guide for first screening.

Material	Water-based fluids	Mineral oils	Fuels	Ozone/UV
EPDM	✅ Strong	❌ Weak	❌ Weak	✅ Strong
NBR	⚠️ Limited	✅ Strong	⚠️ Limited	❌ Weak
HNBR	⚠️ Limited	✅ Strong	⚠️ Limited	⚠️ Better than NBR
FKM	⚠️ Depends	✅ Strong	✅ Strong	✅ Strong
VMQ	✅ Mild only	❌ Weak	❌ Weak	✅ Strong

The validation plan¹⁵ I recommend before mass production

I do not rely on a generic chart alone. I validate against the actual media.

✅ My basic validation steps:
1) I confirm compound selection and provide a material data sheet.
2) I run immersion testing in the real fluid at real temperature.
3) I measure volume change, hardness change, and tensile retention.
4) I run compression set if the part is a seal or gasket.
5) I release samples for assembly fit and short field check.

My personal rule for “unknown chemicals”

When a buyer cannot share the chemical, I ask for a representative sample. I also offer an NDA path when needed. I do this because guessing is expensive. A short test cycle is cheaper than a recall.

What certifications and compliance checks should I require?

Many purchasing teams want proof, not promises. Certifications do not make a rubber better by themselves. Yet certifications¹⁶ reduce regulatory¹⁷ risk, and they force process discipline.

I require certifications when the application needs them, and I confirm compliance with documents, traceability, and test reports that match the standard and the batch.

I separate “system certification¹⁸” and “material compliance”

These are not the same thing.

• System certification: how the factory manages quality.
• Material compliance: what the compound can legally touch or release.

Common compliance needs I see in export projects

✅ These requests are common in Europe:

• ✅ RoHS and REACH statements for many industrial products
• ✅ Food contact compliance for food equipment and potable water
• ✅ Low odor or low VOC requirements for some indoor systems
• ✅ Flame behavior requirements for specific applications

A buyer-friendly checklist of what to request

Requirement type	What I ask for	What it protects
Factory quality	ISO 9001 certificate, process control plan	Consistency and traceability
Material proof	Material data sheet, compound ID	Correct material selection
Batch traceability	Lot number, batch test record	Root cause control
Performance proof	Key test reports (hardness, tensile, compression set)	Service performance
Regulatory	RoHS/REACH, food contact statements if needed	Legal risk control

I use a “document pack” approach for fast approvals

I keep the pack short, so buyers can approve faster.

✅ My basic document pack¹⁹ for seals and gaskets:

• ✅ Part drawing and revision
• ✅ Material specification and compound code
• ✅ Dimensional report (critical dimensions)
• ✅ Hardness report and compression set report if relevant
• ✅ Batch identification and shipment traceability

A short story about “paper vs reality”

I once saw a project where the paperwork looked perfect. The parts still failed. The media was changed in the field, and nobody updated the specification. That is why I tell buyers to treat compliance as a living file. When service conditions change, the rubber choice must be reviewed.

Conclusion

I select rubber by defining service conditions first, then I lock in temperature, media, hardness, compression set, and compliance. I validate with tests that match the real failure risk.

---
