Bellows may look similar, but choosing the right type can make or break your equipment’s reliability. What are the main types of rubber bellows, and how do you pick the right one for your application?

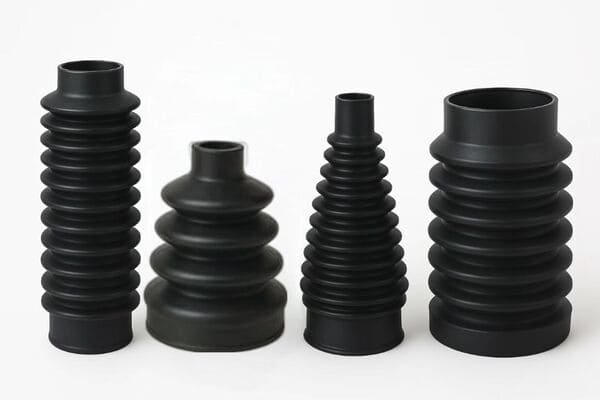

There are several types of rubber bellows: cylindrical, convoluted, telescopic, molded, fabric-reinforced, and custom shapes. Each is designed for different movement, sealing, and protection needs.
Every project I work on starts with one question: “What do you need the bellow to do?” There’s no one-size-fits-all answer. Let’s take a closer look at each major type, their features, and where they work best.
What is a cylindrical rubber bellow and where is it used?
Simple, straight, and effective, cylindrical bellows are the classic choice for many basic protection jobs.
A cylindrical rubber bellow is a straight, tube-shaped cover used to shield rods, shafts, or pipes from dust, dirt, and liquids while allowing linear movement.
Features & Applications
- Design: Straight cylinder with open or closed ends.
- Movement: Mostly linear (in and out).
- Common uses: Hydraulic cylinder rods, simple actuators1, steering shafts2, industrial equipment.
| Feature | Benefit |
|---|---|
| Easy to install | Quick protection for basic needs |
| Versatile | Works for many diameters |
| Economical | Lower cost, easy to produce |
When customers need simple, rugged protection for a moving rod or shaft, I often recommend this type.
What are convoluted rubber bellows and why choose them?
When equipment needs greater flexibility or a longer range of motion, convoluted bellows are a smart choice.
Convoluted rubber bellows have multiple ridges or “waves” along their length, allowing them to stretch, compress, and bend much more than straight bellows.
Features & Applications
- Design: Accordion-like profile, flexible in all directions.
- Movement: Handles both linear and angular movement.
- Common uses: CV boots, steering rack boots, robotics, machinery with multi-axis motion.
| Feature | Benefit |
|---|---|
| Flexible3 | Absorbs more movement, bends easily |
| Good sealing4 | Keeps dust and water out |
| Extended travel5 | Handles long strokes or high flexing |
I often use convoluted bellows for automotive or industrial jobs where vibration or joint movement is a concern.
What is a telescopic rubber bellow and where does it excel?
Some machines need a bellow that expands and contracts like a telescope, maintaining a tight seal through large changes in length.
A telescopic rubber bellow is made of nested, overlapping rings or sections that slide inside each other, providing long extension with compact retraction.
Features & Applications
- Design: Multiple telescoping layers.
- Movement: Extreme linear extension and compression.
- Common uses: CNC machine guideways6, linear actuators7, robotic arms, heavy machinery.
| Feature | Benefit |
|---|---|
| High extension range | Covers long strokes in compact space |
| Tight seal | Keeps out chips, dust, liquids |
| Customizable | Made for specific machines/needs |
Clients with advanced automation or CNC systems usually require custom telescopic bellows8 to keep debris and coolant away from critical parts.
What are molded and fabric-reinforced rubber bellows?
When the environment is especially tough, or the movement is complex, special construction methods make the difference.
Molded rubber bellows are precisely shaped using custom molds, while fabric-reinforced bellows combine rubber and strong fabrics (like nylon or polyester) for extra strength and pressure resistance.
Features & Applications
- Molded bellows9: Complex shapes, tight tolerances, custom sizes.
- Fabric-reinforced: High pressure, aggressive chemicals, demanding cycles.
- Common uses10: Hydraulic/pneumatic cylinders, pumps, valves, food or medical devices.
| Type | Key Advantage |
|---|---|
| Molded | Precise fit, special geometry |
| Fabric-reinforced11 | Handles high pressure/harsh media |
In my experience, fabric-reinforced bellows are the go-to for heavy industry, while molded bellows shine in OEM and medical applications.
What are custom and special-shaped rubber bellows?
Not all applications fit the textbook shapes. Sometimes, a project demands a completely unique solution.
Custom rubber bellows are designed for unusual movement, tight installation spaces, or specific sealing needs. They may combine several features or materials to solve a unique problem.
Features & Applications
- Design: Tailored for the customer’s exact need.
- Applications: Electric vehicle battery packs, medical robotics, aerospace, specialty pumps.
- Benefits: Perfect fit, optimized for the job, may include custom flanges or mounting.
When clients send me a 3D model or drawing with odd curves or multiple inlets, I know it’s time for a fully custom solution. These projects are always challenging but deeply rewarding.
How do you select the right type of rubber bellow for your needs?
With so many types, making the right choice takes a clear look at your project’s environment, movement, and lifetime needs.
Select a rubber bellow based on movement type, required sealing, environmental exposure, pressure, and installation space. Always consider temperature, chemicals, and frequency of movement.
| Type | Best For | Weakness |
|---|---|---|
| Cylindrical12 | Simple linear movement | Limited flexing |
| Convoluted13 | Multi-direction movement | Lower pressure resistance |
| Telescopic14 | Long stroke, compact space | Higher cost, complex install |
| Molded | Precise fit, special shape | Tooling cost, lead time |
| Fabric-reinforced | High pressure/harsh | Less flexibility |
| Custom | Unusual or mixed needs | Design/development required |
At Julong Rubber, I always discuss the specific details—movement, chemicals, space—before recommending a type. Getting this step right avoids later problems and ensures your machine runs smoothly.
Conclusion
Rubber bellows come in many shapes and builds, each designed for unique jobs. Picking the right type protects your equipment, reduces downtime, and keeps your operation running at its best.
-
