Seal failure can disrupt entire projects. Choosing the wrong O-ring type for large or custom equipment often leads to costly downtime.
Spliced rubber rings are mainly used in large static seals, custom machinery, prototypes, and HVAC systems where molded O-rings are impractical or too expensive.
Many engineers and buyers confuse spliced rings with molded or vulcanized seals. Spliced rings are not weak replacements. They solve specific sealing challenges where flexibility and quick production matter most.
Why are spliced rings popular?
Spliced rings do not need expensive molds. They can be produced quickly in almost any diameter.
Spliced rings are popular because they offer flexibility, fast delivery, and cost savings for oversized or low-volume sealing applications.
I often see clients choose spliced rings1 when they need seals larger than one meter in diameter. Producing such sizes with molds would require huge costs and long lead times. Spliced rings provide a practical balance between performance and price.
They are not as strong as molded O-rings2, but in many static sealing environments3, they work perfectly. I have seen them perform well in HVAC ducts, large filters, and marine hatches.
Key Benefits of Spliced Rings
- ✅ No tooling required, quick turnaround
- ✅ Cost-effective for large sizes
- ✅ Available in many rubber materials
- ❌ Not ideal for high pressure or dynamic sealing
Top Applications of Spliced Rings?

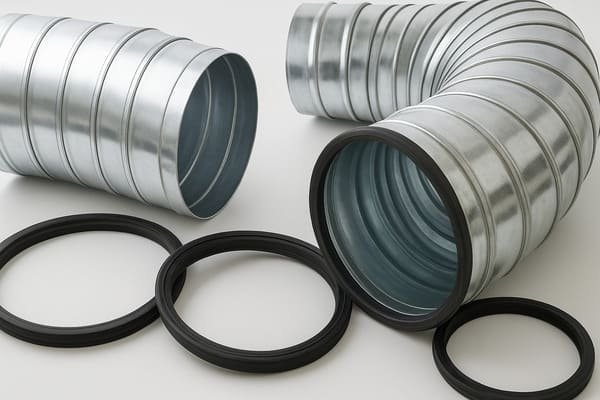

HVAC Systems and Air Handling
Spliced rings are common in heating, ventilation, and air conditioning projects.
In HVAC, spliced O-rings seal duct flanges, dampers, and filter housings, preventing leaks and improving system efficiency.
Product Segments
- Duct Flange Seals4: Large-diameter O-rings used in circular ducts to prevent air leakage.
- Damper Seals5: Rings fitted around dampers to reduce noise and vibration.
- Filter Access Doors6: Quick-access doors use spliced rings for maintenance sealing.
| HVAC Component | Spliced Ring Function |
|---|---|
| Duct connection7 | Seal against leakage and noise |
| Air dampers8 | Provide airtight closure |
| Filter housings9 | Ensure clean air without bypass |
Industrial Filtration Systems
Large filter housings often require non-standard seals.
Spliced rings in filtration offer large, customizable sizes that fit filter vessels, water treatment tanks, and dust collection units.
Product Segments
- Liquid Filter Housings10: O-rings for stainless steel housings in chemical plants.
- Dust Collectors11: Oversized rings12 for bag filters and cartridge filters.
- Gas Purifiers13: Large static seals for emission control systems.
| Filtration Equipment | Spliced Ring Role |
|---|---|
| Liquid housings | Provide leak-free chemical containment |
| Dust collectors | Seal between filter and housing |
| Gas scrubbers | Maintain gas-tight performance |

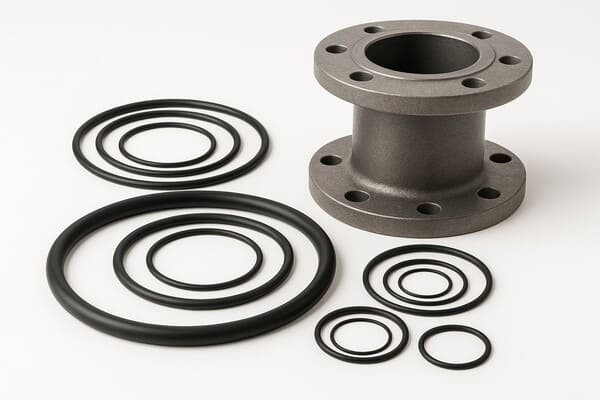

Marine and Offshore Equipment14
Marine environments demand large and durable static seals.
Spliced O-rings are used in ship hatches, seawater piping, and offshore platforms where oversized seals are needed.
Product Segments
- Hatch Covers15: Large EPDM spliced rings ensure watertight sealing.
- Seawater Pipe Flanges16: Static seals for low-pressure water transfer.
- Engine Room Access17: O-rings prevent moisture ingress.
| Marine Component | Spliced Ring Application |
|---|---|
| Hatch covers | Seal against seawater entry |
| Pipe flanges | Resist saltwater exposure |
| Access covers | Protect from humidity and corrosion |
Water Treatment and Chemical Plants18
Spliced O-rings provide flexible sealing in large tanks and pipelines.
They are applied in static sealing of basins, tanks, and low-pressure flanges in treatment plants.
Product Segments
- Tank Lids: Large seals for access covers on water tanks.
- Pipeline Flanges: Flexible O-rings for non-standard connections.
- Chemical Basins: EPDM or FKM spliced rings to resist chemicals.
| Water/Chemical Use | Spliced Ring Role |
|---|---|
| Tank lids | Seal against leaks and vapor escape |
| Pipe joints | Handle oversized diameters |
| Basin covers | Resist chemical contact |
Custom Machinery and Prototyping19
Engineers often need seals before investing in molds.
Spliced O-rings are fast solutions for custom machines, prototypes, and low-volume production.
Product Segments
- Prototype Equipment: Rapid sealing for early design testing.
- Custom Flanges20: Non-standard sealing where no catalog size exists.
- Industrial Valves21: Large valve covers that require quick sealing solutions.
| Custom Application | Spliced Ring Advantage |
|---|---|
| Prototypes | No tooling cost, fast testing |
| Special flanges | Tailor-made diameters available |
| Valve housings | Quick sealing solution without molds |
Application Comparison Table
| Application | Why Spliced Rings Work Well |
|---|---|
| HVAC ducts & dampers22 | Large diameters, static sealing23 |
| Industrial filters | Oversized custom sizes, quick delivery |
| Marine hatches & covers | Resistant materials, flexible sizing |
| Custom machinery | Prototypes, no tooling cost |
| Water treatment systems | Large static seals, moderate conditions |
My Experience with Spliced Rings
I once worked with an HVAC contractor who needed giant O-rings for air-handling dampers. Tooling molded rings would take months. By supplying spliced rings, I delivered within a week. The seals held well under static conditions, saving the client both time and money.
In another project, a chemical plant used spliced EPDM rings for tank covers. They faced ozone and water exposure, but the seals performed reliably because the stress was static and pressure was low.
Conclusion
Spliced rings are best for large, static, and custom applications. They save time, reduce costs, and deliver flexibility for industries like HVAC, marine, and filtration.
-
