Are your wires getting cut, pinched, or worn out as they pass through metal or plastic panels? A wire grommet could be the small part that solves a big problem.

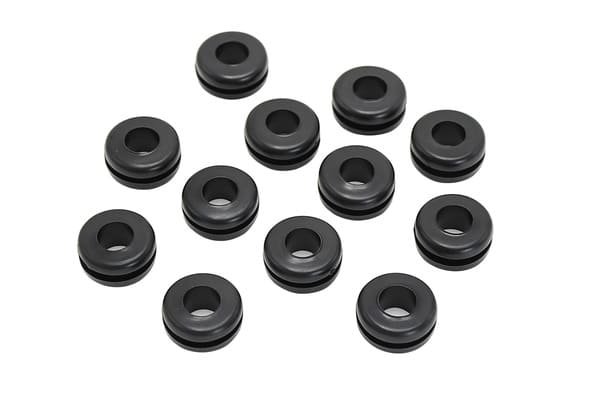

Wire grommets are protective rings—usually made of rubber or plastic—inserted into holes to protect wires from sharp edges. They provide insulation, strain relief, and prevent abrasion or electrical faults.
Wire grommets may look simple, but they serve critical roles in keeping wiring systems safe, organized, and long-lasting. Let me show you how they work and how to choose the right one.
What is the purpose of a wire grommet?
Do your wires sag, twist, or rub against the enclosure edge? That can lead to insulation damage or even electrical shorts.

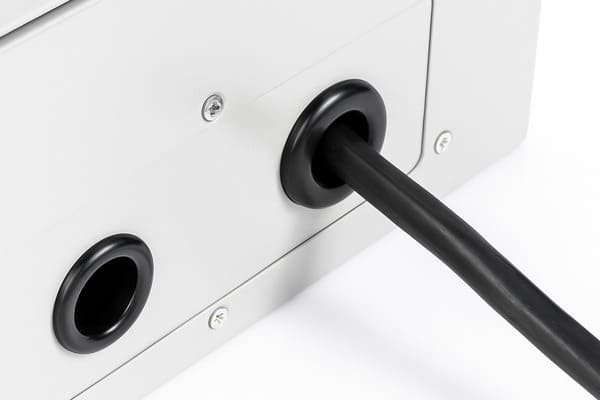

Wire grommets are installed in holes of enclosures, panels, or housings where wires pass through. They create a smooth, insulated path that eliminates direct contact with rough edges. This protects the wire and extends its service life.
Common Use Cases
- Electrical junction boxes1
- Control panels2
- Server racks
- Appliances and machinery
- Automotive and marine wiring systems
These grommets also help organize cables, prevent accidental wire pulls, and reduce vibration where wires are routed through moving parts.
| Function | Benefit | Example Use Case |
|---|---|---|
| Edge protection3 | Prevents wire cuts and abrasions | Sheet metal enclosures |
| Insulation4 | Prevents short circuits | Electrical panels |
| Vibration damping5 | Protects wires from movement wear | Automotive engine compartments |
What types of wire grommets are available?
Overwhelmed by the number of grommet styles on the market? You’re not alone—each type fits a specific need.

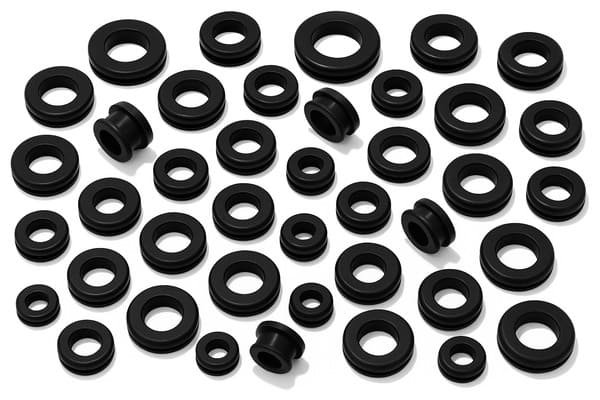

Wire grommets come in various materials (rubber, PVC, silicone), shapes (round, oval, rectangular), and mounting types (push-in, snap-in, screw-in). Each type is designed for different environments and wire protection levels.
Popular Types of Wire Grommets
- Standard Round Rubber Grommets6: Most common, used for single wires through holes in panels.
- Slotted or Open Grommets: Ideal for pre-installed wires; easy to snap over cables without disconnecting.
- High-Temperature Silicone Grommets7: Used in HVAC, ovens, or industrial machinery.
- Sealing Grommets with Lips or Grooves8: Provide splash or waterproof sealing in outdoor or marine equipment.
| Grommet Type | Key Feature | Best Use |
|---|---|---|
| Round Rubber Grommet | Basic protection, flexible fit | Control panels, enclosures |
| Slotted Grommet | Easy installation on existing cables9 | Retrofit wiring |
| Silicone Grommet | Heat resistance > 200°C10 | Appliances, industrial systems |
| Waterproof Grommet | Dual-lip seal for moisture barrier11 | Outdoor, marine, HVAC |
How do I choose the right wire grommet?
Need to replace a grommet but not sure what size or type you need? Measuring and matching the right features is essential.
To choose the right wire grommet, consider hole size, panel thickness, wire diameter, environmental conditions, and material compatibility. A good grommet should fit snugly and provide protection under your application’s conditions.
Key Selection Tips
- Measure the Panel Hole Diameter12 – This determines the outer size of the grommet.
- Check Wire or Cable Diameter – The inner hole of the grommet should match your wire tightly.
- Note the Panel Thickness – Some grommets are designed for thick panels, others for thin sheet metal.
- Assess the Environment13 – Will the grommet be exposed to heat, oil, UV, or water?
| Parameter | What to Measure | Why It Matters |
|---|---|---|
| Panel Hole Size | Outer diameter of grommet | Ensures stable mounting |
| Wire Diameter14 | Inner grommet hole | Ensures tight fit around wire |
| Panel Thickness | Flange depth | Prevents loose or sunken fit |
| Environment | Temperature, water, UV, oil exposure | Choose proper rubber type |
Are wire grommets waterproof?
Are your wires exposed to moisture, rain, or splashes? A standard grommet may not be enough.

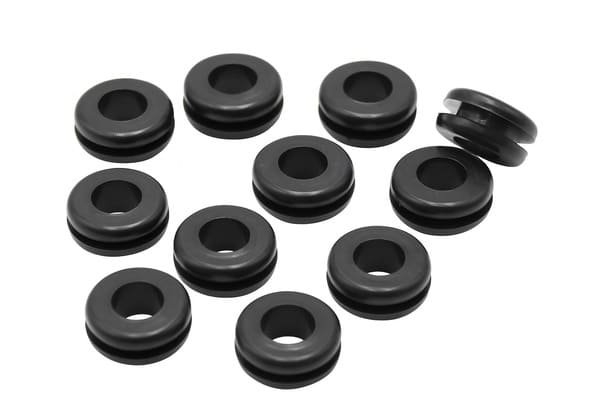

Some wire grommets are waterproof, especially those made with sealing lips, grooves, or with added gaskets. They help keep out water and dust in outdoor or wet conditions.
Waterproofing Options
If waterproofing is important, choose grommets made of EPDM15, silicone, or TPE with sealing features like:
- Double-lip designs that compress when installed
- Gland grommets with adjustable sealing over wires
- Grommets combined with O-rings or washers
These are commonly used in:
- Automotive engine bays
- Outdoor lighting fixtures
- Marine electronics
- Enclosures with IP65 or IP67 ratings16
| Material | Waterproof Property | Suitable Applications |
|---|---|---|
| EPDM | Excellent | Automotive, solar, outdoor signs |
| Silicone | Excellent + heatproof | Industrial panels, LED housings |
| PVC | Moderate | Indoor use, general electronics |
When should I replace a wire grommet?
Are your wires sagging or showing signs of wear near the panel edge? Don’t ignore those small cracks in the grommet.
Replace wire grommets if they’re cracked, dried, loose, or discolored. A failed grommet can lead to insulation wear, exposed wiring, or even short circuits.
Signs of a Failing Grommet
- Cracks from age, heat, or sunlight
- Grommet no longer stays in the hole
- Hard, brittle texture instead of flexible rubber
- Evidence of abrasion on nearby wires
| Problem | Risk | Recommended Action |
|---|---|---|
| Cracked Grommet17 | Wire damage, exposure | Replace immediately |
| Loose Fit18 | Cable movement, noise, abrasion | Use properly sized grommet |
| UV Deterioration19 | Loss of protection and elasticity | Choose UV-resistant rubber |
Conclusion
Wire grommets may be small, but they play a critical role in protecting cables and ensuring safe, long-lasting installations. By selecting the right material, shape, and fit, you can prevent wire damage, improve reliability, and meet the needs of demanding environments.
-
