What Happens to Elastomers at Low Temperatures?

Cold weather does not “pause” rubber problems. Cold weather often creates new ones. Seals leak. Hoses stiffen. Assemblies crack during installation.

At low temperatures, elastomers get stiffer, their elastic recovery drops, and some compounds approach a glassy state. Seals can lose contact stress, dynamic parts can increase friction, and brittle cracking can occur if the material is near its cold limit.

I write about low temperature behavior because I see buyers treat rubber like plastic. Rubber is not plastic. Rubber depends on elasticity, and cold attacks elasticity first.

Why do elastomers become stiff in cold conditions?

Many people only notice the symptom. A seal feels hard. A gasket stops conforming. A bellow does not flex. The reason is predictable.

Elastomers become stiff at low temperatures because polymer chain motion slows down. As temperature drops, the rubber transitions from a soft, elastic state toward a rigid, glass-like state, so deformation becomes harder and recovery becomes weaker.

I explain low temperature stiffness with three ideas

These ideas are not complicated, and they help procurement teams ask the right questions.

Glass transition and “rubber-to-glass” behavior

Every elastomer¹ has a temperature region² where it stops behaving like a rubber and starts behaving like a hard solid. The exact temperature depends on polymer type and compound design.

✅ What I watch:

• The rubber feels “springy” above its cold limit.
• The rubber feels “board-like” near its cold limit.
• The rubber can crack if it is flexed below its cold limit.

Modulus increase and loss of compliance

When modulus increase³s, the rubber resists deformation. That sounds good until you remember how a seal works. Seals need controlled deformation to fill micro-gaps.

✅ What this causes:

• Less conformity to rough surfaces
• Lower ability to follow movement
• Higher risk of micro-leak paths

Damping changes and higher friction in dynamic seals⁴

Cold changes the viscoelastic balance. Friction can rise. Start-up torque can jump. This is common in cold-start systems.

✅ What I see in the field:

• Higher motor torque at start
• Stick-slip in moving seals
• Faster wear if lubrication is poor

Do seals leak more at low temperature?

Many leaks in winter are not “new leaks.” They are borderline designs that cross the line when rubber stiffens.

Yes, seals can leak more at low temperature because contact stress can drop, rubber cannot conform to surface roughness as well, and elastic recovery slows. Dynamic seals also see higher friction and can lose sealing stability during cold start.

The sealing force problem is the core issue

A seal works when it maintains enough contact stress. Cold can reduce effective squeeze because:

• Rubber hardens
• Compression set history matters more
• The seal cannot “flow” into micro-gaps

Groove and tolerance stack-up becomes more sensitive

At low temperature, small dimensional differences matter more. A part that seals at room temperature may leak when:

• The rubber shrinks slightly
• The housing shrinks differently
• The rubber becomes too stiff to compensate

Practical leak modes I see in cold climates

I once saw a customer replace a seal three times. The leak always returned during the first cold week. The seal material was oil-resistant, but it was not chosen for cold elasticity. After we switched to a low-temperature compound and adjusted squeeze slightly, the leak stopped.

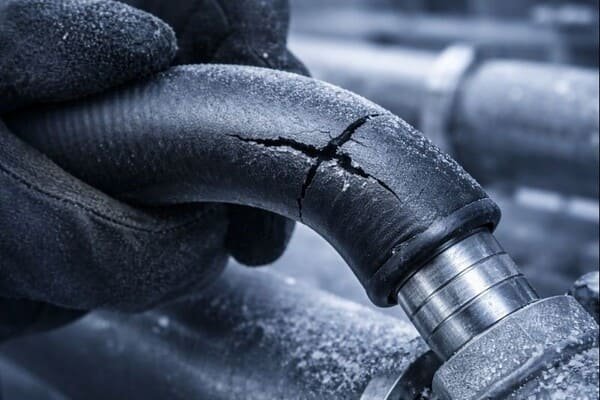

Can elastomers crack or break in cold environments?

Some buyers think rubber cannot crack. Rubber can crack. Cold makes it more likely, especially when parts are bent during installation or see shock loading.

Elastomers can crack at low temperatures if they approach brittle behavior. If the material is near its cold limit, flexing, impact, or sharp radii can create brittle cracks, especially in thin sections and stressed corners.

Brittle fracture risk increases when elasticity disappears

Rubber needs chain mobility to redistribute stress. When mobility is low:

• Stress concentrates at notches
• Small cuts grow faster
• Installation damage becomes serious damage

Thin walls and sharp corners are common triggers

I see cracking issues in:

• Thin lip seals
• Thin bellows folds
• Gasket corners with bolt load gradients

A simple design review list I use for cold parts

✅ If the part must work in cold, I check:

• Minimum radius and corner stress
• Thickness uniformity
• Assembly strain during installation
• Parting line and flash risk at sealing edges

How does low temperature affect compression set and elastic recovery?

Many teams focus only on hardness⁸ in cold. Hardness is only part of the story. Recovery is often the real failure driver, especially after long compression.

Low temperature slows elastic recovery and can increase “apparent” set during cold conditions, so seals may not rebound fast enough to track pressure cycles or movement. Compression set is usually measured at elevated temperature, but cold performance still depends on how well the material retains elasticity after aging.

Stress relaxation matters more than people expect

Even if compression set is acceptable, stress relaxation can reduce sealing force over time. Cold does not always increase chemical aging, but it can expose loss of force because the rubber is already less compliant.

Cold cycling⁹ creates real-world stress

In the field, parts rarely sit at one temperature. They cycle:

• Cold soak overnight
• Start-up heat spike
• Stabilized operation
• Cool-down

This cycling can pump small leak paths if the rubber cannot recover fast.

Practical comparison table: what I expect in cold

Which elastomers behave best in low temperatures?

Not all rubbers behave the same in cold. Polymer chemistry sets the baseline, and compound design shifts the boundary.

Silicone (VMQ) often stays flexible at very low temperatures, while many EPDM and some low-temperature NBR compounds also perform well in cold air. FKM often has weaker cold flexibility unless a low-temperature grade is used. The best choice still depends on media, not only temperature.

I treat low-temperature choice as “temperature + media”

Cold air seals and cold oil seals are not the same.

• For cold air and weather: EPDM and silicone are often strong candidates.
• For cold oils: low-temp NBR or low-temp HNBR is often safer than silicone.
• For fuels and hot oils with cold starts: I consider a validated low-temp FKM grade.

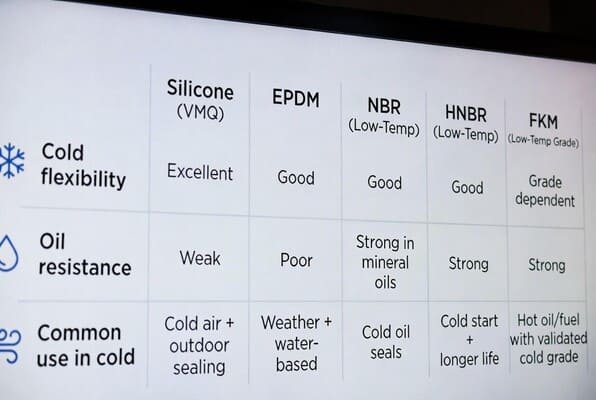

Quick “cold behavior” table for buyers

I have seen teams pick silicone for cold because it feels soft. Then oil exposure appears later, and swelling becomes the new problem. That is why I never separate cold performance from media exposure.

How do I prevent low-temperature elastomer failures in real projects?

I prevent failures with simple controls. I do not rely on “rubber feel.” I rely on defined limits and repeatable tests.

I prevent low-temperature elastomer failures by selecting a compound with verified minimum temperature, checking media compatibility, designing for cold stiffness with proper squeeze, and validating with cold soak and cold cycling tests on real parts.

My practical checklist for procurement and engineering

✅ Material controls:

• Define minimum temperature with margin
• Require compound-level cold performance evidence
• Confirm oil/fuel/water compatibility early

✅ Design controls:

• Keep adequate squeeze across tolerance stack-up
• Avoid sharp corners at stressed zones
• Control surface finish and gland design

✅ Test controls:

• Cold soak at minimum temperature
• Cold start simulation under pressure
• Re-check after aging in the real medium

If you share your minimum temperature, the medium list, and the seal type, I can map a shortlist and a minimal test plan that fits your timeline.

You can also review our related sealing pages here:

• Custom Rubber Seals

Conclusion

Cold makes elastomers stiffer and slower to recover, and it can cause leaks and cracking near the cold limit. I reduce risk with correct compounds and cold cycling tests.
