Moving machine parts demand flexibility, but also need reliable protection from dust, water, and abrasion. How can you cover a joint or shaft that bends, stretches, and twists? Convoluted rubber bellows offer a smart solution for complex motion.
A convoluted rubber bellows is a protective cover with multiple ridges or “waves” along its length, allowing for flexible expansion, compression, and bending while shielding moving parts from environmental hazards.
When I help clients solve problems with sealing and protection for moving equipment, convoluted bellows often stand out for their unique mix of flexibility and toughness. Let’s explore what makes them special and why so many industries trust them.
What makes convoluted rubber bellows different from other types?
Standard bellows are great for straight-line movement, but complex machinery needs a cover that can twist, bend, and stretch in multiple directions.
Convoluted bellows have an accordion-like shape. This design allows them to expand, contract, and bend more than straight or cylindrical bellows, making them perfect for applications where multi-axis motion is common.
Key Features Table
| Feature | Benefit |
|---|---|
| Multi-ridge profile1 | Handles greater stretching and bending |
| High flexibility | Allows for complex movement |
| Good sealing | Keeps out dust, water, chemicals |
| Vibration absorption2 | Dampens shock and reduces noise |
| Long service life3 | Withstands repeated cycles |
In my experience, this design is the best choice for parts that move in more than one direction, like automotive drive axles, steering racks, robotic joints, and industrial actuators.

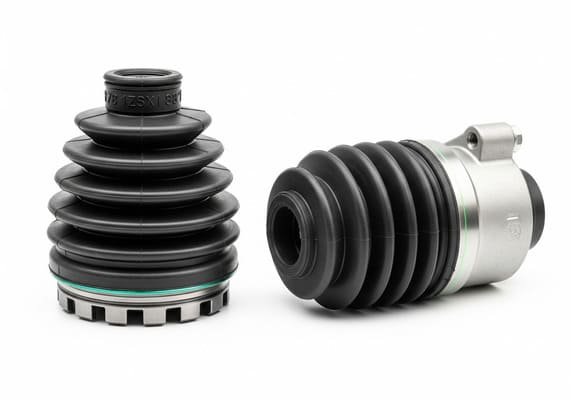

Where are convoluted rubber bellows used?
Wherever you see a joint or shaft that needs to move freely but stay protected, you’ll likely find convoluted bellows.
Convoluted rubber bellows are used in automotive CV boots, steering racks, hydraulic and pneumatic cylinders, robotics, industrial machinery, and medical equipment—anywhere motion and protection go hand in hand.
Common Applications Table
| Industry | Typical Use | Main Benefit |
|---|---|---|
| Automotive | CV boots, steering, shocks | Flexible seal, road debris block |
| Machinery | Actuator shafts, ball screws | Protects from dust, grease, oil |
| Robotics | Joint covers, arms | Allows multi-axis motion |
| Medical devices | Flexible covers, moving tables | Hygiene, smooth movement |
| Hydraulics/Pneumatics | Cylinder rod protection | Seals against oil, dust |
One customer of mine runs a fleet of forklifts. They used to replace straight boots every six months due to cracking and tearing. After switching to convoluted bellows4, their maintenance interval5 doubled, and downtime dropped sharply.
What materials are used for convoluted rubber bellows?
The right material ensures durability and performance in even the harshest conditions.
Convoluted rubber bellows are most commonly made from EPDM, NBR, silicone, neoprene, or thermoplastic elastomers. Material choice depends on the application’s temperature, chemical exposure, and flexibility needs.
Material Selection Table
| Material | Best For | Temperature Range | Key Strengths |
|---|---|---|---|
| EPDM6 | Outdoor, weather | -40°C to 125°C | Ozone, water, UV resistance |
| NBR7 | Oil, fuel exposure | -35°C to 100°C | Excellent oil resistance |
| Silicone8 | High temp, medical | -60°C to 200°C | Flexible, food-grade |
| Neoprene | General industrial | -40°C to 120°C | Abrasion, marine use |
| TPE/TPV | Light-duty, flexible | -40°C to 120°C | Custom shapes, cost |
At Julong Rubber, I often advise automotive customers to use EPDM for its superior aging and weather resistance, and NBR when the bellow will contact oil or fuel.
What are the advantages of using convoluted rubber bellows?
Not all bellows can handle the demands of real-world use. The unique design of convoluted bellows offers several key advantages.
Convoluted bellows offer excellent flexibility, wide range of movement, tight sealing, and resistance to repeated cycles of expansion and bending. They absorb vibration and noise, improve component life, and keep maintenance low.
| Advantage | Description |
|---|---|
| Flexible motion9 | Follows complex, multi-axis movement |
| Great sealing | Blocks dust, water, grease |
| Vibration dampening10 | Reduces noise, absorbs shocks |
| Long lifespan11 | Handles repeated cycling |
| Customizable | Can be molded for any fit or shape |
In my experience, switching to convoluted bellows often fixes recurring maintenance problems—especially where parts have to flex and twist at the same time.
How do you select the right convoluted rubber bellows?
Selection comes down to fit, movement, and the environment. The right choice means less downtime and better equipment protection.
To select a convoluted rubber bellow, measure the required travel, shaft or rod size, movement angle, and environmental exposures (like heat, oil, or UV). Match the material and profile to your needs, and confirm installation method—such as clamps, grooves, or flanges.
| Selection Step | What to Consider |
|---|---|
| Length/travel | Maximum extension and compression12 |
| Diameter | Shaft/rod size and mounting points |
| Movement | Range of angles and directions13 |
| Material | Match to environment |
| Installation | Clamp, flange, or custom mount |
I always recommend a sample fit or prototype for custom projects14, especially when space is tight or motion is complex.
Conclusion
A convoluted rubber bellows offers flexible protection for moving machine parts. Its unique design and material options make it the best choice for equipment that needs to move freely but stay protected.
-
