Water leaking during dishwashing operations can interrupt production and cause costly downtime. In many cases, the cause is a worn or poorly designed door seal.

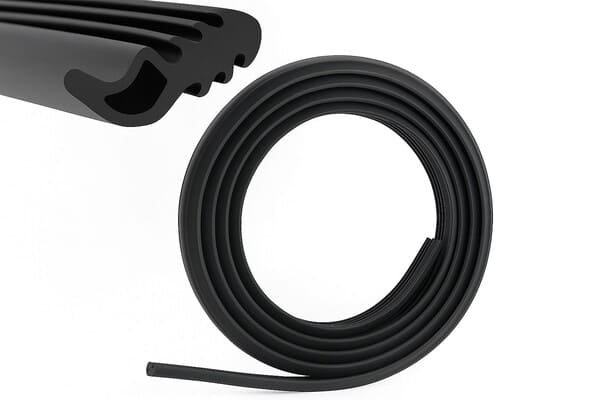

A dishwasher door seal is an industrial-grade rubber gasket that creates a watertight barrier around the door frame, preventing leaks and ensuring reliable operation in commercial and professional dishwashers.
In B2B supply, a faulty seal is not just a household inconvenience. It is a risk for restaurants, hotels, and distributors who rely on consistent machine performance.
How does a dishwasher door seal work?
Industrial dishwashers handle high volumes and long cycles. The door seal plays a critical role in keeping them efficient.
The door seal compresses between the door and the tub, forming a continuous gasket barrier that prevents water, steam, and detergents from escaping during cycles.
Compression and sealing force
In commercial use, the seal must tolerate higher water pressure. Rubber with the right hardness (typically 60–70 Shore A) provides the required compression1.
Placement and coverage
The gasket2 surrounds three or four sides of the frame. In large dishwashers, a secondary bottom seal is often installed to handle backflow.
Materials used
- EPDM3: strong resistance to hot water and cleaning chemicals.
- Silicone4: preferred for food-grade compliance and high heat.
| Feature | EPDM Rubber | Silicone Rubber |
|---|---|---|
| Heat Resistance5 | Up to 120°C | Up to 230°C |
| Chemical Resistance6 | Excellent | Very Good |
| Compliance Options | WRAS, NSF | FDA, EU food-grade |
| Typical Use | Standard dishwashers | High-temp, food-grade7 |
When I supply seals, I always ask clients about cycle temperature, detergent type, and compliance standards. This ensures the material meets their industry’s needs.
Why is the dishwasher door seal8 important?
For businesses, leaks mean downtime, safety risks, and additional maintenance.

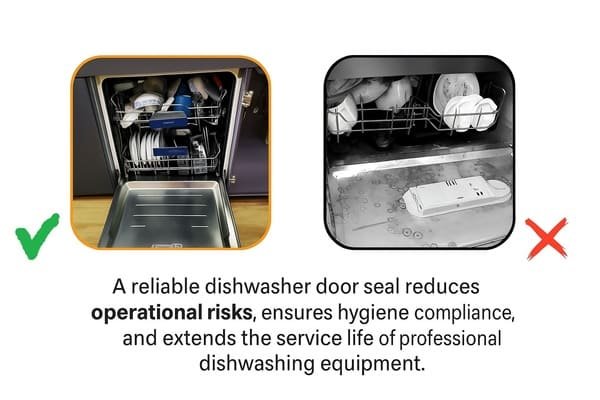

A reliable dishwasher door seal reduces operational risks, ensures hygiene compliance, and extends the service life of professional dishwashing equipment.
Risk prevention
Water leaks in a commercial kitchen can create hazards and damage flooring. More importantly, they can breach hygiene protocols.
Compliance and safety
A strong seal prevents steam and chemical exposure, helping companies meet food safety audits. Many customers request FDA or EU-compliant seals9 for this reason.
Operational efficiency
With a tight seal, machines run at full efficiency. This reduces wasted water and energy, lowering overall operating costs.
| Risk from poor seal | Business impact |
|---|---|
| Leaks on floor | Downtime, repair costs |
| Steam escape | Safety hazards, hygiene failure |
| Poor sealing | Higher energy and water usage |
For distributors and OEMs, this means fewer warranty claims and greater customer satisfaction.
How do you know if a dishwasher door seal needs replacement?
Recognizing early failure signs saves distributors and operators from costly interruptions.
A dishwasher door seal needs replacement if leaks appear, compression weakens, or visual defects such as cracks, shrinkage, and mold contamination are detected.
Common failure signs
- Visible cracks or hardened surface
- Reduced elasticity, seal no longer rebounds
- Water escaping during cycles
- Mold growth caused by poor drainage
Inspection methods
Commercial kitchens usually run daily. A weekly inspection can prevent failures. I advise procurement teams to schedule preventive seal replacement10 every 12–18 months depending on workload.
| Symptom | Likely Cause |
|---|---|
| Door not closing tightly | Deformed or hardened rubber |
| Water dripping | Damaged bottom gasket |
| Black spots | Mold due to trapped residue |
Stocking spare seals reduces downtime. I often recommend distributors to keep standard sizes available for immediate supply.

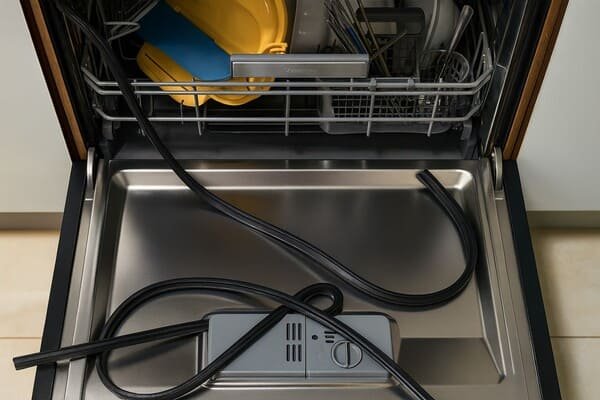

How do you replace a dishwasher door seal?
Replacement is usually handled by service technicians or maintenance teams. With proper planning, it is quick and simple.

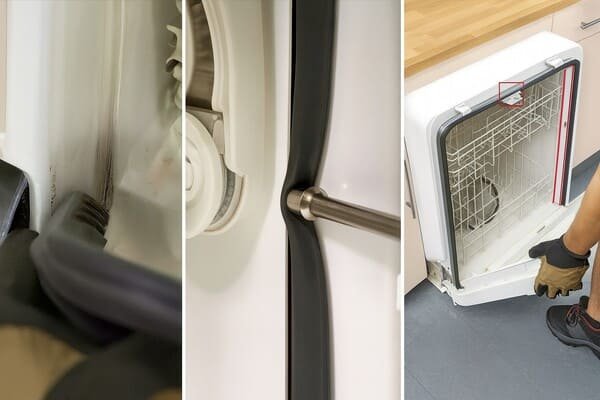

To replace a dishwasher door seal, technicians remove the old gasket, clean the channel, and install a new rubber seal designed for the machine model.
Replacement process
- Remove old gasket: pulled out from its channel.
- Clean groove: remove detergent residue and scale.
- Fit new seal: press evenly, ensure no twist or gap.
- Test run: check for leaks during a short wash cycle.
| Step | Who performs it | Time Required |
|---|---|---|
| Remove old | Maintenance staff | 5 minutes |
| Clean groove | Maintenance staff | 10 minutes |
| Install new | Technician | 10 minutes |
| Test cycle | Technician | 30 minutes |
For B2B buyers, reliability and speed of replacement are important. That is why many distributors order seals in batches to guarantee quick supply.

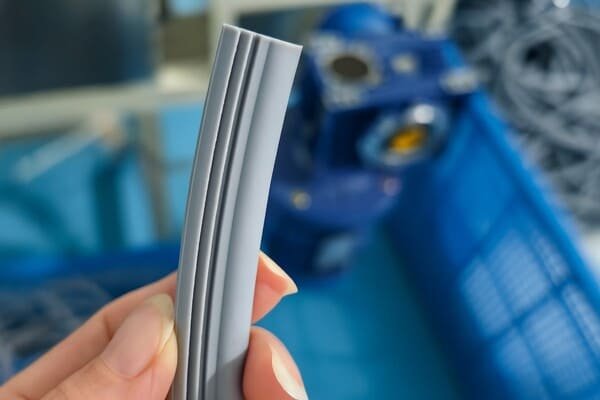

How to custom dishwasher door seal11?
Standard seals do not always meet industrial or regional requirements. This is where customization becomes necessary.
A custom dishwasher door seal is designed with specific materials, hardness, and dimensions to meet the exact requirements of commercial or OEM dishwashers.
Why custom seals are required
- OEMs launching new dishwasher models
- Industrial kitchens requiring FDA-compliant silicone12
- Unique groove dimensions that standard parts cannot fit
Key factors in customization
- Material: EPDM, silicone, or blended compounds
- Hardness (Shore A)13: to match compression needs
- Cross-section shape: D-type, bulb, or square seals
- Certification: FDA, EU 1935/2004, WRAS, NSF
Customization workflow
- Client provides sample or drawing.
- Engineering team evaluates groove and cycle environment.
- Mold design and prototype trial.
- Seal undergoes compression set, heat, and chemical tests14.
- Production and quality inspection before shipment.
| Custom Option | Business Value |
|---|---|
| FDA-grade silicone | Food safety compliance |
| High-temp resistance | Longer lifespan in heavy use |
| Precise dimensioning | Perfect OEM fit, less leakage risk |
| Branding color options | Easy differentiation for suppliers |
I have worked with OEMs who required long-life EPDM seals for hotel dishwashers. By adjusting hardness and cross-section design, we delivered a solution that reduced their replacement frequency by 30%.
Conclusion
A dishwasher door seal is not just a spare part. It is a critical component that ensures reliability, compliance, and efficiency in professional dishwashing equipment.
-
Understanding compression helps ensure seals maintain their effectiveness under pressure. ↩
-
Gaskets are crucial for preventing leaks and ensuring the efficiency of dishwashers. ↩
-
EPDM offers excellent resistance to heat and chemicals, making it ideal for dishwashing applications. ↩
-
Silicone's compliance with food safety standards makes it essential for hygienic dishwashing. ↩
-
Understanding heat resistance helps in selecting the right material for high-temperature applications, ensuring durability and performance. ↩
-
Explore this resource to understand how chemical resistance impacts seal performance and material selection. ↩
-
Explore this resource to understand how high-temp, food-grade silicone rubber enhances safety and compliance in food service. ↩
-
Understanding the significance of a dishwasher door seal can help ensure operational efficiency and compliance. ↩
-
Discover the importance of compliance seals in ensuring food safety and meeting regulatory standards. ↩
-
Understanding the schedule for preventive seal replacement can save money and extend the life of your equipment. ↩
-
Explore the advantages of custom seals tailored for specific dishwasher models, ensuring optimal performance and compliance. ↩
-
Learn about the significance of FDA-compliant materials in ensuring food safety and hygiene in commercial kitchens. ↩
-
Understanding Shore A hardness is crucial for selecting the right materials for seals, ensuring durability and performance. ↩
-
Understand the rigorous testing processes that ensure the durability and reliability of seals in demanding environments. ↩
