A leaking or cracked pipe joint can shut down your equipment or vehicle fast. One overlooked but essential component that solves tricky piping and hose connections is the rubber elbow. But what exactly is a rubber elbow, and why is it used?

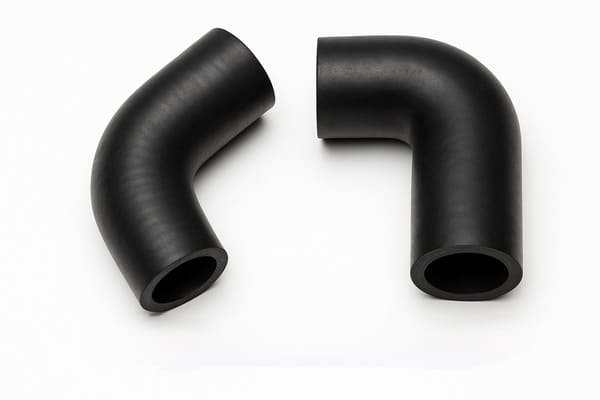

A rubber elbow is a molded, curved connector—typically at a 45° or 90° angle—made from durable rubber. It joins two pipes, tubes, or hoses at an angle, absorbing vibration and allowing flexible routing of fluids or air in automotive, HVAC, and industrial systems.
Rubber elbows are everywhere in fluid and air systems, especially when straight hoses can’t fit due to space limits or alignment issues. I’ll explain the construction, common uses, and how choosing the right rubber material prevents leaks and extends service life.
Where Are Rubber Elbows Used?
Rubber elbows are essential in any system where pipes or hoses must turn or change direction without kinking. Why do so many industries depend on rubber elbows?

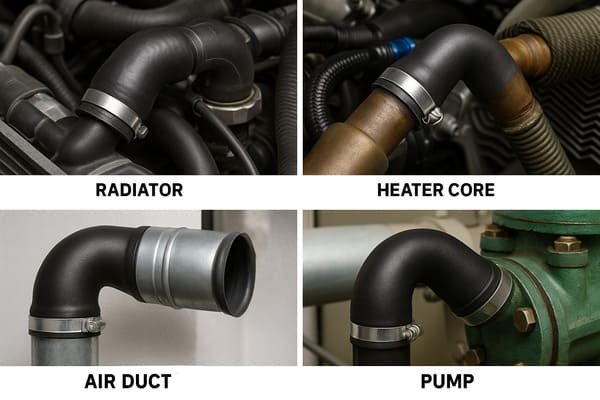

Rubber elbows are used in automotive engines, HVAC systems, machinery, and chemical plants. They connect radiators, turbochargers, heater cores, air ducts, pumps, and even exhaust lines—anywhere a sharp, leak-free bend is required.
Key Application Examples
- Automotive: Connects radiators, air intakes, turbo systems, heater hoses, and emission controls.
- HVAC: Turns refrigerant or air ducts without sharp bends that restrict flow.
- Industrial: Links pumps, tanks, filters, or valves in chemical and water systems.
| Application | Example Use | Why Use a Rubber Elbow? |
|---|---|---|
| Automotive | Radiator, turbo, heater hoses | Absorbs vibration, flexible installation |
| HVAC | Duct bends, pipe joints | Prevents leaks, allows thermal movement |
| Industrial | Pump and tank connections | Handles chemicals, high pressure |
Rubber elbows are valued for their flexibility, resistance to vibration, and ability to seal uneven surfaces better than rigid metal bends.
What Materials Are Used for Rubber Elbows?
Not all rubber elbows1 are the same. The material used determines where and how the elbow can be used safely.

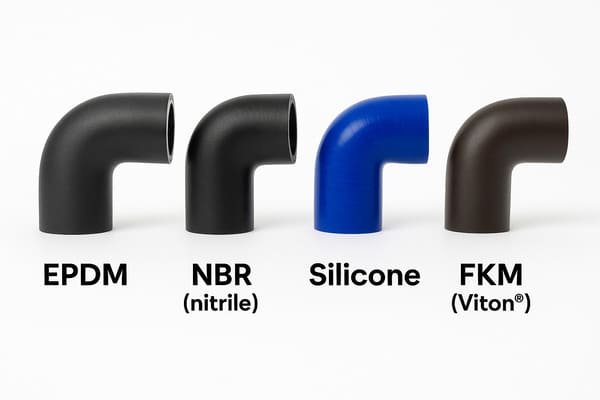

Most rubber elbows are made from EPDM, NBR (nitrile), silicone, or sometimes FKM (Viton®). The choice depends on the temperature, pressure, and chemicals in the application.
Material Selection Table
| Rubber Material | Temperature Range | Key Properties | Typical Uses |
|---|---|---|---|
| EPDM2 | -40°C to 125°C | Heat, coolant, ozone resistance | Radiator, heater, air hoses |
| NBR (Nitrile)3 | -30°C to 100°C | Oil, fuel resistance | Oil, fuel, low-pressure lines |
| Silicone4 | -54°C to 180°C | Extreme heat, flexibility | Turbo, intake, high-temp systems |
| FKM (Viton®)5 | -20°C to 200°C | Chemical, fuel, high-temp resistance | Chemical processing, fuel, specialty |
- EPDM is the most common for coolant and air elbows.
- Silicone is chosen for high heat (turbo/intercooler).
- NBR is used for oil/fuel transfer.
- FKM is for aggressive chemicals or extreme temps.
Choosing the right rubber ensures leak-free service and a long lifespan.
How Is a Rubber Elbow Installed and Maintained?
Proper installation ensures a long, trouble-free life. What should you know to get the best performance from a rubber elbow?
Rubber elbows are usually installed with hose clamps or band clamps. The mating pipe or tube should be clean, round, and free from sharp edges. Regular inspection for cracks, swelling, or leaks keeps your system running safely.
Tips for Installation and Maintenance6
- Lubricate the inside with a bit of coolant or silicone spray for easier fitting.
- Use high-quality clamps for even sealing pressure.
- Avoid over-tightening, which can damage the rubber.
- Check for signs of wear, hardening, or leaks every oil change or service interval.
| Maintenance Task | Why It Matters |
|---|---|
| Inspect for cracks | Prevents leaks and failures |
| Check clamp tightness | Maintains secure, leak-free joints |
| Replace at first sign of hardening or bulging | Ensures system safety |
A quality rubber elbow installed correctly can last for years—even in tough environments.
Conclusion
A rubber elbow is a flexible, molded connector that allows you to join pipes or hoses at an angle—absorbing vibration and solving tight routing challenges in automotive, HVAC, and industrial systems. The right material and installation mean leak-free, long-lasting performance.
