Frustrated with HVAC systems suffering from cable wear, vibration, or moisture leaks? Ignoring small details like grommets can lead to costly repairs and downtime.

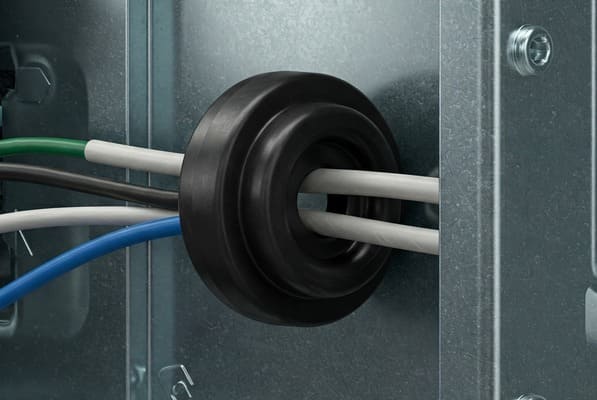

A rubber grommet in HVAC is a flexible ring or insert used to protect wires, pipes, and tubes as they pass through panels or sheet metal. It prevents abrasion, reduces vibration, seals out dust and moisture, and extends component life.
Clearly understanding the function of rubber grommets in HVAC systems helps improve efficiency, safety, and equipment durability. Let's explore their uses and benefits in detail.
What Are the Functions of Rubber Grommets in HVAC?
Tired of cables and tubing getting damaged by sharp metal edges? Rubber grommets1 clearly solve that problem.
Rubber grommets in HVAC systems are designed to protect components from abrasion, vibration, and environmental damage. They create a safe passage for wires and tubes through panels, preventing sharp edges from cutting into them.
Key Functions
| Function | Why It Matters |
|---|---|
| Abrasion Protection ✅ | Prevents cable/tube damage |
| Vibration Dampening ✅ | Reduces noise and movement |
| Sealing ✅ | Keeps dust and moisture out |
| Insulation ✅ | Electrical isolation and safety |
By preventing physical damage and sealing out contaminants, rubber grommets extend the life of HVAC components and improve system reliability.
Why Are Rubber Grommets Important in HVAC Installations?
Experiencing frequent maintenance or system failures? Clearly knowing why rubber grommets matter can prevent that.
Rubber grommets are important in HVAC because they reduce wear on wires and tubes, prevent leaks, and ensure proper vibration isolation. Without them, cables and hoses can rub against sharp edges, leading to damage and costly system downtime.
Benefits of Rubber Grommets
| Benefit | Description |
|---|---|
| Reduced Maintenance ✅ | Protects wires and hoses |
| Increased Safety ✅ | Prevents electrical shorts |
| Enhanced Longevity ✅ | Reduces component wear |
| Sealed Systems ✅ | Blocks dust, dirt, and moisture |
Rubber grommets help ensure HVAC systems2 remain reliable, quiet, and energy-efficient over time.
Where Are Rubber Grommets Typically Used in HVAC Systems?
Not sure where grommets go? Clearly knowing their placement improves system protection.
Rubber grommets are typically used in HVAC units at entry and exit points for wires, copper tubing, and refrigerant lines. They’re installed in sheet metal openings, junction boxes, control panels, and ducting to protect components from sharp edges and vibration.
Common HVAC Grommet Applications
| Application Area | Use of Rubber Grommets |
|---|---|
| Control Panels ✅ | Protects wiring as it passes through metal enclosures |
| Sheet Metal Openings ✅ | Shields tubing and wires from sharp edges |
| Ductwork Penetrations ✅ | Seals around pipes to prevent air leaks |
| Compressor Units ✅ | Isolates electrical cables and refrigerant lines |
Properly placing rubber grommets minimizes the risk of wire fraying, air leaks, and water intrusion in HVAC systems.
How Do You Install Rubber Grommets in HVAC Systems?
Worried about improper installation? Clearly understanding the process ensures maximum protection.

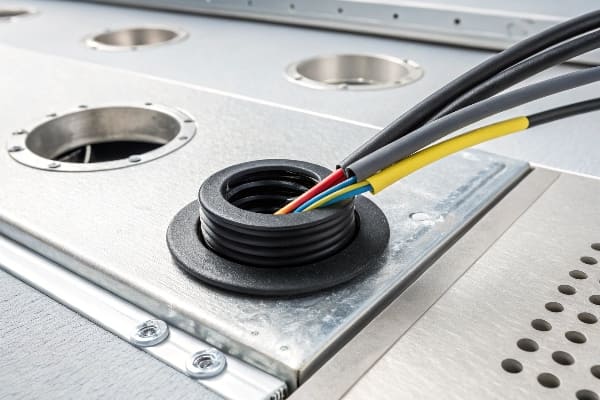

To install a rubber grommet in HVAC systems, select the correct size, clean the hole of debris, and press the grommet firmly into place. Ensure the wire, tube, or pipe fits securely through the center hole without forcing it.
Installation Steps
| Step | Description |
|---|---|
| 1. Choose Correct Size ✅ | Match hole and grommet dimensions |
| 2. Clean Edges ✅ | Remove burrs and debris |
| 3. Insert Grommet ✅ | Push into the hole, working around the edge |
| 4. Insert Cable or Tube ✅ | Feed component through center, ensuring a snug fit |
Proper installation ensures the grommet functions as a seal and protective barrier in HVAC units.
What Are the Best Materials for Rubber Grommets in HVAC?
Concerned about durability in harsh environments? Choosing the right material is key.
The best materials for HVAC rubber grommets are EPDM and silicone. EPDM offers excellent resistance to weathering, ozone, and UV, while silicone provides superior temperature stability and flexibility.
Material Selection
| Material Type | Best For |
|---|---|
| EPDM ✅ | Outdoor units, UV exposure |
| Silicone ✅ | Extreme temperatures (-60°C to +230°C) |
| Nitrile (NBR) ✅ | Oil resistance (less common in HVAC) |
Selecting the right rubber material ensures your grommets provide long-term protection and reliability in HVAC systems.
Conclusion
Rubber grommets are essential in HVAC systems to protect wires and tubing from abrasion, seal out dust and moisture, and minimize vibration. EPDM and silicone grommets offer the best durability and performance in demanding HVAC environments.
