Sealing failure can lead to equipment damage, downtime, and profit loss. If your sealing solution doesn’t match your application, trouble is just a matter of time.
A static seal is a non-moving seal used between two stationary parts to prevent fluid or gas leakage. It’s widely used in flanges, covers, and casings.
In my experience working with rubber sealing systems, many customers confuse static and dynamic seals. But understanding the difference is critical when specifying the right gasket for your application.
What makes a seal “static”?
Many people wrongly assume all gaskets work the same way. But movement—or lack thereof—makes all the difference.

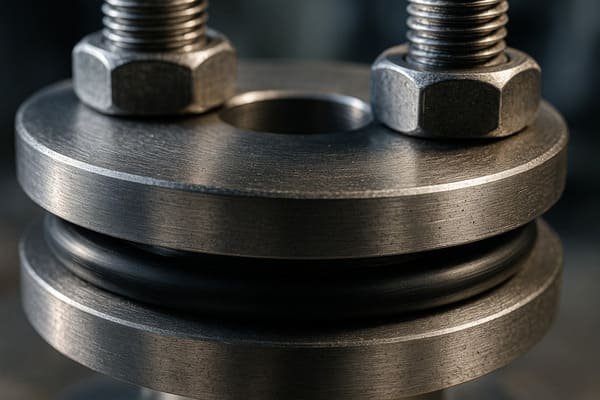

A static seal stays in place and prevents leakage between two stationary surfaces. It is compressed but does not experience motion.
✅ Typical Features of Static Seals
Static seals are found in flanges, threaded fittings, covers, plates, and casings. Once installed, these surfaces don’t move relative to each other. The seal must simply hold pressure and resist media over time.
🛠️ In my production line, we often use static seals1 in HVAC flanges, pump housing covers, battery compartments, and motor casings. Because there’s no friction, the material can be optimized for chemical resistance and compression set rather than wear resistance.
🧪 Typical Material Choices
| Material | Properties | Best Use Case |
|---|---|---|
| EPDM2 | Water, steam, weather resistance | HVAC systems, outdoor applications |
| NBR (Nitrile)3 | Oil, fuel, and general-purpose sealing | Engines, oil lines, industrial machines |
| FKM (Viton) | High temp and aggressive chemical media | Aerospace, chemical processing |
| Silicone | High and low temp, FDA compliance | Food, pharma, electronics |
What are the types of static seals?
Choosing the right type depends on pressure, flange shape, media, and required service life.
The most common static seals include O-rings, gaskets, and sealing washers. They come in different shapes and can be customized for your geometry.
🔍 Common Static Seal Configurations
| Type | Description | Common Applications |
|---|---|---|
| O-Ring4 | Round cross-section ring compressed in a groove | Flanges, pump covers, pipe joints |
| Flat Gasket5 | Cut rubber or composite flat ring or shape | HVAC ducting, casings, tanks |
| Bonded Washer | Metal-rubber combination ring for bolts | Hydraulic fittings, pressure tanks |
| Profiled Seals6 | Custom-extruded shape based on groove geometry | Lighting housings, filter covers |
🛠️ At Julong Rubber, we custom-produce static seals with complex geometries using compression and injection molding. This flexibility helps match customer tolerances, especially in HVAC flanges and battery pack assemblies.
What is the difference between static and dynamic seals?
Static seals just sit tight. Dynamic seals move—making material choice and design more critical.
Static seals do not move once installed, while dynamic seals operate with sliding or rotary motion between parts.
🔄 Understanding the Key Differences
| Feature | Static Seal | Dynamic Seal7 |
|---|---|---|
| Movement | No | Yes – sliding or rotating |
| Material stress | Compression | Compression + friction |
| Typical lifespan | Longer | Shorter due to wear |
| Material options | Broader (focus on compression set) | Limited to wear-resistant compounds |
| Examples | Flange gasket | Piston rod seal, shaft seal |
In dynamic applications like valves or piston pumps, we usually recommend materials like PTFE blends8 or FKM. But for static use in HVAC flanges or waterproof enclosures, EPDM or silicone is often the better choice.
How do I choose the right material for static sealing?
If you pick the wrong material, even the best design won’t help. I’ve seen this mistake lead to water ingress, swelling, and cracked gaskets.
To choose the right material, consider the fluid, temperature range, pressure, and expected seal lifespan.
📌 Selection Factors and Compatibility
| Requirement | Best Rubber Types |
|---|---|
| Hot water/steam | EPDM, silicone |
| Oils/fuels | NBR, FKM9 |
| Outdoor use | EPDM, silicone |
| Chemicals/solvents | FKM, PTFE10 |
| Food contact | Silicone (FDA), EPDM (FDA-grade) |
| Tight budget | SBR, NBR |
I always ask customers: What media are you sealing? At what pressure and temperature? If you're sealing drinking water, we recommend FDA-compliant EPDM11. For an acid line, we go with FKM or even a PTFE-faced option.
How is a static seal installed?
Proper installation ensures that a seal actually seals. Many leaks come not from bad rubber—but from bad handling.
Static seals are installed between two mating surfaces, usually compressed evenly by bolts or flanges. Proper groove size and torque are key.
🛠️ Key Installation Tips
- Clean the surface: Dirt or debris will compromise sealing.
- Check the groove: Ensure correct width and depth.
- Don’t over-compress: Too much squeeze leads to premature failure.
- Use lubrication (if required): Helps with placement and prevents pinching.
- Torque evenly: Uneven pressure = uneven sealing.
We help customers design correct groove geometry12 for custom EPDM profiles. We also provide guidance for torque settings13 and compression ratios14. If the seal fails early, it’s usually from under- or over-compression.
When should I replace a static seal?
Even the best rubber doesn’t last forever. Chemical attack, hardening, or cracks are signs it’s time to replace.
Replace static seals during routine maintenance, or if you notice leaks, hardening, swelling, or deformation.
⏳ Lifespan and Replacement Signs
| Sign of Wear | Cause | Action Needed |
|---|---|---|
| Cracking15 | Ozone, heat, aging | Replace seal, use better material |
| Swelling16 | Chemical incompatibility | Choose correct rubber |
| Hardening17 | Compression set, heat exposure | Replace and review operating temp |
| Flatness/Set | Over-compression | Redesign groove or use harder rubber |
If a seal has been in place for 5+ years or exposed to aggressive conditions, I recommend checking it every maintenance cycle. Prevention is cheaper than repairs.
Conclusion
Static seals may not move, but choosing the right one makes all the difference in performance, safety, and long-term cost.
