Leaks don’t just waste resources—they destroy systems, one drop at a time. A static seal might look simple, but it's often the only thing standing between a tight system and a costly mess.
A static seal is used to prevent leakage between two non-moving parts. It’s commonly applied in flanges, casings, pipe joints, and covers in HVAC, automotive, and industrial equipment.
When our clients ask about sealing solutions, they often focus on durability and cost. But function comes first. Without a proper static seal in place, even the most advanced system will eventually fail. That’s why I always start with this basic question: what is the seal used for?
Where are static seals most commonly used?
From factory floors to skyscraper HVAC systems, static seals are everywhere. They are critical yet invisible parts of countless machines and assemblies.
Static seals are used in areas where two components remain stationary, such as pump covers, pipe flanges, battery enclosures, and machine casings.
🛠️ Typical Use Cases by Industry
| Industry | Application | Example Static Seal Location |
|---|---|---|
| HVAC | Duct joints, flange seals | Double-lip EPDM gasket in duct collar |
| Automotive | Engine covers, gearbox flanges | Cylinder head gasket, battery lid seal |
| Electronics | Enclosure sealing | Waterproof panel gaskets |
| Pumps & Valves | Pump housing, valve bonnet | O-ring on pump cover |
| Fluid Systems | Pipe fittings, tanks | NBR or EPDM flat gaskets on flanges |
At Julong, we supply static seals1 to customers building HVAC systems in public buildings. They use our EPDM gaskets2 to ensure airtight sealing between duct panels. This prevents air leaks3 and noise vibration.

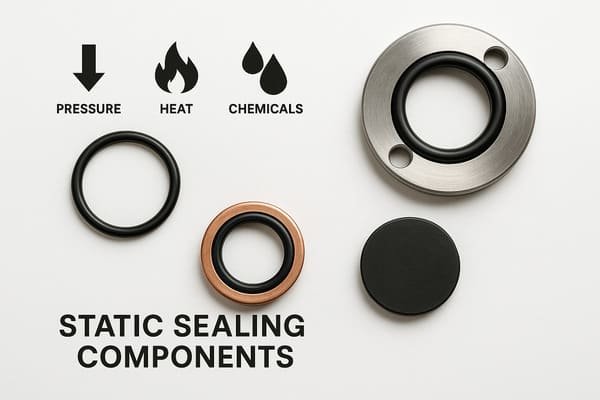

What types of forces do static seals resist?
When parts don’t move, it doesn’t mean there’s no stress. Pressure, chemicals, and time wear down seals.
Static seals must resist internal pressure, chemical attack, thermal expansion, and compression set over long periods.
✅ Forces Static Seals Must Withstand
| Force Type | Description | Design Consideration |
|---|---|---|
| Internal Pressure4 | Liquid or gas trying to escape | Compression ratio and seal hardness |
| Temperature Change | Expansion/contraction of sealed parts | Material flexibility and thermal resistance |
| Chemical Exposure5 | Contact with oils, coolants, water, acids | Chemical compatibility of rubber material |
| Compression Set6 | Long-term deformation under load | Use of high-quality elastomers |
We once helped a customer in marine pumps switch from SBR to FKM for a static seal exposed to diesel. The original gasket had swelled and hardened in 3 months. With FKM, they ran over 18 months without failure.

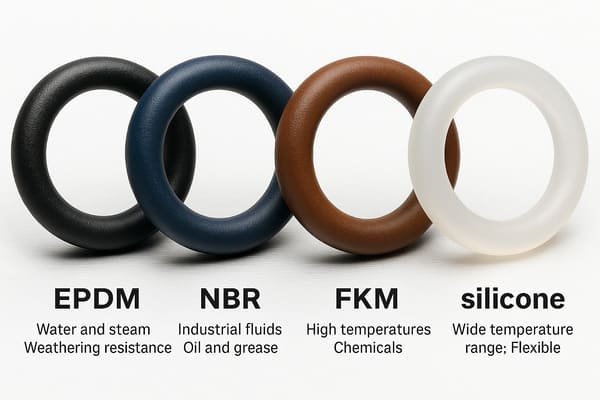

What materials are best for different static seal uses?
Not every rubber fits every job. A great seal in a vacuum might be a disaster in hot oil.
The best material depends on fluid type, pressure, temperature, and environmental exposure. EPDM, NBR, FKM, and silicone are most commonly used.
🔍 Recommended Materials by Application
| Application | Recommended Rubber Type | Reason |
|---|---|---|
| Water systems | EPDM7 | Steam and water resistance |
| Oil and grease | NBR8 | Good oil resistance and affordability |
| Chemical exposure | FKM (Viton)9 | Excellent chemical and heat resistance |
| Food contact | FDA-grade EPDM or Silicone | Compliance and non-toxicity |
| High temp sealing | Silicone or FKM | Thermal stability |
| Electrical panels (outdoor) | Silicone | UV, ozone, and heat resistance |
We frequently manufacture custom extruded EPDM gaskets for ventilation ducting. The rubber must remain flexible but stable under wide temperature swings. Customers rely on us for consistent material quality that won’t dry out or crack.
Can static seals be customized for specific uses?
Absolutely. One size never fits all when it comes to sealing efficiency, especially in tight assemblies or certified systems.
Static seals can be customized by size, shape, durometer, material, and even color to meet unique industrial and performance needs.
🧩 Customization Options We Offer
| Custom Option | Why It Matters |
|---|---|
| Material blend10 | Match media resistance and flexibility |
| Durometer (hardness)11 | Controls compression and seal pressure |
| Cross-sectional shape | Groove fit and sealing performance |
| Color code | Identifies material type or system zone |
| Certifications12 | FDA, RoHS, UL, REACH compliance |
For example, one of our battery pack seals used in electric vehicles had to pass IP66 waterproofing. We customized a sponge-core EPDM profile, added corner vulcanization, and ran air-tightness and immersion tests. The seal passed both under pressure.
How long does a static seal last in real use?
Static doesn’t mean forever. Heat, pressure, or the wrong rubber can shorten the life of any seal.
The lifespan of a static seal depends on material, environment, and compression. With proper selection, they can last 5 to 10 years or more.
🕓 Lifespan Estimation by Application
| Use Case | Expected Lifespan | Notes |
|---|---|---|
| HVAC flange seal13 | 5–10 years | Indoor use, minimal chemical exposure |
| Automotive head gasket14 | 8–15 years | Depends on engine heat and pressure |
| Outdoor enclosure | 3–7 years | Affected by UV and weather |
| Food equipment seal15 | 2–5 years | Clean cycles, FDA compliance |
If you replace equipment parts but reuse old gaskets, you risk a leak later. I recommend inspecting static seals annually, especially in high-pressure or chemical systems.
Conclusion
Static seals may be still, but their job is active—constantly holding pressure, blocking fluids, and protecting systems.
