What Is a Tightness Test for Rubber Hose?

A hose can look strong and still leak at the crimp, the liner, or the bend. A small leak can stop an entire system.

A tightness test for a rubber hose checks whether the hose and its end fittings can hold pressure without unacceptable leakage under defined conditions like pressure, time, temperature, and test media. I use it to prove sealing integrity and to prevent field leaks before shipment.

I sell rubber parts in B2B projects, so I do not treat “no leak” as a feeling. I treat it as a measurable target. I also know that the same hose can pass in a lab and fail in the field if the test does not match the real use. I always start with a clear test method and clear acceptance limits.

What Does a Tightness Test Prove for a Rubber Hose?

A buyer can accept a hose lot, then find leaks during installation. That creates rework, delays, and disputes between teams.

A tightness test proves that the hose assembly can maintain pressure without leakage beyond your acceptance limit, and it also proves that the sealing interfaces like fittings, clamps, and liners are stable under the specified test conditions.

Tightness is not the same as strength

I separate these concepts early because they prevent wrong expectations.

• Tightness answers: Does it leak?
• Strength answers: Does it burst or crack?

Many hose standards and buyer specs separate proof, burst, and tightness¹ checks. Hydrostatic test methods for rubber and plastic hoses are commonly defined in ISO 1402, which focuses on hydrostatic testing of hoses and hose assemblies.

Where leaks really come from

When a hose leaks, I usually see one of these paths:

• The crimp seal line is weak because the ferrule is wrong or the crimp is wrong.
• The hose tube has micro-cracks from bending, heat, or media attack.
• The connection uses a clamp, and the clamp load is not stable.
• The liner permeates gas, so the system “loses pressure” even without a visible leak.

✅ I always ask if the target is external leakage² or pressure retention³. These are not identical.

Tightness targets I see in real procurement

I see three common targets in RFQs:

I can align these targets with your system risk. I can also align them with your inspection budget. A simple bubble test⁴ can be enough for a low-risk hose. A quantified pressure decay test is better when you need stable batch control.

Which Tightness Test Methods Are Used for Rubber Hoses?

A team can pick the wrong method and still get a “pass.” That pass can hide a future leak and push risk to the field.

Common tightness test methods for rubber hoses include hydrostatic pressure hold, pneumatic pressure decay, bubble immersion, vacuum decay, and tracer-gas tests. I choose the method based on leak sensitivity, safety, and how close the test is to real service.

Hydrostatic pressure hold (water test)

I use hydrostatic tests when the service is liquid and when safety is important. Water stores less energy than compressed gas, so it is safer for higher pressures.

ISO 1402 is a widely used reference for hydrostatic testing methods for rubber and plastics hoses and hose assemblies.

✅ I like hydrostatic hold tests because they are close to real liquid service.

Pneumatic pressure decay (air or nitrogen)

I use pneumatic decay tests when I need fast production screening. I pressurize to a setpoint, stabilize, then measure pressure drop across time. I control temperature because gas pressure changes with temperature.

✅ I like pressure decay tests because they are easy to trend across batches.

Bubble immersion or soapy-water test (leak location)

I use bubble tests when I need the leak location. I use it on crimps, clamps, and suspected pinholes. I still define time and pressure so the result is consistent.

✅ I like bubble tests because they show the leak path in seconds.

Vacuum decay (for thin-wall or low-pressure parts)

I use vacuum methods when internal pressure can damage the assembly or when the hose is designed for suction service. Vacuum can also pull interfaces into contact, so I treat it as a special case.

Proof and burst are different tests

Many buyers ask me for “tightness,” but they actually want proof and burst confidence.

Industry guides often describe proof and burst testing⁵ for hydraulic hose assemblies in line with SAE J517 and related procedures.

✅ I do not replace burst tests with tightness tests. I use both when the risk is high.

Method comparison table for buyers

How Do I Set Pressure, Time, and Acceptance Criteria for Hose Tightness Tests?

A test can be “strict” and still be wrong if it does not match service conditions. A wrong test can reject good parts or accept risky parts.

I set tightness test criteria by defining the service pressure range, peak events, temperature, and media, then I convert that into a test pressure, stabilization time, hold time, and an acceptance limit like “no bubbles” or a maximum pressure drop.

I start from the service profile

I ask for these inputs in writing:

• Working pressure range and peak pressure
• Pressure cycling or impulse events
• Temperature range and heat soak time
• Media list, including cleaners and oils
• Hose length, ID, and end fitting type
• Bend radius and installation constraints

✅ I treat missing inputs as risk. I do not guess.

I separate three pressures: working, proof, and burst

I use these definitions in buyer communication:

Many hydraulic hose specifications reference proof and burst concepts, and SAE J517 is commonly cited as a performance specification for common hydraulic hoses.

I control stabilization time

Gas tests need stabilization time⁷. The hose expands a little under pressure, and gas temperature can change. I add a stabilization step so the decay value reflects leakage, not only expansion or cooling.

✅ I keep the procedure consistent, so the data is comparable across lots.

I define acceptance limits⁸ that match the business risk

I see two practical approaches:

1) Pass/Fail visual: no visible bubbles for a defined time at a defined pressure.
2) Numeric: pressure drop must be below X over Y seconds, at Z temperature.

I like numeric criteria for B2B because they support trend control. I also like visual criteria when technicians need fast answers on the shop floor.

A simple decision table I use

What Design and Material Factors Decide Hose Tightness?

A test can expose weakness, but the design and compound decide if the hose stays tight after heat, oil mist, and vibration.

Hose tightness depends on the tube material, reinforcement design, fitting interface, crimp quality, bend stress, and media compatibility. I focus on tube compound stability, compression at the fitting, and resistance to swelling and cracking over time.

The tube compound drives permeation and aging

Some pressure loss is true leakage. Some pressure loss is gas permeation through the tube. I treat these differently.

✅ I always ask if the application is air, vacuum, refrigerant, water, oil, or steam.

Reinforcement drives dimensional stability⁹

A hose can “breathe” under pressure. That changes internal volume, and it changes measured decay results. A stable reinforcement makes tightness data cleaner and field performance more stable.

The end fitting is the real tightness gate

I have seen many cases where the hose is fine, but the crimp is not stable. The crimp is a controlled compression system. If the ferrule and die are not matched to the hose, the seal line can be weak.

✅ I treat crimp control¹⁰ as part of quality control, not as “assembly work.”

Material and media screening table

I match these choices to your media list and temperature profile. I do not treat “rubber hose” as one category.

Temperature cycling changes tightness more than steady temperature

A hose can pass at room temperature. The same hose can leak after cycles because the tube ages, the fitting relaxes, or micro-cracks grow under bending.

✅ I like to add heat soak or cycles when the service is hot and dynamic.

Practical tightness design checklist

• ✅ I define bend radius in the drawing and in the test setup.
• ✅ I define fitting type and assembly method in the test plan.
• ✅ I confirm tube compound by a material spec, not only a name.
• ✅ I link hardness and cure system to the media and temperature.
• ✅ I ask for proof and burst logic when the system is safety critical.

What Should Be Included in a Tightness Test Report for Rubber Hoses?

A buyer can accept a shipment faster when the report answers the real questions. A weak report creates questions and slows payment and approval.

A tightness test report should include traceability, test method, pressure and time settings, test medium, temperature, acceptance limits, sample size, and results. I also include fitting details and any failure photos because hose leaks often happen at interfaces.

The report items I consider non-negotiable

• ✅ Part number and revision, and hose construction summary
• ✅ Assembly details (fitting type, crimp spec, clamp type)
• ✅ Batch number and production date
• ✅ Test method (hydrostatic hold, decay, bubble)
• ✅ Test pressure, stabilization time, and hold time
• ✅ Test medium and test temperature
• ✅ Acceptance criteria
• ✅ Sample size and sampling rule
• ✅ Result table with numeric values where possible
• ✅ Photos and notes for any failures

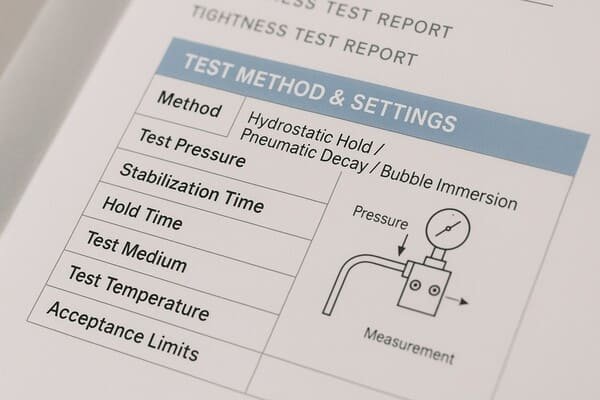

A clean report table format

How I use reports to prevent repeat issues

I compare reports across lots. If I see drift, I check:

• crimp diameter records
• cure records for the tube compound
• reinforcement supply changes
• operator setup and tooling wear

✅ I treat tightness data like a process signal. It helps me protect the buyer from surprises.

Conclusion

The tightness test is not an option，it is the final, essential step in rubber hose quality control. By subjecting our hoses to high internal pressure, we confirm structural integrity, prevent costly in-service leaks, and verify fitting security.
