What is ACM rubber?

I know how confusing it feels when a drawing just says “ACM rubber” and no one on the team can explain what that really means for performance and cost.

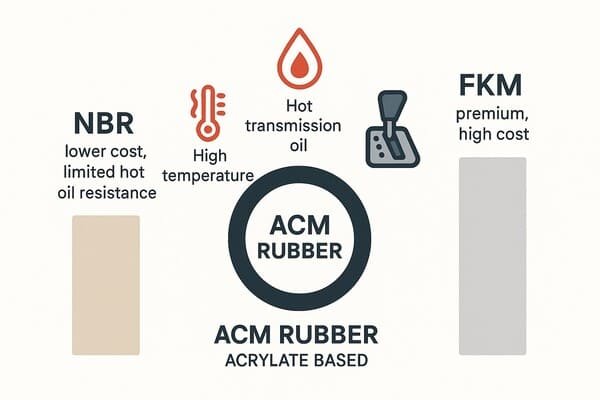

ACM rubber is an acrylate-based synthetic rubber designed for high-temperature, hot-oil, and automatic transmission environments where standard NBR fails but full fluorocarbon (FKM) is still too expensive.

When I review sealing projects, I often see ACM sitting in the “middle ground”: stronger than NBR in hot oil, cheaper than FKM, and very popular in transmission and engine bay parts.

What exactly is ACM rubber and how is it made?

When people hear “ACM”, they often just remember it is “for hot oil”. That is not enough to make a smart material choice.

ACM rubber is an acrylate elastomer made mainly from alkyl acrylate monomers and a small amount of cure-site monomer, formulated with fillers, plasticizers, and additives to create hot-oil-resistant rubber compounds.

I like to think of ACM as a rubber that sits between NBR and FKM in the “oil and heat resistance ladder”. It keeps sealing in places where NBR hardens, but it avoids the high price of full fluorocarbon.

Chemistry and structure in simple terms

From a chemist’s view, ACM comes from acrylate monomers. From a buyer’s view, you can think of it like this:

• The polymer backbone¹ resists hot oils and automatic transmission fluids.
• A small amount of cure-site monomer² allows crosslinking so the rubber behaves like an elastomer instead of a plastic.
• Fillers, plasticizers, and stabilizers³ tune hardness, processing, and long-term aging.

In practical terms, ACM:

• Does not absorb oil as fast as NBR at high temperature.
• Keeps hardness and tensile strength⁴ more stable in hot ATF and engine oil⁵.
• Offers better heat resistance than standard NBR, but not as high as FKM.

Basic property window

Different grades vary, but the usual order of magnitude looks like this:

Property	Typical ACM range (approximate)
Hardness (Shore A)	50–90
Working temperature (continuous)	About −20 °C to +150 °C, sometimes higher
Peak temperature (short term)	Up to ~175 °C depending on grade
Oil resistance (ATF, engine oil)	Very good in long-term exposure
Weather / ozone resistance6	Moderate (needs protection)

These numbers are not a datasheet, but they give you a feel for why ACM shows up so often in automatic transmissions and engine bay seals. It is a “hot oil specialist”.

Cure systems and compounding

ACM usually uses amine or peroxide-based cure systems. The choice affects:

• Compression set at high temperature
• Resistance to hydrolysis⁷ and water
• Long-term hardness stability

When I work with ACM in my own projects, I always ask the compounder which cure system they used, because that changes how the material behaves in water, coolant, and humid environments.

So when you see “ACM” on a drawing, you can read it as: “acrylate-based hot-oil-resistant rubber, designed to live in ATF and engine oil around 150 °C without giving up.”

What are the main properties and limitations of ACM rubber?

Many engineers think “ACM = good for everything in engines”. That is dangerous. ACM has clear strengths but also clear weak points.

ACM rubber offers strong resistance to hot oil, ATF, and high temperatures with good compression set, but it has poor low-temperature flexibility, weak water and steam resistance, and only moderate weather and ozone resistance.

When I help buyers pick ACM, I always check temperature, oil type, water exposure, and low-temperature requirements. If any of these are wrong, ACM can fail in a very ugly way.

Key strengths of ACM

High-temperature hot oil resistance

ACM is designed to live in:

• Automatic transmission fluid (ATF)
• Engine oil
• Power steering fluid
• Some synthetic lubricants⁸

At around 150 °C, NBR starts to harden and crack much faster. ACM stays more stable, with better retention of hardness and tensile strength.

Good compression set at elevated temperature

In sealing, compression set is critical. ACM usually offers:

• Better compression set⁹ than NBR at high temperature
• Stable sealing force over long periods in hot oil
• Good performance in tight gland designs for transmissions and engine systems

This makes ACM a strong choice for:

• Lip seals in transmissions
• O-rings and gaskets¹⁰ around hot oil channels
• Shaft seals in automatic gearboxes and pump systems

Resistance to automotive fluids

ACM handles many:

• ATFs
• Engine oils
• Gear oils (depending on additives)

It was practically invented for automotive use. That is why so many OEM part lists¹¹ mention ACM.

Important limitations of ACM

This is where many people get surprised.

Poor low-temperature flexibility¹²

ACM is not a low-temperature champion. Typical lower limits sit around −20 °C, sometimes −30 °C for special grades. Below that, ACM becomes hard, and sealing performance suffers.

So if you have:

• Vehicles in very cold climates
• Outdoor equipment in harsh winters

ACM may not be safe for dynamic seals¹³. You may need HNBR, special NBR, or other materials.

Weak water and steam resistance¹⁴

ACM does not like:

• Hot water
• Steam
• Glycol-based coolants for long exposure

Hydrolysis can attack the polymer and cause swelling, softening, or surface cracking. That is why I never recommend ACM for long-term hot-water seals or steam gaskets. EPDM or other rubbers are far safer there.

Moderate weather and ozone resistance

ACM’s resistance to:

• Ozone
• UV
• Outdoor weathering

is only moderate. Many ACM parts live inside the gearbox or engine bay, where direct sunlight is limited. For exposed seals or gaskets, I usually move to EPDM or silicone instead.

Summary view of strengths and limits

Aspect	ACM performance summary
Hot oil and ATF	✅ Very strong
High temperature	✅ Strong up to around 150 °C
Compression set (hot)	✅ Good for long-term sealing
Low-temperature flexibility	⚠️ Weak below about −20 °C
Water / steam resistance	❌ Poor for long-term hot water or steam
Weather / ozone	⚠️ Only moderate, not ideal for exposure

If your application needs hot-oil sealing inside a transmission or engine and does not live in deep-cold climates, ACM can be an excellent, cost-effective choice. If water, steam, or extreme cold appear in the spec, I look elsewhere.

Where is ACM rubber material commonly used in real projects?

ACM is not a “universal” rubber. It lives in some specific corners of the car and machine. Once you know those corners, drawings suddenly make more sense.

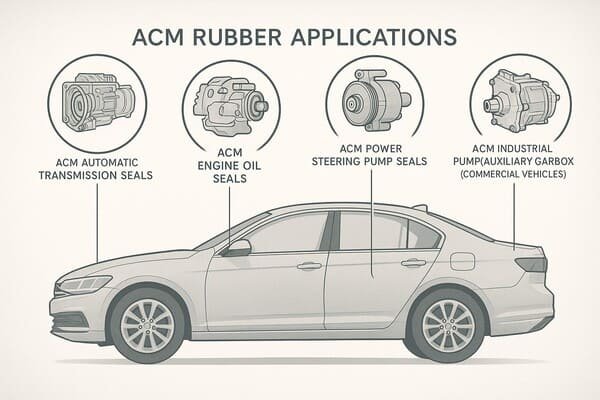

ACM rubber is mainly used in automatic transmissions, engine oil seals, power steering systems, and other hot-oil automotive components, as well as some industrial pumps and gearboxes that run at elevated temperature.

When I read a BOM from an automotive customer, I almost expect to see ACM in the transmission area and near hot oil channels. It has become a standard there.

Typical automotive applications

Automatic transmission systems

Inside AT and DCT systems, ACM appears in:

• Shaft seals and radial lip seals
• Clutch piston seals
• Valve body seals and O-rings
• Pump seals in ATF circuits

These parts sit directly in ATF at elevated temperature. They must hold sealing force, resist swelling, and survive long duty cycles. ACM handles this environment better than NBR at a lower cost than FKM.

Engine oil and power steering

ACM is also used for:

• Front and rear crankshaft seals
• Camshaft seals
• Power steering pump seals
• Some engine oil pump gaskets

These positions see hot oil, dynamic motion, and high rotation speeds. Here, the balance between oil resistance, compression set, and cost makes ACM attractive.

Industrial and off-highway uses

Outside passenger cars, ACM appears in:

• Industrial gearboxes running at higher temperatures
• Pumps that handle hot oils or certain synthetic fluids
• Power transmission equipment in factories

Here, the logic is the same: hot oils, moderate low-temperature needs, limited water exposure, and long life under compression.

Application map in one table

Segment	Typical ACM parts	Why ACM is chosen
Automatic transmission	Lip seals, piston seals, O-rings in ATF	High-temp ATF resistance, good compression
Engine	Crank and cam shaft seals, oil pump seals	Hot engine oil resistance, dynamic sealing
Steering	Pump shaft seals, fluid circuit seals	Resistance to hydraulic fluids and heat
Industrial gearboxes	Shaft seals, static gaskets in hot oil	Extended life in lubricated environments

In my own projects, I always check if the application looks like “hot oil under pressure” and the temperature is below about 150 °C. If yes, ACM goes onto my shortlist right away.

How does ACM compare with NBR, HNBR, EPDM, and FKM?

When buyers ask for material advice, they never ask “Is ACM good?” in isolation. They ask if ACM is better than NBR or if they can avoid the cost of FKM.

ACM sits between NBR and FKM in hot-oil performance and cost. It beats NBR in high-temperature oil resistance but loses to HNBR and FKM in chemical range and to EPDM in water and weather resistance.

I often build a quick comparison table for customers. When they see it, the “material jungle” becomes much easier to walk through.

Quick comparison with common rubbers

Material	Hot oil resistance	Max temp (approx.)	Low-temp flexibility	Water / steam	Typical cost level
NBR	Good (limited)	~120 °C	Better than ACM	Moderate	Low
ACM	Very good	~150 °C	Poor below −20 °C	Poor	Medium
HNBR	Very good	~150–160 °C	Better than ACM	Better than ACM	Medium–high
EPDM	Poor in oil	~130–150 °C	Good	Excellent	Medium
FKM	Excellent	~200–230 °C	Moderate	Good	High

These are broad trends, but they show why ACM is popular:

• It improves hot-oil life vs NBR.
• It avoids the full cost of FKM.
• It fits many automatic transmission and engine seals that sit inside the car, where direct weather exposure is low.

When I choose ACM vs other rubbers

I lean toward ACM when:

• The fluid is ATF or engine oil.
• Continuous temperature is roughly 140–150 °C.
• Low-temperature limit is not too severe.
• Water and steam exposure are minimal.
• The customer wants better life than NBR but cannot afford FKM.

I stay away from ACM and choose EPDM when:

• The medium is hot water, steam, or coolant.
• The main stress is weather and ozone, not oil.

I consider HNBR when:

• I need a better low-temperature range than ACM.
• There are some additional chemical demands.

I choose FKM when:

• The fluid is aggressive (fuels, special oils).
• Temperatures are very high.
• Failure cost is extremely high and justifies the premium.

When a customer sends me a drawing that just says “NBR 70 Shore A”, but the application is clearly hot ATF at 140–150 °C, I often suggest they at least evaluate ACM. The material upgrade is small compared to the cost of field failures.

If you want to discuss an ACM vs NBR vs FKM choice for a specific drawing, you can always reach me through www.rubberandseal.com or info@rubberandseal.com. I am happy to look at your working conditions and recommend a safe, realistic option.

Conclusion

ACM rubber is an acrylate elastomer built for hot-oil and high-temperature sealing; it fills the gap between NBR and FKM when you need better life without paying full fluorocarbon prices.

---
