Leaking corners, bent pipes, and cramped installations often cause headaches. A preshaped hose offers a clean, long-lasting solution without forcing a straight hose to twist unnaturally.
An EPDM preshaped hose is a molded rubber hose made from EPDM material, formed into specific shapes like elbows or U-bends to fit compact or angled fluid systems.
In HVAC and automotive applications, space is always limited. I once supplied a U-shaped hose for a ventilation unit where the clearance between panels was under 50mm. A straight hose wouldn't work — it kinked and leaked. Let’s explore why preshaped hoses matter, how they’re made, and what to consider before choosing one.
Why use a preshaped hose instead of a straight hose?
Straight hoses often fail when forced to bend sharply, especially near engine blocks or control panels.
Preshaped hoses are used to ensure tight, kink-free fluid routing in systems with limited space or complex geometry, offering durability and easy installation.
Bent manually, a straight hose gets flattened and reduces flow. Molded EPDM hoses1 keep their shape, prevent internal stress, and maintain full internal diameter2 even under pressure.
💡 Common Applications
| Industry | Example Use Cases |
|---|---|
| HVAC | Condensate drain elbows, air duct bypass |
| Automotive | Radiator return lines, turbo coolant |
| Appliances | Dishwasher loops, washing machine drains |
| Agriculture | Fertilizer sprayers, engine cooling |
I’ve seen large factories order thousands of preshaped hoses3 per year — each customized to perfectly fit4 their control cabinets or duct channels. It avoids leakage and reduces assembly time5.
What is EPDM and why is it ideal for preshaped hoses?
Not all rubber is the same. Some crack in heat. Some swell with oil. EPDM is different.
EPDM (Ethylene Propylene Diene Monomer) is a synthetic rubber known for its excellent heat, ozone, and water resistance, making it perfect for molded hose applications.
In high-humidity HVAC installations or engine bays, I always recommend EPDM because of its unmatched weather and temperature performance.
🧪 Key Properties of EPDM
| Property | Value/Range |
|---|---|
| Temperature range6 | -40°C to 150°C (up to 180°C peak) |
| Weather resistance7 | Excellent |
| Chemical resistance8 | Good (steam, water, glycol) |
| Oil resistance | Poor (not suitable for oil-based fluids) |
| Cost-effectiveness | High |
I’ve worked with customers in Germany and the Netherlands who require molded EPDM elbows for ventilation — the parts must meet EN 681-1 standards and resist ozone for 20+ years.
How are EPDM preshaped hoses manufactured?
A preshaped hose isn’t cut and bent. It’s formed, cured, and molded to fit — permanently.
EPDM preshaped hoses are produced by compression or transfer molding, using steel tools that shape the hose under heat and pressure during vulcanization.
We produce these in-house. The process starts with uncured EPDM rubber. It’s loaded into a mold shaped like an elbow or complex path. Then it’s vulcanized in a press.
🛠️ Manufacturing Process Flow
- Mold Design9 – Based on CAD or 3D model of the required shape.
- Rubber Preparation10 – EPDM is mixed, extruded, and cut to size.
- Molding – Rubber is placed into a steel mold and vulcanized.
- Demolding – Hose is removed, trimmed, and cooled.

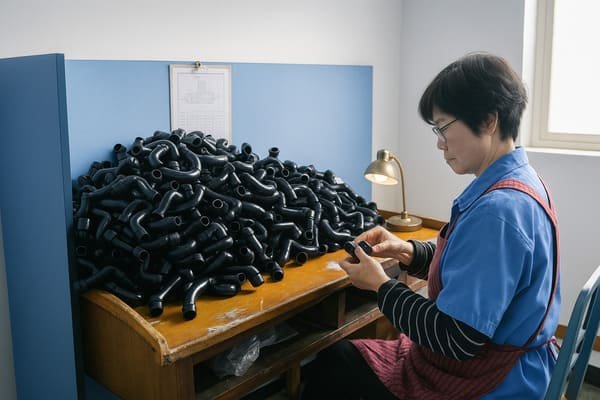

- Inspection11 – Pressure test, size check, surface finish review.
We typically finish the parts with post-curing if needed, to stabilize dimensions and improve heat resistance. Mold life is around 50,000–100,000 pcs, depending on complexity.
What are the advantages of using EPDM preshaped hoses?
Besides better fit and appearance, preshaped hoses offer major technical advantages.
Preshaped EPDM hoses reduce stress, prevent kinks, improve assembly efficiency, and maintain full internal flow without deformation.
Here’s what many buyers overlook: every time you force a hose to bend, it weakens at the bend over time. Molded hoses solve that.
✅ Performance Advantages
| Feature | Benefit |
|---|---|
| Molded Shape12 | No kinks or pressure loss |
| Better Sealing13 | Accurate ends improve connection integrity |
| Repeatability | No need to measure or cut during assembly |
| Durability14 | Less mechanical stress = longer life |
| Neat Appearance | Clean routing in visible systems |
For OEM clients, this is essential. It also cuts down on installation time by up to 50%, which matters in high-volume assembly lines.

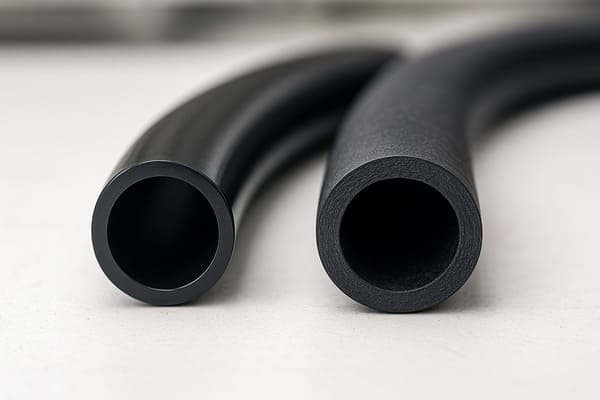

How to choose the right EPDM preshaped hose?
Every system is different. One wrong bend or size, and it won't fit.
Choose the right EPDM preshaped hose by measuring the exact routing path, checking fluid compatibility, temperature exposure, and installation clearance.
We usually begin with 2D drawings or a 3D scan of the routing. Then we design a mold and offer samples for fit check.
📋 Selection Checklist
| Parameter | Consideration |
|---|---|
| Shape | Elbow, S-shape, loop, spiral |
| Inner Diameter | Match mating tube or barb fitting |
| Wall Thickness | Pressure rating, vibration resistance |
| End Style | Smooth, beaded, flared, etc. |
| Application Fluid | Water, glycol, air — avoid oils |
| Environment | UV, heat, abrasion |
For long runs, we recommend reinforced EPDM15 or fabric-inserted options16. We can even laser-mark the hoses17 with production batch and customer logo.
Conclusion
An EPDM preshaped hose isn't just a bend — it's a precision part that ensures flow, fit, and function for years to come in tight spaces.
-
