A leaking diaphragm can cause a shutdown or product loss. Why do some diaphragms last while others fail fast? The secret is often in the material—EPDM.

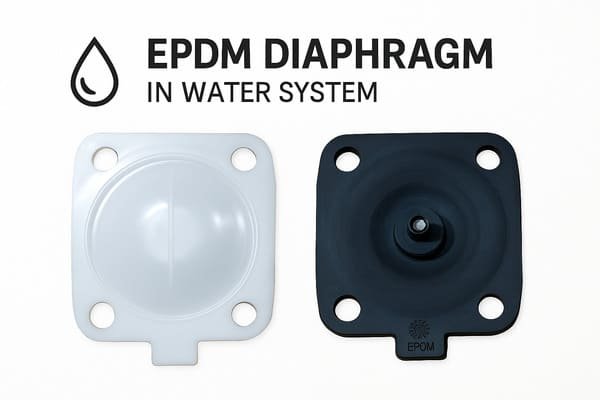

An EPDM diaphragm is a sealing part made from EPDM (ethylene propylene diene monomer) rubber. It resists weather, heat, steam, and water. EPDM diaphragms are widely used in valves, pumps, and water systems.
I have seen many projects improve performance simply by switching to EPDM diaphragms. Their unique properties solve common sealing challenges, especially in water, HVAC, and outdoor systems.
What are the key features of an EPDM diaphragm?
When chemical attack or heat causes other rubbers to fail, EPDM keeps working. I recommend it often for water, steam, and ozone exposure.
Key features include excellent resistance to water, steam, ozone, aging, and mild chemicals. EPDM diaphragms remain flexible over a wide temperature range, from -40°C to +120°C.
| ✅ Feature | 🛠️ Explanation | Typical Application |
|---|---|---|
| Weather resistance1 | Handles sun, rain, ozone, aging | Outdoor valves, covers |
| Steam resistance | Performs in steam and hot water | HVAC, boilers, pumps |
| Flexibility | Bends and moves without cracking | Actuators, regulators |
| Chemical stability2 | Resists mild acids, alkalis, and cleaning agents | Water treatment, pharma |
| Non-toxic options3 | Safe for drinking water and food with right approval | Food, beverage, water |
I often remind buyers that EPDM does not handle oils well, but for water and air, it is one of the best choices.
Why choose EPDM over other diaphragm materials?
Many customers ask why EPDM is better for some jobs. I compare material options for every project.

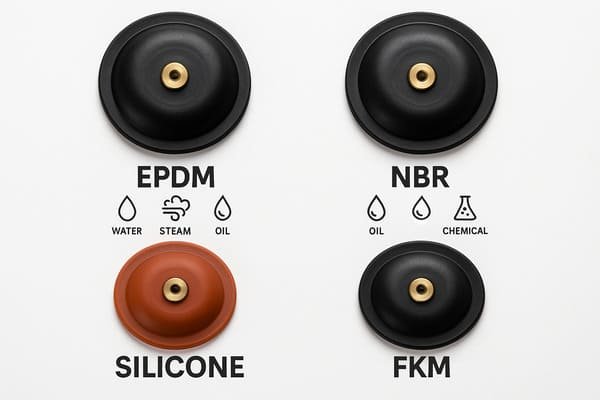

EPDM is best for water, steam, or outdoor environments. It lasts longer than NBR or silicone in these cases. EPDM is not suitable for oil or fuel systems.
| 🛠️ Material | ✅ Water Resistance | ✅ Steam Resistance | ✅ Chemical Resistance | ❌ Oil Resistance | Application Example |
|---|---|---|---|---|---|
| EPDM4 | Excellent | Excellent | Good (mild) | Poor | Water, HVAC, valves |
| NBR | Good | Poor | Fair | Excellent | Oil, fuel, pumps |
| Silicone | Good | Good | Fair | Poor | Food, pharma |
| FKM | Good | Fair | Excellent | Excellent | Chemicals, pharma |
EPDM stands out for outdoor use, drinking water, and applications that need to pass WRAS or similar standards.
Where are EPDM diaphragms most commonly used?
Choosing the wrong diaphragm can mean frequent replacements. EPDM’s unique resistance means fewer service calls and longer equipment life.

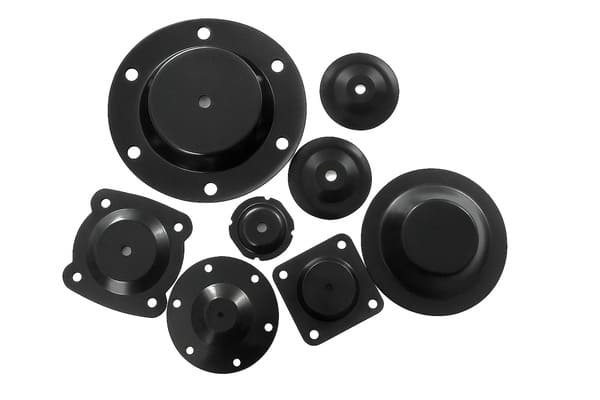

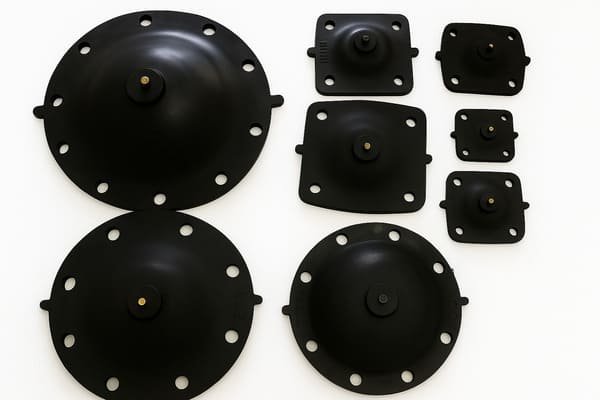

EPDM diaphragms are used in water pumps, HVAC valves, boilers, solar heating systems, chemical dosing, and food or beverage lines. They are preferred where there is contact with water, steam, or ozone.
| ✅ Industry | 🛠️ Typical Application | Why EPDM is Chosen |
|---|---|---|
| HVAC5 | Dampers, actuators, check valves | Handles hot/cold water, ozone, steam |
| Water treatment | Pumps, valves, dosing units | No taste/odor, safe, resists chlorine |
| Food & beverage | Dispensing valves, filters | Non-toxic, FDA/WRAS available |
| Solar heating | Circulation pumps, relief valves | Endures hot water, UV, aging |
| Chemical industry | Acid/alkali dosing equipment | Stable with mild acids/alkalis |
Many of my clients in Europe choose EPDM for new HVAC and water projects to comply with strict safety and longevity standards.
What certifications and standards apply to EPDM diaphragms?
Regulatory approval is not optional for water or food use. I always provide certificates with shipments to avoid project delays.
EPDM diaphragms can be made to meet WRAS, FDA, KTW, and other global standards for water, food, and beverage applications. Always ask your supplier for relevant certificates.
| ✅ Certification/Standard | 🛠️ Region or Market | Purpose |
|---|---|---|
| WRAS | UK, EU | Drinking water safety6 |
| FDA | USA, global | Food contact compliance7 |
| KTW, DVGW | Germany, EU | Water contact approval8 |
| ACS | France | Drinking water, public works |
| RoHS | Global | No restricted substances |
Supplying proper certification builds trust and smooths customs clearance. My team prepares these on request.
Can EPDM diaphragms be customized?
Each project is unique. Off-the-shelf parts often do not fit perfectly or last as long.
EPDM diaphragms can be made in any size, thickness, or hardness. Reinforcement, custom shapes, and color options are available for OEMs and special projects.
| ✅ Customization | 🛠️ Details | Customer Benefit |
|---|---|---|
| Size and thickness9 | Any dimension for perfect fit | No leaks, easy installation |
| Hardness10 | Shore A 40~90 for needed flexibility | Matches pressure, cycle life |
| Fabric insert | Nylon or polyester mesh | High pressure, long life |
| Color/marking | Black, white, custom | ID for different systems |
| Certification11 | FDA, WRAS, KTW | Approved for regulated markets |
I always invite buyers to send drawings or specs. We make prototypes for approval before mass production.
Conclusion
EPDM diaphragms provide long-lasting, reliable sealing for water, steam, and outdoor systems. Certified and custom options are available for any project.
Need a custom EPDM diaphragm or technical support?
Contact Julong Rubber or Request a Quote for expert solutions.
