Buyers often hear the term HNBR but struggle to understand what it really means. Some confuse it with standard nitrile, while others assume it behaves like Viton.
HNBR (Hydrogenated Nitrile Butadiene Rubber) is a synthetic elastomer made by hydrogenating NBR. It offers superior heat, oil, and ozone resistance compared to standard nitrile rubber.
I have seen many engineers upgrade from NBR to HNBR when performance demands rise. Let’s take a closer look.
How is HNBR made?
HNBR is produced by hydrogenating nitrile butadiene rubber (NBR). This process adds hydrogen to the polymer chain, reducing double bonds.
Hydrogenation improves thermal stability, chemical resistance, and mechanical strength, making HNBR tougher than regular NBR.
I once explained to a customer that NBR is like a standard engine oil, while HNBR is like a fully synthetic oil. Both serve the same purpose, but one has a much higher performance range.
HNBR vs NBR Structure
| Feature | NBR1 | HNBR2 |
|---|---|---|
| Polymer structure | Unsaturated double bonds | Hydrogenated, fewer double bonds |
| Heat resistance3 | Up to 120°C | Up to 150–165°C |
| Ozone resistance4 | Poor | Excellent |
| Chemical resistance5 | Moderate oils and fuels | Stronger resistance |
| Mechanical strength6 | Standard | Higher tensile and tear strength |
Hydrogenation7 makes the difference. Fewer double bonds mean higher stability against heat and oxidation.
What are the properties of HNBR?
HNBR combines elasticity with strong resistance to heat, oil, and wear. It bridges the gap between NBR and high-end rubbers like FKM.
HNBR offers high tensile strength, abrasion resistance, low compression set, and excellent resistance to oils, fuels, and ozone.
In my experience, HNBR parts survive longer in automotive8 engines compared to standard NBR. Customers appreciate the longer service intervals.
Key Properties of HNBR
| Property | Performance Level |
|---|---|
| Temperature range9 | -40°C to +165°C (short peaks to 180°C) |
| Oil resistance10 | Excellent, better than NBR |
| Ozone/weathering11 | Excellent |
| Abrasion resistance12 | High |
| Compression set13 | Low, maintains sealing force |
| Mechanical strength6 | Superior tensile and tear strength |
These properties make HNBR ideal for demanding environments where standard elastomers fail.
Where is HNBR used?
HNBR is popular in automotive8, oil and gas, industrial machinery, and HVAC systems14. It is chosen for seals, hoses, and O-rings in tough conditions.
HNBR is used in automotive seals, oil drilling equipment, industrial hoses, compressors, and hydraulic systems where high performance is required.
I supplied HNBR seals for compressors in HVAC projects. The material handled refrigerants like R134a and R1234yf with excellent durability.

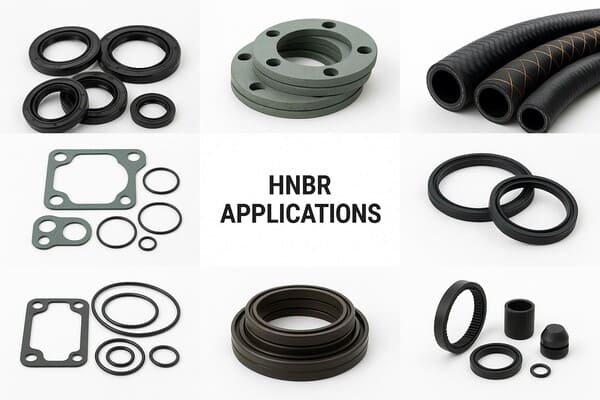

HNBR Applications
| Industry | Application Examples |
|---|---|
| Automotive | Timing belts, O-rings, fuel system seals |
| Oil & gas | Blowout preventers, packer seals, hoses |
| HVAC | Compressor O-rings, refrigerant seals |
| Industrial | Hydraulic seals, gaskets, vibration mounts |
| Aerospace | Fuel system components, high-strength seals |
HNBR is often the go-to choice when NBR cannot meet the stress levels of advanced equipment.
HNBR vs NBR vs FKM: Which one to choose?
Engineers often ask me whether they should use NBR, HNBR, or FKM. Each has strengths, costs, and weaknesses.
HNBR sits in the middle between NBR and FKM. It has better resistance than NBR but is more affordable than FKM.
I like to guide customers with a clear comparison table. This helps them see why HNBR is often the “sweet spot” choice.
Performance Comparison15
| Feature | NBR | HNBR | FKM (Viton) |
|---|---|---|---|
| Max temperature16 | ~120°C | ~165°C (180°C peak) | ~200–230°C |
| Low temp. resistance17 | Down to -40°C | Down to -40°C | Down to -25°C |
| Oil/fuel resistance18 | Good | Excellent | Outstanding |
| Ozone/weathering | Poor | Excellent | Excellent |
| Acid resistance | Limited | Moderate | Strong |
| Abrasion resistance | Moderate | High | High |
| Cost | Low | Medium | High |
A real case: One of my HVAC clients used NBR O-rings in compressors running on R410a refrigerant. After only 6 months, seals hardened and leaked due to high pressure and heat. We suggested switching to HNBR. The new seals lasted more than two years without failure. This upgrade reduced downtime and cut replacement costs by half. That was a clear example of HNBR’s advantage over NBR.
What are the limitations of HNBR?
Even with its strengths, HNBR is not perfect. It is more expensive than NBR and still not as resistant as FKM in extreme chemical environments.
HNBR’s main limitations are its higher cost, limited chemical resistance to strong acids, and lower maximum temperature compared to FKM.
I usually tell buyers: if your system sees very high heat or aggressive chemicals, FKM may be worth the cost. If you want a balance of cost and performance, HNBR is a solid choice.
Conclusion
HNBR is a hydrogenated form of nitrile rubber. It balances durability, heat resistance, and oil resistance, making it ideal for demanding sealing applications.
-
