What is ISO 3302-1?

In the rubber industry, consistency is key. ISO 3302-1 is the standard that helps ensure that consistency across rubber products. But what exactly does it mean, and why is it so important?

ISO 3302-1 is an international standard that specifies dimensional tolerances for rubber products, like gaskets, seals, and molded parts. It ensures that rubber products meet the required performance standards.

To understand how ISO 3302-1 works, let’s explore what it covers, why it’s important, and how it impacts rubber product manufacturing.

What is ISO 3302-1 and why is it important?

ISO 3302-1¹ might seem like a technical term, but it’s fundamental to ensuring the quality and reliability of rubber products worldwide. Let’s break it down to see why it matters.

ISO 3302-1 sets the guidelines for dimensional tolerances of rubber products, ensuring that they meet global standards for consistency and functionality. These tolerances are critical for ensuring rubber products fit and perform as expected.

ISO 3302-1 plays a crucial role in rubber product manufacturing. Without it, manufacturers could produce parts that don’t meet performance expectations, leading to failures or inefficiencies. Understanding what it covers can help manufacturers and buyers ensure they’re getting the quality they need.

Defining ISO 3302-1

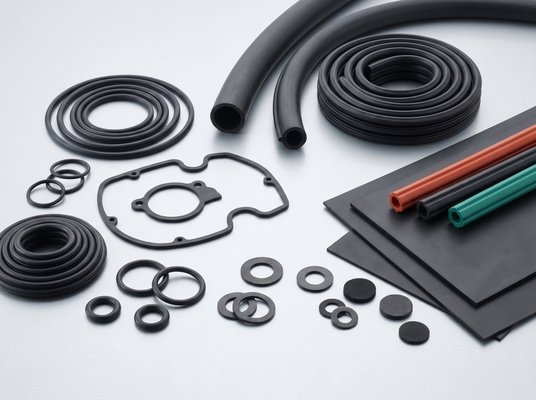

ISO 3302-1 is an international standard that specifies dimensional tolerances for rubber products², like gaskets, seals, and molded parts. It’s part of a broader set of guidelines developed by the International Organization for Standardization (ISO) to ensure consistency and quality in manufacturing. Specifically, ISO 3302-1 focuses on solid rubber parts made through processes like molding or extrusion, helping manufacturers and buyers agree on how much variation in size is acceptable.

Tolerance Classes

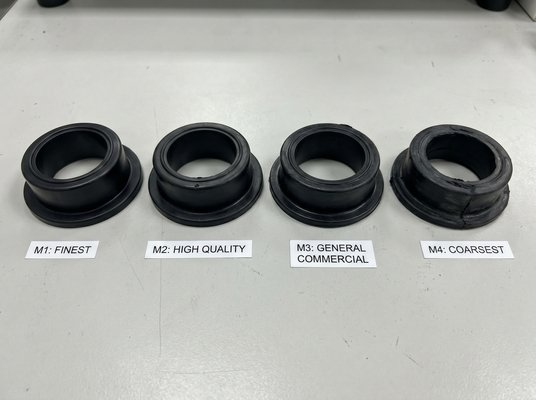

The standard divides tolerances into four classes—M1, M2, M3, and M4—based on precision:

• M1: Tightest tolerances, for high-precision applications (e.g., aerospace or medical devices).

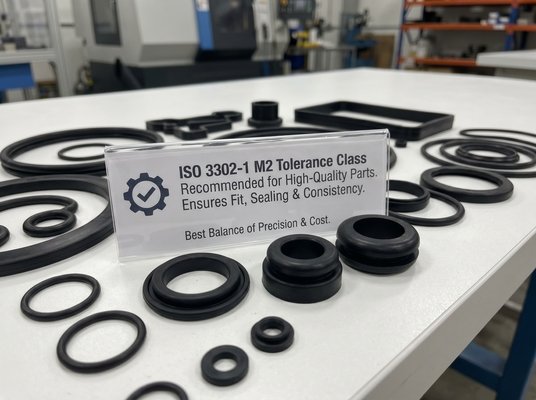

• M2: Moderately tight, common in general industrial uses (e.g., automotive seals).
• M3: Looser tolerances, for less critical parts.
• M4: Coarsest, often for non-critical or highly flexible components.

Each class defines allowable deviations in millimeters depending on the part’s nominal size. For instance, a 10 mm thick gasket under M2 might have a tolerance of ±0.35 mm, meaning it could range from 9.65 mm to 10.35 mm and still be within spec. The standard also considers rubber’s quirks—like shrinkage after molding or elasticity—that affect final dimensions.

Tolerance Table M Classes for Molded Rubber Products

The table below shows the dimensional tolerances for different nominal dimensions under each class of ISO 3302-1:

Nominal Dimension (mm)	Class M1 Tolerance (mm)	Class M2 Tolerance (mm)	Class M3 Tolerance (mm)	Class M4 Tolerance (mm)
0.00 - 4.00	±0.08	±0.10	±0.15	±0.25
4.00 - 6.30	±0.10	±0.12	±0.20	±0.25
6.30 - 10.00	±0.10	±0.15	±0.20	±0.30
10.00 - 16.00	±0.15	±0.20	±0.25	±0.40
16.00 - 25.00	±0.20	±0.20	±0.25	±0.50
25.00 - 40.00	±0.20	±0.25	±0.35	±0.60
40.00 - 63.00	±0.25	±0.35	±0.50	±0.80
63.00 - 100.00	±0.35	±0.40	±0.60	±1.00
100.00 - 160.00	±0.40	±0.50	±0.70	±1.30
160.00 -	±0.30%	±0.40%	±0.50%	±0.70%

The Role of ISO 3302-1 in Quality Control

By providing a clear set of guidelines, ISO 3302-1 helps manufacturers maintain quality control over their production processes. It ensures that every product is consistent, reliable, and functional within the specified tolerances, reducing the risk of defects and improving overall quality.

How ISO 3302-1 affects the manufacturing of rubber products?

So, how does ISO 3302-1 affect the day-to-day operations of rubber manufacturers? Let’s dive into its impact on production processes and product quality.

ISO 3302-1 helps manufacturers ensure rubber products are made within set tolerances, ensuring consistency and high performance. It impacts production processes and reduces the risk of defective products reaching the market.

The influence of ISO 3302-1 on rubber manufacturing is significant. It not only ensures products meet performance standards but also helps reduce waste and improve efficiency in production.

Consistency in Manufacturing

Manufacturers who adhere to ISO 3302-1 can ensure their products are consistently produced to the same high standards. This consistency is vital, especially when producing large quantities of parts that need to fit into a specific system or machine.

Minimizing Waste

By sticking to precise tolerances, manufacturers can reduce the likelihood of producing defective parts. This minimizes waste and ensures that materials are used efficiently, ultimately lowering production costs.

Enhancing Performance

Rubber products made within the guidelines of ISO 3302-1 are more likely to perform well over time. Consistent dimensions and material properties help ensure the rubber parts provide effective sealing, flexibility, and durability, especially in demanding environments.

How does ISO 3302-1 relate to rubber gasket tolerances³?

When it comes to rubber gaskets, the tolerance requirements are critical for ensuring a proper seal. ISO 3302-1 is directly related to gasket manufacturing by specifying the allowable tolerances.

ISO 3302-1 provides specific guidelines for rubber gasket tolerances, ensuring they fit properly and function effectively. It sets the dimensional and material tolerances that ensure reliable gasket performance.

For rubber gaskets, adhering to the tolerances set by ISO 3302-1 is essential to ensuring that they perform correctly in sealing applications. Even minor deviations from the prescribed tolerances can lead to leaks or failures, which is why this standard is crucial.

Dimensional Tolerances for Gaskets

ISO 3302-1 defines the acceptable limits for the size and shape of rubber gaskets. This ensures that the gasket fits perfectly in its groove, providing an effective seal that prevents leaks and maintains system integrity.

Material Tolerances for Gaskets

In addition to dimensional tolerances, ISO 3302-1 also specifies material properties such as hardness and elasticity. Gaskets need to be made from rubber that meets these material requirements to ensure they compress properly and maintain a good seal over time.

Sealing Performance

When rubber gaskets are made according to ISO 3302-1 standards, they are more likely to provide the reliable sealing performance required in various applications. Whether in industrial machinery, HVAC systems, or automotive engines, precise tolerances are key to preventing leaks and ensuring long-lasting performance.

What are the benefits of using ISO 3302-1 in rubber product manufacturing?

So, why should manufacturers adopt ISO 3302-1? The benefits are clear – it ensures high-quality products, improves production efficiency, and enhances customer satisfaction.

Adopting ISO 3302-1 improves quality, efficiency, and consistency in rubber product manufacturing. It helps ensure products meet performance standards and reduces waste.

The adoption of ISO 3302-1 brings many benefits to manufacturers, from ensuring consistent product quality to enhancing overall efficiency. Let’s explore these advantages in detail.

Improved Product Quality

By following the precise guidelines of ISO 3302-1, manufacturers can produce rubber parts with a high degree of consistency. This leads to better performance and fewer defects in the final products, enhancing overall quality.

Cost-Effective Manufacturing

Although adhering to ISO 3302-1 might require additional effort, it can ultimately save money by reducing the need for rework and minimizing defects. Fewer defective parts mean less waste and more efficient use of raw materials.

Enhanced Customer Satisfaction

When customers know that a manufacturer follows internationally recognized standards like ISO 3302-1, they can trust that the products will meet their specifications. This builds confidence in the manufacturer’s capabilities and improves long-term customer relationships.

Conclusion

In conclusion, ISO 3302-1 is more than just a set of rules—it’s a vital standard that ensures quality, performance, and consistency in rubber products. Whether you are a manufacturer or a buyer, understanding and adhering to these tolerances can significantly improve the reliability and functionality of rubber components.

---
