What is Rubber Molding?

Many engineers struggle with getting custom rubber parts that fit and perform as needed. I have seen delays and failures simply because people don’t understand the basics of rubber molding.

Rubber molding is a manufacturing process where raw rubber is shaped into final products using heat and pressure in a mold cavity. This process creates seals, gaskets, hoses, and custom parts with precise dimensions and properties.

Understanding rubber molding can help you avoid common problems, reduce waste, and get the performance you need from your parts. Let me share how this process works and what makes it critical for the rubber industry.

How does rubber molding work?

Many people think rubber parts are just cut or extruded, but molding allows for complex shapes, tight tolerances, and strong mechanical properties.

Rubber molding works by placing uncured (raw) rubber into a heated mold. The mold closes, applying heat and pressure, causing the rubber to flow and fill the cavity. The rubber cures (vulcanizes), taking the exact shape of the mold before being removed as a finished part.

Rubber Molding Process Steps

I often guide customers through sample mold trials to optimize cure time and pressure for their part design. Getting these details right makes a big difference in part quality.

What are the main types of rubber molding processes⁵?

Not every rubber part is made the same way. Choosing the right molding method depends on part shape, size, volume, and performance needs.

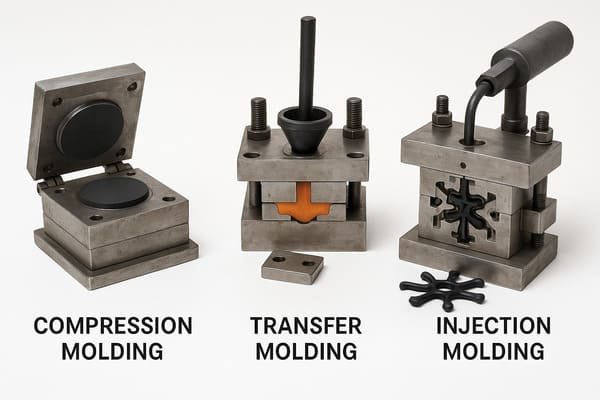

The three main rubber molding processes are compression molding, transfer molding, and injection molding. Each offers unique advantages for different applications and production scales.

Rubber Molding Types Table

• Compression molding⁶ is great for O-rings, gaskets, and thick parts.
• Transfer molding⁷ works well for parts with metal inserts or complicated shapes.
• Injection molding⁸ is best for large quantities and intricate geometries.

In my factory, we select the molding process based on customer drawings, material type, and budget.

What are the benefits of rubber molding⁹ compared to other methods?

Rubber molding unlocks part shapes and features that extrusion or die cutting cannot achieve. It also offers tighter tolerances and better mechanical properties.

Rubber molding allows for complex geometries, over-molding with metal or plastic inserts, custom hardness, and surface finishes. Molded parts have better strength, compression set, and sealing ability compared to cut parts.

Benefits Table

When clients need a waterproof gasket or a custom-shaped vibration isolator, I always recommend molding for the best fit and performance.

What materials can be molded using rubber molding?

Each application needs the right rubber material. The molding process works with a wide range of elastomers to meet every challenge.

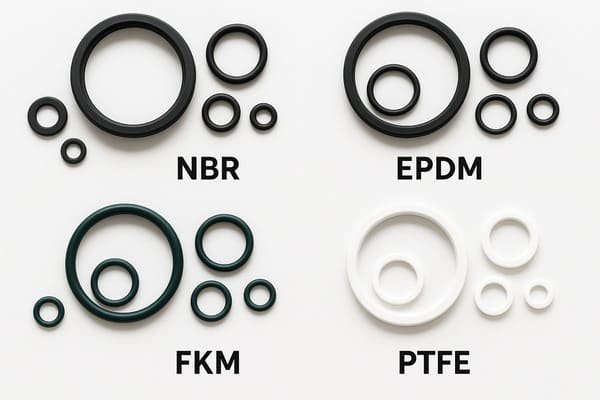

Commonly molded rubbers include EPDM, NBR (nitrile), SBR, FKM (Viton®), silicone, neoprene, and natural rubber. Material choice depends on temperature, chemical resistance, and mechanical needs.

Common Molded Rubber Materials Table

I help customers select the best compound and molding method to match their application—whether that’s a food-grade silicone gasket or a heavy-duty FKM seal for chemicals.

What quality checks are important for molded rubber parts?

Quality starts with the right mold and material but is confirmed by rigorous testing and inspection. I have seen that strict process control prevents defects and ensures long-term reliability.

Key quality checks for molded rubber parts include dimensional inspection, hardness testing, tensile strength, compression set, visual inspection, and aging/weathering tests. Certification for FDA, WRAS, or EN standards is required for regulated uses.

Quality Control Checklist

• Dimension check (calipers, gauges)
• Hardness (Shore A, IRHD)
• Tensile and elongation tests
• Compression set and recovery
• Visual inspection (surface, flash, voids)
• Chemical and temperature resistance
• Certification as needed (FDA, WRAS, EN)

At Julong Rubber, we use advanced test equipment and 100% inspection for key dimensions. I encourage clients to request test reports with every batch.

What should buyers consider when ordering molded rubber parts?

I always remind clients that the final part’s performance depends on many details—not just material and price.

Before ordering, specify material type, hardness, tolerances, certification needs, operating environment, annual volume, and any special features like inserts or colors. Early supplier communication avoids delays and surprises.

Buyer’s Checklist

• Material and hardness
• Part drawing or sample
• Tolerance requirements
• Quantity/annual volume
• Certification (FDA, EN, WRAS, etc.)
• Application environment (temperature, chemicals)
• Special features (color, insert, finish)

At my factory, we offer design assistance, prototyping, and custom formulation to help customers get exactly the part they need—no more, no less.

Conclusion

Rubber molding is the key process for producing custom-shaped seals, gaskets, and parts with excellent performance. Understanding its types, benefits, and quality steps can help you get the right part the first time.
