Leaks at pipe flanges can cause water loss, costly repairs, and even damage to equipment or buildings. Choosing the right gasket for water systems is the key to lasting, leak-free connections.
The best flange gasket for water applications is usually made from EPDM rubber, thanks to its excellent resistance to water, steam, aging, and temperature changes. For drinking water or food-related systems, always select gaskets with WRAS, NSF, or other drinking water certifications.
I have seen many customers fix stubborn leaks and pass pressure tests just by switching to a high-quality EPDM gasket specifically rated for water service.
Why is EPDM rubber the top choice for water flange gaskets?
EPDM (ethylene propylene diene monomer) is widely recognized in the water industry for its strong performance.
EPDM gaskets resist swelling, cracking, and aging when exposed to hot or cold water, steam, and most water treatment chemicals. They stay flexible for years, making them ideal for municipal water supply, HVAC, and fire protection systems.
| ✅ Feature | 🛠️ EPDM Performance | Real-World Benefit |
|---|---|---|
| Water resistance1 | No swelling, no leaks | Safe, long-lasting sealing |
| Temperature range | -40°C to +120°C (short up to 150°C) | Works in hot and cold water |
| Chemical compatibility2 | Handles chlorine, common disinfectants | Durable in treated water |
| Aging resistance | UV, ozone, and weather-proof | Outdoor/underground use |
| Drinking water approved3 | WRAS, NSF, ACS, KTW grades available | Legal for potable water use |
When I help clients with public or industrial water projects, EPDM is almost always my first recommendation.
What certifications should you look for in water system gaskets?
Drinking water systems and food industry pipelines require strict safety and hygiene.
Look for EPDM flange gaskets with WRAS (UK), NSF/ANSI 61 (USA), ACS (France), KTW (Germany), or DVGW approvals. These certifications guarantee the gasket material is non-toxic, tasteless, odorless, and safe for potable water contact.
| ✅ Certification | 🛠️ Region/Market | What It Proves |
|---|---|---|
| WRAS | UK, Europe | Approved for drinking water |
| NSF/ANSI 614 | North America | Safe for potable water |
| ACS | France | Drinking water certification |
| KTW, DVGW | Germany, EU | Water safety/hygiene |
For non-potable systems, a standard industrial EPDM gasket is usually enough. For food, beverage, or sensitive uses, insist on certification.
Are there alternatives to EPDM for water flange gaskets?
EPDM is the first choice, but other materials can work in certain situations.

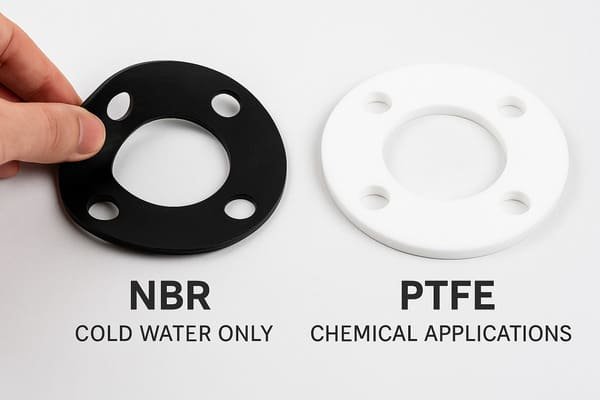

NBR (nitrile) gaskets are sometimes used for cold water, but are less resistant to hot water and steam. PTFE (Teflon) gaskets are used for aggressive chemicals, but are more expensive and less flexible. Avoid using general-purpose rubber or SBR, which may swell, crack, or fail over time.
| ✅ Material | 🛠️ Strengths | 🛠️ Weaknesses |
|---|---|---|
| EPDM5 | Best for all water, steam | None for water systems |
| NBR6 | Oil-resistant | Poor for hot water/steam |
| PTFE7 | Chemically inert | Stiff, costly, no flexibility |
| SBR | Cheap, basic use | Poor water/aging resistance |
For almost all water pipelines, fire mains, HVAC, and municipal projects, EPDM is the safest, most cost-effective choice.
Can water flange gaskets be customized?
Every piping system is different, and custom gaskets solve tricky problems.
Water flange gaskets can be custom-molded or cut in any size, thickness, or profile—ring, full-face, or with bolt holes. Materials can be certified for potable water, and reinforced for higher pressure or movement.
| ✅ Custom Option | 🛠️ Benefit | Typical Project |
|---|---|---|
| Any diameter/shape | Perfect fit, less risk of leaks8 | Old pipework, OEM systems |
| Special thickness | Matches flange spacing/pressure | High-pressure lines |
| Food/water grade | Safe, legal for sensitive uses9 | Hospitals, food factories |
| Reinforced/fabric | Extra strength/cycle life10 | Pump flanges, big valves |
I help clients check drawings, specs, and regulatory needs for every project.
Conclusion
The best flange gasket for water is a certified EPDM rubber gasket—safe, durable, and resistant to water, steam, and treatment chemicals. Always check for drinking water approvals in potable systems, and consider custom options for unique or demanding projects.
