Seal failures can cause leaks, downtime, and high energy costs. Choosing the right cross-section can prevent these problems and improve system performance.

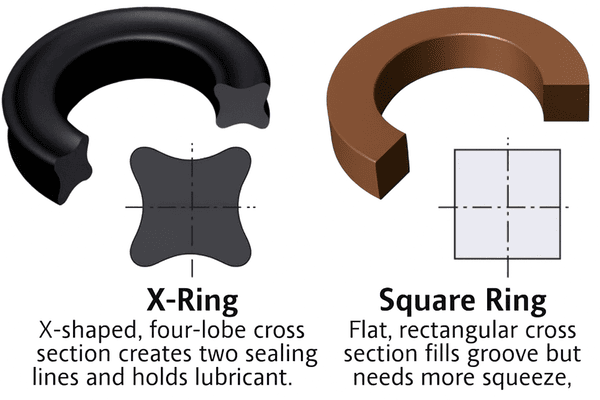

A quad ring has an X-shaped, four-lobed cross-section that provides two sealing lines and retains lubrication. A square ring has a flat rectangular cross-section that fills the groove fully but usually needs more squeeze and generates more friction.
I use both profiles in different projects. I choose based on motion type, pressure, friction targets, and cost.
How does a quad ring work better in dynamic sealing?
Dynamic seals fail faster if they roll, twist, or generate too much friction. Shape can fix that.
A quad ring has four lobes that form two sealing lines on each surface. This geometry resists twisting, seals at lower squeeze, and holds lubricant in the valleys between lobes.
Benefits of the quad ring1 profile
- Two sealing lines2 improve leak control at low pressure.
- Lower squeeze reduces breakaway force and stick–slip.
- Lubricant pockets protect against dry-running wear.
- X-shape resists spiral failure in reciprocating motion.
| Feature | Quad Ring | Square Ring |
|---|---|---|
| Cross-section | X-shape, 4 lobes | Rectangle |
| Sealing lines per surface | 2 | 1 wide contact band |
| Lube retention | Yes | No |
| Dynamic friction | Lower | Higher |
| Twist resistance | High | High (but edges can catch) |
| Best for | Pneumatic, vacuum, high-cycle motion | Static clamp joints, slow stroke |
✅ In my experience, switching from an O-ring to a quad ring in a pneumatic rod seal often reduces breakaway force by 20–30%.
🛠️ This small change improves motion smoothness and extends seal life.
When is a square ring3 the better choice?

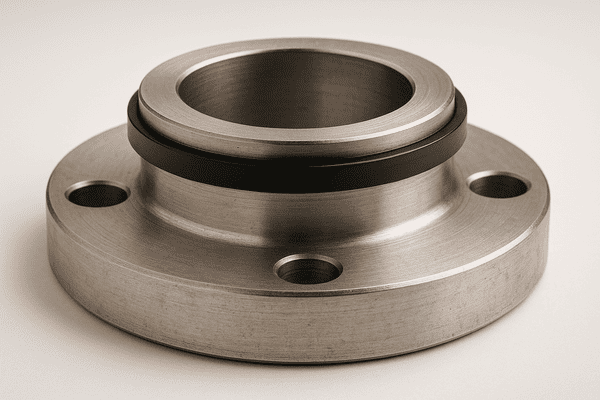

Square rings, also called lathe-cut rings, have a simple rectangular profile. They excel in static sealing where high clamp load4 is available.
A square ring fills the groove more completely than an O-ring, giving a wide sealing face that stays stable under compression. This makes it reliable for static joints and slow movement.
Benefits of the square ring profile
- Wide contact area spreads load evenly.
- Stable under high clamp force without rolling.
- Easy to produce in custom diameters5 via lathe-cutting.
- Often more cost-effective for large sizes.
Typical uses
- Flange and cover seals in static joints
- Slow telescoping mechanisms
- Large-diameter static gaskets6
- Retrofit situations with simple grooves
| Factor | Square Ring Advantage |
|---|---|
| Stability in static joints | High |
| Size flexibility | Excellent |
| Cost for large rings | Lower |
| Groove simplicity | Easy to machine |
✅ Square rings are not ideal for fast dynamic applications because the flat edges can increase friction and wear.
🛠️ In static service, they offer robust sealing without complex profiles.
How do I choose between a quad ring and a square ring?
I match the profile to the duty cycle, motion type, and performance needs.

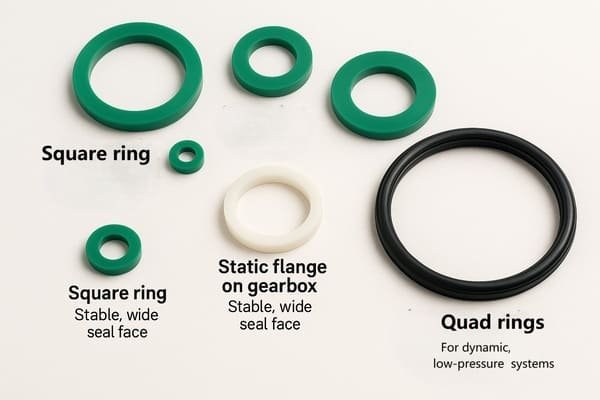

I choose quad rings for dynamic, low-pressure systems where low friction and stability are critical. I choose square rings for static joints or very slow-moving applications where groove fill and stability matter more than friction.
Selection factors
Motion type
- Reciprocating or oscillating: Quad ring for lower μ and anti-twist stability.
- Static clamp joint: Square ring for groove fill and even load.
Pressure and squeeze
- Low squeeze needed: Quad ring seals effectively without high compression.
- High clamp load available: Square ring benefits from full groove fill.
Lubrication
- Little or no lubrication: Quad ring holds lubricant in valleys.
- Well-lubricated static joint: Square ring is fine.
| Condition | Preferred Profile | Reason |
|---|---|---|
| Pneumatic cylinder rod7 | Quad ring | Low friction, no twist |
| Vacuum pick head | Quad ring | Better sealing lines |
| Static flange on gearbox8 | Square ring | Stable, wide seal face |
| Large-diameter hatch seal9 | Square ring | Customizable, cost-effective |
Materials for both profiles
Both quad rings and square rings are available in the same elastomers10. I select based on media, temperature, and hardness11.
| Material | Shore A | Temperature (°C) | Strengths | Limits |
|---|---|---|---|---|
| NBR | 60–80 | −30 to +100 | Oil-resistant12, cost-effective | Ozone aging13 |
| HNBR | 70–85 | −30 to +140 | Heat/ozone resistance | Higher cost |
| EPDM | 60–80 | −40 to +130 | Steam, water, ozone | Swells in oil |
| VMQ | 50–70 | −60 to +200 | Low μ, cold flexibility | Abrasion resistance14 |
| FKM | 70–80 | −20 to +200 | Heat, chemical resistance | Poor low-temp elasticity |
| PU | 85–95 | −30 to +110 | Wear, extrusion resistance15 | Not for hot water/steam |
✅ I adjust hardness: softer for low-pressure dynamic sealing, harder for static or high-load joints.
🛠️ Proper squeeze and gland fill are as important as the profile shape.
Conclusion
Quad rings and square rings differ in shape and performance. I choose quad rings for smooth, stable dynamic sealing and square rings for strong, cost-effective static joints.
-
