Choosing the right rubber material is critical for reliable performance in engines, transmissions, and industrial machines. I have seen both ACM and NBR rubbers used for seals and hoses, but selecting the wrong one can lead to early failures and costly repairs.

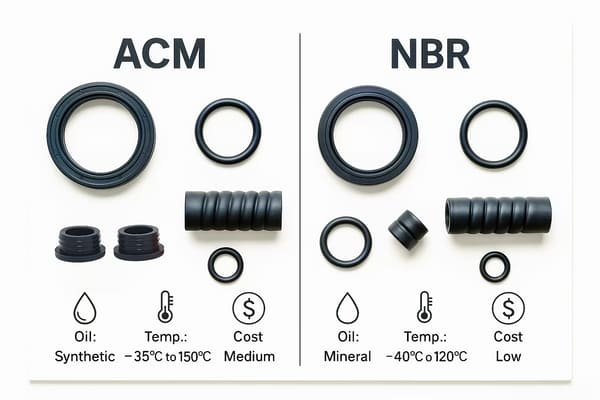

ACM (Acrylic Rubber) is valued for its superior resistance to heat and synthetic oils, while NBR (Nitrile Rubber) is known for its strong resistance to mineral oils, fuels, and a lower price. Their main differences lie in oil type compatibility, temperature range, and cost.
Let’s break down their key differences and help you decide which is best for your application.
How do the chemical structures of ACM and NBR differ?
Knowing the chemistry helps explain why each rubber excels in certain environments. I often explain this when helping customers compare materials.
ACM rubber is made from ethyl acrylate or similar monomers, providing a saturated polymer backbone for better heat and aging resistance. NBR is made from acrylonitrile and butadiene, making it especially resistant to mineral oils and fuels.
Structure Comparison Table
| Rubber Type | Main Monomers | Notable Features |
|---|---|---|
| ACM1 | Ethyl acrylate, others | Heat, oxidation, synthetic oil resist |
| NBR2 | Acrylonitrile, butadiene | Mineral oil/fuel resist, affordable |
ACM’s saturated structure boosts its heat and aging performance, while NBR’s nitrile content determines its oil resistance level.
What are the differences in oil and fluid resistance?
Engineers always ask if a rubber can withstand their specific fluids. Here’s what I see in the field.
ACM rubber excels in synthetic oil and automatic transmission fluid (ATF) environments, while NBR rubber is best for mineral oils, greases, and fuels. NBR does not perform as well with synthetic oils or oxidizing fluids as ACM does.

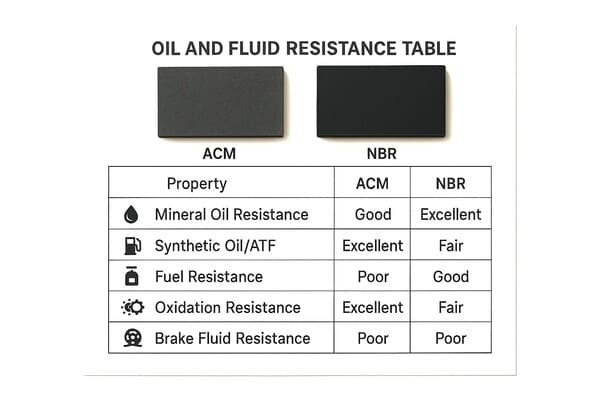

Oil and Fluid Resistance Table
| Property | ACM | NBR |
|---|---|---|
| Mineral Oil Resistance3 | Good | Excellent |
| Synthetic Oil/ATF | Excellent | Fair |
| Fuel Resistance4 | Poor | Good |
| Oxidation Resistance5 | Excellent | Fair |
| Brake Fluid Resistance6 | Poor | Poor |
I recommend ACM for automatic transmission systems and NBR for fuel and oil lines.
How do ACM and NBR compare in temperature resistance and aging?
Temperature limits and long-term durability often drive material choice. I help clients avoid failures by matching these properties to their real operating environment.

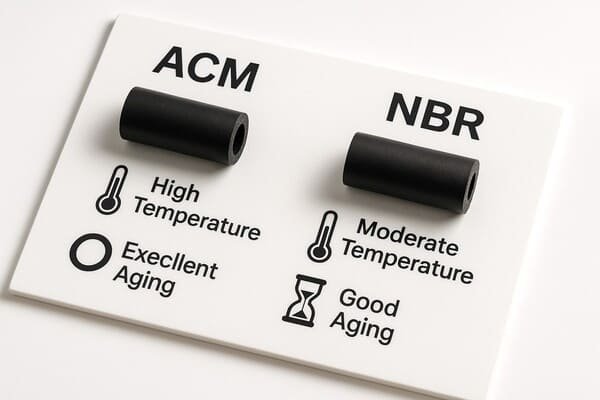

ACM rubber handles higher temperatures, typically up to 150°C, with excellent resistance to aging, oxidation, and hot oil. NBR is limited to about 110°C, and tends to age faster under heat and air exposure.
Temperature and Aging Table
| Property | ACM | NBR |
|---|---|---|
| Max Service Temp (°C) | 150 | 110 |
| Aging Resistance7 | Excellent | Moderate |
| Compression Set8 | Low (better) | Moderate |
For transmission and hot oil seals, I always recommend ACM. For general hydraulic and fuel systems, NBR is often sufficient and more cost-effective.
What are the cost and processing differences between ACM and NBR?
Budget and manufacturability are always important. I see companies weigh cost vs. lifetime regularly.
NBR rubber is more affordable and easier to process, making it a popular choice for general-purpose seals and hoses. ACM rubber costs more due to its specialized properties and is used when long life at high temperatures is needed.
Cost and Processing Table
| Factor | ACM | NBR |
|---|---|---|
| Raw Material | Higher cost | Low/Moderate |
| Processing | Specialized curing | Standard, easy |
| Availability | Less common | Widely available |
For price-sensitive applications, NBR is hard to beat. For premium or OEM automotive parts, ACM is often specified.
Where are ACM and NBR typically used?
The final application usually determines the best material. I help customers match rubber type to real-world needs.

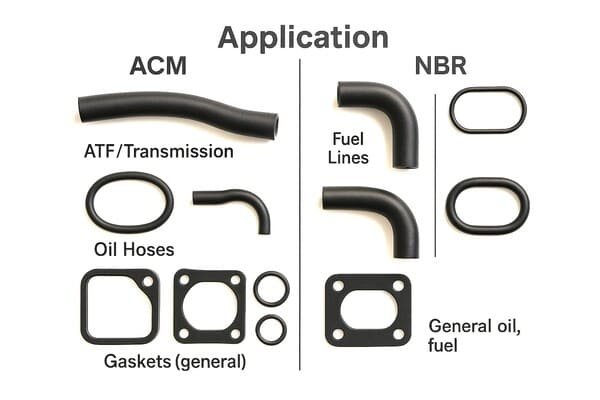

ACM rubber is mainly used in automotive transmission seals, ATF hoses, and hot oil systems. NBR is found in fuel lines, oil hoses, O-rings, and many industrial gaskets where exposure to mineral oils is common.
Application Table
| Application Type | ACM Recommended | NBR Recommended |
|---|---|---|
| ATF/Transmission | Yes | No |
| Fuel Lines | No | Yes |
| Oil Hoses9 | Sometimes | Yes |
| Gaskets (general) | Hot oil, long life needed | General oil, fuel |
I always recommend confirming the operating fluid and temperature before choosing a material.
Conclusion
ACM and NBR rubbers have different strengths: ACM excels in hot, synthetic oil environments with superior aging, while NBR is best for mineral oil and fuel at lower cost. Choosing the right one ensures your seals and hoses last longer and perform reliably.
-
